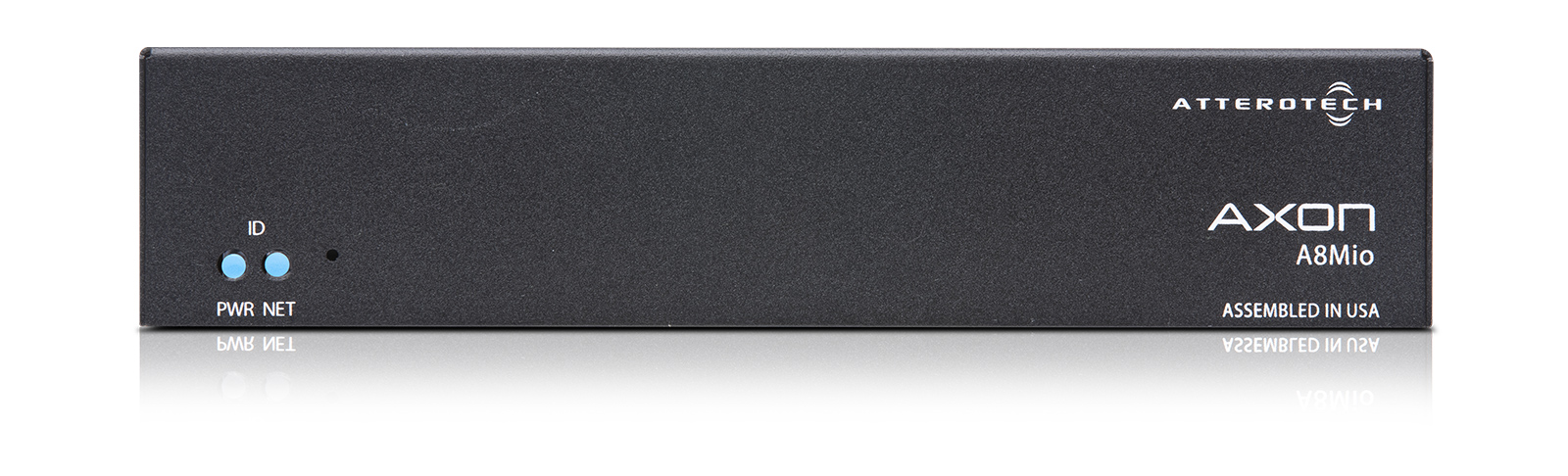

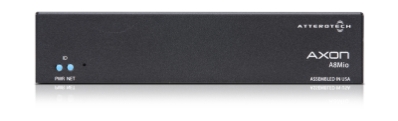

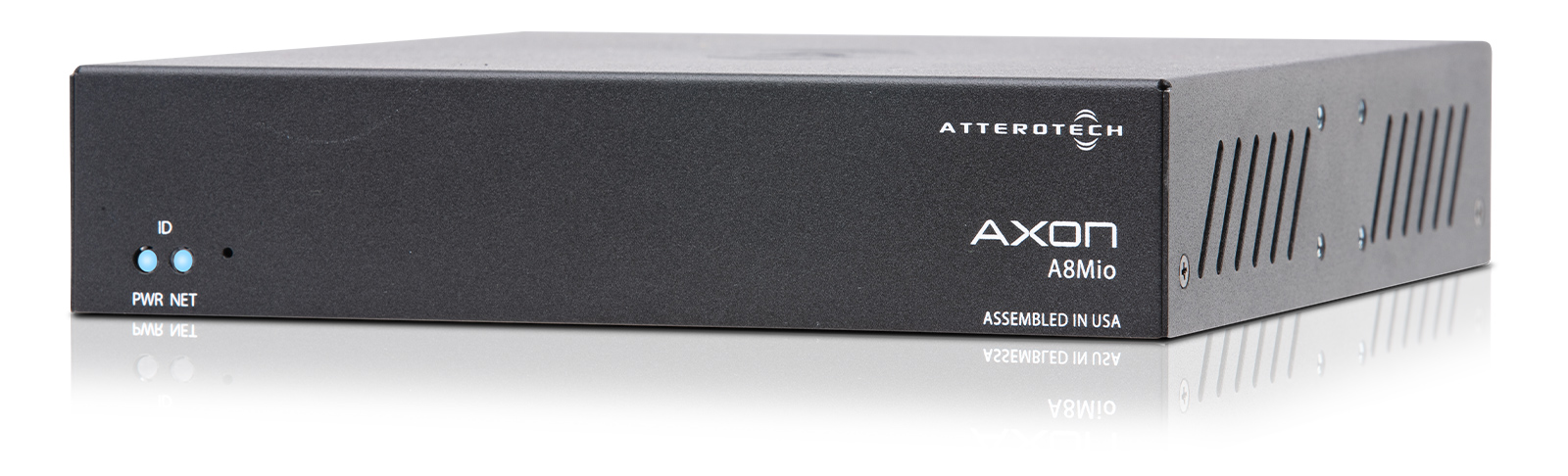

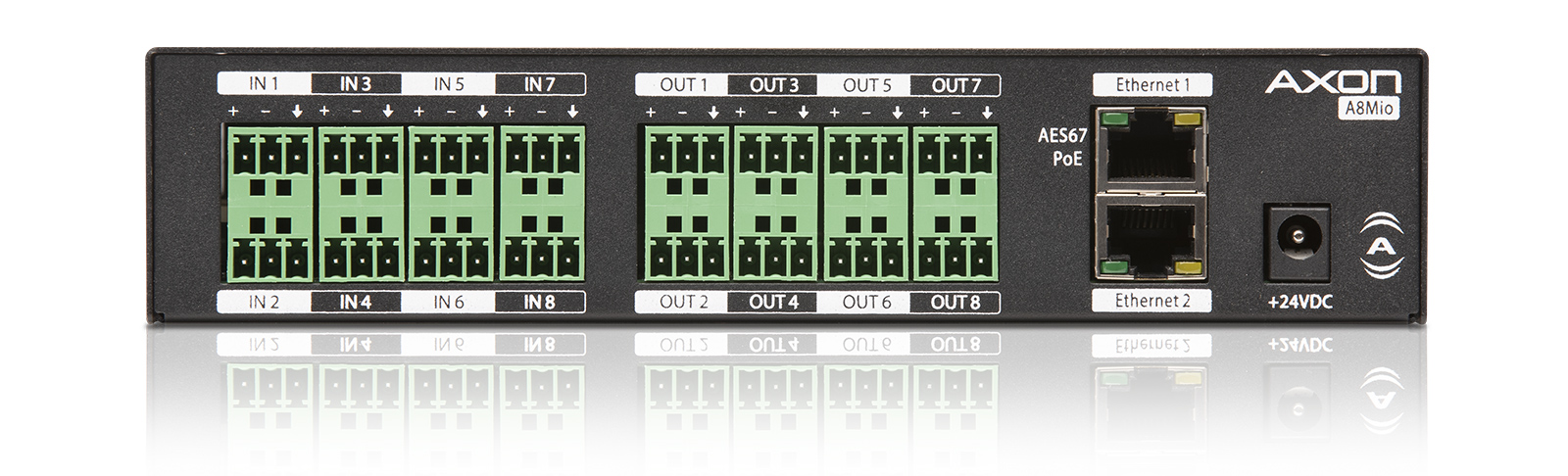

The Axon A8Mio and A4Mio are high-performance, AES67 network audio I/O endpoints
for installed AV systems, including the Q-SYS Ecosystem. These fixed-channel endpoints
offer a cost-effective I/O solution to integrate analog audio channels into a wide range of
network audio applications while maintaining small form factors.
Simple Q-SYS Ecosystem Integration: A Q-SYS Designer control plugin helps
expedite the installation process, allowing integrators to drag-and-drop Axon
audio endpoints into a Q-SYS design without the need for any complicated control
programming. The plugin enables full preamp control on Q-SYS control devices.
A4Mio Specifications
Audio Inputs (Mic/Line)
Connector type 3.81 mm Euro, 3 position (16-28 AWG)
Gain -8 dB to +34 dB gain, 1 dB increments
Input impedance >2 KΩ at any gain
Maximum input level -8 dB gain, max input = +16.5 dBu (+24 dBu
w/pad)
Phantom power +48 V, software selectable per channel
THD+N <0.05% @ 1 kHz, -3 dBFS input. 20-20 kHz
Frequency response 20-20 kHz, +/- 1 dB (Line), 50-20 kHz +/- 1
dB (Mic)
EIN -125 dBu
Network
Physical layer Ethernet
Connector (s) Dual RJ-45
Cable quality CAT-5e or better, UTP
Transmission speed 1 Gbps
Audio Line Outputs
Connector type 3.81 mm Euro, 3 position (16-28 AWG)
Maximum output levels +24 dBu
THD+N 20 Hz-20 kHz, +/-1 dB
Frequency response 20-20 kHz, +/- 1 dB (Line), 50-20 kHz +/- 1
dB (Mic)
Dynamic range 100 dB Environmental
Operating temperature 0 to 40° C
Power
PoE power 802.3.af/at Class 0
Power consumption
<7 W (with phantom power enabled and
powered by 24 V DC)
<8 W (on PoE)
Power options PoE, +24 V DC (PoE and external DC can
be used for redundancy)
General
Dimensions (HWD) 1.6 x 5.4 x 7.9 in
(40.6 x 137.2 x 200.7 mm)
Weight 1.8 lb (0.83 kg)
Mounting options
Rack-mountable, 1 RU 1/3-rack width
Surface-mountable
*All mounting hardware offered as
accessories
Regulatory compliance
FCC Part 15, Subpart B, Class A EMC CE
(EN55032 EMC
