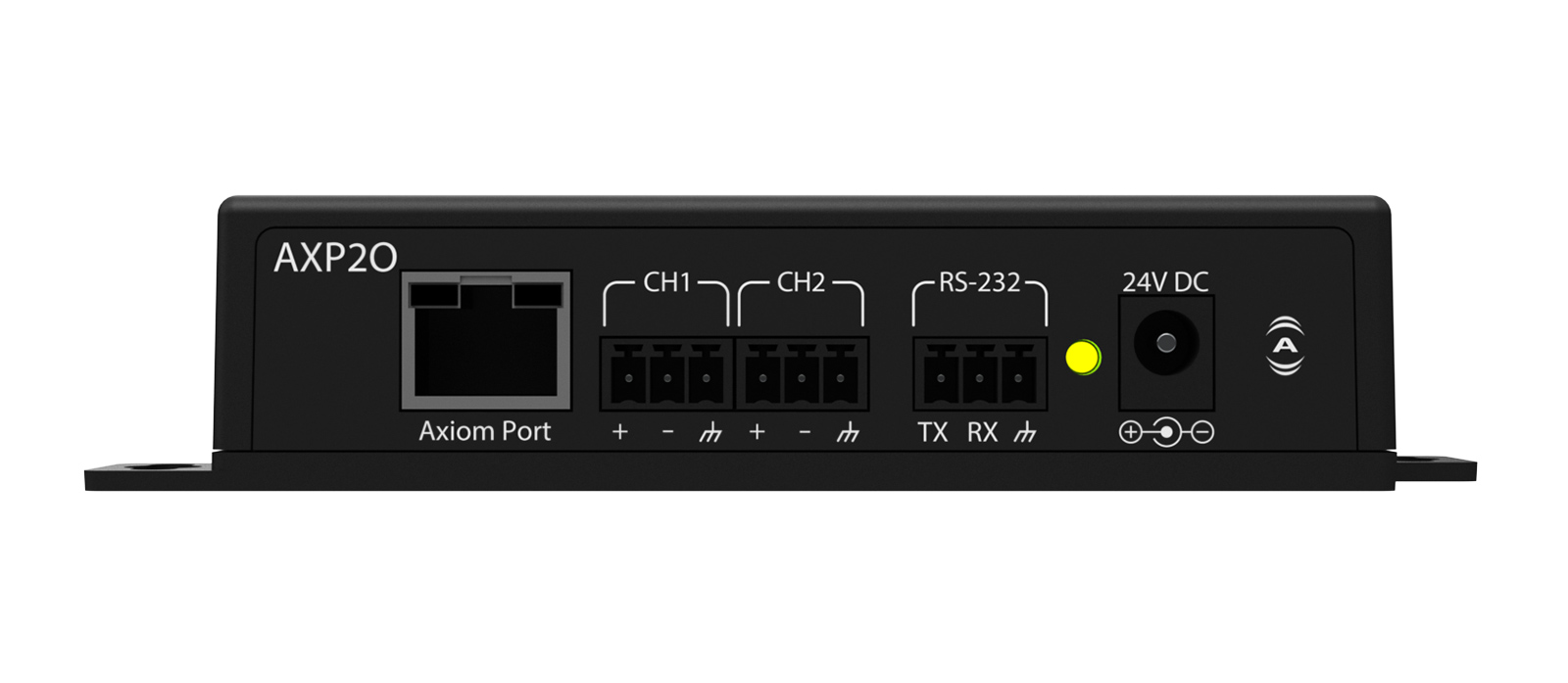

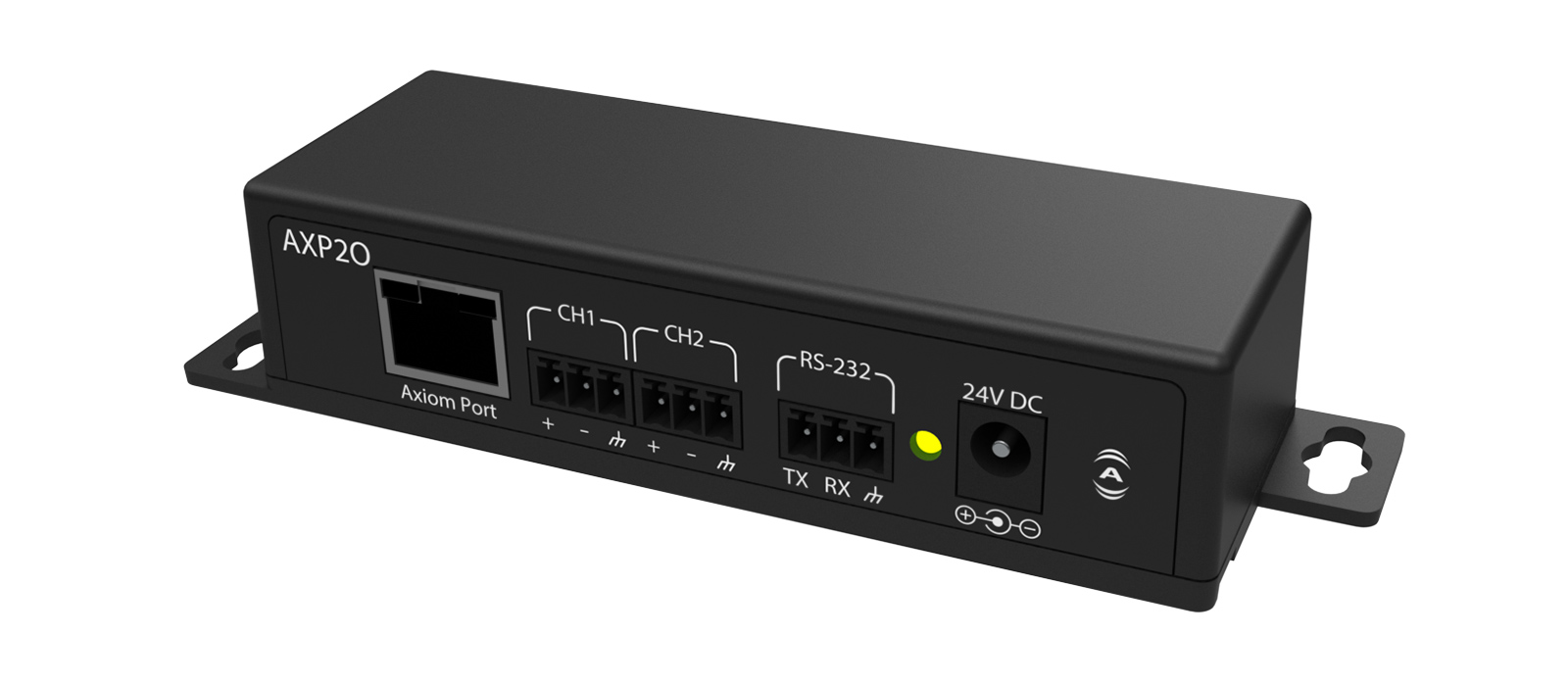

The Attero Tech by QSC Axiom AXP2O expander unit pairs with Axiom devices (ML1,
unBT2A) to provide balanced mono or stereo analog audio outputs on 3-pin depluggable
connectors for easy connection to commercial audio equipment, including QSC Premium
Business Music mixers and amplifiers.
Audio Outputs
Connector type 3.81 mm, 3 position de-pluggable
terminal blocks
Input impedance mic: 2k Ω
line: 10k Ω
Maximum input levels +20 dBu
THD+N <0.05% @ 1 kHz, -3 dBFS input,
20 Hz - 20 kHz
Frequency response 20-20 kHz, +/- 1 dB
Dynamic range >100 dB
Specifications
Axiom Port
Physical layer analog audio, RS-232 Control,
24 V DC power
Connector (s) 8P8C
Cable quality CAT-5e or higher, UTP
Power Specifications
DC power 24 V DC
(center positive barrel jack)
Power consumption <30 mA @ 24 V / 0.72 W
General
Dimensions (HWD) 5.6 x 4.2 x 1.7 in
(142.2 x 106.7 x 43.2 mm)
Weight 0.15 lb (0.07 kg)
Certifications
WEEE
RoHS
REACH
Operating temperature 0 to 40° C
Control Port
Connector type 3.81 mm, 3 position de-pluggable
terminal blocks
Physical layer RS-232
Dimensions:
0.425 0.425
5.105
0.860
X2 0.602
1.140
0.763
0.574
0.518
0.308
0.080 0.000 0.000
1.642
1.140
