Features
• Ethernet-based control solution for
the Q-SYS Ecosystem and other
third-party AV products supporting
UDP, TCP/IP control
• Available Q-SYS control plugin -
no programming required
• Menu customization with unIFY
Control Panel and control mapping
with Q-SYS Designer plugin
• High-Contrast OLED display
provides easy-to-read menus and
status
• Simple controls facilitate simple
user experience over assigned AV
system functions
• Assignable LED light bar, provides
optional feedback for zone level and
system state

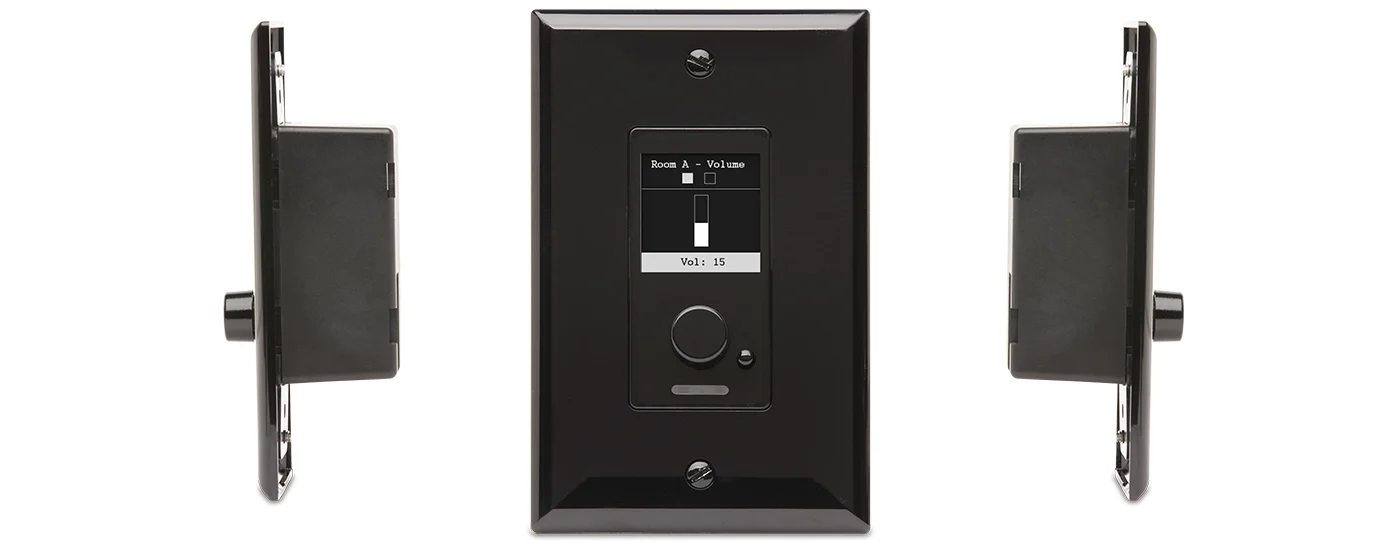

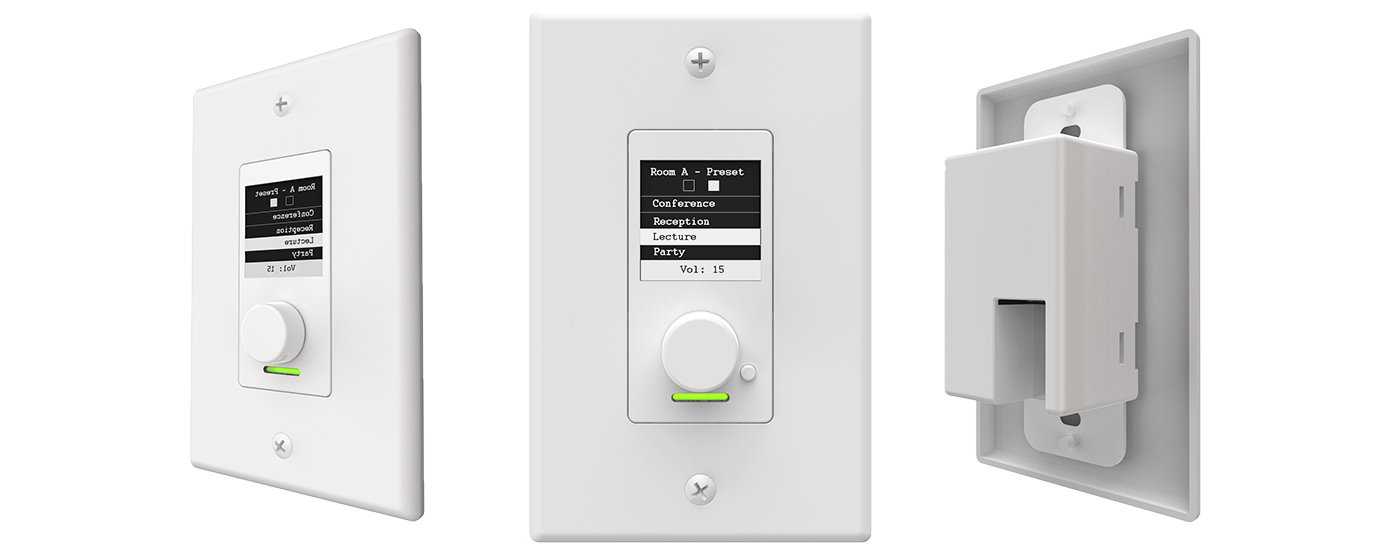

• In-wall, single gang design allows
simple and unobtrusive installation

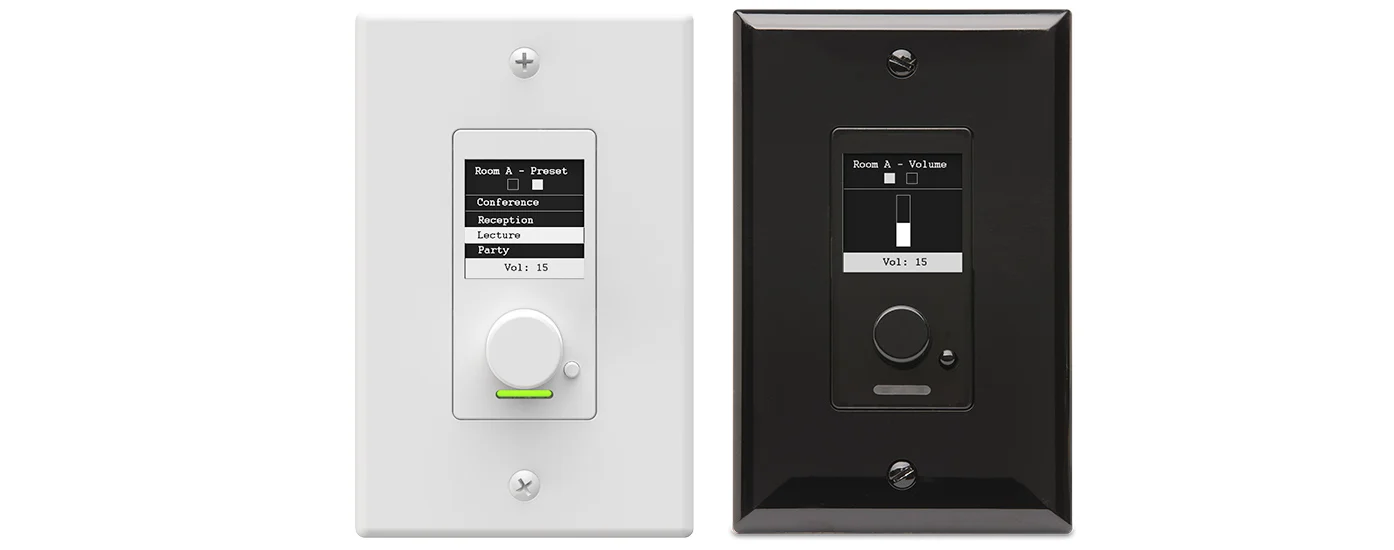

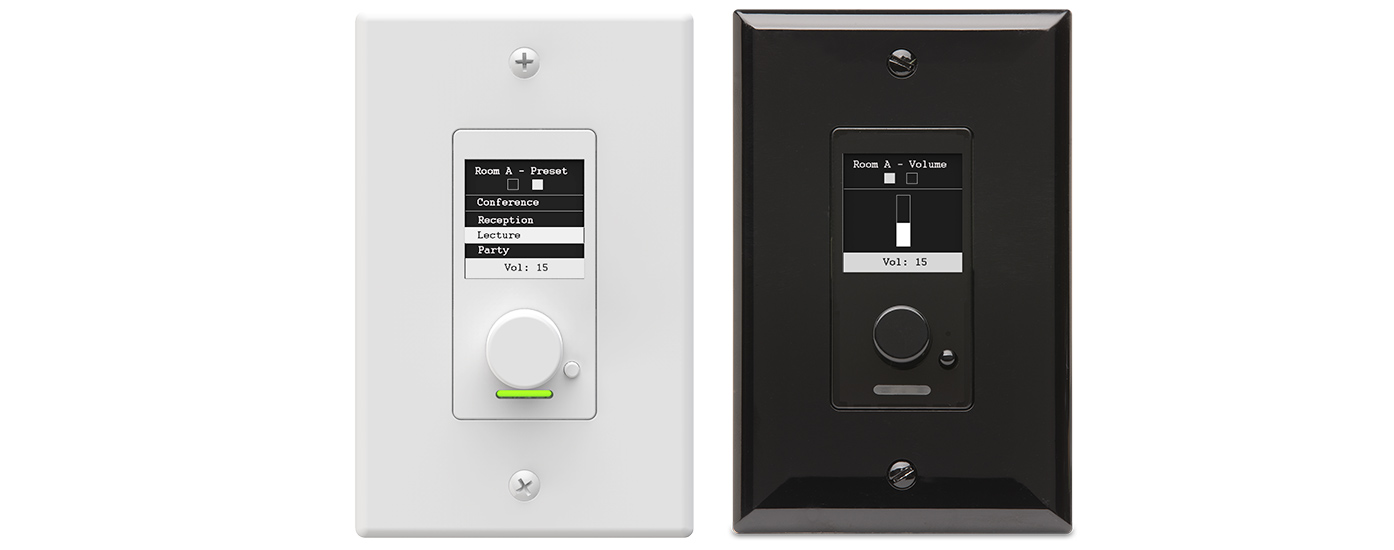

• Minimalist design includes both
black and white Decora faceplates
to provide aesthetic appeal to a
variety of venues
• PoE powered - simple, single CAT5e/CAT-6 cable installation
System Details Axon C1
User interface One rotary / pushbutton encoder knob; one pushbutton toggle selector
Display type 1.5 in (38.1 mm) diagonal high-contrast OLED display
Status indicator RGB LED bar, adjustable brightness
Specifications
System Details Axon C1
Network physical layer Ethernet
Network connector(s) RJ-45
Network transmission speed 100 Mbps
PoE power 802.3af Class 0
Power consumption < 2 W Max
Device width 1.74 in (44.19 mm)
Device height 4.2 in (106.68 mm)
Device depth 1.77 in (44.96 mm)
In-wall: 1.19 in (30.23 mm)
Device weight 0.25 lbs (0.113 kg)
Certifications FCC Part 15, Subpart B, Class A EMC
CE (EN55032 EMC / EN55035 ESD
WEEE
RoHS
REACH
Operating temperature 0° C to 40° C
