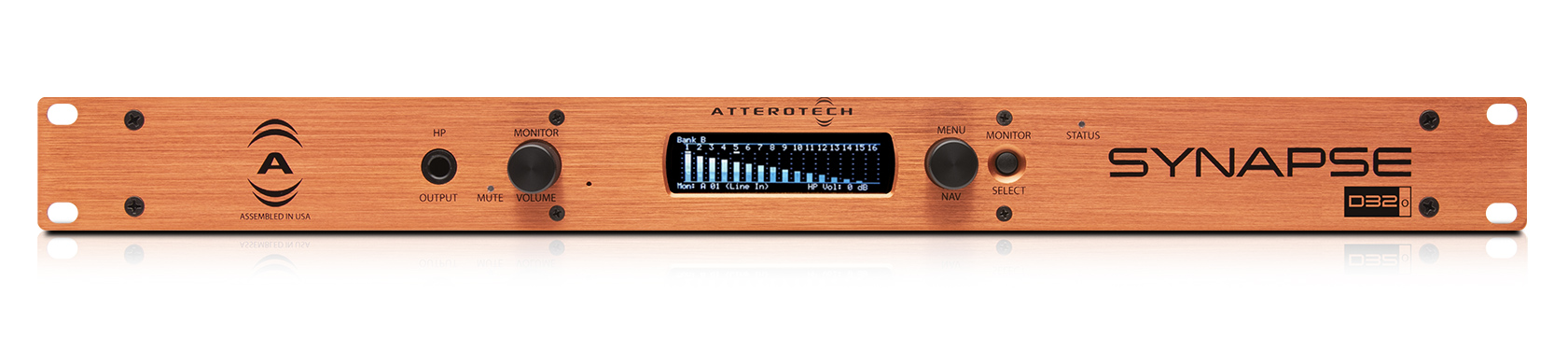

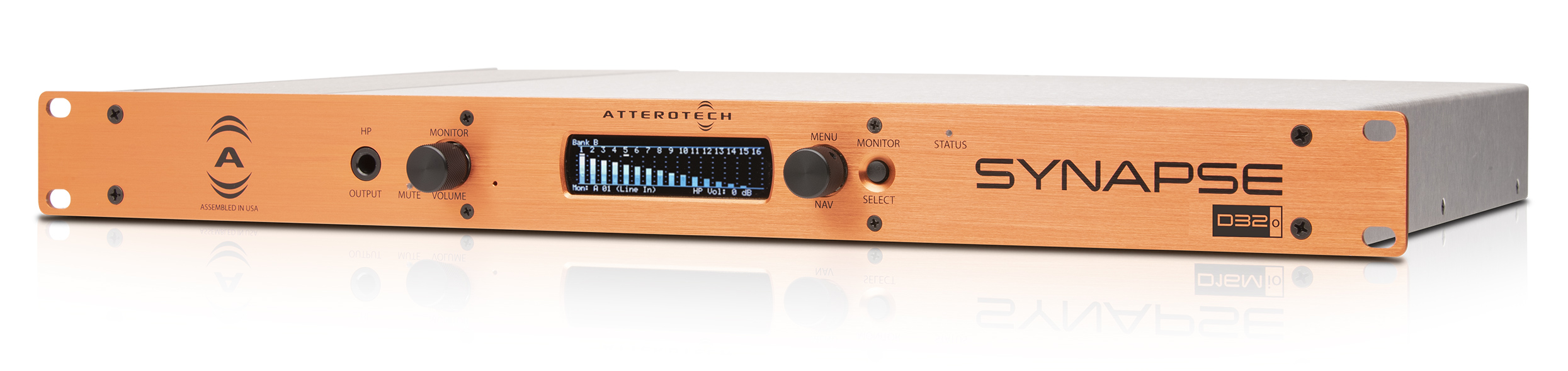

The D32o is a high performance, high channel density networked audio interface
supporting Dante™ with AES67 interoperability. It features 32 line level balanced outputs
with digitally controlled output attenuation from 0 to -100 dB. All outputs are available

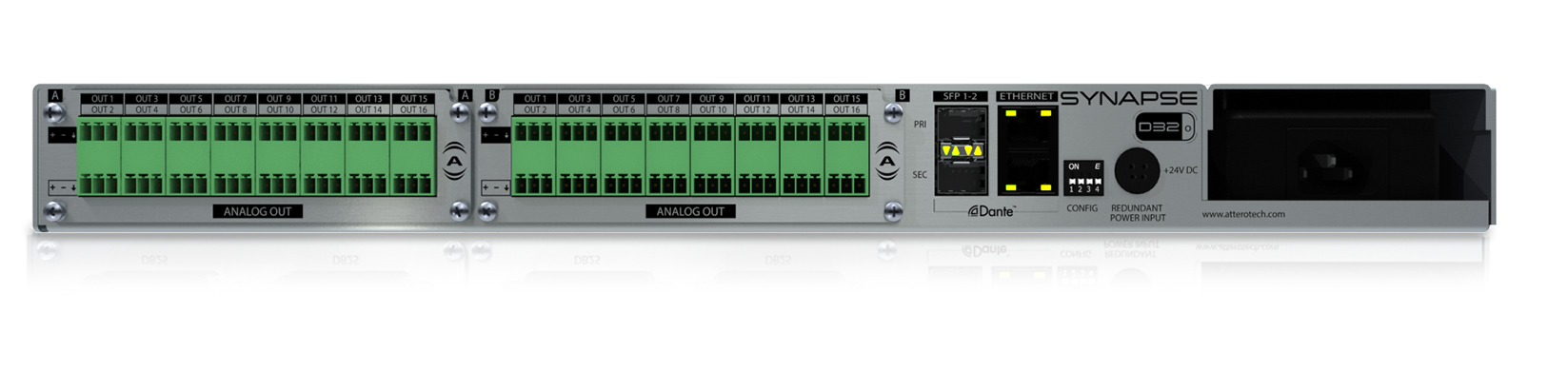

independently for routing from the Dante / AES67 network audio interfaces. The D32o is
available in terminal block or DB-25 options for optimum ease of connectivity and wiring.
A Q-SYS control plugin is available that enables simple integration of the Synapse D16Mio
into the Q-SYS Ecosystem.
Specifications
General
Dimensions (HWD)
1 RU form factor
1.75 x 19 x 12.5 in
(44.5 x 482.6 x 5080 mm)
Weight 6 lb (2.72 kg)
Operating temperature 0 to 40° C
Regulatory compliance
FCC 47CFR Parts 15B and 18 (Class A), EN
55011, ICES-003, CE (EN55032 Class A and
EN55024 Class A)
Headphone Output
Connector 1/4 in TRS jack
Controls mute / volume encoder
Load 32 Ω minimum
Analog Outputs
Maximum output level +24 dBu
Output impedance 200 Ω
Input type 3-pin XLR-M
Dynamic range >110 dB
THD+N <0.02% @ -3 dBFS
Frequency response 20 Hz to 20 kHz, +/- 0.5 dB
Audio Networking
Protocol support Dante™ with AES67 support
Channel count 32 Dante RX
Modes Switched or Redundant Mode
Latency 0.250 ms minimum
Ports 2 - Gb copper on RJ-45, 2 - Gb SFP
Sample rates 16/24-bit, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Environmental
Power 110 V-220 V AC Input, with optional external
24 VDC redundant supply
Power consumption <20 W
