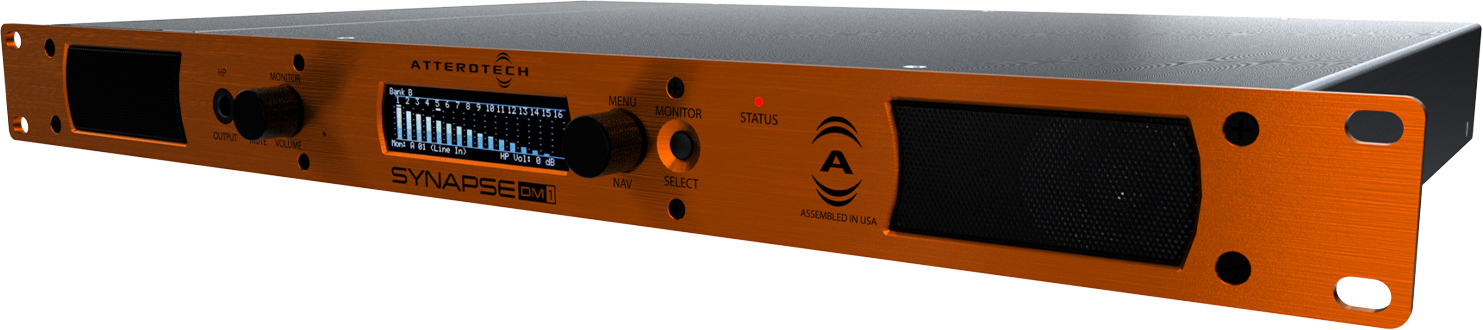

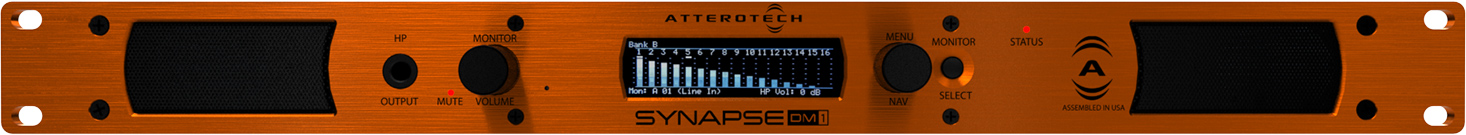

The Synapse DM1 is a rackmount network audio monitor for confidence monitoring of
network audio and local sources at the rack via headphones or through the device's
integrated loudspeakers. The DM1 has two modes of network audio monitoring (selectable
via the device's front panel):
• Standard: Monitor any of the 32 channels assigned to the DM1's Dante/AES67
receiver inputs
• Extended: Allows for subscription-based monitoring of up to 128 Dante/AES67
channels loaded to the DM1 (via Attero tech Unify Control Panel Software)

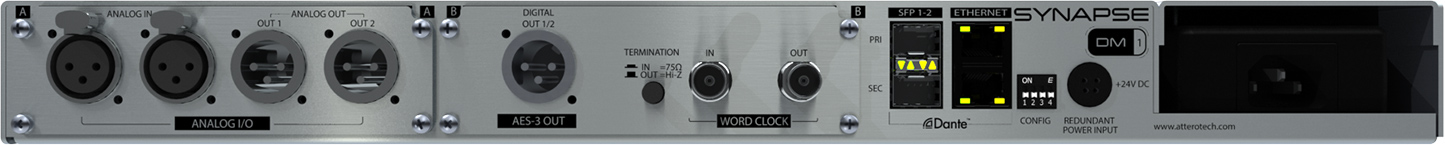

Additionally, it features AES-3 digital outputs for connectivity to full-range powered
speakers or amplifiers, along with two channels of analog I/O for local
source monitoring and network I/O connectivity.
A Q-SYS control plugin is available that enables simple integration of the Synapse DM1
into the Q-SYS Ecosystem.
Specifications
Analog Inputs
Maximum input level +24 dBu
Input impedance 10k Ω
Input type 3-pin XLR-F
Dynamic range >105 dB
THD+N <0.02% @ -3 sBFS
Frequency response 20 Hz to 20 kHz, +/- 0.5 dB
General
Dimensions (HWD)
1 RU form factor
1.75 x 19 x 12.5 in
(44.5 x 482.6 x 5080 mm)
Weight 6 lb (2.72 kg)
Operating temperature 0 to 40° C
Regulatory compliance
FCC 47CFR Parts 15B and 18 (Class A), EN
55011, ICES-003, CE (EN55032 Class A and
EN55024 Class A)
Headphone Output
Connector 1/4 in TRS jack
Controls Mute / Volume encoder
Load 32 Ω minimum
Analog Outputs
Maximum output level +24 dBu
Output impedance 200 Ω
Input type 3-pin XLR-M
Dynamic range >110 dB
THD+N <0.02% @ -3 dBFS
Frequency response 20 Hz to 20 kHz, +/- 0.5 dB
Audio Networking
Protocol support Dante™ with AES67 support
Channel count 32 Dante RX, 2 Dante TX
Modes Switched or Redundant Mode
Latency 0.250 ms minimum
Ports 2 - Gb copper on RJ-45, 2 - Gb SFP
Environmental
Power 110 V-220 V AC Input, with optional external
24 VDC redundant supply
Power consumption <20 W
Digital I/O
AES-3 AES-3 digital output on 3-pin XLR-M
Word clock Sync I/O on BNC with switchable 75 Ohm
termination on input
