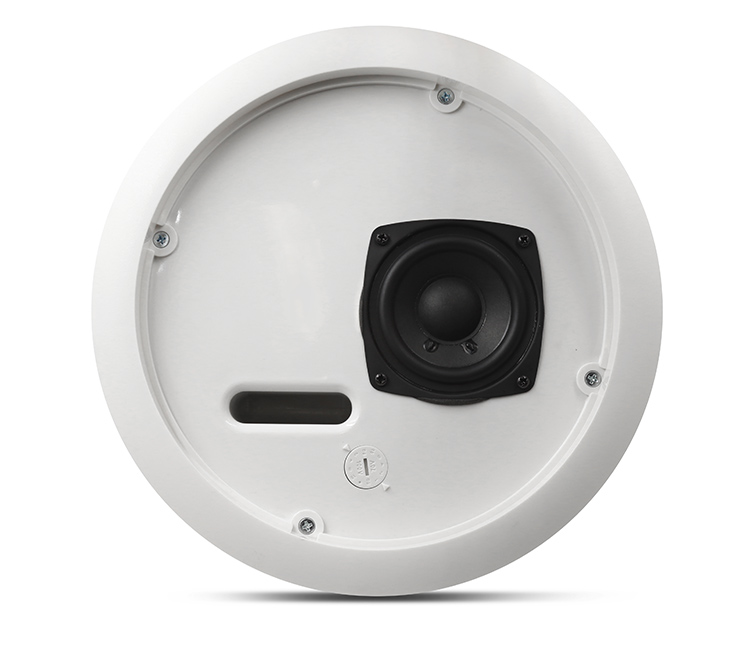

Transducer | 2.75 in (70 mm), weather-treated paper cone |
Effective frequency range | 70 Hz to 20 kHz |
Broad-band sensitivity | 84 dB |
Rated noise power/voltage | 16 W / 11.3 V RMS |
Coverage angle (-6 dB) | 170° (500 Hz to 5 kHz) |
Maximum SPL (continuous / peak) | 96 / 102 dB |
Rated impedance | 8 Ω |
Transformer taps | Bypass: 16 Ω
70 V: 16, 8, 4, 2, 1 W and 8 Ω bypass
100 V: 16, 8, 4, 2, W and 8 Ω bypass |
Input connector type | Euroblock connector with parallel output terminals |
Baffle material | ABS polymer |
Grille material | Powder coated steel |
Back can material | Powder coated steel |
Net weight | 4.2 lb (1.9 kg) |
Product dimensions | 10.35 x 3.82 in (263 x 97 mm) |
Cut-out dimensions | 9 in (229 mm) |
Ceiling capture thickness | 0.25 - 1.5 in (6.35 - 38.1 mm) |
Shipping weight | 13.8 lb (6.3 kg) |
Shipping dimensions (W x D x H) | 25.2 x 14.2 x 7.2 in
(641 x 362 x 184 mm) |
Included accessories | Rails & C-ring for ceiling tile installation |
Optional accessories | AC-MR6 mud ring for sheet rock installation |
