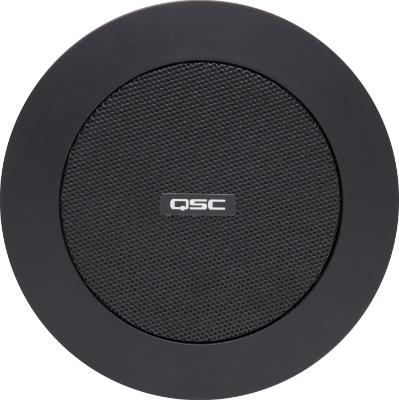

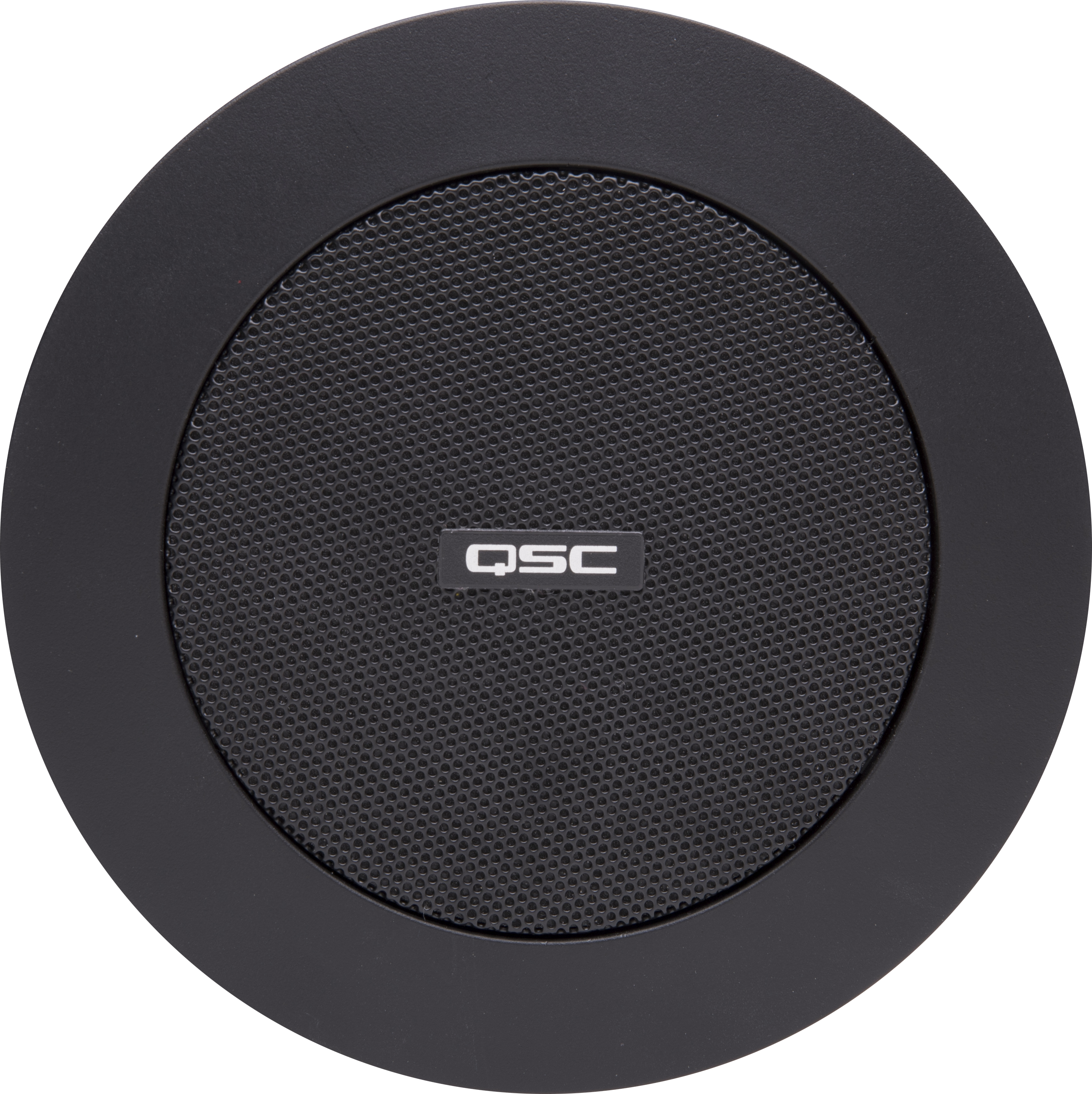

2.75-inch small format ceiling
satellite loudspeaker
Background Music Applications ∙ Retail ∙ Restaurants ∙ Coffee
Shops ∙ Fine Dining ∙ Hospitality ∙ Commercial Spaces
AD-C.SAT
AcousticDesign™ Series
AD-C.SAT
Features
• Consistent tonal characteristics
across the entire AcousticDesign
Series for surface, ceiling, and
pendant applications
• Refined depth and clarity even at
low volume settings
• Mix-and-match capable, any
subwoofer works with any satellite
in the AD Series SUB/SAT line
• Inverted aluminum dome dust cap
• Rated at 16 Ω
• Snap-fit magnetic grill
• Locking 2-pole Euroblock style
connectors
• Removable conduit cover plate
• Removable logo
• 2x long travel dog-ear blind mount
system
• Intrinsic Correction™ voicings
available via Q-SYS Platform
including CXD-Q Series amplifiers
• Available in black (RAL 9011) or
white (RAL 9010)
• Complete EASE, CF2, CAD, &
BIM information available online
• UL1480 and UL2043 certified
The QSC AD-C.SAT is part of the
AcousticDesign™ Series SUB/SAT
loudspeaker line which are ideally suited for
background music applications that require
refined depth and clarity even at lower
volume settings.
The AcousticDesign Series offers integrators
a premium quality installed sound solution
where performance, consistent coverage,
and aesthetics are paramount. Specifically
designed to maintain a consistent tonal
characteristic across the entire family in
ceiling, surface, and pendant enclosures,
the AcousticDesign Series allows integrators
seamless transitions within blended
installations.
The AcousticDesign Series SUB/SAT
loudspeakers have been specifically
designed to be mix-and-match capable.
Any combination of satellites may be paired
with any subwoofer in the SUB/SAT line.

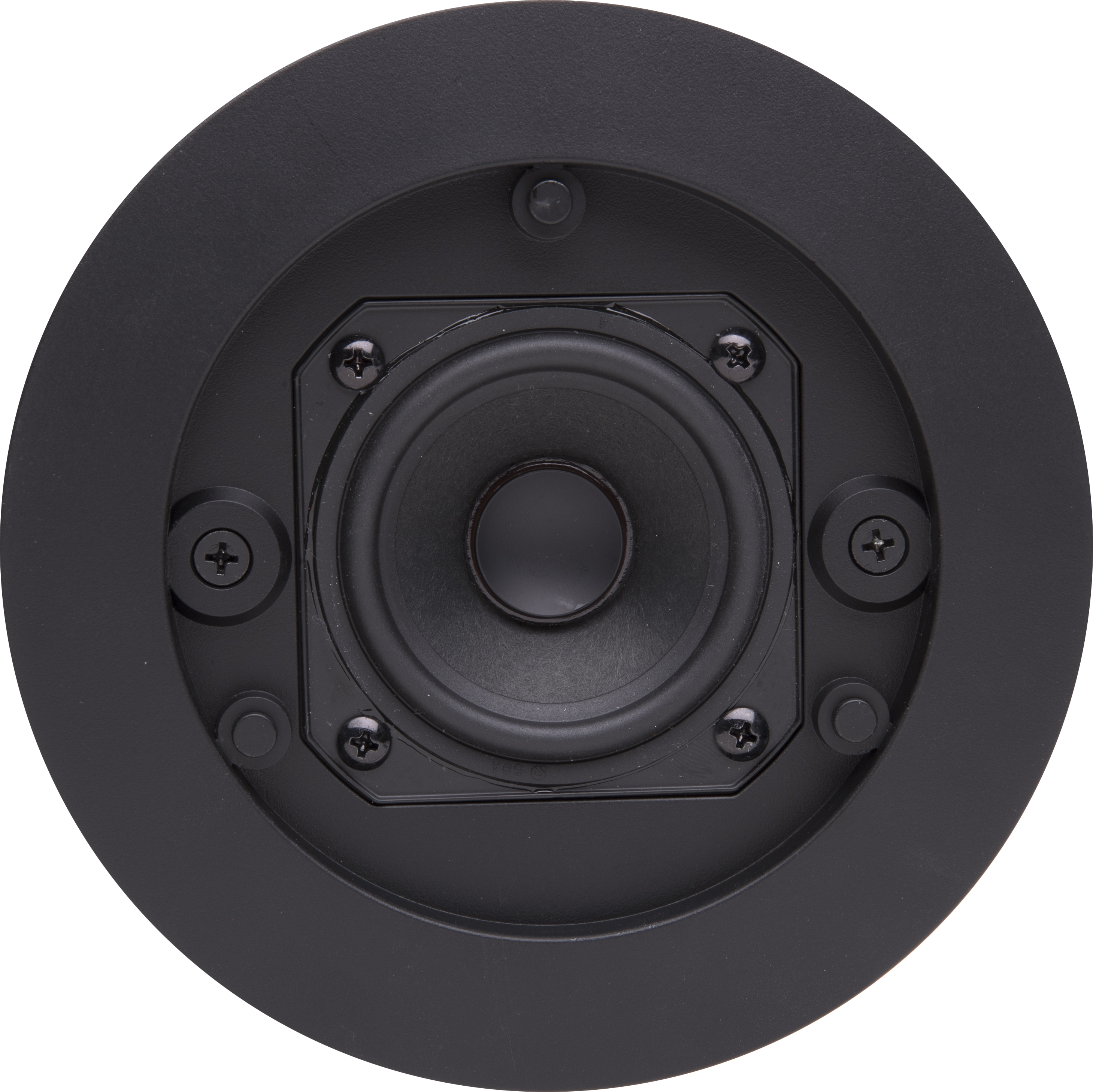

The AD-C.SAT features a high quality
2.75-inch weather treated paper cone
woofer with an inverted aluminum dust cap
for extended high frequency presence within
a sealed enclosure.
These loudspeakers are rated at 16 Ω, and
up to four satellites may be connected to
any AcousticDesign Series SUB/SAT
subwoofer's high-pass filtered outputs.
Satellites also may be used as stand-alone
loudspeakers using an external high-pass
filter.
The input is located behind a removable
conduit cover plate with captive screws to
prevent loss during installation and uses a
locking 2-pole Euroblock style connectors
capable of 12AWG (2 mm) wire thickness.
To retain their stylish aesthetics, the rugged
ABS baffle is further protected by using UV
inhibitors that prevent discoloration and by
a powder coated steel back can. The
magnetic grille features a stick-on logo that
can be removed blemish-free for
installations where branding is not
permitted.

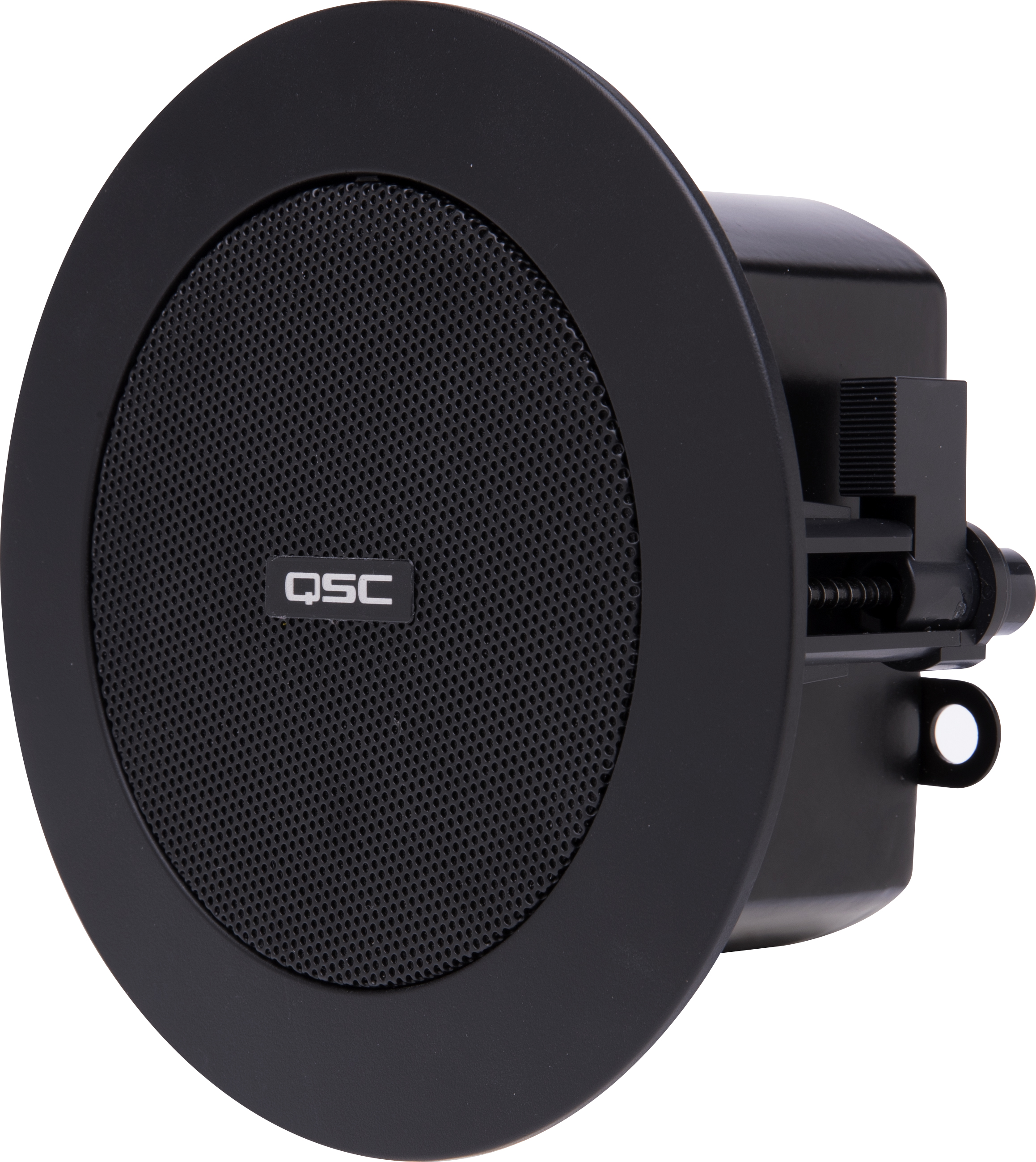

Installers will appreciate the 2x, long travel
dog-ear blind mounting system, which
captures from 0 - 1.75 inches of ceiling
thickness.
Intrinsic Correction™ voicings that optimize
performance and speed the install process
are easily deployed via the MP-M Series
music and paging mixers as well as Q-SYS
Platforms including CXD-Q Series amplifiers,
as part of a complete QSC systems
solution.

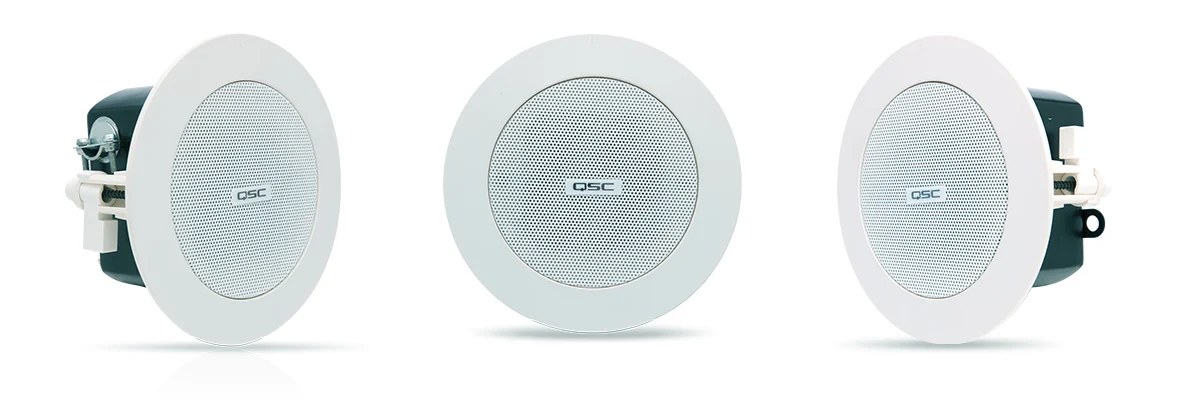

The AD-C.SAT is available in QSC standard
black (RAL 9011) or white (RAL 9010) and
may be painted to match any decor.
For your system integration needs,
complete EASE, CF2, CAD, and BIM files
will be available for download at QSC.com.
AD-C.SAT Details
Specifications
System Details AD-C.SAT
LF transducer N/A
HF transducer 2.75 in (70 mm) weather treated paper cone
woofer
Effective frequency range 1,2,3,7 120 Hz – 20 kHz
Rated noise power / voltage 5 25 W / 20 V (rms)
Sensitivity [dB] (rated @1 W, 1 m) 4 83
Coverage (-6 dB) 2,7,8,9 170° Conical
Directivity index [dB] 2,7,8,9 4.4
Directivity factor 2,7,8,9 2.75
Maximum SPL [dB] (continuous / peak) 6 97 / 100 / 103
Recommended amplifier 25 W per satellite
(with 1st order high-pass filter at 200 Hz)
Impedance 16 Ω
Connector 2-pole Euroblock connectors
Enclosure material Stamped steel, injection-molded ABS baffle
Grille material Stamped steel, perforated, and powder-coated
Ingress protection IP-34
Operating environment Designed for indoor use
Operating temperature range -4 to 122° F (-20 to 50° C)
Cutout dimension Ø 4.5 in (Ø 115 mm)
Net weight 1.39 lb (630 g)
Product dimensions (Ø x H) Ø 5.9 x 3.3 in (Ø 149.6 x 83.4 mm)
Shipping weight (pair packed) 5.1 lb / 2.3 kg
Shipping dimensions (H x W x D) (pair packed) 15 x 9.3 x 3.8 in (382 x 237 x 97 mm)
Shipping weight (master carton , 2 pairs) 10.9 lb / 5 kg
Shipping dimensions (H x W x D) (master carton, 2 pairs) 15.5 x 10 x 8.5 in (394 x 254 x 216 mm)
Included accessories C-ring, Euroblock connector, cut-out template,
grill (pair packed)
Safety agency UL1480, UL2043, NFPA90, NFPA70 suitable for
use in air handling spaces. ROHS, CE compliant.
Baffle meets UL94-V0 and UL94-5VB flamibility
rating; in accordance with IEC60849 / EN60849
systems.
As part of QSC’s ongoing commitment to product development, specifications are subject to change without notice.
Footnotes:
1) -10 dB from rated sensitivity
2) Anechoic chamber, half-space, 4 V, 1 m
3) Reference axis
4) From Thiele-Small parameters @ 4 V, 1 m
5) IEC, 2hrs, 16 ohm nominal, rated noise power [W], rated noise voltage [Vrms]
6) Calculated from rated noise power and sensitivity
7) Reference plane is the plane coincident with the loudspeaker baffle plane. Reference axis is the axis
perpendicular to the reference plane and passing through the center of the baffle. Vertical plane is the plane
intersecting the reference plane at a right angle, including the reference axis and the taps selector knob.
Horizontal plane is the plane intersecting the reference plane and the vertical plane at a right angle, including
the reference axis.
8) Mounted onto IEC baffle, 4 m
9) 500 Hz - 5 kHz
1k 10 k
1 80
1 50
1 20
9 0
6 0
3 0
0
Frequenc y (Hz)
Beamwidth (-6dB) (deg)
2 00 5 00 2 k 5 k 2 0 k
Beamwidth
Sound pressure, Level
100 1k 10k
90
80
70
60
50
50
40
30
20
10
Frequency (Hz)
Sound pressure, Level (dB)
Impedance (ohm)
20 50 200 500 2k 5k 20k
85
75
65
55
45
35
25
15
Frequency Response (Raw)
Frequency Response (Intrinsic Correction™)
Impedance
n 110.0
[4.33]
2X 44.0
[1.73]
4.9
[0.19]
76.3
[3.00]
83.4
[3.28]
n 149.6
[5.89]
Dimensions
1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174
© 2019 QSC, LLC all rights reserved. QSC and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark
office and other countries. All other trademarks are the property of their respective owners. Patents may apply or be pending.
AD-C.SAT Spec Sheet 03/12/2019
