6.5" small format, low profile,
ceiling mount loudspeaker
Restaurant ∙ Retail ∙ Audio Visual ∙ Education ∙ Concourses ∙ Casinos ∙
Transportation Terminals ∙ Worship Facilities ∙ Large System Ancillary Support

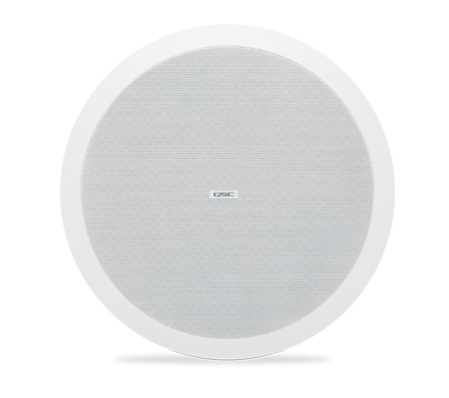

AD-C6T-LP
AcousticDesign™ Series
AD-C6T-LP
Features
• Consistent tonal characteristics
across the entire AcousticDesign
family for surface, ceiling, and
pendant applications
• DMT (Directivity Matched
Transition™) waveguide ensures
smooth, uniform frequency
response over the coverage area

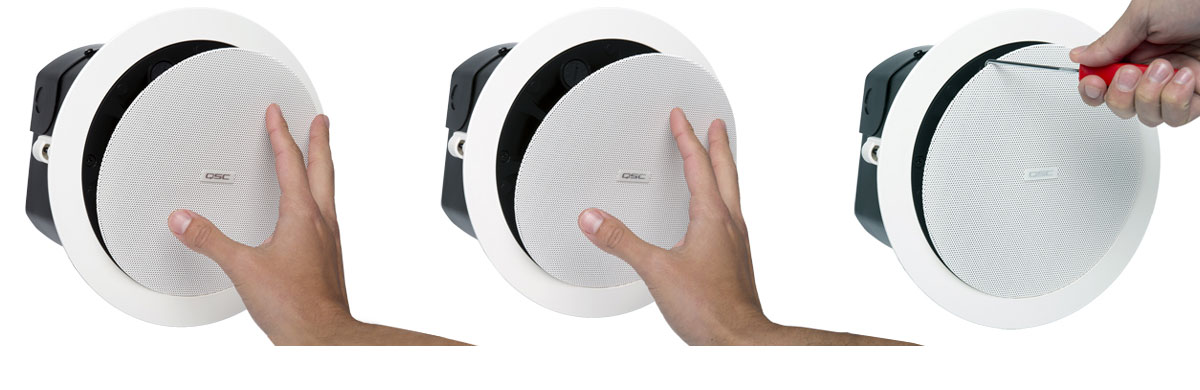

• Snap-fit magnetic grille
• 3x double stepped, long travel
dog-ear blind mount system
• Intrinsic Correction™ voicings
available via Q-SYS Platform
including CXD-Q Series amplifiers
• Low-saturation and low-loss
70/100V transformers with 16Ω
bypass
• Blemish-free removable logo
• Removable conduit cover plate,
also available as accessory for
pre-install wiring
• UL1480 and UL2043 certified
• Available in white (RAL 9010)
• Complete EASE, CF2, CAD, &
BIM information available online
The QSC AcousticDesign™ AD-C6T-LP is a
6.5" two-way low profile ceiling loudspeaker
ideally suited for a wide variety of
foreground and background sound
reinforcement applications which utilize
70/100V or 16Ω bypass configurations.
The AcousticDesign™ Series offers
integrators a premium quality installed
sound solution where performance,
consistent coverage, and aesthetics are
paramount. Specifically designed to
maintain a consistent tonal characteristic
across the entire family in ceiling, surface,
and pendant applications, the
AcousticDesign Series allows integrators
seamless transitions within blended
installations.
The AD-C6T-LP features a high quality 6.5"
weather treated paper cone woofer with a
1" voice coil and a .75" aluminum dome
tweeter which is positioned on a DMT
waveguide.
DMT (Directivity Matched Transition™) is
QSC’s design philosophy where the high
frequency waveguide is matched to the
natural conical behavior of the woofer at the
crossover point. The result is a coherent
transition between transducers with
improved off-axis power response for
consistent 135° conical DMT coverage.
The accurate frequency response of the
AD-C6T-LP is maintained even in 70/100V
applications by use of a low-loss, lowsaturation 60-watt transformer with
selectable taps, including 16Ω bypass,
using a rotary selector located under the
snap-fit magnetically attached powder coat
steel grille.
To retain lasting good looks, the rugged
ABS baffle is further protected by using UV
inhibitors that prevent discoloration and by
a powder coated steel back can. The
magnetic grille features a stick-on logo that
can be removed blemish-free for
installations where branding is not
permitted.
Installers will appreciate the 3x double
stepped, long travel dog-ear blind mounting
system, which captures from 0" - 2.25" of
ceiling thickness. The conduit cover plate
can be easily removed by losening the
single captive Phillips screw allowing access
to the locking 4-pole Euro-block connector
which can accept up to four 18AWG pairs,
eliminating the hassles of star topology
wiring designs.
Intrinsic Correction™ voicings that optimize
performance and speed the install process
are easily deployed via the Q-SYS
Platforms, including CXD-Q Series
amplifiers, as part of a complete QSC
systems solution.
The AD-C6T-LP is available in QSC
standard white (RAL 9010) and may be
painted to match any decor.
For your system integration needs,
complete EASE, CF2, CAD, and BIM files
are available for download at QSC.com.

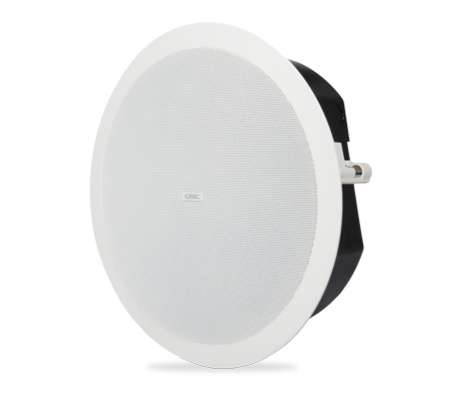

AD-C6T-LP Details
1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174 please recycle
© 2017 QSC, LLC all rights reserved. QSC and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark office and other
countries. All other trademarks are the property of their respective owners. Patents may apply or be pending.
AD-C6T-LP Spec Sheet 7/25/2017
100 1k 10k
100
90
80
70
60
50
100
80
60
40
20
0
Frequency (Hz)
Sound pressure, Level (dB)
Resistance, Amplitude (ohm)
20 50 200 500 2k 5k 20k
95
85
65
55
90
70
30
10
Frequency Response (Raw)
Frequency Response (Intrinsic Correction™)
Impedance (16 ohm bypass)
75 50
1k 10k
100
Frequency (Hz)
Beamwidth (-6dB) (dB)
200 500 2k 5k 20k
200
70
50
30
20
Impedance / Frequency Response:
Beamwidth:
Dimensions:
As part of QSC’s ongoing commitment to product development,
specifications are subject to change without notice.
Specifications
System Details AD-C6T-LP
LF transducer 165 mm [6.5 in] weather treated paper cone woofer
HF transducer 19 mm [.75 in] aluminum dome tweeter
Effective frequency range 1, 2, 3, 8 65 Hz – 20 kHz
Rated noise power / voltage 6 60 watts / 31 volts (rms)
Sensitivity [dB] Rated @1W, 1m 2, 3, 4, 8 : 88
Coverage (‐6 dB) [°] Rated 2, 5, 8 : 135 conical DMT
Directivity factor 2, 5, 8 6.5
Directivity index [dB] 2, 5, 8 8
Maximum SPL [dB] Rated (continuous / peak) 7 : 106 / 112
Recommended amplifier 60 watts
Transformer taps / impedance Bypass:16Ω
7.5W (70V); 15W (100V) Tap: 667Ω
15W (70V); 30W (100V) Tap: 333Ω
30W (70V); 60W (100V) Tap: 167Ω
60W (70V); N/A (100V) Tap: 83Ω
Input connector type Euroblock connector with parallel output
Enclosure material ABS baffle on powder coated steel back can
Grille material Powder coated steel
Ingress protection IP-34
Operating environment Designed for indoor use
Operating temperature range -20 to 50° C [-4 to 122° F]
Cutout dimension Ø 305 mm [Ø 12 in]
Net weight 4.2 kg [9.3 lb]
Product dimensions (Ø x H) Ø 340 x 100 mm [Ø 13.37 x 3.95 in.]
Shipping weight 13.3 kg [29.3 lb] (pair packed)
Shipping dimensions (H x W x D) 178 x 864 x 470 mm [7 x 34 x 18.5 in] (pair packed)
Included accessories C-ring and tile rails, rail screws, euroblock connector, cut-out
template, grille
Optional accessories AD-MR8 (pre-install mud ring)
Safety Agency UL1480, UL2043, NFPA90, NFPA70 suitable for use in air
handling spaces. Transformer UL registered per UL1876,
ROHS, CE compliant. Baffle meets UL94-V0 and UL94-5VB
flamibility rating; in accordance with IEC60849 / EN60849
systems.
[3.75 in]
95 mm [3.95 in]
100 mm
[11.80 in]
300 mm
[13.37 in]
340 mm
1
-10dB from rated sensitivity
2
Full-space, IEC baffle, 4m
3
Reference axis
4
200 - 10kHz average
5
500 - 5kHz average
6
IEC, 2hrs
7
Calculated from rated noise power and sensitivity
8 Reference plane is the plane coincident with the
loudspeaker baffle plane. Reference axis is the axis
perpendicular to the reference plane and passing
through the center of the baffle. Vertical plane is the
plane intersecting the reference plane at a right angle,
including the reference axis and the taps selector knob.
Horizontal plane is the plane intersecting the reference
plane and the vertical plane at a right angle, including
the reference axis.
