Features
- Inverted aluminum dome dust cap
- Rated at 16 Ω
- Locking 2-pole Euroblock connectors
- Snap-fit magnetic grills
- Quick link cable assemblies and slip-lock fasteners supplied
- Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform, including the CXD-Q Series amplifiers

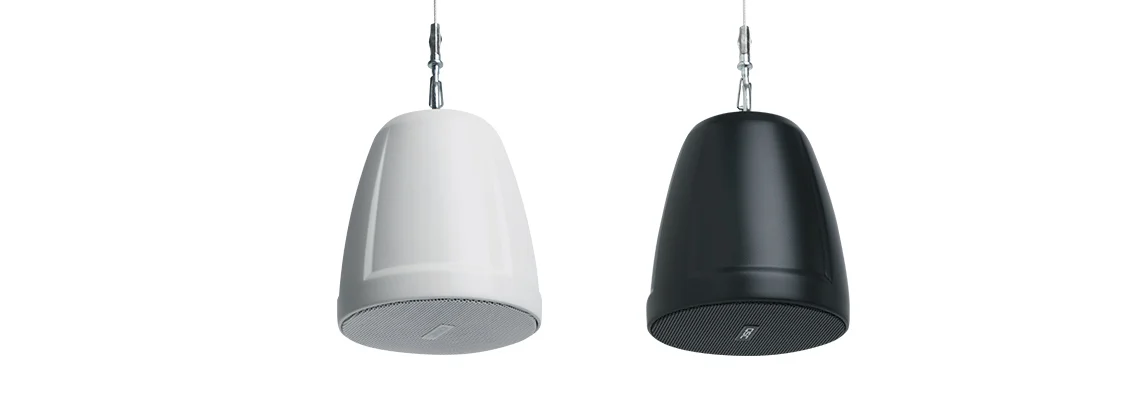

- Available in black (RAL 9011) or white (RAL 9010)
- UL1480 certified
Availability: In Stock
Usually ships In 24 - 48 hours
notify me
Description

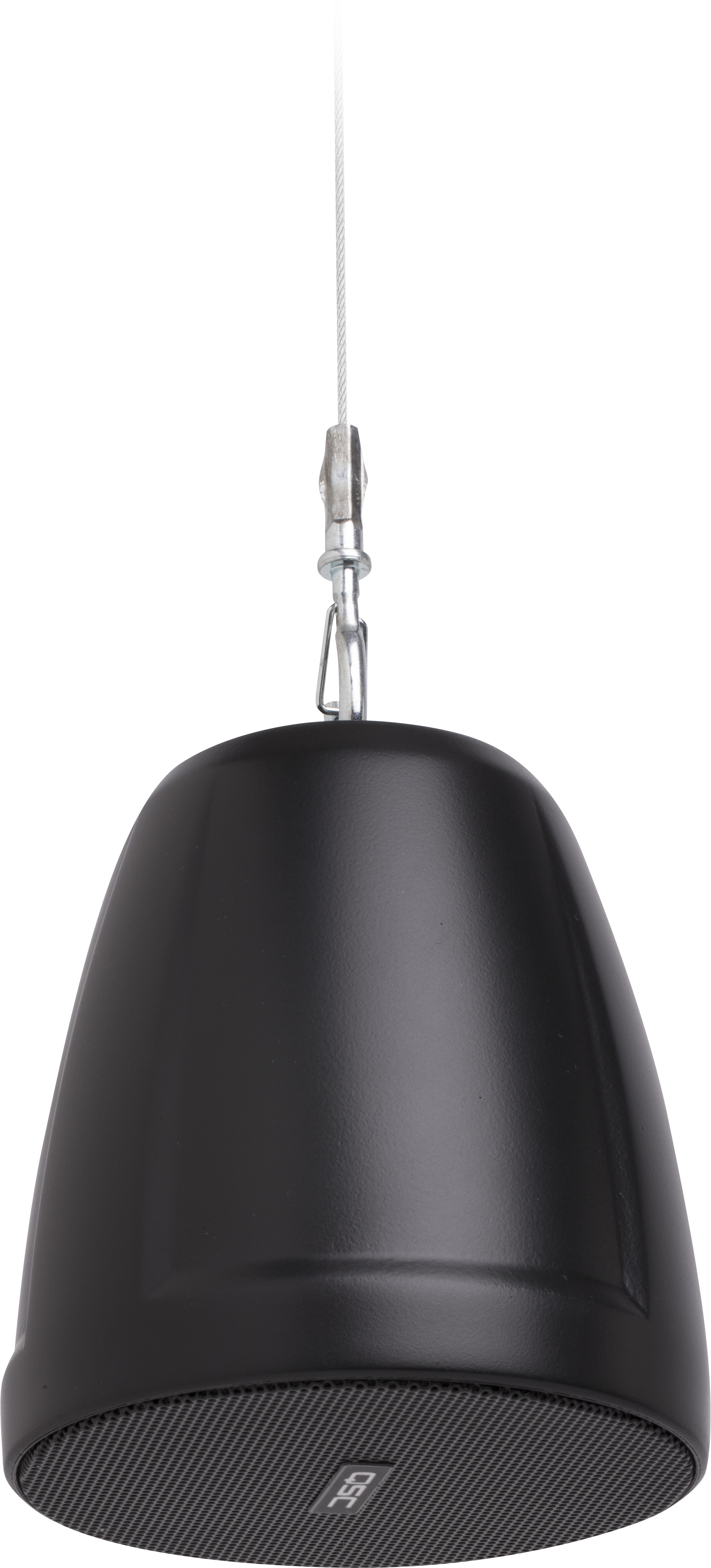

The QSC AD-P.SAT is part of the AcousticDesign™ Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings. The AcousticDesign Series SUB/SAT loudspeakers are specifically designed to be mix-and-match capable; meaning any combination of satellites may be paired with any subwoofer in the AD Series SUB/SAT line.
Specifications
| Specifications | AD-P.SAT |
| LF transducer | N/A |
| HF transducer | 2.75-inch (70 mm) weather treated paper cone woofer |
| Effective frequency range | 150 Hz – 20 kHz |
| Rated noise power / voltage | 25 W / 20 V (rms) |
| Sensitivity [dB] (rated @1 W, 1 m) | 82 |
| Coverage (‐6 dB) [°] | 170° Conical |
| Directivity factor | TBD |
| Directivity index [dB] | TBD |
Maximum SPL [dB]
(rated, 1 m (continuous / peak)) | 90 / 96 |
| Recommended amplifier | 25 W (with 1st order high-pass filter at 200 Hz) |
| Impedance | 16 Ω |
| Connectors | 2-pole Euroblock |
| Enclosure material | ABS |
| Grille material | Powder coated steel |
| Ingress protection | IP-34 |
| Operating environment | Designed for indoor use |
| Operating temperature range | -4 to 122° F (-20 to 50° C) |
| Net weight | 0.92 lb (416 g) |
| Product dimensions (Ø x H) | Ø 4.3 x 4.5-inch (Ø 110 x 115 mm) |
| Shipping weight | TBD (pair packed) |
| Shipping dimensions (H x W x D) | TBD (pair packed) |
| Included accessories | Cable rigging, 1x Euroblock connector, grill |
| Safety agency | UL1480, Transformer UL registered per UL1876, ROHS, CE compliant |
