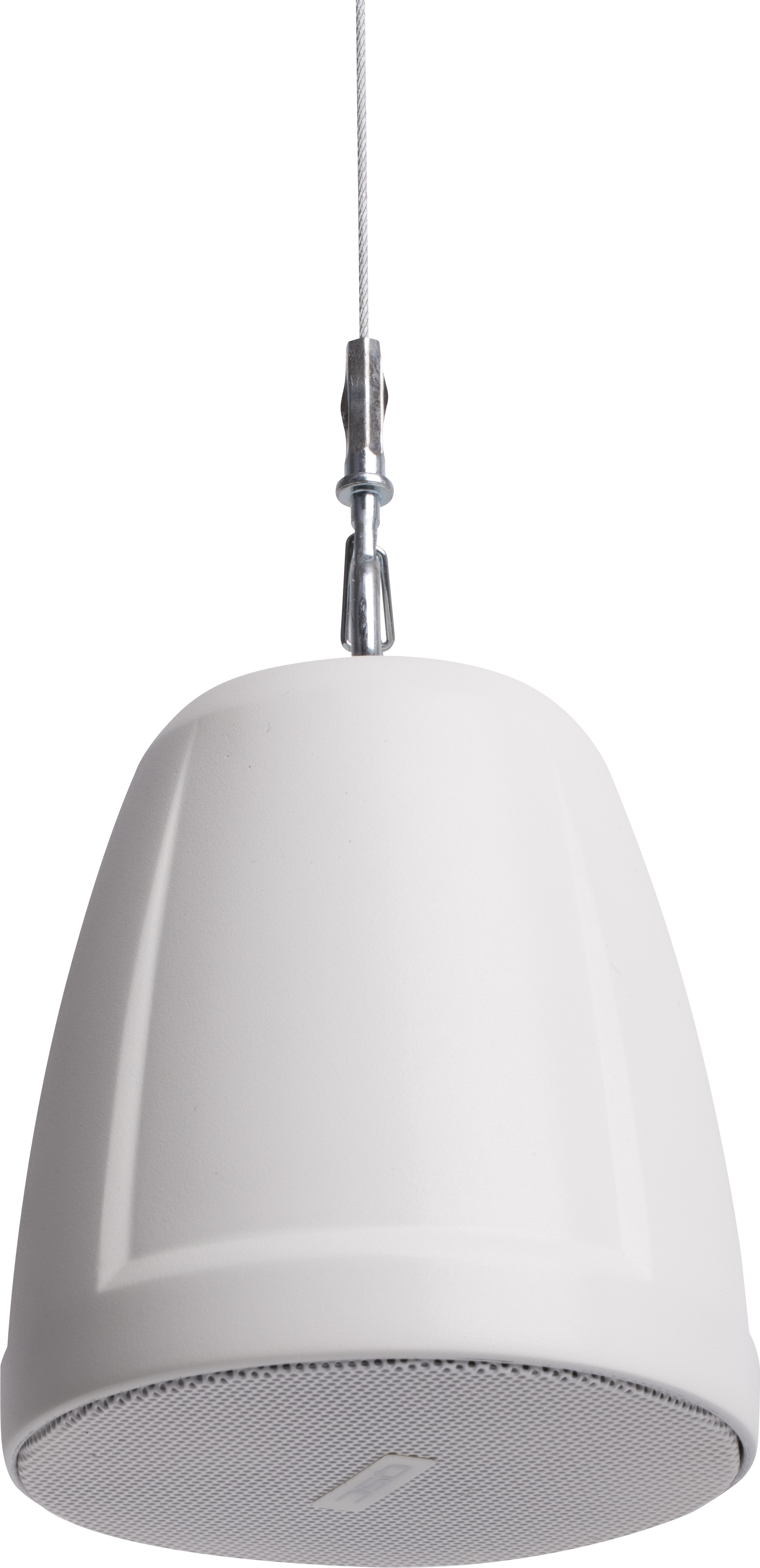

2.75-inch small format
satellite pendant
loudspeaker
Background Music Applications ∙ Retail ∙ Restaurants ∙ Coffee
Shops ∙ Fine Dining ∙ Hospitality ∙ Commercial Spaces
AD-P.SAT
AcousticDesign™ Series
AD-P.SAT
Features
• Consistent tonal characteristics
across the entire AcousticDesign
Series for surface, ceiling, and
pendant applications
• Refined depth and clarity even at
low volume settings
• Mix-and-match capable, any
subwoofer with any satellite in the
AD Series SUB/SAT line
• Inverted aluminum dome dust cap
• Rated at 16 Ω
• Locking 2-pole Euroblock
connectors
• Removable logo
• Quick link cable assemblies and
slip-lock fasteners supplied
• Intrinsic Correction™ voicings
available via MP-M Series mixers
and the Q-SYS Platform, including
CXD-Q Series amplifiers
• Available in black (RAL 9011) or
white (RAL 9010)
• Complete EASE, CF2, CAD, &
BIM information available online
• UL1480 certified
The QSC AD-P.SAT is part of the
AcousticDesign™ Series SUB/SAT
loudspeaker line which are ideally suited for
background music applications that require
refined depth and clarity even at lower
volume settings.
The AcousticDesign Series offers integrators
a premium quality installed sound solution
where performance, consistent coverage,
and aesthetics are paramount. Specifically
designed to maintain a consistent tonal
characteristic across the entire family in
ceiling, surface, and pendant enclosures,
the AcousticDesign Series allows integrators
seamless transitions within blended
installations.
The AcousticDesign Series SUB/SAT
loudspeakers have been specifically
designed to be mix-and-match capable.
Any combination of satellites may be paired
with any subwoofer in the SUB/SAT line.
The AD-P.SAT features a high quality
2.75-inch weather treated paper cone
woofer with an inverted aluminum dust cap
for extended high frequency presence within
a sealed enclosure.
These loudspeakers are rated at 16 Ω, and
up to four satellites may be connected to
any AcousticDesign Series SUB/SAT
subwoofer's high-pass filtered outputs.
Satellites may be used as stand-alone
loudspeakers using an external high-pass
filter.
The input uses a locking 2-pole Euroblock
connector capable of 12AWG (2 mm) wire
thickness.
To retain their stylish aesthetics, the rugged
ABS baffle is further protected by using UV
inhibitors that prevent discoloration. The
grille features a stick-on logo that can be
removed blemish-free for installations where
branding is not permitted.
Installers will appreciate the supplied quicklink cable assemblies and slip-lock fasteners
to speed the installation.
Intrinsic Correction™ voicings that optimize
performance and speed the install process
are easily deployed via the MP-M Series
music and paging mixers as well as Q-SYS
Platform, including CXD-Q Series amplifiers,
as part of a complete QSC systems
solution.

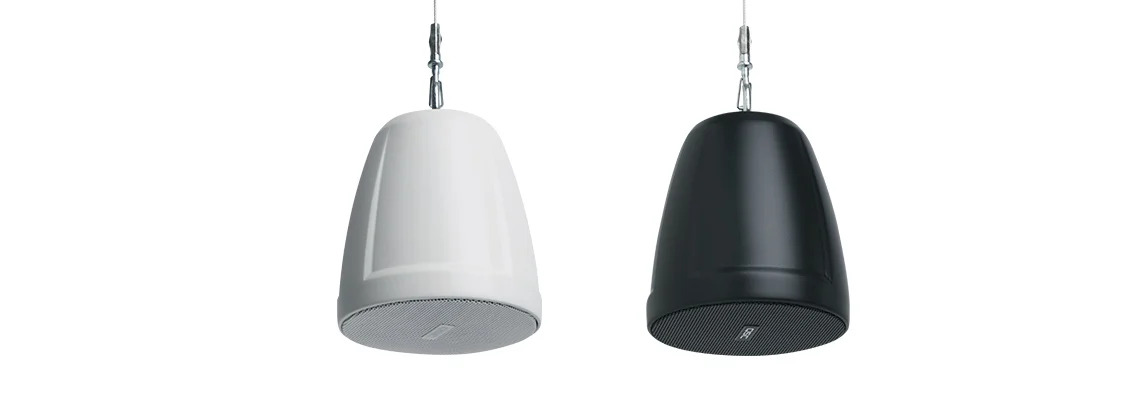

The AD-P.SAT is available in QSC standard
black (RAL 9011) or white (RAL 9010).
For your system integration needs,
complete EASE, CF2, CAD, and BIM files
will be available for download at QSC.com.
AD-P.SAT Details
Specifications
System Details AD-P.SAT
LF transducer N/A
HF transducer 2.75 in (70 mm) weather treated paper cone
woofer
Effective frequency range 1, 2, 3 150 Hz – 20 kHz
Rated noise power / voltage 6 25 W / 20 V (rms)
Sensitivity [dB] (rated @1 W, 1 m) 83
Coverage (-6 dB) 5, 8 155° Conical
Directivity index [dB] 8 6.0
Directivity factor 8 4.0
Maximum SPL [dB] (rated, 1 m (continuous / peak)) 7 97 / 100 / 103
Recommended amplifier 25 W per satellite
(with 1st order high-pass filter at 200 Hz)
Impedance 16 Ω
Connector 2-pole Euroblock
Enclosure material ABS
Grille material Powder coated steel
Ingress protection IP-34
Operating environment Designed for indoor use
Operating temperature range -4 to 122° F (-20 to 50° C)
Net weight 0.93 lb (420 g)
Product dimensions (Ø x H) Ø 4.3 x 4.9 in (Ø 110 x 124 mm)
Shipping weight 2.27 lb / 1.03 kg
Shipping dimensions (H x W x D) 12.3 x 6.5 x 6 in (313 x 165 x 152 mm )
Shipping weight (master carton, 2 pairs) 5.16 lb / 2.34 kg
Shipping dimensions (H x W x D) (master carton, 2 pairs) 13.2 x 12.7 x 6.5 in (335 x 323 x 165 mm)
Included accessories Cable rigging, 1x Euroblock connector,
grille attached
Safety agency UL1480
As part of QSC’s ongoing commitment to product development, specifications are subject to change
without notice.
Footnotes:
1) -10 dB from rated sensitivity
2) Reference plane is the plane coincident with the loudspeaker baffle plane. Reference axis is the axis
Specifications perpendicular to the reference plane and passing through the center of the baffle. Vertical
plane is the plane intersecting the reference plane at a right angle, including the reference axis and the
taps selector knob. Horizontal plane is the plane intersecting the reference plane and the vertical plane
at a right angle, including the reference axis.
3) Anechoic chamber, 4 V, 1 m
4) From Thiele-Small parameters @ 4V, 1 m
5) Free space.
6) IEC, 2hrs, 16 ohm nominal, rated noise power (W), rated noise voltage (Vrms), with
47 microfarad series capacitor per satellite.
7) Calculated from rated noise power and sensitivity.
8) 500 Hz - 5 kHz
10 0 1 k 1 0k
3 00
2 00
1 00
Frequenc y (Hz)
Beamwidth (-6dB) (deg)
2 0 5 0 2 00 50 0 2k 5k 2 0 k
3 50
2 50
1 50
5 0
Beamwidth
Sound pressure, Level
10 0 1 k 1 0k
9 0
8 0
7 0
6 0
5 0
40
30
20
10
0
Frequenc y (Hz)
Sound pressure, Level (dB)
Impedance, Ampl itude (ohm)
2 0 5 0 2 00 50 0 2k 5k 2 0 k
8 5
7 5
6 5
5 5
35
25
15
5
Frequency Response (Raw)
Frequency Response (Intrinsic Correction™)
Impedance
n 50
[2.0] 10,4
[.41]
2 PIN
EURO PLUG
n 110
[4.3]
n 9,0 SUSPENSION CONNECTION
[.35]
2X n 6,5
[.26]
117,8
[4.64]
2X 1,0
[.04]
21,0
[.83]
123,8
[4.87]
114,8
[4.52]
q
Dimensions
1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174
© 2019 QSC, LLC all rights reserved. QSC and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark office and
other countries. All other trademarks are the property of their respective owners. Patents may apply or be pending.
AD-P.SAT Spec Sheet 01/11/2019
