The QSC AD-P.SUB is part of the AcousticDesign™ Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings. The AcousticDesign Series SUB/SAT loudspeakers are specifically designed to be mix-and-match capable; meaning any combination of satellites may be paired with any subwoofer in the AD Series SUB/SAT line.
6.5-inch dual voice coil, small format
pendant subwoofer
Background Music Applications ∙ Retail ∙ Restaurants ∙ Coffee
Shops ∙ Fine Dining ∙ Hospitality ∙ Commercial Spaces
AcousticDesign™ Series
AD-P.SUB
Features
• Consistent tonal characteristics
across the entire AcousticDesign
Series for surface, ceiling, and
pendant applications
• Refined depth and clarity even at
low volume settings
• Mix-and-match match capable,
any subwoofer with any satellite in
the AD Series SUB/SAT line
• Dual voice coil for improved
thermal dissipation and higher
output
• Low-saturation and low-loss
70 / 100 V transformers with 4 Ω
bypass
• Snap-fit magnetic grill
• 4x built-in high-pass filtered
outputs
• Locking 4-pole Euroblock
connectors
• 2x quick link cable assemblies an
slip-lock fasteners supplied
• Removable logo
• Intrinsic Correction™ voicings
available via MP-M Series mixers
and the Q-SYS Platform, including
CXD-Q Series amplifiers

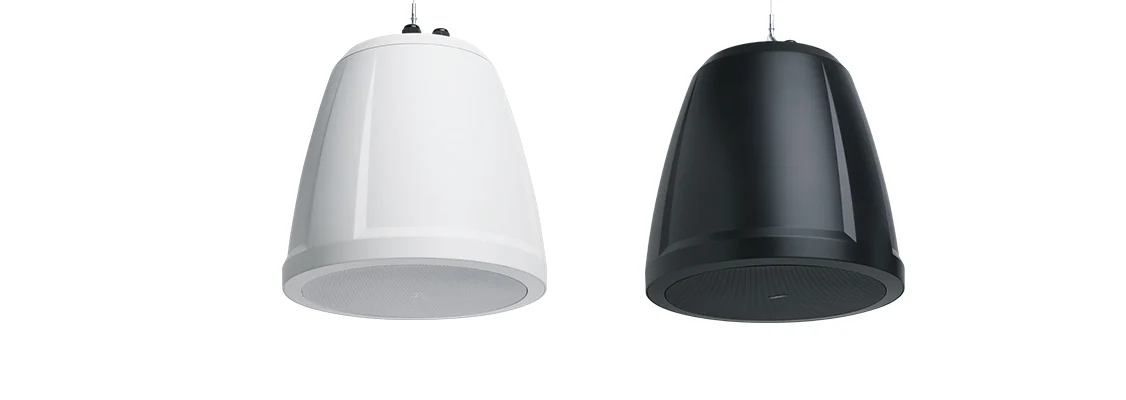

• Available in black (RAL 9011) or
white (RAL 9010)
• Complete EASE, CF2, CAD, &
BIM information available online
• UL1480 certified
The QSC AD-P.SUB is part of the
AcousticDesign™ Series SUB/SAT
loudspeaker line which are ideally suited for
background music applications that require
refined depth and clarity even at lower
volume settings.
The AcousticDesign Series offers integrators
a premium quality installed sound solution
where performance, consistent coverage,
and aesthetics are paramount. Specifically
designed to maintain a consistent tonal
characteristic across the entire family in
ceiling, surface, and pendant enclosures, the
AcousticDesign Series allows integrators
seamless transitions within blended
installations.
The AcousticDesign Series SUB/SAT
loudspeakers have been specifically
designed to be mix-and-match capable. Any
combination of satellites may be paired with
any subwoofer in the SUB/SAT line.
The AD-P.SUB features a high quality
6.5-inch weather treated paper cone woofer
on a dual voice-coil for improved thermal
dissipation and higher output within a small
form factor.
The accurate frequency response of the
AD-P.SUB is maintained even in 70 / 100 V
applications by use of a low-loss, lowsaturation 100 W transformer with selectable
taps, including 4 Ω bypass, using a rotary
selector located under the snap-fit
magnetically attached powder coat steel grill.
The AD-P.SUB includes built-in high-pass
filtered outputs for connecting up to four
AcousticDesign Series satellite loudspeakers.
This feature greatly reduces system setup,
amplifier channel count, and allows for ease
of wiring.
The inputs and outputs are located behind
a removable conduit cover plate with sealed
gland nuts for cable dressing. All in-thru and
outputs are terminated to locking 4-pole
Euroblock style connectors capable of
12AWG (2 mm) wire thickness.
To retain their stylish aesthetics, the rugged
ABS baffle is further protected by using UV
inhibitors that prevent discoloration. The
magnetic grille features a stick-on logo that
can be removed blemish-free for
installations where branding is not
permitted.
Installers will appreciate the two quick-link
cable assemblies and slip-lock fasteners to
speed the installation.
Intrinsic Correction™ voicings that optimize
performance and speed the install process
are easily deployed via the MP-M Series
music and paging mixers as well as
Q-SYS Platform, including CXD-Q Series
amplifiers, as part of a complete QSC
systems solution.

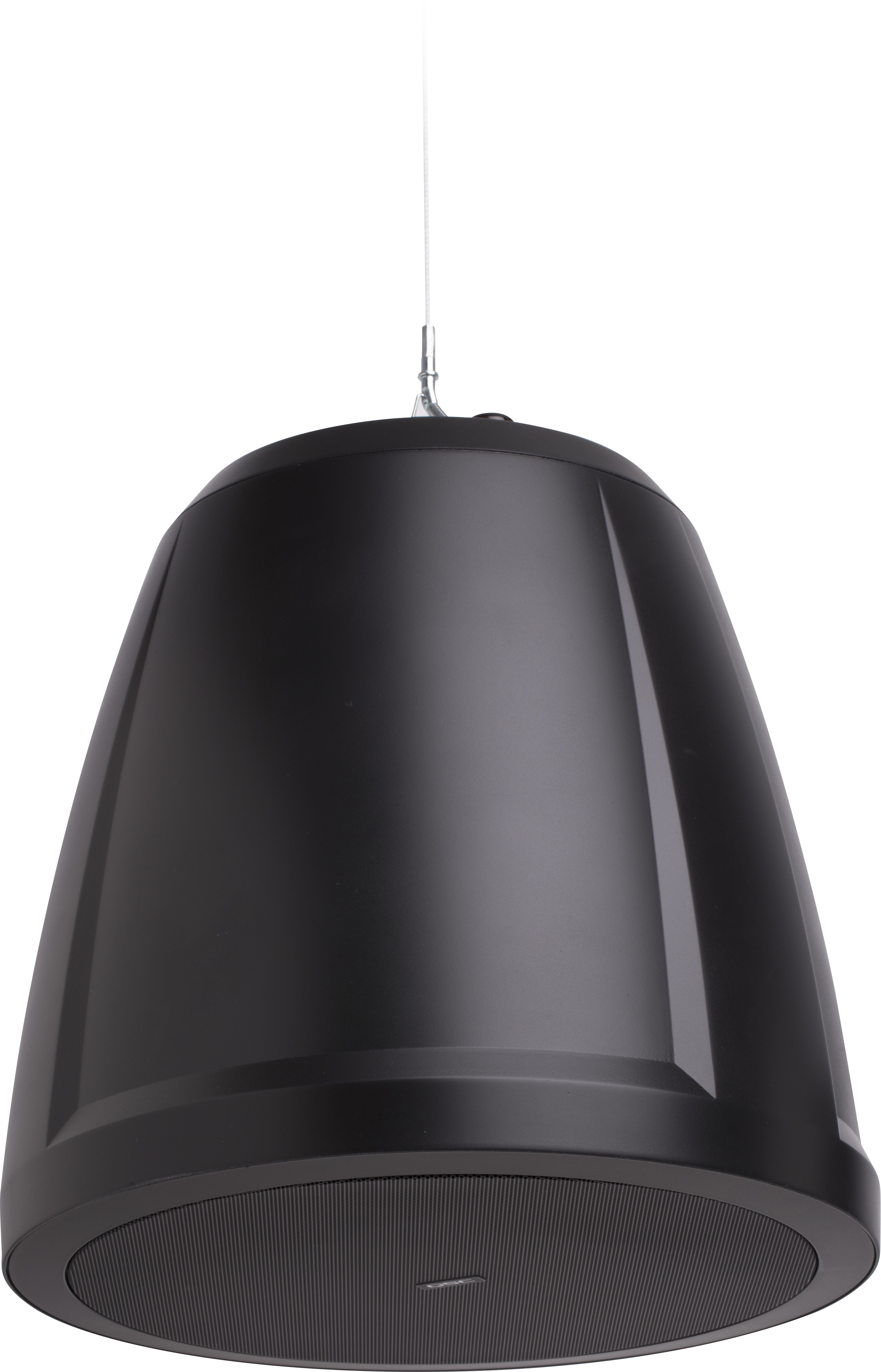

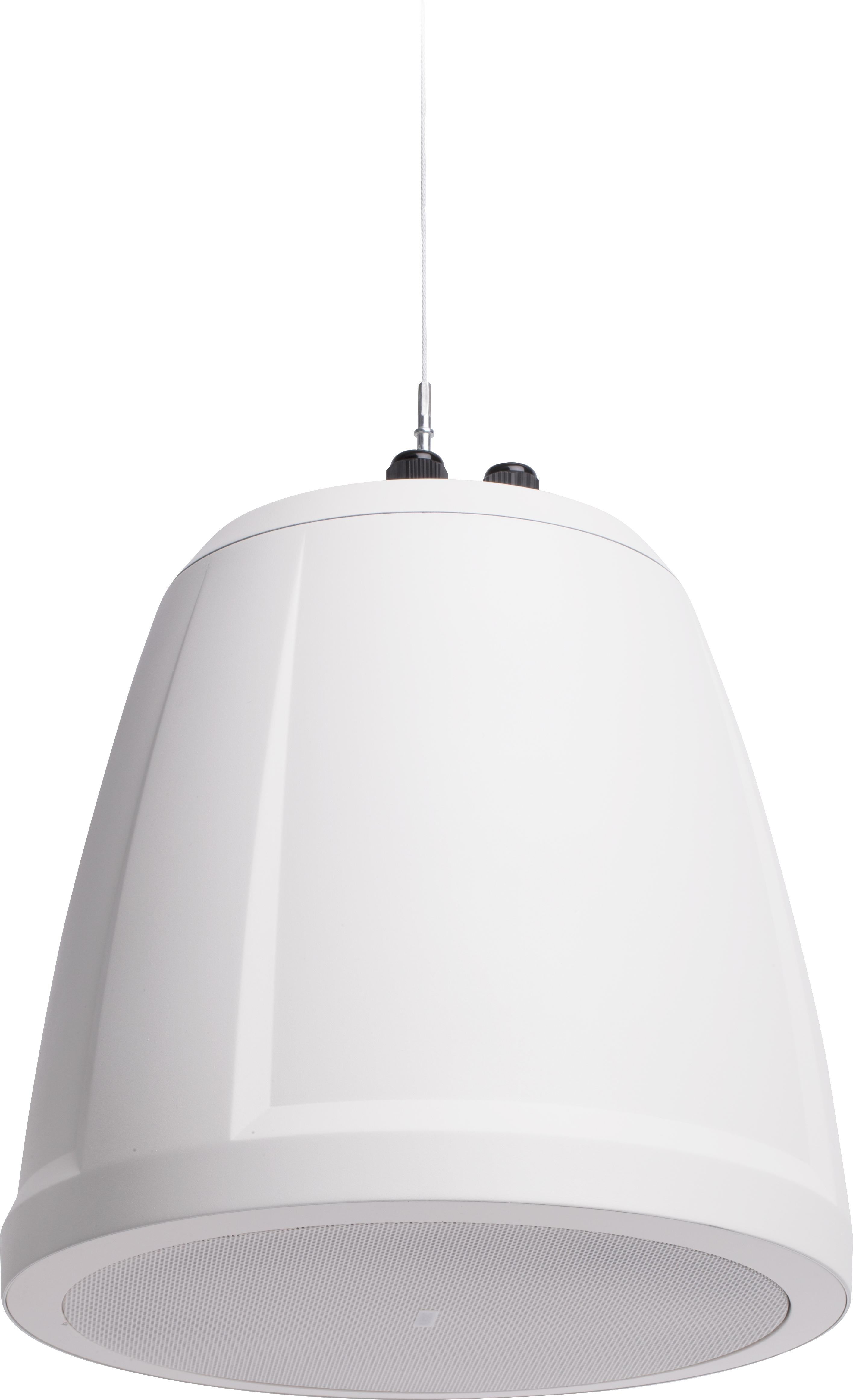

The AD-P.SUB is available in QSC standard
black (RAL 9011) or white (RAL 9010) and
may be painted to match any decor.
For your system integration needs,
complete EASE, CF2, CAD, and BIM files
will be available for download at QSC.com.
AD-P.SUB
AD-P.SUB Details
Specifications
System Details AD-P.SUB
LF transducer 6.5 in (165 mm) dual voice-coil weather treated paper
cone woofer
HF transducer N/A
Effective frequency range 1, 2 50 Hz – 150 Hz
Rated noise power / voltage 4, 6 100 W / 20 V (rms)
Sensitivity [dB] (rated @1 W, 1 m) 3 86
Coverage (-6 dB) Omni
Directivity index [dB] 6 1.2
Directivity factor 6 1.3
Maximum SPL [dB]
(continuous / program / peak)
105 / 108 / 111
Recommended amplifier 100 W
Transformer taps / impedance Bypass:4 Ω
100 W (70 V); NA (100 V) Tap: 50 Ω
50 W (70 V); 100 W (100 V) Tap: 100 Ω
25 W (70 V); 50 W (100 V) Tap: 200 Ω
12.5 W (70 V); 25 W (100 V) Tap: 400 Ω
Connectors Mono input: 4-pole Euroblock with thru output
Hi-pass mono output: 2x 4-pole Euroblock for 4x
satellites
Enclosure material ABS
Grille material Powder coated steel
Ingress protection IP-34
Operating environment Designed for indoor use
Operating temperature range -4 to 122° F (-20 to 50° C)
Net weight 17.53 lb (7.95 kg)
Product dimensions (Ø x H) Ø 13.6 x 14.1 in (Ø 346 x 359 mm)
Shipping weight 21.8 lb / 9.89 kg
Shipping dimensions (H x W x D) 17.1 x 17.1 x 17.1 in (435 x 435 x 435 mm)
Included accessories 2x cable rigging, 3x Euroblock connector, 2x sealed
input cover, grill
Safety agency UL1480, Transformer UL registered per UL1876,
ROHS, CE compliant.
As part of QSC’s ongoing commitment to product development, specifications are subject to change without notice.
Footnotes:
1) -10 dB from rated sensitivity, free space
2) Reference plane is the plane coincident with the loudspeaker baffle plane. Reference axis is the axis
perpendicular to the reference plane and passing through the center of the baffle. Vertical plane is the
plan intersecting the reference plane at a right angle, including the reference axis and the taps selector
knob. Horizontal plane is the plane intersecting the reference plane and the vertical plane at a right
angle, including the reference axis.
3) Calculated from Thiele-Small parameters.
4) IEC, 2hrs, 16 ohm nominal, rated noise power (W), rated noise voltage (Vrms).
5) Calculated from rated noise power and sensitivity
6) 50 Hz - 200 Hz
339,4
[13.36]
2X 2,4
[.09]
2X n 8,0
[.32]
n 12,7
[.50]
SUSPENSION
CONNECTION
33,1
[1.30]
351,5
[13.84]
SIDE VIEW
WIRE GROMMETS NOT SHOWN
n 346
[13.6]
1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174
© 2019 QSC, LLC all rights reserved. QSC and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark office and
other countries. All other trademarks are the property of their respective owners. Patents may apply or be pending.
AD-P.SUB Spec Sheet 01/11/2019
please recycle
Sound pressure, Level
Dimensions
10 0 1k
9 0
8 0
7 0
6 0
70
50
30
10
Frequenc y (Hz)
Voltage, Level (dB)
Impedance, Ampl itude (ohm)
2 0 5 0 2 0 0 5 00 2 k
9 5
8 5
7 5
6 5
5 5
80
60
40
20
0
Frequency Response (Raw)
Impedance
