QSC AD-P4T-WH

4.5" small format, pendant-mount

loudspeaker

Restaurant ∙ Retail ∙ Audio Visual ∙ Education ∙ Concourses ∙ Casinos ∙

Transportation Terminals ∙ Worship Facilities ∙ Large System Ancillary Support

AD-P4T

AcousticDesign™ Series

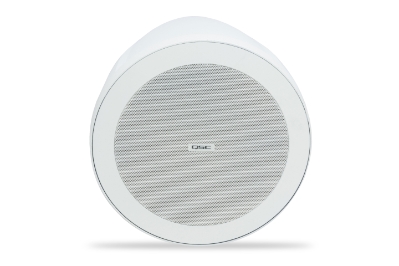

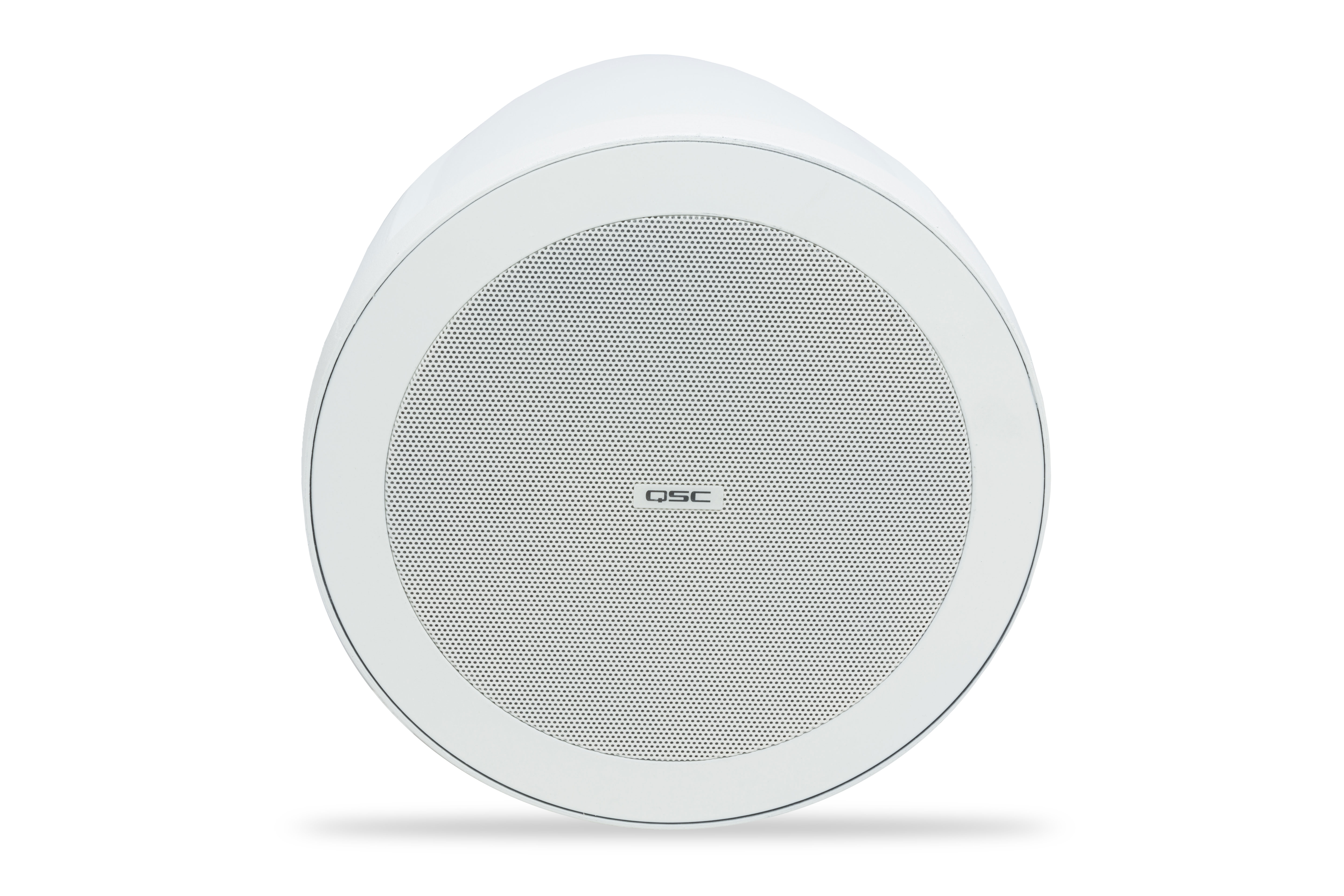

AD-P4T-WH

AD-P4T-BK

Features

• Consistent tonal characteristics

across the entire AcousticDesign

family in surface, ceiling, and

pendant applications

• DMT (Directivity Matched

Transition™) waveguide ensures

smooth, uniform frequency

response over the coverage area

• Snap-fit magnetic grille

• 2x quick-link suspension cables

and slip-lock fasteners provided

• Intrinsic Correction™ voicings

available via Q-SYS Q-SYS

Platform and CXD Series

amplifiers

• Low-saturation and low-loss

70/100V transformers with 16Ω

bypass

• Blemish-free removable logo

• Sealable input cover to prevent

moisture from entering the input

terminal block

• UL1480 certified

• Available in black (RAL 9011) or

white (RAL 9010)

• Complete EASE, CF2, CAD, &

BIM information available online

The QSC AcousticDesign™ AD-P4T is a

4.5" two-way pendant-mount loudspeaker

ideally suited for a wide variety of

foreground and background sound

reinforcement applications which utilize

70/100V or 16Ω bypass configurations.

The AcousticDesign™ Series offers

integrators a premium quality installed

sound solution where performance,

consistent coverage, and aesthetics are

paramount. Specifically designed to

maintain a consistent tonal characteristic

across the entire family in ceiling, surface,

and pendant applications, the

AcousticDesign Series allows integrators

seamless transitions within blended

installations.

DMT (Directivity Matched Transition™) is

QSC’s design philosophy where the high

frequency waveguide is matched to the

natural conical behavior of the woofer at the

crossover point. The result is a coherent

transition between transducers with

improved off-axis power response for

consistent 150° conical DMT coverage.

The AD-P4T features a high quality 4.5"

weather treated paper cone woofer with a

1" voice coil and a .075" aluminum dome

tweeter positioned on a DMT waveguide.

The accurate frequency response of the

AD-P4T is maintained even in 70/100V

applications by use of a low-loss, lowsaturation 30-watt transformer with

selectable taps, including 16Ω bypass,

using a rotary selector located under the

snap-fit magnetically attached powder coat

steel grille.

To retain lasting good looks, the rugged

ABS enclosure is further protected by using

UV inhibitors that prevent discoloration. The

magnetic grille features a stick-on logo that

can be removed blemish-free for

installations where branding is not

permitted.

Installers will appreciate the two quick-link

cable assemblies and slip-lock fasteners to

speed the installation. Located under a

sealable input cover to prevent moisture at

the terminals, a locking 4-pole Euro-block

connector that can accept four 18AWG

pairs eliminates the termination hassles of

star topology wiring designs.

To further speed the install process while

obtaining optimal results, Intrinsic

Correction™ voicings are easily deployed

via Q-SYS Platform and CXD Series

amplifiers, as part of a complete QSC

Systems solution.

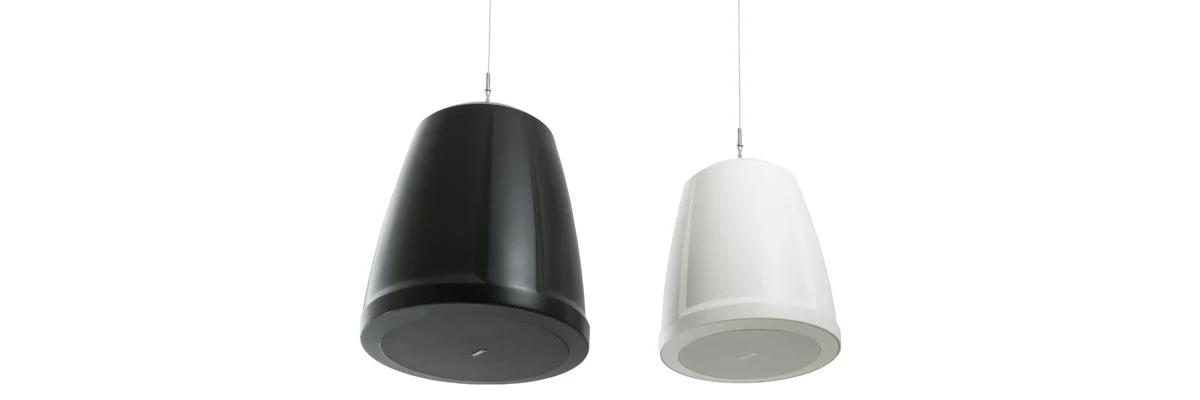

The AD-P4T is available in QSC standard

black (RAL 9011) or white (RAL 9010) and

may be painted to match any decor.

For your system integration needs,

complete EASE, CF2, CAD, and BIM files

are available for download at QSC.com.

1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174 please recycle

© 2017 QSC, LLC all rights reserved. QSC and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark office and other

countries. All other trademarks are the property of their respective owners. Patents may apply or be pending.

AD-P4T Spec Sheet 06/05/2017

AD-P4T Details

100 1k 10k

1 0 0

9 0

8 0

7 0

6 0

50

1 5 0

1 2 0

9 0

6 0

3 0

0

Frequenc y (H z)

Sound pressure, Level (dB)

Resistance, Amplitude (ohm)

20 50 200 500 2k 5k 2 0 k

9 5

8 5

6 5

5 5

1 3 5

1 0 5

4 5

1 5

Frequency Response (Raw)

Frequency Response (Intrinsic Correction™)

Impedance (16 ohm bypass)

1 k 1 0 k

1 0 0

2 0 0 5 0 0 2 k 5 k 2 0 k

2 0 0

7 0

5 0

3 0

2 0

Frequenc y (Hz)

Beamwidth (-6dB) (deg)

Impedance / Frequency Response:

Beamwidth:

Dimensions:

As part of QSC’s ongoing commitment to product development,

specifications are subject to change without notice.

Specifications

System Details AD-P4T

LF transducer 114 mm [4.5 in] weather treated paper cone woofer

HF transducer 19 mm [0.75" in] aluminum dome tweeter

Effective frequency range 1 65 Hz – 20 kHz

Rated noise power / voltage 2 30 watts / 22 volts (rms)

Sensitivity [dB] 4 87.9

Rated coverage (‐6 dB) 3

150° conical DMT™

Directivity factor 3 4.5

Directivity index [dB]3 6.5

Maximum continuous SPL [dB] 5 102

Maximum peak SPL [dB] 5 108

Nominal impedance [ohms] 16

Recommended amplifier 60 watts

Transformer taps / impedance 16Ω (in bypass setting)

3.75W (70V); 7.5W (100V) Tap: 1333Ω

7.5W (70V); 15W (100V) Tap: 667Ω

15W (70V); 30W (100V) Tap: 333Ω

30W (70V); N/A (100V) Tap: 167Ω

Input connector type Euroblock connector with parallel output

Enclosure material Flame retardant ABS 765A VO baffle and back can

Grille material Powder coated steel

Ingress protection IP-34

Operating environment Designed for indoor use

Operating temperature range -20 to 50° C [-4 to 122° F]

Net weight 2.9 kg [6.5 lb]

Product dimensions (Diameter x Height) Ø 237 x 272 mm [Ø 9.3 x 10.7 in.]

Shipping weight 3.9 kg [8.7 lb]

Shipping dimensions (H x W x D) 298 x 362 x 286 mm [11.75 x 14.25 x 11.25 in]

Included Mounting Hardware Two quick-link cable assemblies (length 3.25m/128in

2mm thickness), two slip-lock fasteners, locking

euro-block connector, sealable input cover and screws,

snap-fit magnetic grille.

Safety Agency UL1480, Transformer UL registered per UL1876, ROHS,

CE compliant. Baffle meets UL94-V0 and UL94-5VB

flamibility rating; in accordance with IEC60849 /

EN60849 systems.

[Ø9.3 in]

Ø237 mm

[9.5 in]

242 mm

[10.7 in]

272 mm

1

IES60268-5 50 Hz high passed noise signal

for 2 hr, 16 ohm

2

-10dB from rated sensitivity

4

500 Hz–5 kHz average

3

-6db from on-axis, 500Hz - 5kHz

5

Calculated from rated noise voltage and sensitivity
