2.75-inch small format satellite
surface loudspeaker
Background Music Applications ∙ Retail ∙ Restaurants ∙ Coffee
Shops ∙ Fine Dining ∙ Hospitality ∙ Commercial Spaces
AcousticDesign™ Series
AD-S.SAT
Features
• Consistent tonal characteristics
across the entire AcousticDesign
Series for surface, ceiling, and
pendant applications
• Refined depth and clarity even at
low volume settings
• Mix-and-match capable, any
subwoofer with any satellite in the
AD Series SUB/SAT line
• Inverted aluminum dome dust cap
• Rated at 16 Ω
• Locking 2-pole Euroblock
connectors
• Removable logo
• X-Mount™ Mini mounting
hardware provides repeatable
angles without drift or sag
• Intrinsic Correction™ voicings
available via MP-M Series mixers
and the Q-SYS Platform, including
CXD-Q Series amplifiers
• Available in black (RAL 9011) or
white (RAL 9010)
• Complete EASE, CF2, CAD, &
BIM information available online
The QSC AD-S.SAT is part of the
AcousticDesign™ Series SUB/SAT
loudspeaker line which are ideally suited for
background music applications that require
refined depth and clarity even at lower
volume settings.
The AcousticDesign Series offers integrators
a premium quality installed sound solution
where performance, consistent coverage,
and aesthetics are paramount. Specifically
designed to maintain a consistent tonal
characteristic across the entire family in
ceiling, surface, and pendant enclosures,
the AcousticDesign Series allows integrators
seamless transitions within blended
installations.
The AcousticDesign Series SUB/SAT
loudspeakers have been specifically
designed to be mix-and-match capable.
Any combination of satellites may be paired
with any subwoofer in the SUB/SAT line.

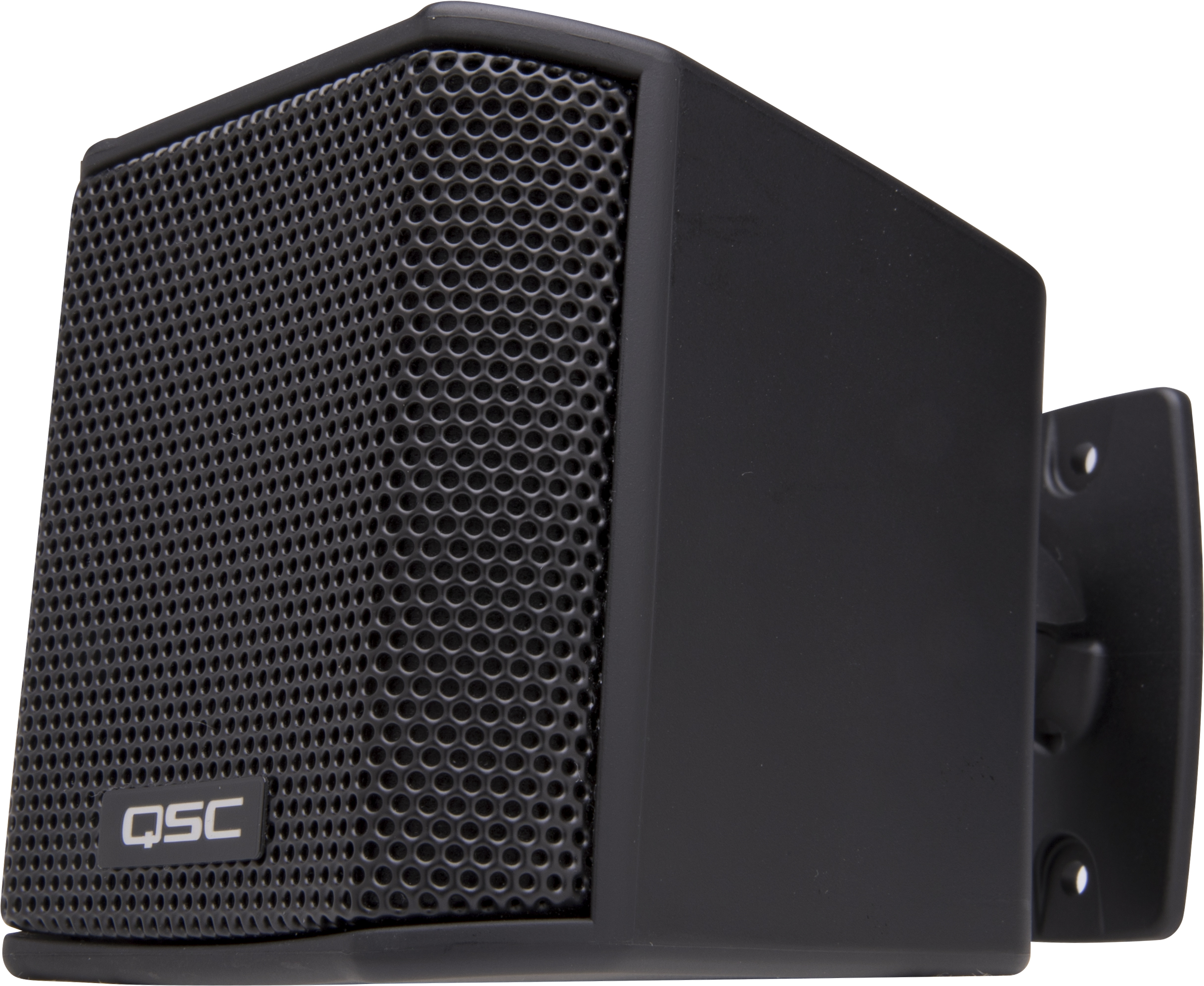

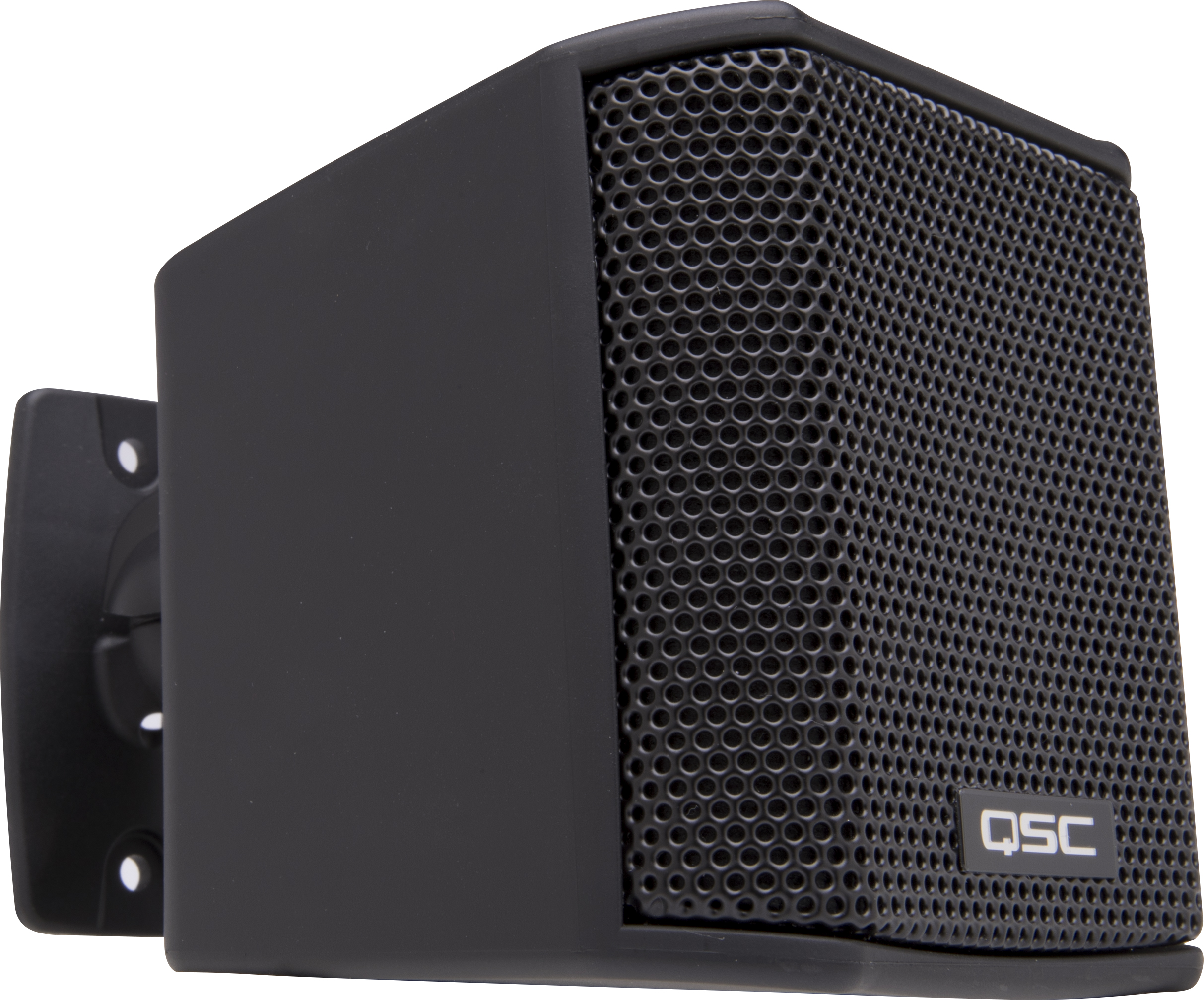

The AD-S.SAT features a high quality
2.75-inch weather treated paper cone
woofer with an inverted aluminum dust cap
for extended high frequency presence within
a sealed enclosure.
These loudspeakers are rated at 16 Ω, and
up to four satellites may be connected to
any AcousticDesign Series SUB/SAT
subwoofer's high-pass filtered outputs.
Satellites also may be used as stand-alone
loudspeakers using an external high-pass
filter.
The input is located on the rear of the
loudspeaker and uses a locking 2-pole
Euroblock style connectors capable of
12AWG (2 mm) wire thickness.
To retain their stylish aesthetics, the rugged
ABS baffle is further protected by using UV
inhibitors that prevent discoloration. The
grille features a stick-on logo that can be
removed blemish-free for installations where
branding is not permitted.

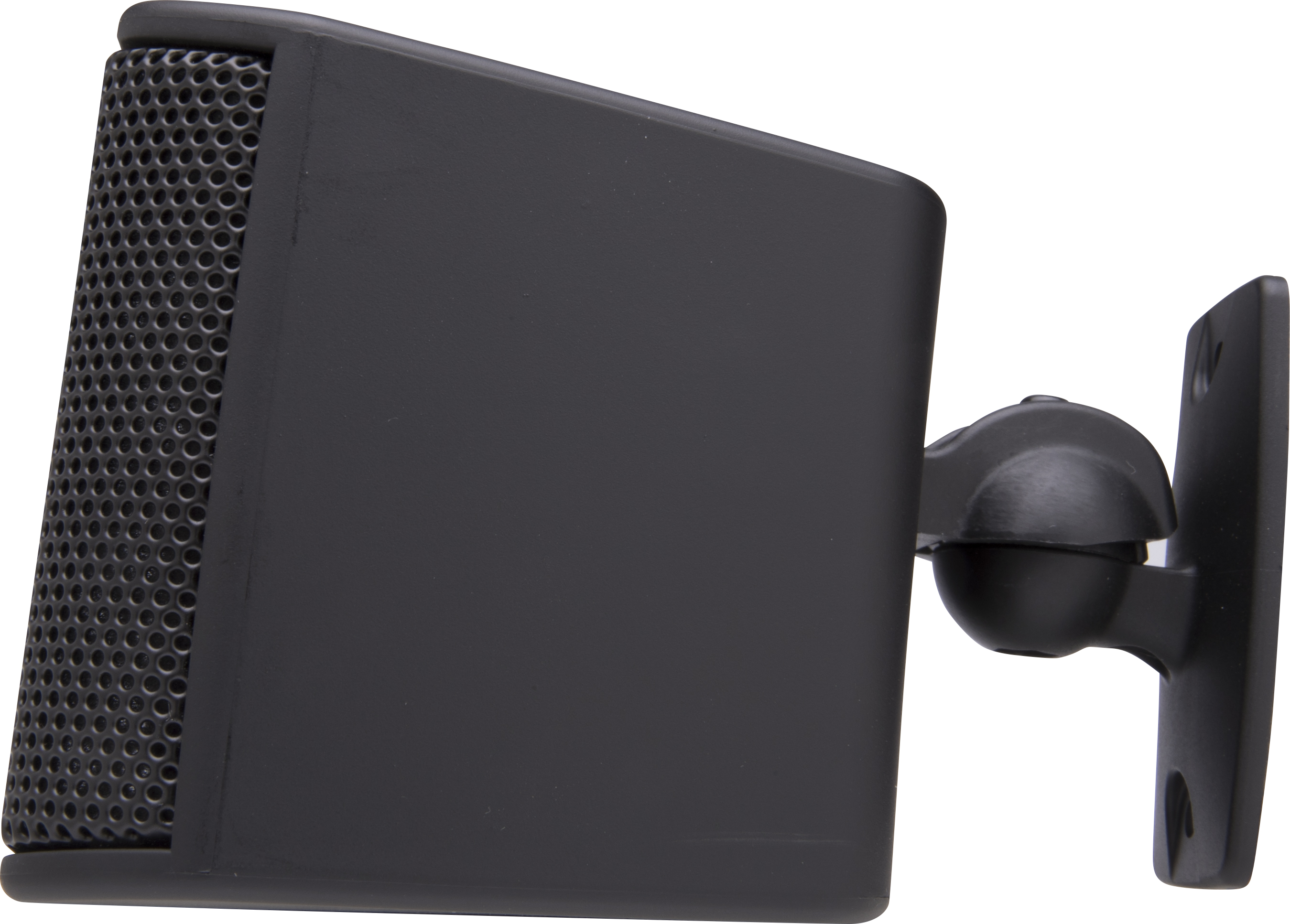

Installers will appreciate X-Mount™ Mini
hardware that ships with the satellites. This
mounting solution allows for repeatable
angles without drift or sag over time. The
mount may be rotated on all four 90° axes
for versatile wall or ceiling mounting options.
Intrinsic Correction™ voicings that optimize
performance and speed the install process
are easily deployed via the MP-M Series
music and paging mixers as well as
Q-SYS Platform, including CXD-Q Series
amplifiers, as part of a complete QSC
systems solution.

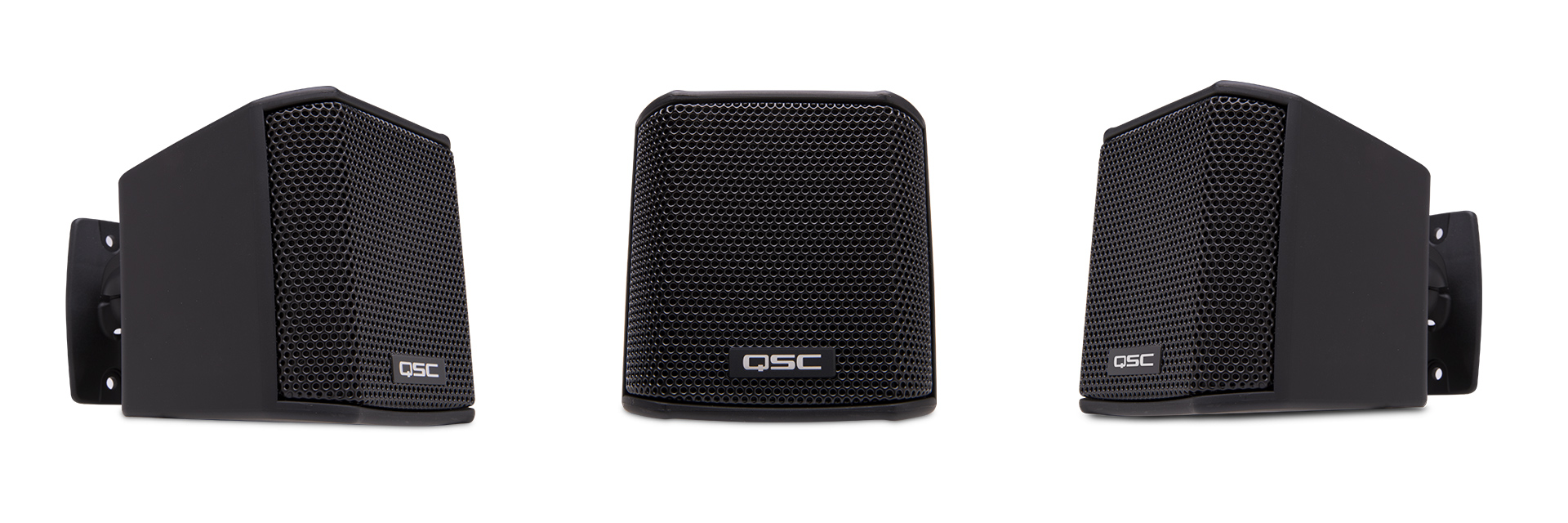

The AD-S.SAT is available in QSC standard
black (RAL 9011) or white (RAL 9010).
For your system integration needs,
complete EASE, CF2, CAD, and BIM files
will be available for download at QSC.com.
AD-S.SAT
87,7
[3.45]
91,4
[3.60]
15~
UPWARD
TILT
45~
DOWNWARD
TILT
135~
HORIZONTAL
PANNING
CABLE PASS THRU
n 6.0 MAXIMUM
89,9
[3.54]
14,9
[.59]
70,0
[2.76]
135,2
[5.32]
Specifications
System Details AD-S.SAT
LF transducer N/A
HF transducer 2.75 in (70 mm) weather treated paper cone woofer
Effective frequency range 1, 2, 3 150 Hz – 20 kHz
Rated noise power / voltage 25 W / 20 V (rms)
Sensitivity [dB] (rated @1 W, 1 m) 3, 4 82
Coverage (-6 dB) [°] 155° Conical
Directivity index [dB] 6.0
Directivity factor 4.0
Maximum SPL [dB] (rated,
1 m (continuous / peak)) 4 94 / 97 / 100
Recommended amplifier 25 W per satellite
(with 1st order high-pass filter at 200 Hz)
Impedance 1652
Connector 2-pole Euroblock
Enclosure material ABS
Grille material Aluminum
Ingress protection IP-34
Operating environment Designed for indoor use
Operating temperature range -4 to 122° F (-20 to 50° C)
Net weight 0.95 lb (433 g)
Product dimensions including wall
bracket (H x W x D) 3.6 x 3.5 x 5.4 in (92.5 x 89 x 136 mm)
Shipping weight TBD (pair packed)
Shipping dimensions (H x W x D) TBD (pair packed)
Included accessories X-Mount Mini , Euroblock connector (pair packed)
Safety agency ROHS, CE compliant.
As part of QSC’s ongoing commitment to product development, specifications are subject to change
without notice.
AD-S.SAT Details
1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174
© 2019 QSC, LLC all rights reserved. QSC and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark office and
other countries. All other trademarks are the property of their respective owners. Patents may apply or be pending.
AD-S.SAT Spec Sheet 03/12/2019
please recycle
2
0.5 -1
-2.5 -4
-5.5 -7
-8.5 -10
-11.5 -13
-14.5 -16
-17.5
100 1k 10k
90
60
30
0
-30
-60
-90
Level (dB)
Frequency (Hz)
Degree (deg)
20 50 200 500 2k 5k 20k
Contour
Frequency Response
10 0 1 k 1 0k
9 0
8 0
7 0
6 0
5 0
50
40
30
20
10
Frequenc y (Hz)
Sound pressure, Level (dB)
Impedance, Ampl itude (ohm)
2 0 5 0 2 00 50 0 2k 5k 2 0 k
8 5
7 5
6 5
5 5
45
35
25
15
Frequency Response (Intrinsic Correction™)
Frequency Response
Impedance
Dimensions
Footnotes:
1) -10 dB from rated sensitivity
2) Anechoic chamber, half-space, 4 V, 1 m
3) Reference axis
4) From Thiele-Small parameters @ 4 V, 1 m
5) IEC, 2hrs, 16 ohm nominal, rated noise power [W], rated noise voltage [Vrms]
6) Calculated from rated noise power and sensitivity
7) Reference plane is the plane coincident with the loudspeaker baffle plane. Reference axis is the
axis perpendicular to the reference plane and passing through the center of the baffle. Vertical plane
is the plane intersecting the reference plane at a right angle, including the reference axis and the taps
selector knob. Horizontal plane is the plane intersecting the reference plane and the vertical plane at
a right angle, including the reference axis.
8) Mounted onto IEC baffle, 4 m
9) 500 Hz - 5 kHz
