Price: $886.00
    Quantity:
    Availability: In Stock
    Usually ships In 24 - 48 hours

    Item #: AD-S10T-BK

    Description

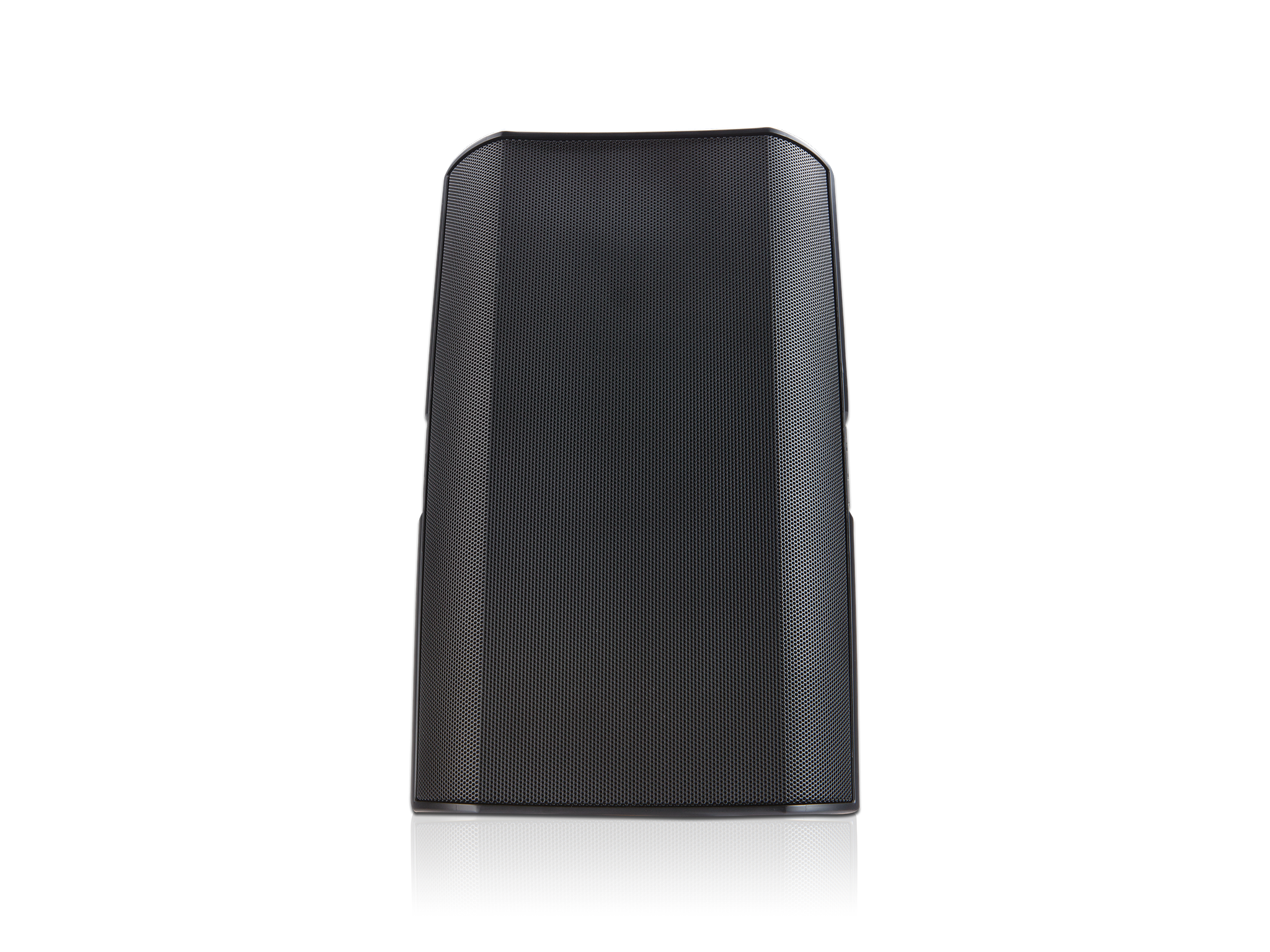

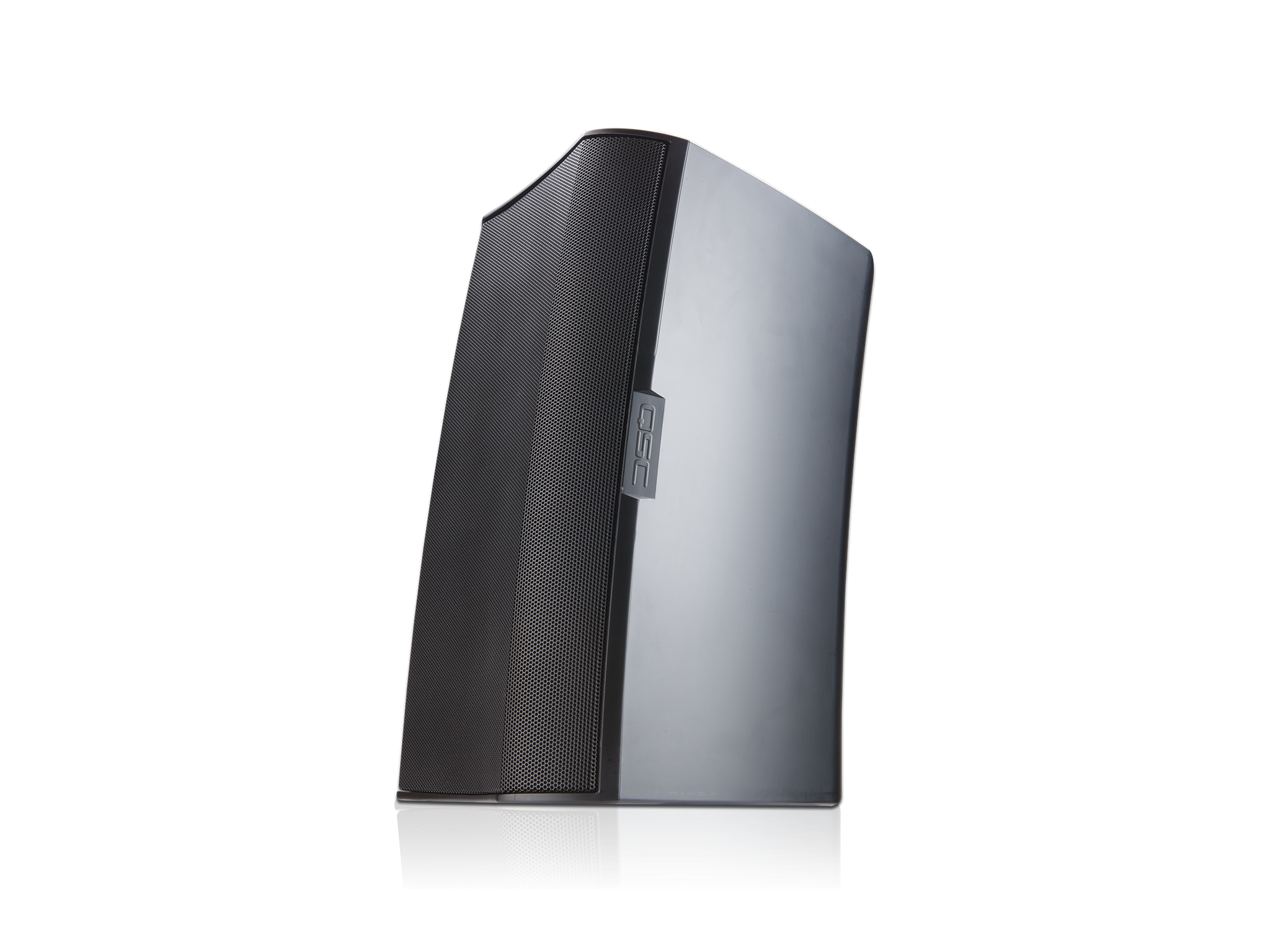

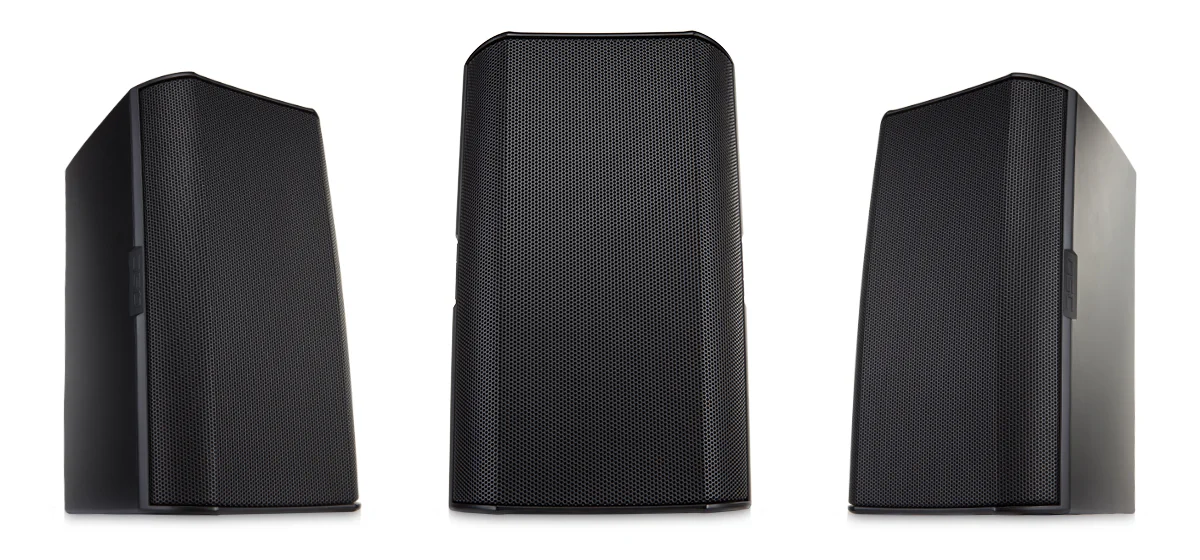

    10" Two-way surface speaker, 70/100V transformer with 8Ω bypass, 90° conical DMT™ coverage, includes X-Mount™ and weather input cup. Available in black.

    Specifications

    Small format, surface mount

    loudspeakers

    Restaurant / Retail ∙ Audio Visual ∙ Education ∙ Healthcare Facilities ∙

    Casinos ∙ Office ∙ Worship Facilities ∙ Ancillary Support in Larger Systems

    S8T | S10T | S12

    AcousticDesign™ Series

    S8T | S10T | S12

    Features

    • DMT™ (Directivity Matched

    Transition) ensures smooth,

    uniform frequency response over

    the coverage area

    • Patent pending X-Mount™

    enables the loudspeaker to be

    easily installed and deployed at a

    variety of angles without slipping

    over time

    • Optional yoke mount and M10

    Kit-C eyebolt kit offers additional

    loudspeaker deployment options

    • Euroblock connectors allows prewiring of the system

    • Low saturation 70/100V

    transformers with 8 ohm bypass

    (S8T and S10T only)

    • Lightweight ABS enclosures offer

    long-term durability and lasting

    good looks

    • Sealed input panel cover and

    powder coated aluminum grilles

    for added weather resistance

    • Meets IEC60529 IP-54 for dust

    and splash resistance

    • Available in black (RAL 9011) or

    white (RAL 9010)

    • Complete EASE, CAD & BIM

    information available online

    QSC’s AcousticDesign™ S8T, S10T and

    S12 surface mount loudspeakers are

    professional, 70/100V, two-way, fullrange systems ideal for a wide variety

    of foreground and background sound

    reinforcement applications. Ease-ofinstallation is the driving principle behind

    QSC’s next generation of small format,

    surface mount loudspeakers. Innovations

    found on AD-S loudspeakers enable

    designers and integrators to quickly and

    easily specify and install a system. AD-S

    loudspeakers are also a perfect solution to

    serve ancillary loudspeaker needs as part

    of a larger installed sound system.

    Housed in rugged ABS enclosures for

    long-term durability, S8T, S10T and S12

    loudspeakers employ DMT™ (Directivity

    Matched Transition) which matches the LF

    and HF coverage at the crossover point. This

    ensures even coverage across the listening

    plane for smooth, coherent audio

    reproduction. The 1.4in diaphragm, 1in

    exit compression driver on the S8T, S10T

    and S12 delivers crisp, detailed highfrequency reproduction and when combined

    with the matched woofers, provides full

    bandwidth reproduction. To further enhance

    performance, tunings using QSC Intrinsic

    Correction techniques are available for

    Q-Sys and future QSC amplifiers. Moreover,

    the low saturation transformers offer

    premium performance on 70/100V

    distributed audio lines.

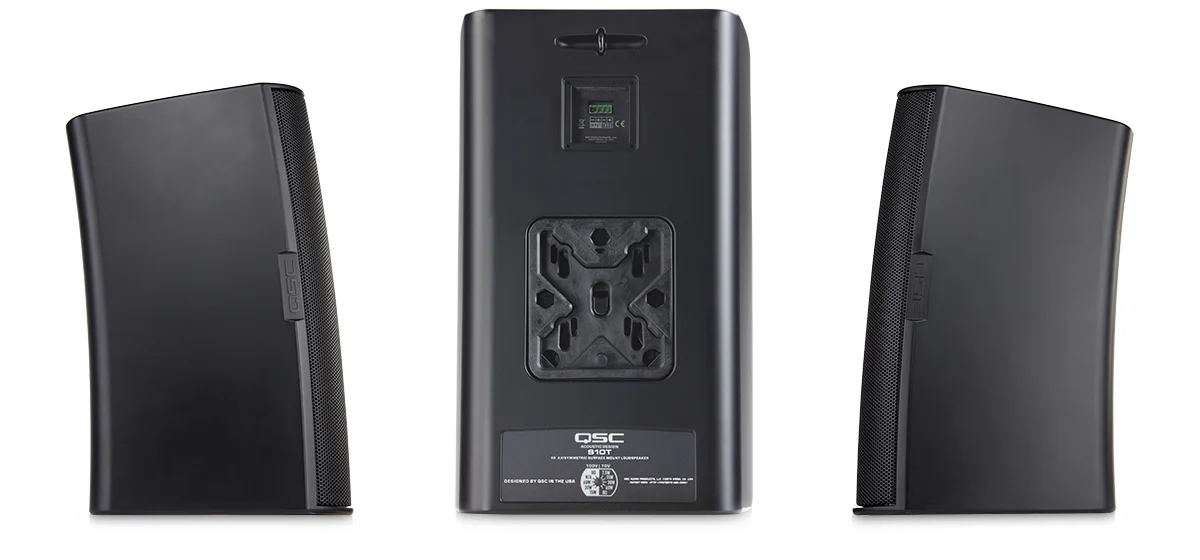

    Installers will appreciate flexible mounting

    options. Euroblock connectors allow prewiring of the system and the included

    X-Mount hardware enables the installer

    to mount the bracket and then simply lift

    the loudspeaker onto the mount and lock it

    into place. Moreover, the loudspeaker can

    attach to its mount on any plane to facilitate

    multiple deployment configurations.

    AD-S loudspeakers can easily be mounted

    to any weight bearing, flat surface. Knurled

    surfaces on the mount’s pivot points ensure

    that the loudspeaker deployment angle stays

    fixed and will not slip over time. No special

    tools are required to install or adjust the

    loudspeaker angle. S8T, S10T and 12

    models also feature M10 installation points

    for suspending the loudspeaker via eye-bolts

    as well as mounting points for an optional

    yoke bracket.

    S8T, S10T and S12 loudspeakers meet

    IEC60529 IP-54 for dust and splash

    resistance and feature sealed input panels

    and powder coated aluminum grilles for

    added weather resistance.

    Presenting a clean, unobtrusive look, AD-S

    grilles are unadorned eliminating the need

    to cover obtrusive logo treatments. AD-S

    loudspeakers are available in either black

    (RAL 9011) or white (RAL 9010) and may

    be painted to match any décor.

    To minimize impact and disposal fees

    at the job site, all AD-S loudspeakers are

    packaged in environmentally friendly,

    recyclable cartons.

    S8T S12 S10T

    S8T Details

    1k 10k

    100

    10

    Frequency (Hz)

    Beamwidth (-6 dB) (deg)

    200 500 2k 5k 20k

    400

    200

    60

    40

    20

    Horizontal Vertical

    Beamwidth: Impedance / Frequence Response:

    Dimensions: S8T Specifications:

    Directivity Index and Q, Horizontal Off-Axis Frequency Response, Vertical Off-Axis Frequency Response available from the QSC website.

    100 1k 10k

    100

    90

    80

    70

    60

    50

    200

    160

    120

    80

    40

    0

    Frequency (Hz)

    Sound pressure, Level (dB)

    Impedance, Amplitude (ohm)

    20 50 200 500 2k 5k 20k

    95

    85

    75

    65

    55

    180

    140

    100

    60

    20

    iFLC: On-axis iFRC: Impedance

    254 mm (10 in)

    251 mm (9.9 in)

    251 mm (9.9 in)

    440 mm (17.3 in)

    254 mm (10 in)

    440 mm (17.3 in)

    254 mm (10 in)

    251 mm (9.9 in)

    251 mm (9.9 in)

    440 mm (17.3 in)

    254 mm (10 in)

    440 mm (17.3 in)

    254 mm (10 in)

    251 mm (9.9 in)

    251 mm (9.9 in)

    440 mm (17.3 in)

    254 mm (10 in)

    440 mm (17.3 in)

    System Details AD-S8T

    Effective frequency range1 55 – 20k Hz

    Rated noise power / voltage2 200 watts / 40 volts (rms)

    Broad-band sensitivity3 90 dB SPL

    Coverage angle (-6 dB) 105°

    Directivity factor (Q) 7

    Directivity Index 9 dB

    Maximum continuous SPL4 113 dB

    Maximum peak SPL4 119 dB

    Rated impedance 8 ohms

    Recommended amplifier power 400 watts

    Transformer taps 70 V: 60, 30, 15, 7.5 watts and 8 ohm bypass

    100V: 60, 30, 15 watts and 8 ohm bypass

    HF transducer 1” exit / 1.4” voice-coil compression driver

    LF transducer 8” weather resistant paper cone woofer,

    2” / 51mm voice-coil

    Input connector type Euroblock connector with parallel output terminals

    Enclosure material Painted ABS polymer

    Grille material Powder coated aluminum

    Enclosure Details

    Ingress protection IP-54

    Operating environment Designed for indoor and outdoor use

    Testing The AD Series loudspeakers qualified for outdoor use

    using the following tests:

    Salt fog: MIL-STD-810G Method 509.5 for 100 hrs.

    Humidity: MIL-STD-810G Method 507.5, Natural cycle B2,

    cyclic high RH for 7 days

    High and low temperature: tested according to QSC

    internal standards between -20° and 50° C

    Operating Temperature Range -20 to 50 °C / -4 to 122 °F

    Net weight 24.1 lbs / 11 kg

    Product dimensions 17.3” x 10” x 9.9” (440 x 254 x 251mm)

    Shipping weight 32.1 lbs / 14.5 kg

    Shipping dimensions 24.3 x 13.8” X 13.8” (729 x 351 x 351mm)

    Included accessories X-Mount mounting system, euroblock connector, input

    panel cover

    Optional accessories YMS8T yoke mount, M10 Kit-C

    1

    Free-field, -10 dB from on-axis sensitivity

    2

    IEC60268-1 noise signal for 2 Hrs

    3

    On-Axis, free-field sensitivity, 2.83V, 1 m

    4

    Calculated from rated noise voltage and sensitivity

    As part of QSC’s ongoing commitment to product development, specifications are subject to

    change without notice.

    S8T Polars

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    1.3 kHz

    1.6 kHz

    2 kHz

    2.5 kHz

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    8 kHz

    10 kHz

    12.5 kHz

    16 kHz

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    500 Hz

    630 Hz

    800 Hz

    1 kHz

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    3.1 kHz

    4 kHz

    5 kHz

    6.3 kHz

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    200 Hz

    250 Hz

    315 Hz

    400 Hz

    Horizontal

    S8T Polars

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    3.1 kHz

    4 kHz

    5 kHz

    6.3 kHz

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    200 Hz

    250 Hz

    315 Hz

    400 Hz

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    500 Hz

    630 Hz

    800 Hz

    1 kHz

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    8 kHz

    10 kHz

    12.5 kHz

    16 kHz

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    1.3 kHz

    1.6 kHz

    2 kHz

    2.5 kHz

    Vertical

    S10T Details

    1k 10k

    100

    10

    (deg) Beamwidth (-6 dB)

    Frequency (Hz)

    200 500 2k 5k 20k

    400

    200

    70

    40

    20

    Horizontal Vertical

    Beamwidth: Impedance / Frequence Response:

    Dimensions: S10T Specifications:

    Directivity Index and Q, Horizontal Off-Axis Frequency Response, Vertical Off-Axis Frequency Response available from the QSC website.

    100 1k 10k

    100

    90

    80

    70

    60

    50

    100

    80

    60

    40

    20

    0

    (dB) Level, Sound pressure Impedance, Amplitude (ohm)

    Frequency (Hz)

    20 50 200 500 2k 5k 20k

    95

    85

    75

    65

    55

    90

    70

    50

    30

    10

    iFLC: On-axis SPL iFRC: Impedance

    318 mm (12.5 in)

    298 mm (11.7 in)

    318 mm (12.5 in)

    516 mm (20.3 in)

    298 mm (11.7 in)

    516 mm (20.3 in)

    318 mm (12.5 in)

    298 mm (11.7 in)

    318 mm (12.5 in)

    516 mm (20.3 in)

    298 mm (11.7 in)

    516 mm (20.3 in)

    318 mm (12.5 in)

    298 mm (11.7 in)

    318 mm (12.5 in)

    516 mm (20.3 in)

    298 mm (11.7 in)

    516 mm (20.3 in)

    System Details AD-S10T

    Effective frequency range1 50 – 19k Hz

    Rated noise power / voltage2 250 watts / 45 volts (rms)

    Broad-band sensitivity3 92 dB SPL

    Coverage angle (-6 dB) 90°

    Directivity factor (Q) 10

    Directivity Index 10 dB

    Maximum continuous SPL4 116 dB

    Maximum peak SPL4 122 dB

    Rated impedance 8 ohms

    Recommended amplifier power 500 watts

    Transformer taps 70 V: 100, 50, 25, 12.5 watts and 8 ohm bypass

    100V: 100, 50, 25 and 8 ohm bypass

    HF transducer 1” exit / 1.4” voice-coil compression driver

    LF transducer 10” weather resistant paper cone woofer,

    2.5” / 64 mm voice-coil

    Input connector type Euroblock connector with parallel output terminals

    Enclosure material Painted ABS polymer

    Grille material Powder coated aluminum

    Enclosure Details

    Ingress protection IP-54

    Operating environment Designed for indoor and outdoor use

    Testing The AD Series loudspeakers qualified for outdoor use

    using the following tests:

    Salt fog: MIL-STD-810G Method 509.5 for 100 hrs.

    Humidity: MIL-STD-810G Method 507.5, Natural cycle B2,

    cyclic high RH for 7 days

    High and low temperature: tested according to QSC

    internal standards between -20° and 50° C

    Operating Temperature Range -20 to 50 °C / -4 to 122 °F

    Net weight 31 lbs / 15 kg

    Product dimensions 20.3” x 12.5” x 11.7” (516 x 318 x 298mm)

    Shipping weight 40.6 lbs / 18.45 kg

    Shipping dimensions 31.7” x 16.1” X 16.1” (805 x 409 x 409mm)

    Included accessories X-Mount mounting system, euroblock connector,

    input panel cover

    Optional accessories YMS10T yoke mount, M10 Kit-C

    1

    Free-field, -10 dB from on-axis sensitivity

    2

    IEC60268-1 noise signal for 2 Hrs

    3

    On-Axis, free-field sensitivity, 2.83V, 1 m

    4

    Calculated from rated noise voltage and sensitivity

    As part of QSC’s ongoing commitment to product development, specifications are subject to

    change without notice.

    S10T Polars

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    F: 3.2 kHz

    F: 4 kHz

    F: 5 kHz

    F: 6.4 kHz

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    F: 8 kHz

    F: 10 kHz

    F: 12.5 kHz

    F: 16 kHz

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    F: 500 Hz

    F: 630 Hz

    F: 800 Hz

    F: 1 kHz

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    F: 2.5 kHz

    F: 2 kHz

    F: 1.6 kHz

    F: 1.25 kHz

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    F: 200 Hz

    F: 250 Hz

    F: 315 Hz

    F: 400 Hz

    Horizontal

    S10T Polars

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    F: 6.3 kHz

    F: 5 kHz

    F: 4 kHz

    F: 3.2 kHz

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    iO: 400 Hz

    iO: 315 Hz

    F: 250 Hz

    F: 200 Hz

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    F: 2.5 kHz

    F: 2 kHz

    F: 1.6 kHz

    F: 1.25 kHz

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    F: 16 kHz

    F: 12.5 kHz

    F: 10 kHz

    F: 8 kHz

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    F: 1 kHz

    F: 800 Hz

    iO: 630 Hz

    iO: 500 Hz

    Vertical

    S12 Details

    1k 10k

    100

    10

    Beamwidth

    Frequency (Hz)

    Beamwidth (-6 dB) (deg)

    200 500 2k 5k 20k

    400

    200

    70

    40

    20

    F: Horizontal F: Vertical

    100 1k 10k

    100

    90

    80

    70

    60

    50

    100

    80

    60

    40

    20

    0

    On-axis SPL and Impedance

    Frequency (Hz)

    Sound pressure, Level (dB)

    Impedance, Amplitude (ohm)

    20 50 200 500 2k 5k 20k

    95

    85

    75

    65

    55

    90

    70

    50

    30

    10

    iFLC: On-axis SPL iFR: Impedance

    Beamwidth: Impedance / Frequence Response:

    Dimensions: S12T Specifications:

    Directivity Index and Q, Horizontal Off-Axis Frequency Response, Vertical Off-Axis Frequency Response available from the QSC website. 594 mm (23.4 in)

    354 mm (13.9 in)

    354 mm (13.9 in)

    323 mm (12.7 in)

    323 mm (12.7 in)

    594 mm (23.4 in)

    594 mm (23.4 in)

    354 mm (13.9 in)

    354 mm (13.9 in)

    323 mm (12.7 in)

    323 mm (12.7 in)

    594 mm (23.4 in)

    594 mm (23.4 in)

    354 mm (13.9 in)

    354 mm (13.9 in)

    323 mm (12.7 in)

    323 mm (12.7 in)

    594 mm (23.4 in)

    System Details AD-S12

    Effective frequency range1 52 – 20k Hz

    Rated noise power / voltage2 300 watts / 50 volts (rms)

    Broad-band sensitivity3 95 dB SPL

    Coverage angle (-6 dB) 75°

    Directivity factor (Q) 12

    Directivity Index 11 dB

    Maximum continuous SPL4 120 dB

    Maximum peak SPL4 126 dB

    Rated impedance 8 ohms

    Recommended amplifier power 600 watts

    HF transducer 1” exit / 1.4” voice-coil compression driver

    LF transducer 12” weather resistant paper cone woofer, 3” / 76 mm

    voice-coil

    Input connector type Euroblock connector with parallel output terminals

    Enclosure material Painted ABS polymer

    Grille material Powder coated aluminum

    Enclosure Details

    Ingress protection IP-54

    Operating environment Designed for indoor and outdoor use

    Testing The AD Series loudspeakers qualified for outdoor use

    using the following tests:

    Salt fog: MIL-STD-810G Method 509.5 for 100 hrs.

    Humidity: MIL-STD-810G Method 507.5, Natural cycle B2,

    cyclic high RH for 7 days

    High and low temperature: tested according to QSC

    internal standards between -20° and 50° C

    Operating Temperature Range -20 to 50 °C / -4 to 122 °F

    Net weight 35.2 lbs / 16 kg

    Product dimensions 23.4” x 13.9” x 12.7” (594 x 354 x 323 mm)

    Shipping weight 46.3 lbs / 21 kg

    Shipping dimensions 34.5” x 17.9” x 17.2” (765 x 455 x 437 mm)

    Included accessories X-Mount mounting system, euroblock connector,

    input panel cover

    Optional accessories YMS12 yoke mount, M10 Kit-C

    1

    Free-field, -10 dB from on-axis sensitivity

    2

    IEC60268-1 noise signal for 2 Hrs

    3

    On-Axis, free-field sensitivity, 2.83V, 1 m

    4

    Calculated from rated noise voltage and sensitivity

    As part of QSC’s ongoing commitment to product development, specifications are subject to

    change without notice.

    S12 Polars

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    1.25 kHz

    1.6 kHz

    2 kHz

    2.5 kHz

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    8 kHz

    10 kHz

    12.5 kHz

    16 kHz

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    500 Hz

    630 Hz

    800 Hz

    1 kHz

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    3.1 kHz

    4 kHz

    5 kHz

    6.3 kHz

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    200 Hz

    250 Hz

    315 Hz

    400 Hz

    Horizontal

    S12 Polars

    1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174

    AD-S8T | AD-S10T | AD-S12 Spec Sheet 04/29/2013

    please recycle

    © 2013 QSC Audio Products, LLC. All rights reserved. QSC and the QSC logo are registered trademarks of QSC Audio Products, LLC in the U.S. Patent and Trademark office

    and other countries. DMT is a trademark of QSC. Speakon is a registered trademark of Neutrik

    Specifications subject to change without notice.

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    3.1 kHz

    4 kHz

    5 kHz

    6.3 kHz

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    200 Hz

    250 Hz

    315 Hz

    400 Hz

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    1.3 kHz

    1.6 kHz

    2 kHz

    2.5 kHz

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    8 kHz

    10 kHz

    12.5 kHz

    16 kHz

    -30°

    -60°

    -90°

    -120°

    -150°

    +30°

    +60°

    +90°

    +120°

    +150°

    +/-180°

    0 -12 -24

    Level (dB)

    (deg)

    -6 -18 -30

    6

    500 Hz

    630 Hz

    800 Hz

    1 kHz

    Vertical
