Small format, surface mount
loudspeakers
Restaurant / Retail ∙ Audio Visual ∙ Education ∙ Healthcare Facilities ∙
Casinos ∙ Office ∙ Worship Facilities ∙ Ancillary Support in Larger Systems
S8T | S10T | S12
AcousticDesign™ Series
S8T | S10T | S12
Features
• DMT™ (Directivity Matched
Transition) ensures smooth,
uniform frequency response over
the coverage area
• Patent pending X-Mount™
enables the loudspeaker to be
easily installed and deployed at a
variety of angles without slipping
over time
• Optional yoke mount and M10
Kit-C eyebolt kit offers additional
loudspeaker deployment options
• Euroblock connectors allows prewiring of the system
• Low saturation 70/100V
transformers with 8 ohm bypass
(S8T and S10T only)
• Lightweight ABS enclosures offer
long-term durability and lasting
good looks
• Sealed input panel cover and
powder coated aluminum grilles
for added weather resistance
• Meets IEC60529 IP-54 for dust
and splash resistance
• Available in black (RAL 9011) or
white (RAL 9010)
• Complete EASE, CAD & BIM
information available online

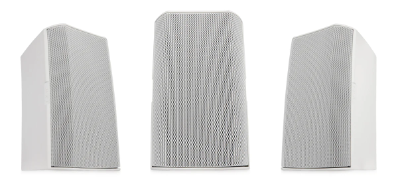

QSC’s AcousticDesign™ S8T, S10T and
S12 surface mount loudspeakers are
professional, 70/100V, two-way, fullrange systems ideal for a wide variety
of foreground and background sound
reinforcement applications. Ease-ofinstallation is the driving principle behind
QSC’s next generation of small format,
surface mount loudspeakers. Innovations
found on AD-S loudspeakers enable
designers and integrators to quickly and
easily specify and install a system. AD-S
loudspeakers are also a perfect solution to
serve ancillary loudspeaker needs as part
of a larger installed sound system.
Housed in rugged ABS enclosures for
long-term durability, S8T, S10T and S12
loudspeakers employ DMT™ (Directivity
Matched Transition) which matches the LF
and HF coverage at the crossover point. This
ensures even coverage across the listening
plane for smooth, coherent audio
reproduction. The 1.4in diaphragm, 1in
exit compression driver on the S8T, S10T
and S12 delivers crisp, detailed highfrequency reproduction and when combined
with the matched woofers, provides full
bandwidth reproduction. To further enhance
performance, tunings using QSC Intrinsic
Correction techniques are available for
Q-Sys and future QSC amplifiers. Moreover,
the low saturation transformers offer
premium performance on 70/100V
distributed audio lines.

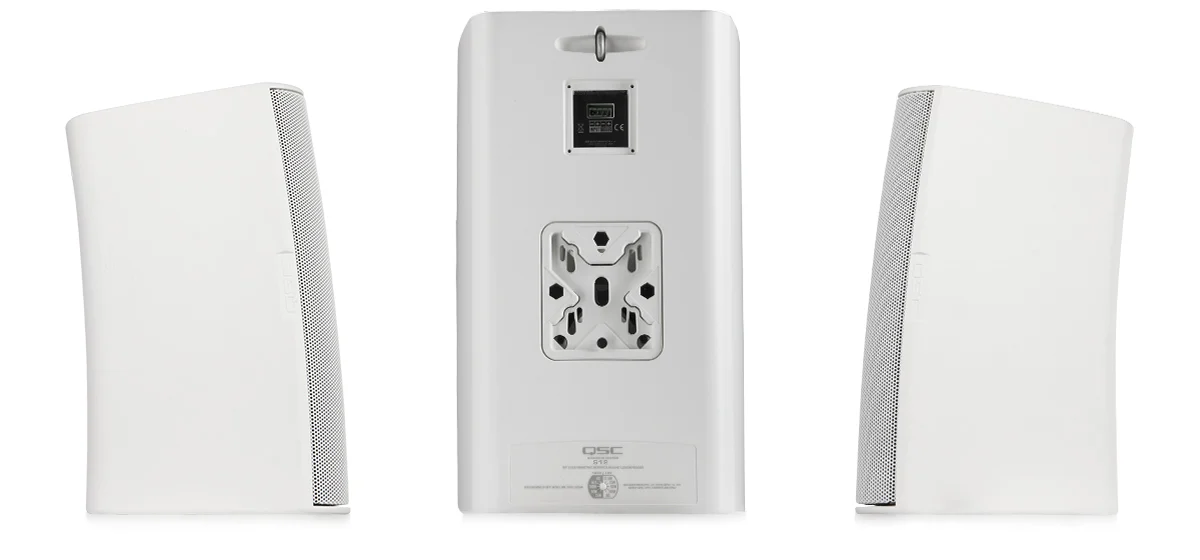

Installers will appreciate flexible mounting
options. Euroblock connectors allow prewiring of the system and the included
X-Mount hardware enables the installer
to mount the bracket and then simply lift
the loudspeaker onto the mount and lock it
into place. Moreover, the loudspeaker can
attach to its mount on any plane to facilitate
multiple deployment configurations.
AD-S loudspeakers can easily be mounted
to any weight bearing, flat surface. Knurled
surfaces on the mount’s pivot points ensure
that the loudspeaker deployment angle stays
fixed and will not slip over time. No special
tools are required to install or adjust the
loudspeaker angle. S8T, S10T and 12

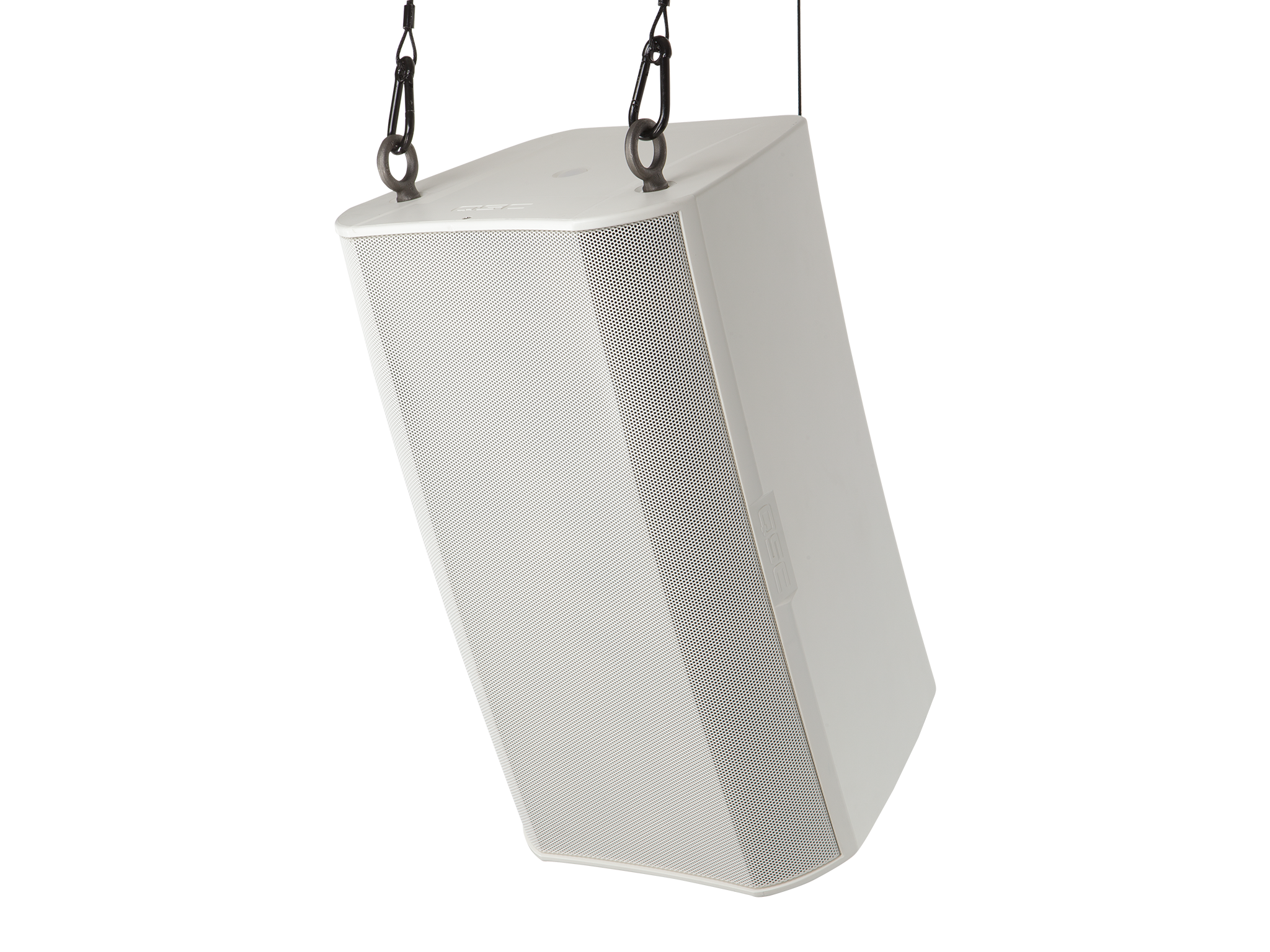

models also feature M10 installation points
for suspending the loudspeaker via eye-bolts
as well as mounting points for an optional
yoke bracket.
S8T, S10T and S12 loudspeakers meet
IEC60529 IP-54 for dust and splash
resistance and feature sealed input panels
and powder coated aluminum grilles for
added weather resistance.

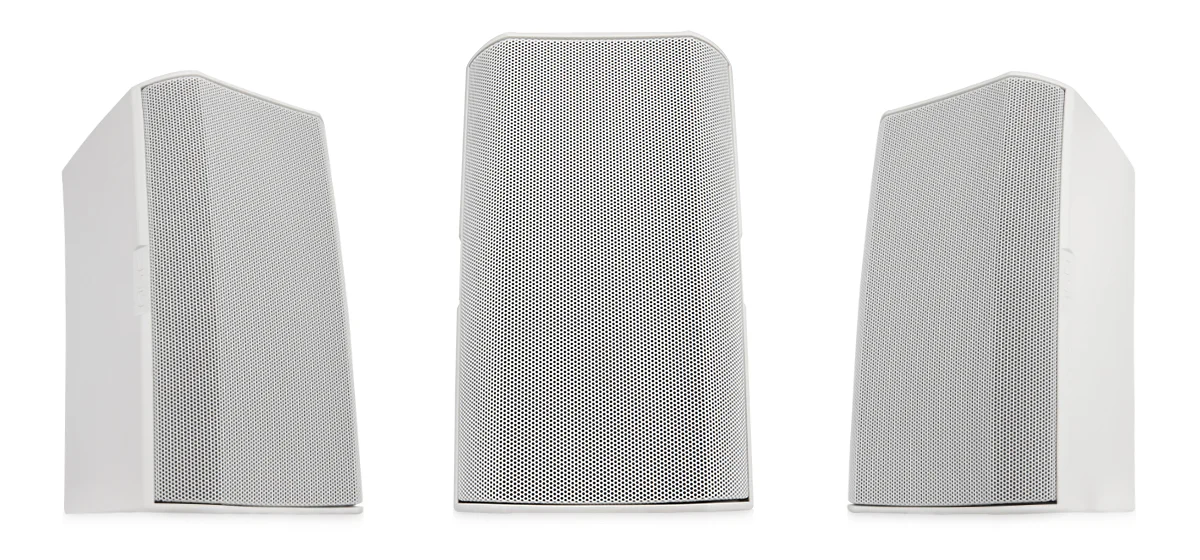

Presenting a clean, unobtrusive look, AD-S
grilles are unadorned eliminating the need
to cover obtrusive logo treatments. AD-S
loudspeakers are available in either black
(RAL 9011) or white (RAL 9010) and may
be painted to match any décor.
To minimize impact and disposal fees
at the job site, all AD-S loudspeakers are
packaged in environmentally friendly,
recyclable cartons.
S8T S12 S10T
S8T Details
1k 10k
100
10
Frequency (Hz)
Beamwidth (-6 dB) (deg)
200 500 2k 5k 20k
400
200
60
40
20
Horizontal Vertical
Beamwidth: Impedance / Frequence Response:
Dimensions: S8T Specifications:
Directivity Index and Q, Horizontal Off-Axis Frequency Response, Vertical Off-Axis Frequency Response available from the QSC website.
100 1k 10k
100
90
80
70
60
50
200
160
120
80
40
0
Frequency (Hz)
Sound pressure, Level (dB)
Impedance, Amplitude (ohm)
20 50 200 500 2k 5k 20k
95
85
75
65
55
180
140
100
60
20
iFLC: On-axis iFRC: Impedance
254 mm (10 in)
251 mm (9.9 in)
251 mm (9.9 in)
440 mm (17.3 in)
254 mm (10 in)
440 mm (17.3 in)
254 mm (10 in)
251 mm (9.9 in)
251 mm (9.9 in)
440 mm (17.3 in)
254 mm (10 in)
440 mm (17.3 in)
254 mm (10 in)
251 mm (9.9 in)
251 mm (9.9 in)
440 mm (17.3 in)
254 mm (10 in)
440 mm (17.3 in)
System Details AD-S8T
Effective frequency range1 55 – 20k Hz
Rated noise power / voltage2 200 watts / 40 volts (rms)
Broad-band sensitivity3 90 dB SPL
Coverage angle (-6 dB) 105°
Directivity factor (Q) 7
Directivity Index 9 dB
Maximum continuous SPL4 113 dB
Maximum peak SPL4 119 dB
Rated impedance 8 ohms
Recommended amplifier power 400 watts
Transformer taps 70 V: 60, 30, 15, 7.5 watts and 8 ohm bypass
100V: 60, 30, 15 watts and 8 ohm bypass
HF transducer 1” exit / 1.4” voice-coil compression driver
LF transducer 8” weather resistant paper cone woofer,
2” / 51mm voice-coil
Input connector type Euroblock connector with parallel output terminals
Enclosure material Painted ABS polymer
Grille material Powder coated aluminum
Enclosure Details
Ingress protection IP-54
Operating environment Designed for indoor and outdoor use
Testing The AD Series loudspeakers qualified for outdoor use
using the following tests:
Salt fog: MIL-STD-810G Method 509.5 for 100 hrs.
Humidity: MIL-STD-810G Method 507.5, Natural cycle B2,
cyclic high RH for 7 days
High and low temperature: tested according to QSC
internal standards between -20° and 50° C
Operating Temperature Range -20 to 50 °C / -4 to 122 °F
Net weight 24.1 lbs / 11 kg
Product dimensions 17.3” x 10” x 9.9” (440 x 254 x 251mm)
Shipping weight 32.1 lbs / 14.5 kg
Shipping dimensions 24.3 x 13.8” X 13.8” (729 x 351 x 351mm)
Included accessories X-Mount mounting system, euroblock connector, input
panel cover
Optional accessories YMS8T yoke mount, M10 Kit-C
1
Free-field, -10 dB from on-axis sensitivity
2
IEC60268-1 noise signal for 2 Hrs
3
On-Axis, free-field sensitivity, 2.83V, 1 m
4
Calculated from rated noise voltage and sensitivity
As part of QSC’s ongoing commitment to product development, specifications are subject to
change without notice.
S8T Polars
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
1.3 kHz
1.6 kHz
2 kHz
2.5 kHz
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
8 kHz
10 kHz
12.5 kHz
16 kHz
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
500 Hz
630 Hz
800 Hz
1 kHz
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
3.1 kHz
4 kHz
5 kHz
6.3 kHz
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
200 Hz
250 Hz
315 Hz
400 Hz
Horizontal
S8T Polars
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
3.1 kHz
4 kHz
5 kHz
6.3 kHz
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
200 Hz
250 Hz
315 Hz
400 Hz
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
500 Hz
630 Hz
800 Hz
1 kHz
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
8 kHz
10 kHz
12.5 kHz
16 kHz
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
1.3 kHz
1.6 kHz
2 kHz
2.5 kHz
Vertical
S10T Details
1k 10k
100
10
(deg) Beamwidth (-6 dB)
Frequency (Hz)
200 500 2k 5k 20k
400
200
70
40
20
Horizontal Vertical
Beamwidth: Impedance / Frequence Response:
Dimensions: S10T Specifications:
Directivity Index and Q, Horizontal Off-Axis Frequency Response, Vertical Off-Axis Frequency Response available from the QSC website.
100 1k 10k
100
90
80
70
60
50
100
80
60
40
20
0
(dB) Level, Sound pressure Impedance, Amplitude (ohm)
Frequency (Hz)
20 50 200 500 2k 5k 20k
95
85
75
65
55
90
70
50
30
10
iFLC: On-axis SPL iFRC: Impedance
318 mm (12.5 in)
298 mm (11.7 in)
318 mm (12.5 in)
516 mm (20.3 in)
298 mm (11.7 in)
516 mm (20.3 in)
318 mm (12.5 in)
298 mm (11.7 in)
318 mm (12.5 in)
516 mm (20.3 in)
298 mm (11.7 in)
516 mm (20.3 in)
318 mm (12.5 in)
298 mm (11.7 in)
318 mm (12.5 in)
516 mm (20.3 in)
298 mm (11.7 in)
516 mm (20.3 in)
System Details AD-S10T
Effective frequency range1 50 – 19k Hz
Rated noise power / voltage2 250 watts / 45 volts (rms)
Broad-band sensitivity3 92 dB SPL
Coverage angle (-6 dB) 90°
Directivity factor (Q) 10
Directivity Index 10 dB
Maximum continuous SPL4 116 dB
Maximum peak SPL4 122 dB
Rated impedance 8 ohms
Recommended amplifier power 500 watts
Transformer taps 70 V: 100, 50, 25, 12.5 watts and 8 ohm bypass
100V: 100, 50, 25 and 8 ohm bypass
HF transducer 1” exit / 1.4” voice-coil compression driver
LF transducer 10” weather resistant paper cone woofer,
2.5” / 64 mm voice-coil
Input connector type Euroblock connector with parallel output terminals
Enclosure material Painted ABS polymer
Grille material Powder coated aluminum
Enclosure Details
Ingress protection IP-54
Operating environment Designed for indoor and outdoor use
Testing The AD Series loudspeakers qualified for outdoor use
using the following tests:
Salt fog: MIL-STD-810G Method 509.5 for 100 hrs.
Humidity: MIL-STD-810G Method 507.5, Natural cycle B2,
cyclic high RH for 7 days
High and low temperature: tested according to QSC
internal standards between -20° and 50° C
Operating Temperature Range -20 to 50 °C / -4 to 122 °F
Net weight 31 lbs / 15 kg
Product dimensions 20.3” x 12.5” x 11.7” (516 x 318 x 298mm)
Shipping weight 40.6 lbs / 18.45 kg
Shipping dimensions 31.7” x 16.1” X 16.1” (805 x 409 x 409mm)
Included accessories X-Mount mounting system, euroblock connector,
input panel cover
Optional accessories YMS10T yoke mount, M10 Kit-C
1
Free-field, -10 dB from on-axis sensitivity
2
IEC60268-1 noise signal for 2 Hrs
3
On-Axis, free-field sensitivity, 2.83V, 1 m
4
Calculated from rated noise voltage and sensitivity
As part of QSC’s ongoing commitment to product development, specifications are subject to
change without notice.
S10T Polars
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
F: 3.2 kHz
F: 4 kHz
F: 5 kHz
F: 6.4 kHz
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
F: 8 kHz
F: 10 kHz
F: 12.5 kHz
F: 16 kHz
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
F: 500 Hz
F: 630 Hz
F: 800 Hz
F: 1 kHz
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
F: 2.5 kHz
F: 2 kHz
F: 1.6 kHz
F: 1.25 kHz
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
F: 200 Hz
F: 250 Hz
F: 315 Hz
F: 400 Hz
Horizontal
S10T Polars
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
F: 6.3 kHz
F: 5 kHz
F: 4 kHz
F: 3.2 kHz
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
iO: 400 Hz
iO: 315 Hz
F: 250 Hz
F: 200 Hz
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
F: 2.5 kHz
F: 2 kHz
F: 1.6 kHz
F: 1.25 kHz
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
F: 16 kHz
F: 12.5 kHz
F: 10 kHz
F: 8 kHz
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
F: 1 kHz
F: 800 Hz
iO: 630 Hz
iO: 500 Hz
Vertical
S12 Details
1k 10k
100
10
Beamwidth
Frequency (Hz)
Beamwidth (-6 dB) (deg)
200 500 2k 5k 20k
400
200
70
40
20
F: Horizontal F: Vertical
100 1k 10k
100
90
80
70
60
50
100
80
60
40
20
0
On-axis SPL and Impedance
Frequency (Hz)
Sound pressure, Level (dB)
Impedance, Amplitude (ohm)
20 50 200 500 2k 5k 20k
95
85
75
65
55
90
70
50
30
10
iFLC: On-axis SPL iFR: Impedance
Beamwidth: Impedance / Frequence Response:
Dimensions: S12T Specifications:
Directivity Index and Q, Horizontal Off-Axis Frequency Response, Vertical Off-Axis Frequency Response available from the QSC website. 594 mm (23.4 in)
354 mm (13.9 in)
354 mm (13.9 in)
323 mm (12.7 in)
323 mm (12.7 in)
594 mm (23.4 in)
594 mm (23.4 in)
354 mm (13.9 in)
354 mm (13.9 in)
323 mm (12.7 in)
323 mm (12.7 in)
594 mm (23.4 in)
594 mm (23.4 in)
354 mm (13.9 in)
354 mm (13.9 in)
323 mm (12.7 in)
323 mm (12.7 in)
594 mm (23.4 in)
System Details AD-S12
Effective frequency range1 52 – 20k Hz
Rated noise power / voltage2 300 watts / 50 volts (rms)
Broad-band sensitivity3 95 dB SPL
Coverage angle (-6 dB) 75°
Directivity factor (Q) 12
Directivity Index 11 dB
Maximum continuous SPL4 120 dB
Maximum peak SPL4 126 dB
Rated impedance 8 ohms
Recommended amplifier power 600 watts
HF transducer 1” exit / 1.4” voice-coil compression driver
LF transducer 12” weather resistant paper cone woofer, 3” / 76 mm
voice-coil
Input connector type Euroblock connector with parallel output terminals
Enclosure material Painted ABS polymer
Grille material Powder coated aluminum
Enclosure Details
Ingress protection IP-54
Operating environment Designed for indoor and outdoor use
Testing The AD Series loudspeakers qualified for outdoor use
using the following tests:
Salt fog: MIL-STD-810G Method 509.5 for 100 hrs.
Humidity: MIL-STD-810G Method 507.5, Natural cycle B2,
cyclic high RH for 7 days
High and low temperature: tested according to QSC
internal standards between -20° and 50° C
Operating Temperature Range -20 to 50 °C / -4 to 122 °F
Net weight 35.2 lbs / 16 kg
Product dimensions 23.4” x 13.9” x 12.7” (594 x 354 x 323 mm)
Shipping weight 46.3 lbs / 21 kg
Shipping dimensions 34.5” x 17.9” x 17.2” (765 x 455 x 437 mm)
Included accessories X-Mount mounting system, euroblock connector,
input panel cover
Optional accessories YMS12 yoke mount, M10 Kit-C
1
Free-field, -10 dB from on-axis sensitivity
2
IEC60268-1 noise signal for 2 Hrs
3
On-Axis, free-field sensitivity, 2.83V, 1 m
4
Calculated from rated noise voltage and sensitivity
As part of QSC’s ongoing commitment to product development, specifications are subject to
change without notice.
S12 Polars
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
1.25 kHz
1.6 kHz
2 kHz
2.5 kHz
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
8 kHz
10 kHz
12.5 kHz
16 kHz
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
500 Hz
630 Hz
800 Hz
1 kHz
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
3.1 kHz
4 kHz
5 kHz
6.3 kHz
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
200 Hz
250 Hz
315 Hz
400 Hz
Horizontal
S12 Polars
1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174
AD-S8T | AD-S10T | AD-S12 Spec Sheet 04/29/2013
please recycle
© 2013 QSC Audio Products, LLC. All rights reserved. QSC and the QSC logo are registered trademarks of QSC Audio Products, LLC in the U.S. Patent and Trademark office
and other countries. DMT is a trademark of QSC. Speakon is a registered trademark of Neutrik
Specifications subject to change without notice.
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
3.1 kHz
4 kHz
5 kHz
6.3 kHz
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
200 Hz
250 Hz
315 Hz
400 Hz
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
1.3 kHz
1.6 kHz
2 kHz
2.5 kHz
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
8 kHz
10 kHz
12.5 kHz
16 kHz
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0 -12 -24
Level (dB)
(deg)
-6 -18 -30
6
500 Hz
630 Hz
800 Hz
1 kHz
Vertical
