AD-S282H
AcousticDesign™ Loudspeaker
Features
• Contemporary style, weather resistant enclosure and components—
ideal for a wide range of applications
• Dual 8", 2-way system—in a lightweight, multipurpose enclosure featuring
a heavy duty, powder coated aluminum grill
• Versatile mounting options—the included yoke mount bracket can be used
for mounting and aiming the system in vertical or horizontal orientations.
Provision for optional Omnimount™ bracket is built in
• Advanced Directivity™ rotatable waveguide—(90º x 60°) enables the
loudspeaker to deliver accurately focused sound, regardless of the enclosure’s
mounted orientation
• Low-impedance and transformer versions—Standard 8 ohm system is
selectable for passive bi-amp operation while the AD-S282HT transformer
version provides taps for both 70 and100 volt distributed system use

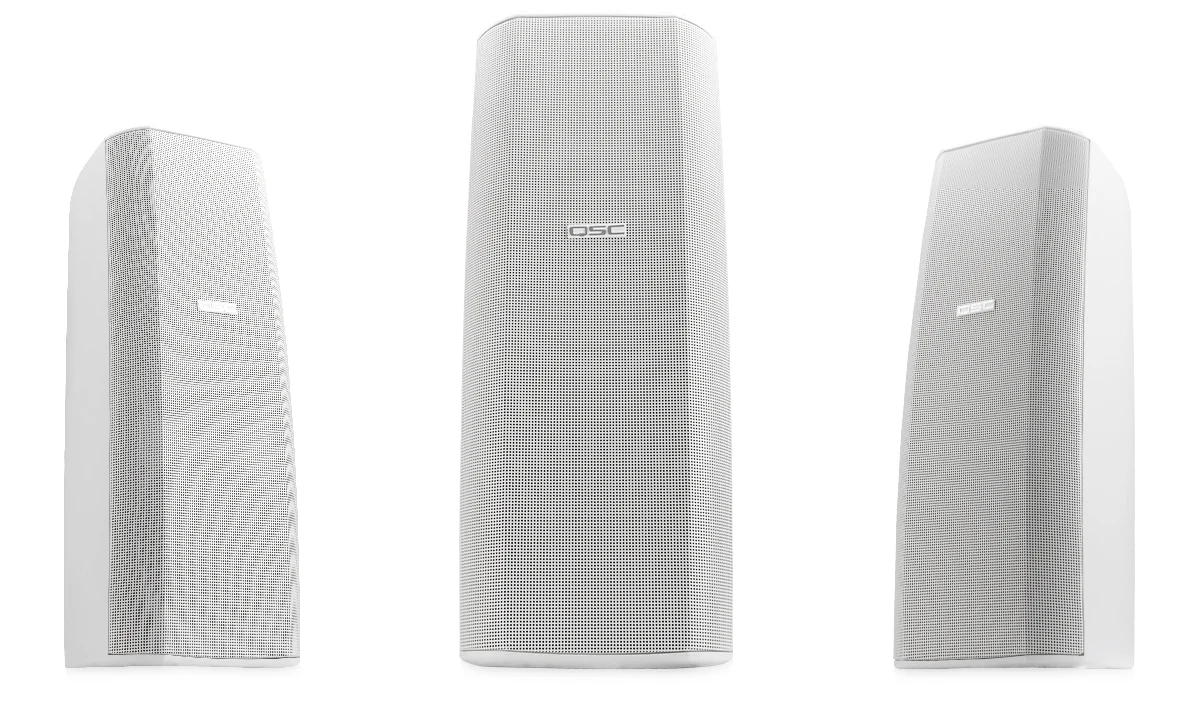

The QSC AcousticDesign
AD-S282H is a full range, surface
mount loudspeaker with a sleek,
contemporary styling that fits
perfectly into multiple surroundings
and applications including hotels,
restaurants, convention facilities,
and multimedia environments.
The speaker incorporates the
Advanced Directivity rotatable
waveguide. Available in black or
white, these weather resistant
enclosures can be painted to
match any specific décor.

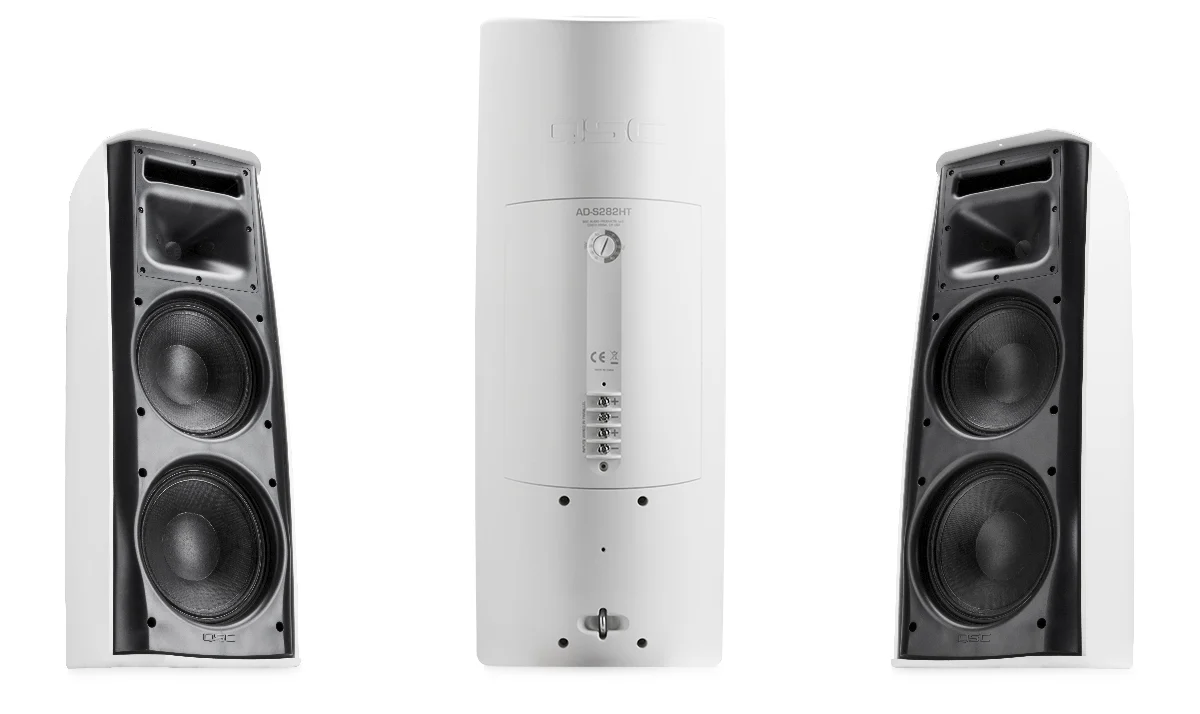

The AD-S282H is a 2-way system
housed in a ported enclosure
made from injection molded, highimpact polystyrene. This enclosure
incorporates two 8" weather
resistant, LF transducers with heavyduty double roll cloth surrounds.
These high output versions employ
a 1" exit compression HF driver.
The HF driver is coupled with
QSC’s unique Advanced Directivity
rotatable waveguide—enabling the
loudspeaker to deliver accurately
focused sound, regardless of its
mounted orientation.
1) All frequencyrangesspecified refer to measured
free field response (fullspace, 4π)
2) Calculated SPL at 1 m, full space (4π), speaker
operating at rated RMS power with pink noise
within specified frequency range
3) Maximum input power tested in accordance with
IEC 268-5 recommendations, 50 Hz - 20 kHz
band limiting, 6 dB signal crest factor, 8 hours
4) Based on nominal impedance, measured in
full-space
Specifications AD-S282H and AD-S282HT
Configuration Compact 2-way, ported enclosure
Transducers
Low-frequency Transducers
High-frequency Transducer
Dual 8" high power, treated paper cone, 2" voice coil, neodymium magnet
1" high output compression driver
Frequency Range1
Frequency Response (-6 dB)
Usable Frequency Range (-10 dB)
80 Hz – 27.7 kHz
60 Hz – 29.5 kHz
Maximum Output (SPL at 1 m) 2
Continuous
Peak
Fullrange (passive mode)
120
126
LF (biamp mode)
124
130
HF (biamp mode)
121
127
Nominal Impedance Passive
8Ω
LF
8Ω
HF
8Ω
Power Rating 3 Passive
450 W (IEC, 8 hours)
LF
500 W (IEC 8 hours, 50 Hz – 2 kHz)
HF
45 W (IEC 8 hours, 2 kHz – 20 kHz)
Recommended Max Amp Power Passive
900 W RMS
Sensitivity (SPL, 1 W at 1 m) 4 Passive
93 dB (100 Hz – 10 kHz)
LF
97 dB (200 Hz – 2 kHz)
HF
104 dB (2 kHz – 10 kHz)
Nominal Coverage 90°H x 60°V (-6 dB) | rotatable to 60°H x 90°V
Bass Loading Ported, tuned to 60 Hz
Transformers T
Type Custom low distortion laminated core, wide bandwidth design
Taps 70V 200, 100, 50, 25 watts | 100V 200, 100, 50 watts
Bypass 8Ω bypass on AD-S282HT
Enclosure E
Material Injection molded, weather resistant, high impact polystyrene
Finish White or black (paintable)
Weather Resistance Yes
Grille Heavy duty powder coated aluminum

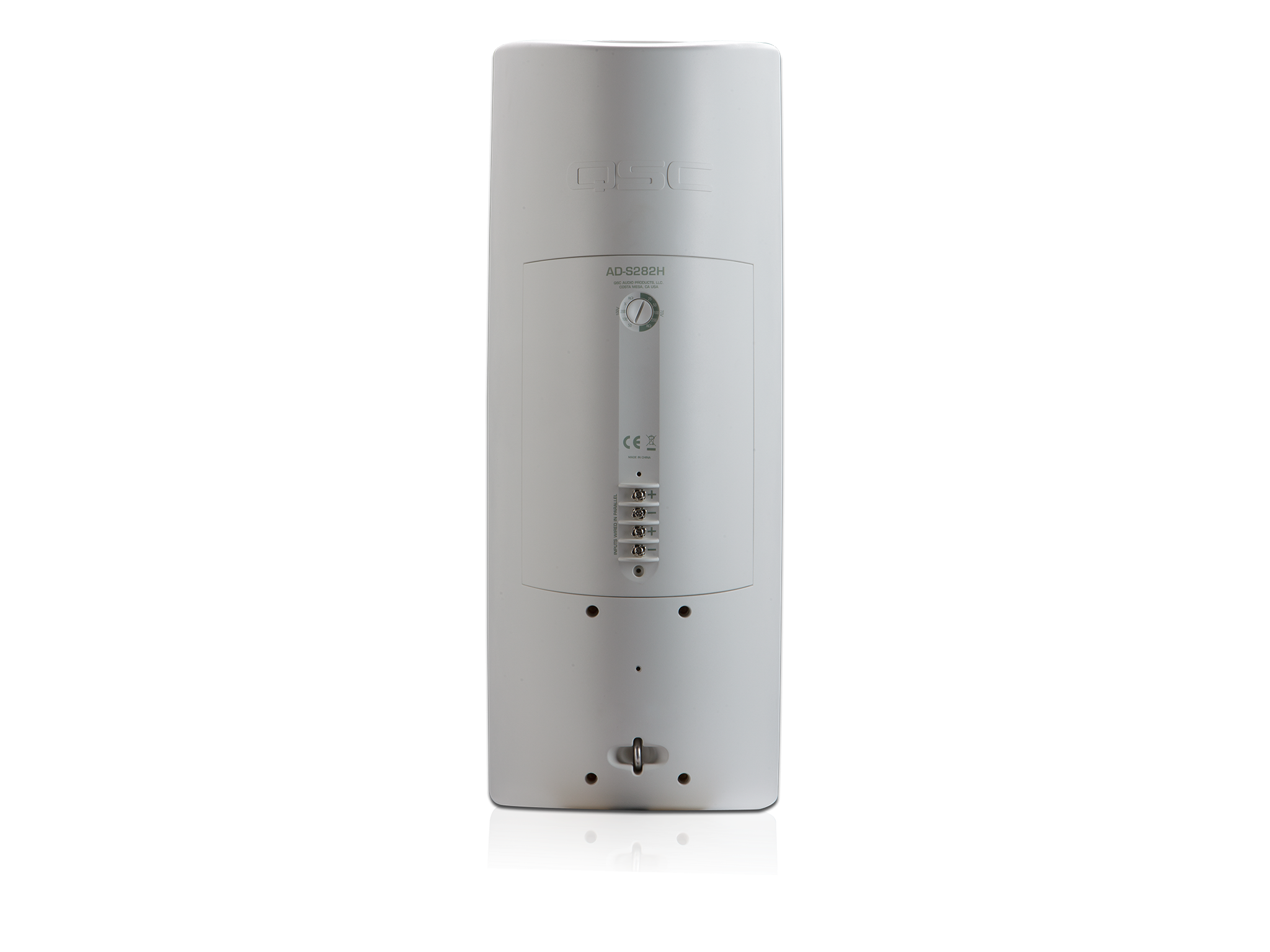

Connectors Barrier strip (switchable: passive/active on AD-S282H)
Mounting Hardware Yoke mount included
Weight - Net / Shipping 27.7 lb (12.6 kg) / 35.6 lb (16.1 kg)
AD-S282H Dimensions | Frequency Response and Impedance
qscaudio.com
Specifications subject to change without notice.
1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174
AD-S282H Spec Sheet - 06/18/08
Front
11.44"
290 mm
Side
10.21"
259 mm
13.82"
351 mm
Top
26.17"
665 mm
Frequency Response
and Impedance*
Horizontal Off-Axis
Frequency Response**
(0°, 20°, 40°, 60°)
*Graph shows free field SPL at 1 W, 1 m
**1/3rd octave smoothing applied to off-axis
curves for clarity
110
105
100
95
90
85
80
75
70
65
60
55
50
dBSPL
20Hz 50 100 200 500 1K 2K 5K 10k 20K
Frequency (Hz)
100
95
90
85
80
75
70
65
60
55
50
45
40
dBSPL
20Hz 50 100 200 500 1K 2K 5K 10k 20K
Frequency (Hz)
72
66
60
54
48
42
36
30
24
18
12
6
0
Ohm
