AD-S32T
AcousticDesign™ Loudspeaker
The AcousticDesign Series of installation loudspeaker
products from QSC Audio expands with the new
AD-S32T surface mount loudspeaker system.
Designed for background and general purpose audio
playback, the new AD-S32T is attractive, compact and
acoustically matched to the entire AD Series. Rated
for 30 watts continuous power handling and able to
handle 120 watt peaks, the AD-S32T is a fully featured
loudspeaker system in a very small package.

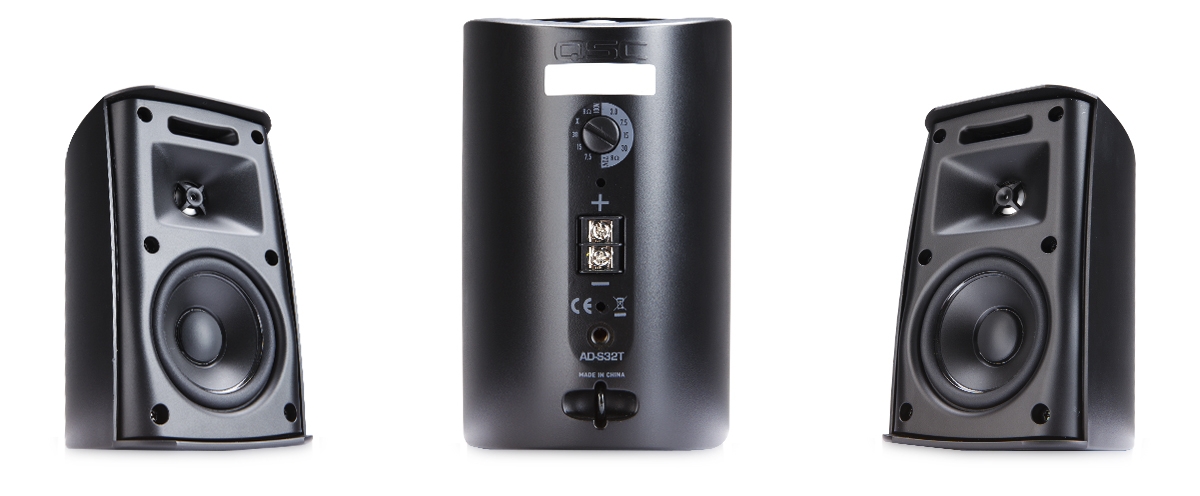

The 3" woofer is equipped with a polypropylene cone
for protection in humid environments. The driver
features a synthetic rubber surround and is optimized
to deliver useable low-frequency extension below 70
Hz. An additional humbucking magnet provides AV
shielding. The high-frequency device is a 0.75" dome
tweeter with a titanium diaphragm and a cloth surround.
The dispersion of the high frequency is 100° by 100°.
The AD-S32T measures 85 dB SPL sensitivity.

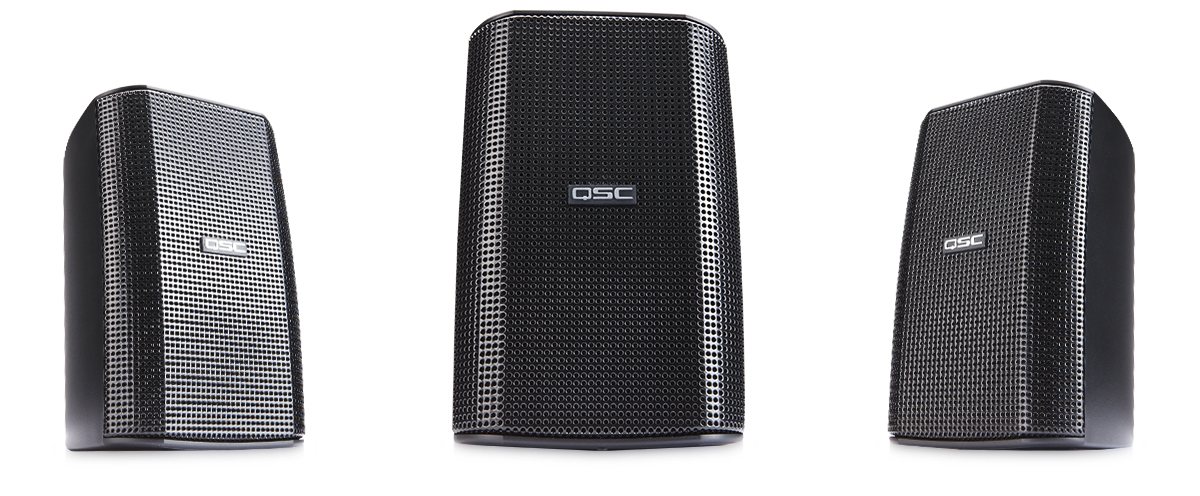

The enclosure is molded from high-impact
polystyrene and is available in black or white.
The aluminum grille is backed with acoustically
transparent foam that provides protection from the
elements. Signal input connections are made with
plated screw terminals and a sealing weather cover
is provided for outdoor applications.
The AD-S32T is unmatched in its installation versatility.
An included ball mount assembly can be attached
to a variety of surfaces or structures. In addition to
attaching to the rear of the cabinet, the ball mount
can be attached to the top of the cabinet for mounting
to an overhead structure or to the bottom of the
cabinet to provide a shelf stand. Also included in
the system is an aluminum yoke mount. This mount
further enhances the AD-S32T mounting options for
either vertical or horizontal installation. The AD-S32T
is equipped with a 70/100 V transformer with multiple
taps and an 8 ohm bypass.
Features
• 3" polypropylene cone woofer
• 0.75" titanium dome tweeter
• 30 watts continuous power handling, 120 watts peak
• 70/100 V multitap transformer with 8 ohm bypass
• Includes ball mount assembly and yoke mount
• Available in black or white
Specifications
Configuration Compact 2-way, ported enclosure
Transducers er
Low-frequency 3" (7.6 cm) weather resistant, polypropylene cone woofer
High-frequency 0.75" titanium dome tweeter
Frequency Range1 er
Frequency Response (-6 dB) 73 Hz – 20 kHz
Useable Frequency Range (-10 dB) 65 Hz – 20 kHz
Maximum Output2 er
Calculated Peak Output 105 dB SPL
Calculated Continuous Output 99 dB SPL
Nominal Impedance 8Ω switchable
Power Rating er
RMS Power Handling3 30 W (100 hours IEC)
Recommended Max Amp Power 60 W RMS
Sensitivity 85 dB, 2.83V, 1 m, free space (4π)
Nominal Coverage (HV) 100º x 100º
Transformers er
Type Custom low distortion laminated core, wide bandwidth design
Taps 70V: 30, 15, 7.5, 3.8 W / 100V: 30, 15, 7.5 W / 8Ω bypass
Environmental Exceeds Mil Spec 810 for humidity, salt spray and dust; IEC 60529 IP-X3
splash rating
Agency Rating Transformer is Listed UL1876
Enclosure er
Material Injection molded, weather resistant high impact polystyrene
Finish White or black (paintable)
Grille Heavy duty powder coated aluminum
Connectors Screw terminals
Mounting Hardware Ball mount assembly; yoke mount bracket included
Weight - Net/ Shipping (pair) 4 lb (1.8 kg)/ 10 lb (4.5 kg)
1) All frequency ranges specified refer to measured free field response.
2) Calculated SPL at 1m, (free space, 4π), speaker operating at rated RMS power with pink noise within specified frequency range
3) Maximum input power tested in accordance with IEC 268-5 recommendations, 50 Hz – 20 kHz band limiting, 6 dB signal crest factor.
AD-S32T Dimensions | Frequency Response
1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174 qscaudio.com
AD-S32T Spec Sheet - 06/05/09
Front
Top
Side
100
90
80
70
60
50
dBSPL
20 50 100 200 500 1K 2K Hz 5K 10k 20K
Frequency
4.8"
123 mm
Side with
Terminal
Cover
Side with
Terminal
Cover and
Yoke
Side with
Yoke
Ball Mount
Base
Side with
Ball Mount
Top with
Ball Mount
Side with
Ball Mount
in Ceiling
Mount
Orientation
7.9"
202 mm
5.5"
140 mm
5.4"
137 mm
3"
77 mm
6.6"
169 mm
7.3"
185 mm
7.8"
198 mm
6.9"
175 mm
3.3"
83 mm
3.7"
94 mm
8"
202 mm
5.4"
136 mm
8"
202 mm
5.4"
137 mm
3"
77 mm
10.1"
257 mm
2.4"
60 mm
7.8"
198 mm
Specifications subject to change without notice.
