AD-S6T
AcousticDesign™ Series
AD-S6T
Features
• DMT™ (Directivity Matched
Transition) ensures smooth,
uniform frequency response over
the coverage area
• X-Mount™ system enables the
loudspeaker to be easily installed
and deployed at a variety of
angles without slipping over time
• Advanced voicing filter sets
using QSC Intrinsic Correction™
available through either Q-SYS
processing or CXD Series
amplifier platforms
• Low saturation and low loss
70/100V transformers with 8Ω
bypass
• Lightweight ABS enclosures offer
long-term durability and lasting
good looks
• Sealed input panel cover and
powder coated aluminum grilles
for added weather resistance
• Meets IEC60529 IP-54 for dust
and splash resistance
• Available in black (RAL 9011) or
white (RAL 9010)
• Complete EASE, CAD & BIM
information available online
The QSC AcousticDesign™ AD-S6T is a
surface mounted 70/100V, 6.5" two-way
loudspeaker system, ideally suited for a
wide variety of foreground and background
sound reinforcement applications.
AcousticDesign™ series offers integrators a
premium quality installed sound solution
where performance, coverage, and
aesthetics are paramount. Combined with
unprecedented ease-of-installation and high
weather resistance, the AcousticDesign™
Series provides integrators a versitile and
confident response.
The AD-S6T features a high quality 6.5"
weather treated paper cone woofer on a
1.5” voice coil. A carefully selected 1” silk
dome tweeter with a 1” voice coil perfectly
matches the sensitivity and performance of
the woofer for outstanding full range
reproduction.
Consistent and even 105° axisymmetric
(conical) coverage is realized by means
of DMT™ (Directivity Matched Transition).
This innovation matches the high frequency
wavegide to the woofer coverage at the
crossover point, resulting in a coherent
transducer transition and improved off
axis response.
To maintain this frequency response, the
AD-S6T utilizes a variable tap 60 watt low
saturation and low loss 70/100V
transformer with 8Ω bypass, accessible via
a rotary selector located on the enclosure
back under a weather grommet for
improved weather resistance.
All AcousticDesign™ Series surface-mount
loudspeakers are housed in rugged ABS
enclosures for long-term durability. Sealed
input panel covers and powder coated
aluminum grilles add weather resistance,
exceeding IEC60529 IP-54 for dust and
splash resistance.
Installers will appreciate the award winning
X-Mount™ system, included with each full
range AcousticDesign™ model. This
ingenious mounting solution achieves
unprecedented ease-of-installation in either
horizontal, vertical, wall, or ceiling
deployments. Knurled surfaces at the pivot
planes ensure the load will not drift or sag
over time. Articulation marks allow
preconfiguration of the X-Mount™ while on
the ground with no special tools required.
Once secure, the loudspeaker installs in
seconds, allowing the installer to work safer,
smarter, and faster with repeatable results.
To further enhance performance and speed
of install with optimum result, advanced
voicing filter sets using QSC Intrinsic
Correction™ techniques are obtainable
using the Q-SYS Platform including CXD
Series amplifiers for a complete QSC
systems solution.
Sensitive to aesthetic demand, the
AcousticDesign™ Series feature a stylish
appearance free of obtrusive logo
adornments. Complimenting adjacent
product families, AcousticDesign™ surface
loudspeakers are available in QSC standard
black (RAL 9011) or white (RAL 9010) and
may be painted to match any decor.
To assist in successful systems integration,
complete EASE, CAD, and BIM files are
available for online download at QSC.com.

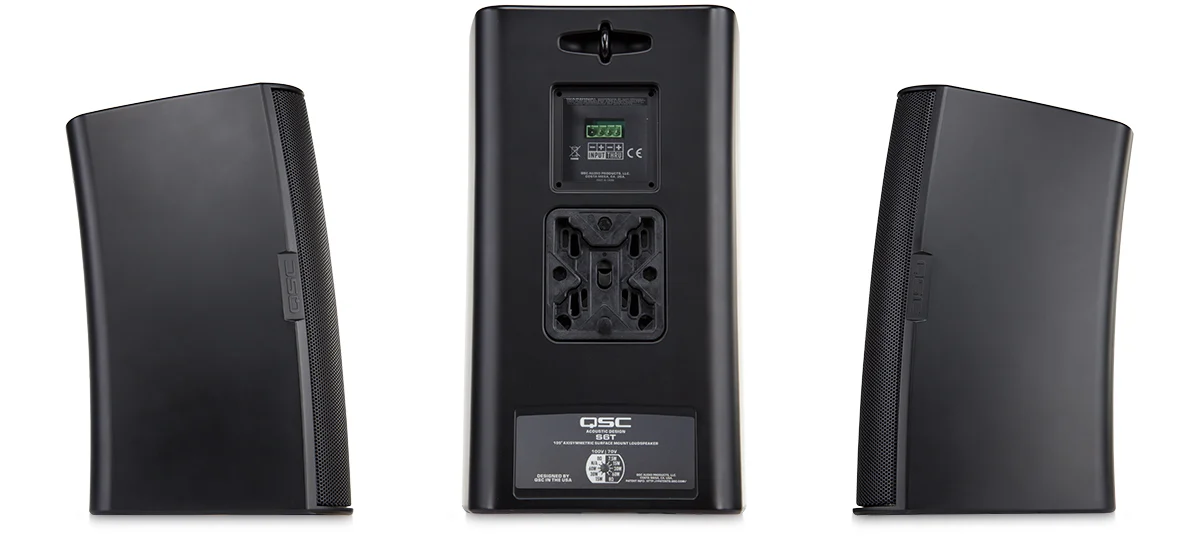

X-Mount™ (included)

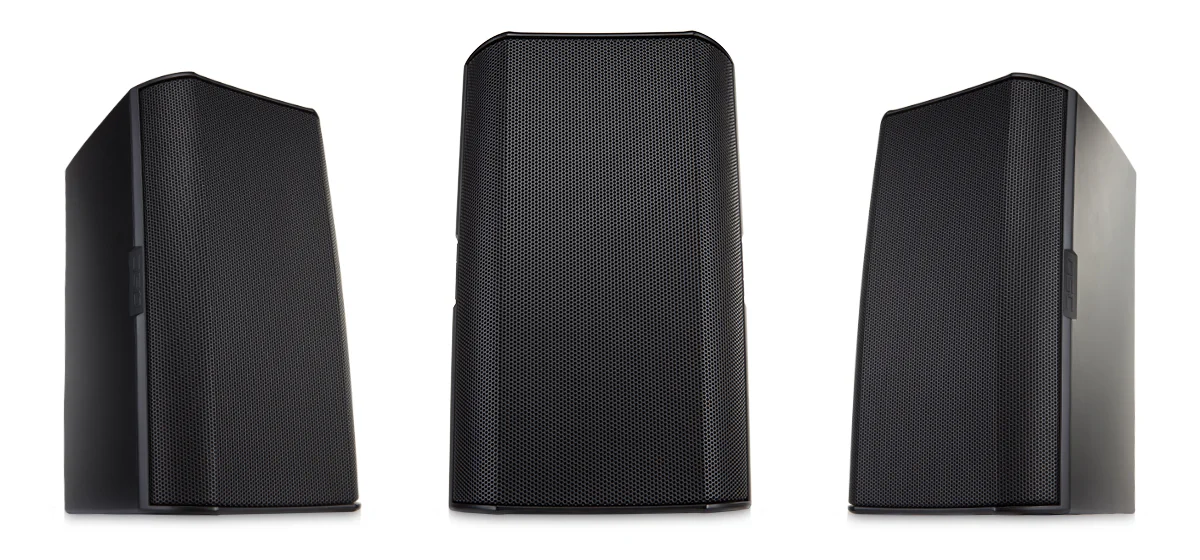

6.5" small format, surface
mount loudspeaker
AD-S6T Details
100 1k 10k
100
90
80
70
60
50
80
64
48
32
16
0
Frequency (Hz)
Sound pressure, Level (dB)
Impedance, Amplitude (ohm)
20 50 200 500 2k 5k 20k
95
85
65
55
72
56
24
8
FLC : Frequency Response (Raw)
FLC : Frequency Response (Intrins ic C orrec tion™)
FRC : Impedance (8 O hm bypas s )
0
-2
-4
-6
-8
-10
-12
1k 10k
90
60
30
0
-30
-60
-90
Sound pressure, Level (dB)
Frequency (Hz)
(deg)
500 2k 5k 20k
Horizontal Contour: Impedance / Frequence Response:
System Details AD-S6T
HF transducer 1” silk dome tweeter / 1” voice-coil horn loaded
LF transducer 6.5” weather treated paper cone woofer,
1.5” / 38mm voice-coil
Effective frequency range1 60 – 20k Hz
Rated noise power / voltage2 150 watts / 35 volts (rms)
Broad-band sensitivity3 89 dB SPL
Coverage angle (-6 dB) 105°
Directivity factor (Q) 5
Directivity Index 7 dB
Maximum continuous SPL4 110 dB
Maximum peak SPL4 116 dB
Rated impedance 8 ohms
Recommended amplifier power 300 watts
Transformer taps 70 V: 60, 30, 15, 7.5 watts and 8 ohm bypass
100V: 60, 30, 15 watts and 8 ohm bypass
Input connector type Euroblock connector with parallel output
Enclosure material Painted ABS polymer
Grille material Powder coated aluminum
Enclosure Details
Ingress protection IP-54
Operating environment Designed for indoor and outdoor use
Testing The AD Series loudspeakers qualified for outdoor
use using the following tests:
Salt fog: MIL-STD-810G Method 509.5 for 100 hrs.
Humidity: MIL-STD-810G Method 507.5, Natural
cycle B2, cyclic high RH for 7 days
High and low temperature: tested according to QSC
internal standards between -20° and 50° C
Operating Temperature Range -20 to 50 °C / -4 to 122 °F
Net weight 13.6 lbs / 6.2 kg
Product dimensions 14.4” x 8.5” x 8.5” (365 x 215 x 215mm)
Shipping weight 33.4 lbs / 15.2 kg (pair packed)
Shipping dimensions 20 x 12” X 23” (510 x 305 x 585mm) (pair packed)
Included accessories X-Mount mounting system, euroblock connector,
input panel cover
1
Free-field, -10 dB from on-axis sensitivity
2
IEC60268-1 noise signal for 2 Hrs
3
On-Axis, free-field sensitivity, 2.83V, 1 m
4
Calculated from rated noise voltage and sensitivity
Dimensions: Specifi cations:
215 mm (8.5 in)
215 mm (8.5 in)
215 mm (8.5 in)
365 mm (14.4 in)
215 mm (8.5 in)
365 mm (14.4 in)
215 mm (8.5 in)
215 mm (8.5 in)
215 mm (8.5 in)
365 mm (14.4 in)
215 mm (8.5 in)
365 mm (14.4 in)
215 mm (8.5 in)
215 mm (8.5 in)
215 mm (8.5 in)
365 mm (14.4 in)
215 mm (8.5 in)
365 mm (14.4 in)
As part of QSC’s ongoing commitment to product development, specifications are
subject to change without notice.
