AcousticPerformance™
Series
Features
• Premium-grade, long excursion,
dual 12-inch transducers
• Shallow horizontal profile for under
riser deployments
• Advanced voicing filter sets using
QSC Intrinsic Correction™, available
through either Q-Sys processing or
CXD amplifier platforms
• Two threaded pole cups for both
vertical and horizontal applications
• Two NL4 connectors in crossed
configuration for easy pass thru
to top boxes
• Clean industrial design with
unadorned grilles compliment
most decors and settings
• Interlocking feet and recess
features allow for rigid stacking
• 15mm Baltic birch plywood
construction
• 16-Gauge powder coated
steel grilles
• Four integrated handles and optional
caster kit for ease of transport
• Available in black (RAL 9011)
• Complete EASE, CAD & BIM
information available at qsc.com

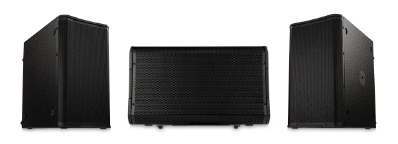

The AcousticPerformance™ AP-212sw is a
premium, high performance, direct radiating
dual 12-inch subwoofer designed for use in
portable and installed sound applications.
The AP-212sw provides exceptional punch
while maintaining ample extension so the
musically important fundamentals are solidly
and accurately reproduced. With a matching
profile to the AP-4122m and AP5122m full
range models, the AP-212sw is an ideal
companion, providing added low frequency
extension and musical accuracy to the
AcousticPerformance portfolio.
The AP-212sw features dual 12-inch woofers
reversed mounted on a V-baffle for improved
thermal protection and performance. The
15mm Baltic Birch enclosure is finished in
an environmentally friendly, waterborne,
polymer finish rugged enough for the
demands of everyday use while also being
field repairable. Internal bracing is employed
to eliminate acoustic losses due to panel
resonance while maintaining the lightweight
enclosures robustness. Ample port area
allows free movement of air resulting in
minimal turbulence and port distortion.
The versatility of the AP-212sw is evidenced
by two pole mount options for both vertical
and horizontal applications. Furthermore,
when horizontal, the AP-212sw has a
shallow height, desirable for under riser
installs. The AP-212sw includes four
integrated handles and an optional caster
kit for ease of transport.
The AP-212sw input cup features dual NL4
connectors in a crossed configuration, where
pins 2 of the input are returned to pins 1 on
the thru output. This clever configuration
allows a single NL4 cable to carry both sub
and top box signals without the need of a
custom turn cable.
Presenting a clean, unobtrusive look,
AcousticPerformance grilles are unadorned
eliminating the need to cover-up logo
treatments which can be difficult to hide
or remove. The grille is also lined with
acoustically transparent backing adding to
the enclosure’s professional appearance.
The AP-212sw is available in black (RAL
9011) finish.
To further enhance performance and speed
of install with optimum result, proprietary
Intrinsic Correction™ tunings are obtainable
via Q-Sys networked audio processing
platforms, including CXD and PLD amplifiers
for a complete QSC systems solution.
To assist in successful systems integration,
complete EASE, CAD, and BIM files are
available for online download at qsc.com
1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174
AP-212sw Spec Sheet 10/01/2015
please recycle
© 2013 QSC Audio Products, LLC. All rights reserved. QSC and the QSC logo are registered trademarks of QSC Audio Products, LLC in the U.S. Patent and Trademark
office and other countries. All other trademarks are the property of their respective owners. Patents may apply or be pending.
AP-212sw
Dual 12-inch, Direct Radiating,
Vented, Subwoofer
AP-212sw
Performance Spaces ∙ Worship Facilities ∙
Dance/Night Clubs ∙ Poratble and Live Sound ∙
Retail Establishments ∙ Themed Entertainment
*Pole not
included.
AP-212sw Details
System Details AP-212sw
Effective Frequency Range (1) 35Hz – 250Hz
Rated Noise Power / Voltage) (2) 600W / 49 volts (rms)
System Sensitivity (3) 93dB
Maximum Rated SPL (4) 121dB @1m, continuous
127dB @1m, peak
Rated Impedance 4Ω
LF Transducer 2x 305mm [12 in] weather resistant cone
woofer
64mm [2.5 in] voice-coil
Optional Accessories Subwoofer-Caster Kit
Speaker Pole M2035-36 (Horizontal)
Speaker Pole M2035-26 (Vertical)
Enclosure Details
Input Connector 2x NL4 - crossed
A: Sub 1+/-, Thru 2+/-
B: Thru 1+/-, Sub 2+/-
Enclosure Material 15mm Baltic birch plywood
Pole Attachment 2x M20 threaded inserts
Color Black (RAL 9011)
Grille 16 Gauge powder coated steel
Dimensions (HxWxD) 660 x 381 x 610 mm
[26 x 15 x 24 in]
Net Weight 29.7 kg [65.4 lb]
Shipping Carton Dimensions (HxWxD) 744 x 516 x 724 mm
[29.3 x 20.3 x 28.5 in]
Shipping Weight 30.4 kg [67 lb]
1
Half space, -10dB from on-axis sensitivity
2
AES2-1984 noise signal for 2 hours
3
Free-field, on-axis, 1W, 1m
4
Calculated from rated noise voltage and sensitivity
Specifications are subject to change without notice.
Dimensions:
Impedance / Frequence Response: Specifications:
100
100
90
80
70
60
36
28
20
12
4
Frequency (Hz)
Sound Pressure, Level (dB)
Impedance, Amplitude (ohm)
20 30 40 50 60 70 200 300 400
105
95
85
65
55
40
32
24
8
0
Frequency Response (Raw)
Frequency Response (Intrins ic C orrec tion™)
Impedance
75 16
381 mm
[15 in]
660 mm
[26 in]
610 mm
[24 in]
381 mm
[15 in]
660 mm
[26 in]
610 mm
[24 in]
381 mm
[15 in]
660 mm
[26 in]
610 mm
[24 in]
