AcousticPerformance™
Series
Features
• DMT™ (Directivity Matched
Transition) ensures smooth,
coherent power response across
the listening plane
• 90 degree conical coverage
matches the natural coverage of
the 12-inch woofer at the crossover
point for consistent power response
• Coaxial mounted 1.75-inch
voice coil compression driver
for outstanding high-frequency
performance
• Multipurpose deployments - dual
angle monitor, flown, yoke, or pole
• Clean industrial design with
unadorned grilles compliment most
decors and settings
• Two NL4 Speakon™ connectors for
input and pass thru
• 15mm Baltic birch plywood
construction
• 16-Gauge powder coated steel
grilles
• Available in black (RAL 9011)
• Complete EASE, CF2, CAD &
BIM information available
at qsc.com

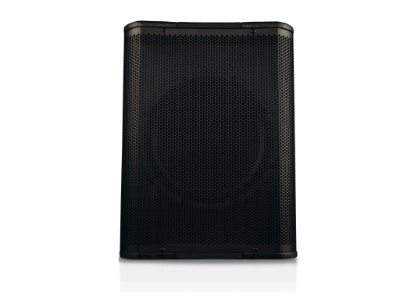

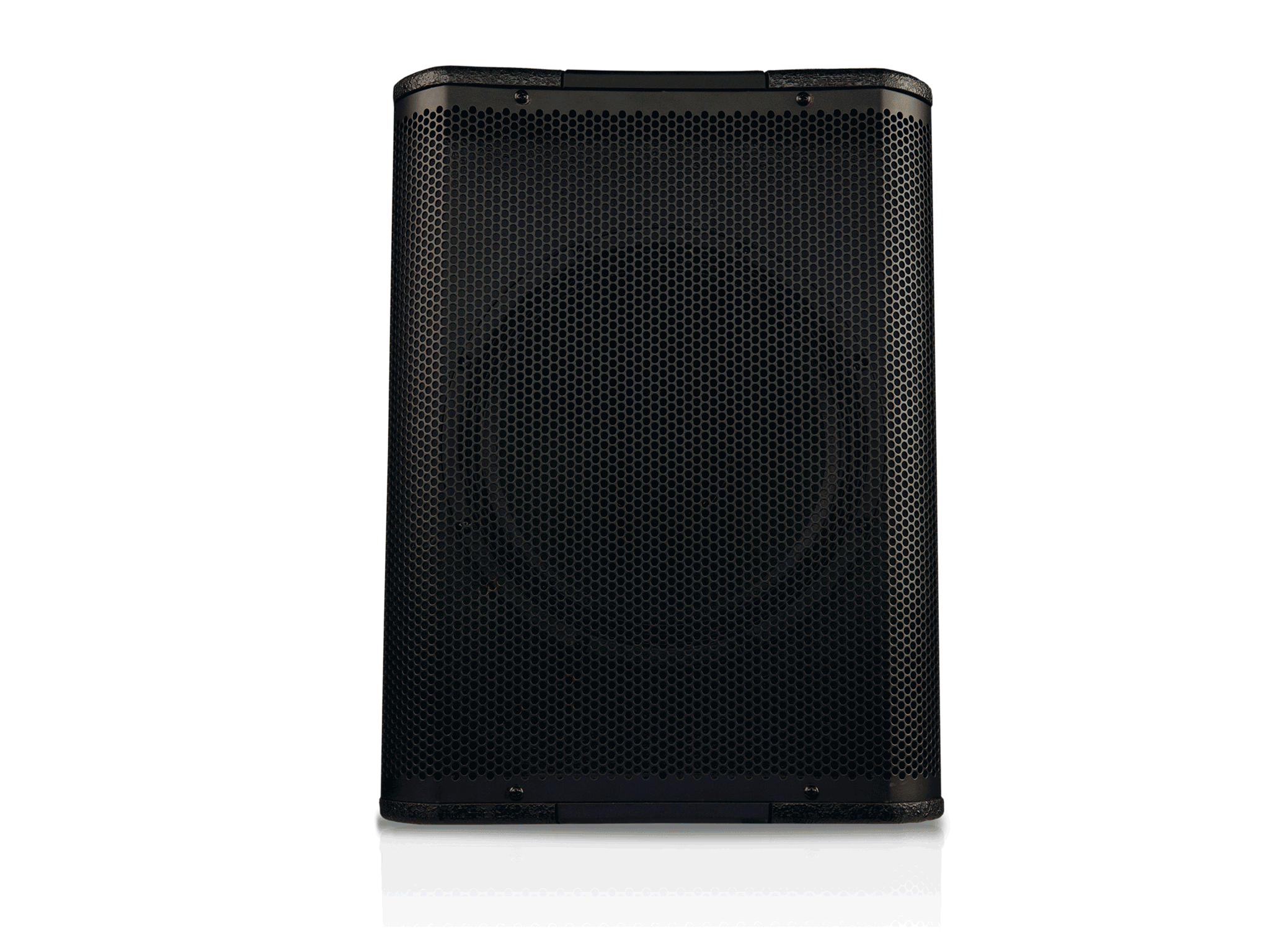

The QSC AcousticPerformance™
AP-4122m is a professional, two-way,
fullrange loudspeaker ideal for a variety of
portable and installed sound reinforcement
applications requiring high power, wide
coverage and compact size. The AP-4122m
uses a 305mm (12-inch) woofer with 64mm
(2.5-inch) voice-coil and a coaxially mounted
high power-capacity, 44mm (1.75-inch)
voice coil compression driver to deliver
exceptional full bandwidth reproduction.
The uniform power-response of the
AP-4122m is a result of DMT™ (Directivity
Matched Transition), a design philosophy
which matches the HF waveguide to the
natural conical coverage of the woofer at the
cross-over point. The result is a remarkably
consistent coverage with smooth, accurate
reproduction both on and off-axis.
To further enhance system performance
and speed of install with optimum result,
proprietary Intrinsic Correction™ tunings
are obtainable via Q-SYS networked
audio processing platforms, including CXD
and PLD amplifiers for a complete QSC
systems solution.
The AP-4122m enclosure is of 15mm Baltic
Birch plywood construction, designed for
versatile deployments. The multipurpose

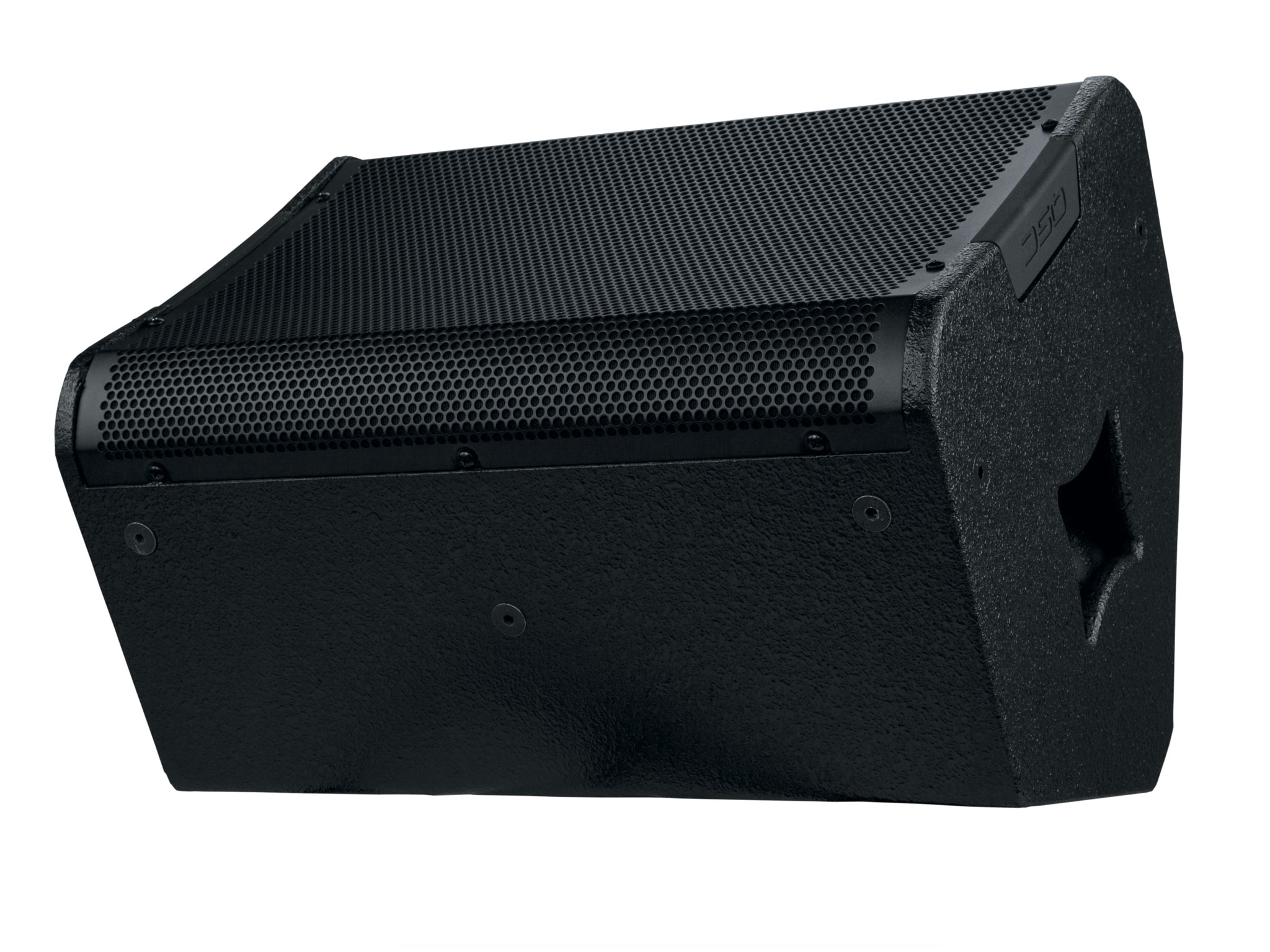

enclosure features both 60˚ and 40˚ angles
for use as floor monitors, M10 mounting
points for suspension via eye-bolts or
optional yoke bracket, top handle, and a tilt
direct pole cup.
Presenting a clean, unobtrusive look,
AcousticPerformance grilles are unadorned
eliminating the need to cover-up logo
treatments which can be difficult to hide or
remove. The grille is lined with acoustically
transparent backing to maintain the
enclosure’s professional appearance.
The AP-4122m is available in black
(RAL 9011) finish.

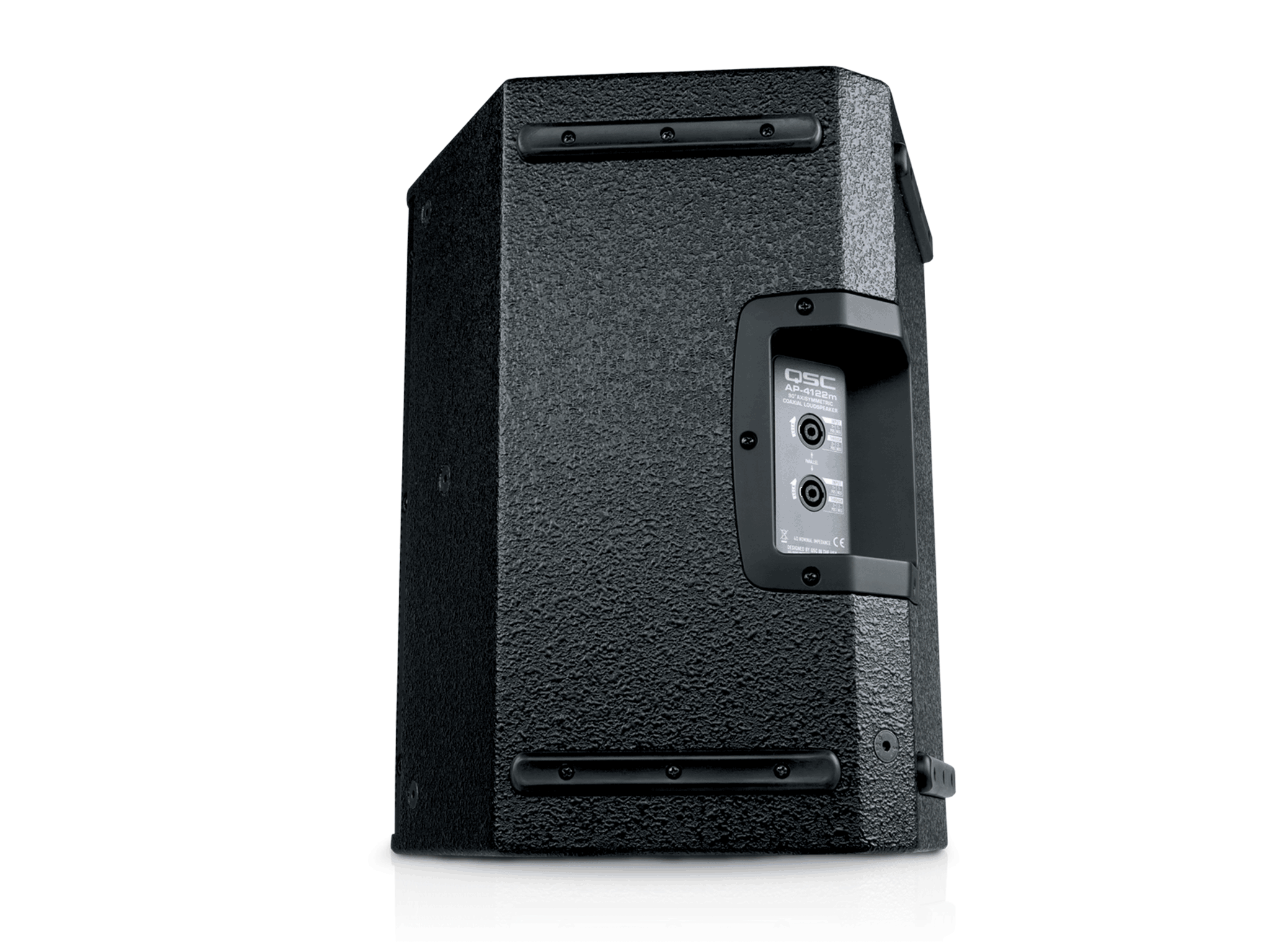

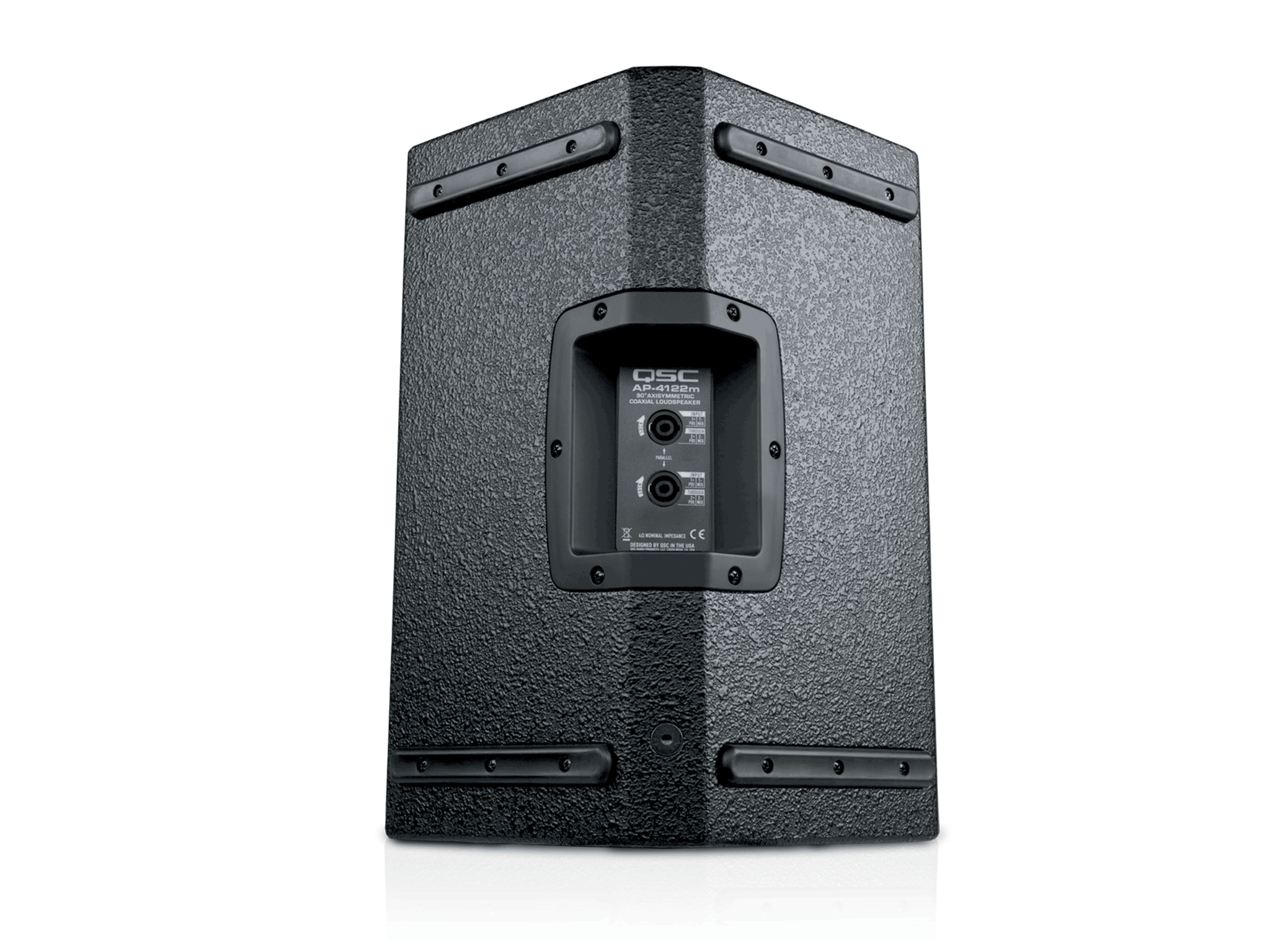

The recessed input cup features two NL4
connectors for convenient input and
pass through.
To assist in successful systems integration,
complete EASE, CF2, CAD, and BIM files are
available for online download at qsc.com.
1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174
AP-4122m Spec Sheet 10/01/2015
please recycle
© 2013 QSC Audio Products, LLC. All rights reserved. QSC and the QSC logo are registered trademarks of QSC Audio Products, LLC in the U.S. Patent and Trademark
office and other countries. All other trademarks are the property of their respective owners. Patents may apply or be pending.
AP-4122m
High power coaxial installation
loudspeaker
AP-4122m
Stage Monitors ∙ Performance Spaces ∙ Worship
Facilities ∙ Dance/Night Clubs ∙ Sports Facilities ∙
Themed Entertainment ∙ Production
AP-4122m Details
1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174
please recycle
© 2013 QSC Audio Products, LLC. All rights reserved. QSC and the QSC logo are registered trademarks of QSC Audio Products, LLC in the U.S. Patent and Trademark
office and other countries. All other trademarks are the property of their respective owners. Patents may apply or be pending.
System Details AP-4122m
Effective Frequency Range (1) 55Hz – 20kHz
Rated Noise Power / Voltage (2) 325W / 36V continuous
System Sensitivity (3) 96dB, 1W @ 1m
Coverage Angle 90˚ Conical DMT
Directivity Factor (Q) 6.3
Directivity Index (DI) 8.0
Maximum Rated SPL (4) 121dB @1m, continuous3
127dB @1m, peak4
Rated Impedance 4Ω
HF Transducer 25 mm [1 in] compression driver
45 mm [1.75 in] voice-coil
LF Transducer 305 mm [12 in] weather resistant cone woofer
64 mm [2.5 in] voice-coil
Optional Accessories AP-YM12m Yoke mount, M10 Kit-W eye bolt
Enclosure Details
Input Connector 2x NL4 in parallel, 2+/- thru
Enclosure Material 15mm Baltic birch plywood
Attachment Points 11x M10 threaded inserts
Color Black (RAL 9011)
Grille 1.65mm [16 Gauge] powder coated steel
Dimensions (HxWxD) 510 x 385 x 370 mm
[20.1 x 15.1 x 14.5 in]
Net Weight 18.1 kg [39.7 lb]
Shipping Carton Dimensions (HxWxD) 570 x 505 x 495 mm
[22.5 x 19.8 x 19.4 in]
Shipping Weight 21.3 kg [46.7 lb]
(1) Free-field, -10dB from on-axis sensitivity
(2) AES2-1984 noise signal for 2 hours
(3) Free-field, on-axis, 1W, 1m
(4) Calculated from rated noise voltage and sensitivity
Specifications are subject to change without notice.
Contour: Impedance / Frequency Response:
Dimensions: Specifications:
0
-2
-4
-6
-8
-10
-12
1k 10k
90
60
30
0
-30
-60
-90
Sound Pressure, Level (dB)
Frequency (Hz)
Polar Angle (deg)
500 2k 5k 20k 100 1k 10k
100
90
80
70
60
36
28
20
12
4
Frequency (Hz)
Sound Pressure, Level (dB)
Impedance, Amplitude (ohm)
20 50 200 500 2k 5k 20k
105
95
85
65
55
40
32
24
8
0
Frequency Response (Raw)
Frequency Response (Intrins ic C orrec tion™)
Impedance
385 mm
[15.1 in]
510 mm
[20.1 in]
370 mm
[14.5 in]
40° 60°
385 mm
[15.1 in]
510 mm
[20.1 in]
370 mm
[14.5 in]
40° 60°
385 mm
[15.1 in]
510 mm
[20.1 in]
370 mm
[14.5 in]
40° 60°
AP-4122m Spec Sheet 10/01/2015
