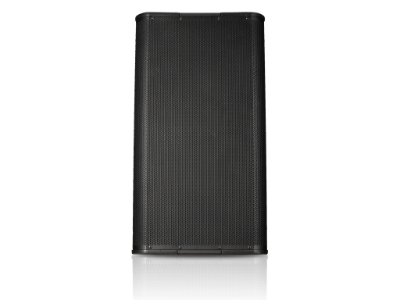

The QSC AcousticPerformance™ AP-5152
is a professional, two-way, full-range
loudspeaker ideal for a variety of installed
sound reinforcement applications requiring
higher SPL output and a clean appearance.
The AP-5152 uses a high power-capacity,
76mm (3-inch) diaphragm compression
driver and combines it with a 381mm
(15-inch) woofer to deliver exceptional
full bandwidth reproduction.
The uniform power-response of the
AP-5152 loudspeaker is a result of
DMT™ (Directivity Matched Transition), a
design approach that matches LF and HF
coverage in the cross-over region. Another
key to the extraordinary accuracy and flat
power response of the AP-5152 is the
axisymetric waveguide with uncompromised
performance in both the vertical and
horizontal axes. The result is remarkably
consistent coverage and smooth, accurate
reproduction on and off-axis.
The AP-5152 may be used as a passive (fullrange) loudspeaker to minimize amplifier
channel count or it may be bi-amplified for
greater control and performance. To further
enhance performance, bi-amp and fullrange tunings using QSC Intrinsic Correction
techniques are available for Q-Sys and future
QSC products.

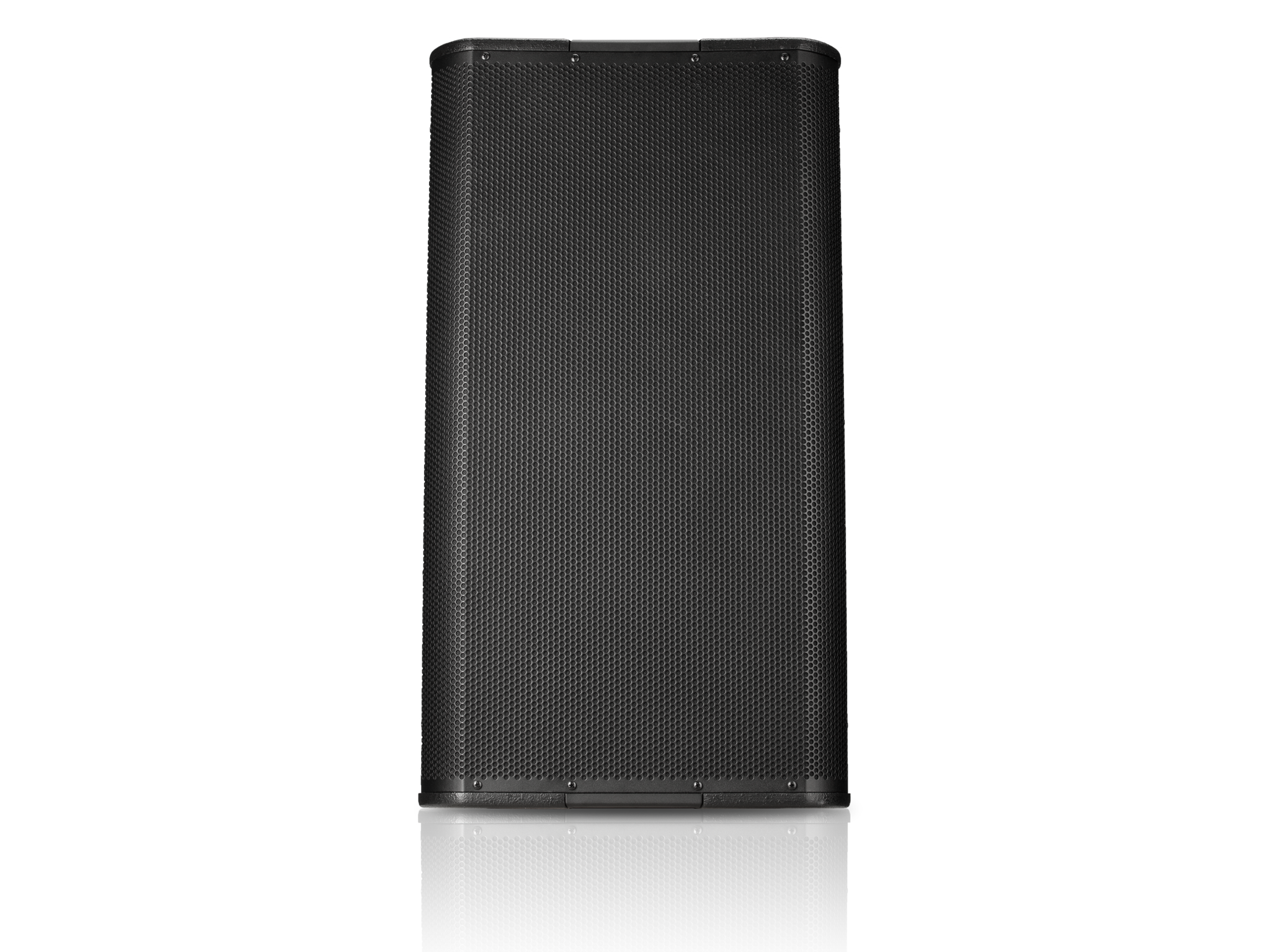

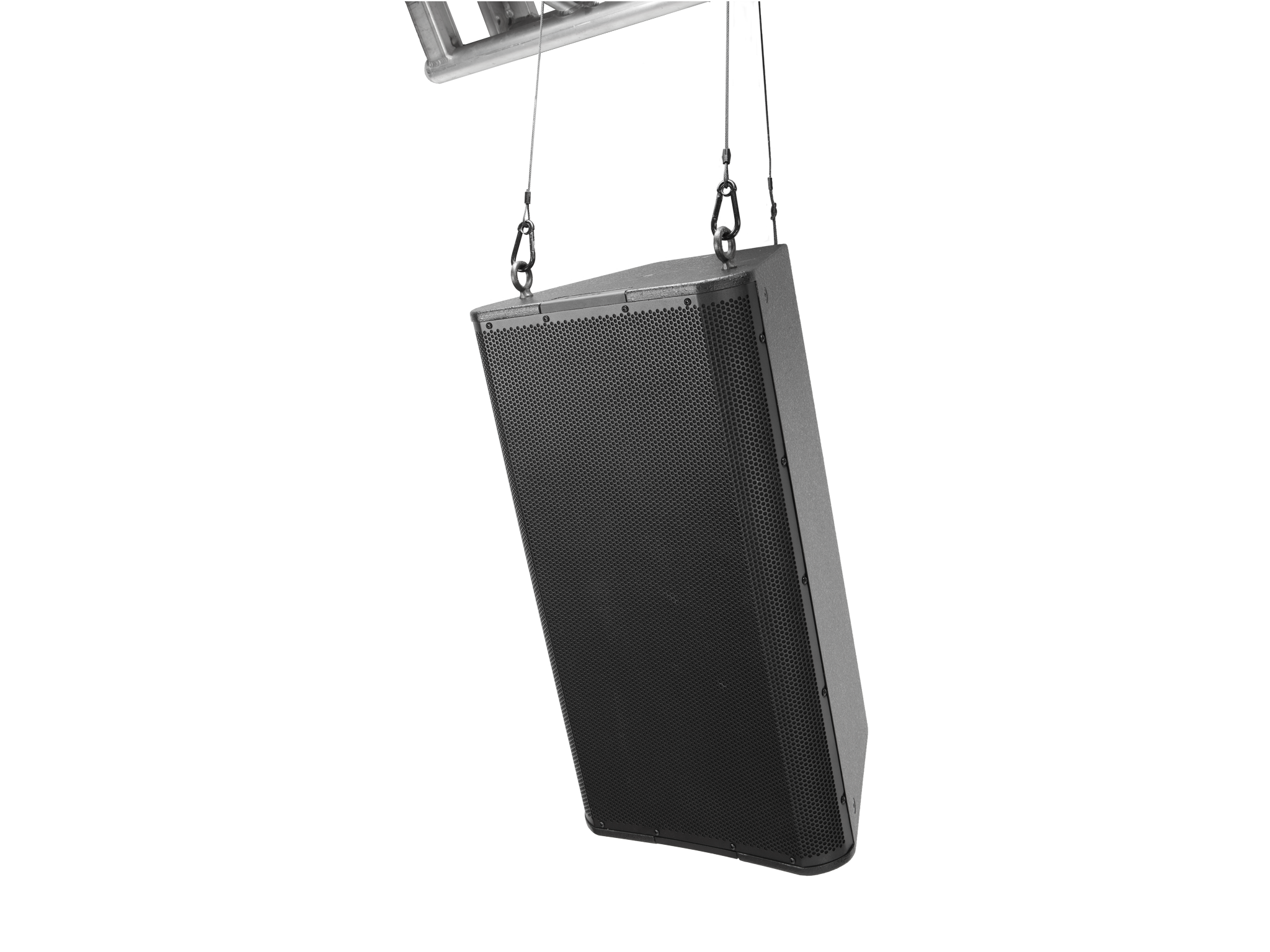

The AP-5152 enclosure features M10
mounting points for suspension via eyebolts.
Presenting a clean, unobtrusive look,
AcousticPerformance grilles are unadorned
eliminating the need to cover-up logo
treatments which can be difficult to hide
or remove. The grille is also lined with
acoustically transparent backing adding to
the enclosure’s professional appearance and
the AP-5152 is available in black (RAL 9011)
and white (RAL 9010) finishes.
To minimize impact and disposal fees at the
job site, all AcousticPerformance loudspeakers
are packaged in environmentally friendly,
recyclable cartons.
Features
• DMT™ (Directivity Matched
Transition) ensures smooth,
coherent power response
across the listening plane
• 75 degree coverage of the
axisymmetric waveguide
matches natural coverage
of the 15-inch woofer at the
crossover point for consistent
power response
• 3-inch voice coil compression
driver for outstanding highfrequency performance
• M10 fittings offer flexible
deployment options for a
variety of applications
• Covered barrier strip terminals
and NL4 Speakon™ connector
• Bi-Amp / Passive switchable
• 15-ply Baltic birch plywood
construction
• 16-Gauge powder coated
steel grilles
• Clean industrial design with
unadorned grilles compliment
most decors and settings
• Available in black (RAL 9011)
and white (RAL 9010)
• Complete EASE, CAD &
BIM information available
at qsc.com
AcousticPerformance™ Series
AP-5152
AP-5152
Performance Spaces ∙ Worship Facilities ∙ Dance/Night Clubs ∙
Sports Facilities ∙ Themed Entertainment
High power, installation
loudspeaker
System Details
Frequency Response (-10dB) 44Hz – 18kHz
Power Capacity1 625W / 65V continuous
System Sensitivity2 96dB, 1W@1m
Coverage Angle 75˚ Axisymmetric
Directivity Factor (Q) 8.3
Directivity Index (DI) 9.2
Recommended Crossover 950 Hz, 48dB/octave
Maximum Rated SPL Passive: 123dB @1m, continuous3
129dB @1m, peak4
Rated Impedance 8Ω
HF Transducer 76mm (3-inch) voice coil, compression
driver; 72W / 24V (2 Hrs)
LF Transducer 381mm (15-inch) driver with 102mm
(4-inch) VC; 625W / 65V (2 Hrs)
Optional Accessories M10 Kit-W
Enclosure Details

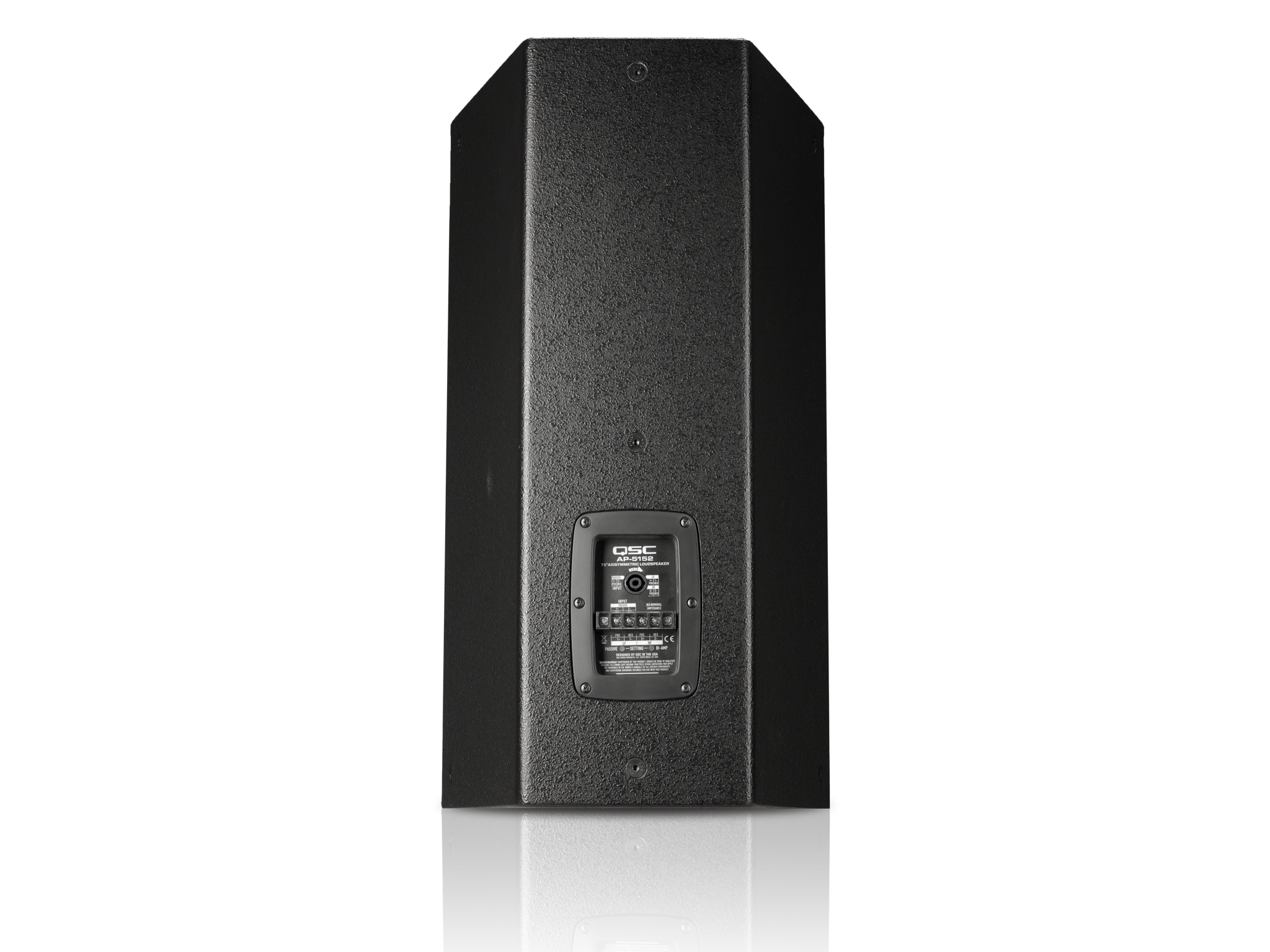

Input Connector Covered Barrier Strip, NL4 connector
Enclosure Material 15-ply Baltic birch plywood
Attachment Points 15x M10 threaded inserts
Color Black (RAL 9011), White (RAL 9010)
Grille 16 Gauge powder coated steel
Dimensions (HxWxD) 813mm x 445mm x 386mm
(32" x17.5" x 15.2")
Net Weight 36.2 kg (80 lb)
Shipping Carton Dimensions
(HxWxD)
857mm x 560mm x 503mm
(33.8x22x20-inches)
Shipping Weight 40.8kg (90 lbs)
AP-5152 Details
Specifications:
1+
1 -
2 -
2+
N/C
PASSIVE MODE
HF
LF
1+
1 -
2 -
2+
NL4 /
BARRIER
BI-AMP MODE
HF
LF
HPF
LPF
STRIP
NL4 /
BARRIER
STRIP
360
10
45
90
180
Frequency (Hz)
20 100 1000 10000 20000
Vertical
Horizontal
Beamwidth
100
40
45
50
55
60
65
70
75
80
85
90
95
120
0
10
20
30
40
50
60
70
80
90
100
110
Frequency (Hz)
20 100 1000 10000 20000
Frequency Response
SPL/Impedance Impedance
1 2 hour rating using IEC60268 noise based on minimum impedance
2 Mid-band based on nominal impedance
3 Calculated as the nominal sensitivity plus 10x the log of continuous
rated power in volts squared divided by nominal impedance
4 Calculated as the continuous calculated max output plus 6dB
As part of QSC’s ongoing commitment to product development,
specifications are subject to change without notice.
Responses shown with
recommended processing
AP-5152 Horizontal Polars
0
90
180
270
200Hz
250Hz
315Hz
400Hz
Polar Plot
-6 0 +6
0
90
180
270
3150Hz
4000Hz
5000Hz
6300Hz
Polar Plot
-6 0 +6
0
90
180
270
500Hz
630Hz
800Hz
1000Hz
Polar Plot
-6 0 +6
0
90
180
270
8000Hz
10000Hz
12500Hz
16000Hz
Polar Plot
-6 0 +6
0
90
180
270
1250Hz
1600Hz
2000Hz
2500Hz
Polar Plot
-6 0 +6
AP-5152 Vertical Polars
0
90
180
270
200Hz
250Hz
315Hz
400Hz
Polar Plot
-6 0 +6
0
90
180
270
3150Hz
4000Hz
5000Hz
6300Hz
Polar Plot
-6 0 +6
0
90
180
270
500Hz
630Hz
800Hz
1000Hz
Polar Plot
-6 0 +6
0
90
180
270
8000Hz
10000Hz
12500Hz
16000Hz
Polar Plot
-6 0 +6
0
90
180
270
1250Hz
1600Hz
2000Hz
2500Hz
Polar Plot
-6 0 +6
AP-5152 Spec Sheet 12/12/2012
AP-5152 Technical Drawings
1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174 please recycle
© 2012 QSC Audio Products, LLC. All rights reserved. QSC and the QSC logo are registered
trademarks of QSC Audio Products, LLC in the U.S. Patent and Trademark office and other
countries. DMT is a trademark of QSC. Speakon is a registered trademark of Neutrik
