CP Series
Compact Powered
Loudspeakers
KEY FEATURES
• Compact and powerful performance
• 1000 Watt peak power Class D
amplifier module
• Easily selected contours for commonly
used applications
• Advanced DSP with Intrinsic Correction™
for superior sound quality and speaker
protection
• Directivity Matched Transition™ (DMT)
for consistent frequency response across
the entire coverage area
• Lightweight and highly portable
• Professional appearance looks great
in any application
• Use for main PA, stage monitor,
or instrument amplifier
• 35 mm pole socket
• Optional Yoke, Tote, and Outdoor Cover
accessories
• Complete EASE and CAD information
available online
• 6-Year Warranty*
CP8 | CP12
Entertainers ∙ Educators ∙ Institutions
Houses of Worship
Compact Powered Loudspeakers
High performance, superior quality and lasting reliability. These are the hallmarks of the
QSC brand and the reason why millions of professionals the world-over have come to trust
QSC to help them confidently deliver superior experiences and memorable performances.
The CP Series follows in that same tradition while also offering an ultra-compact form factor
and class-leading value.
The first thing you will notice about the CP Series is its compact design – every line, angle
and curve working harmoniously to present a stylish, yet rugged, appearance. Inside, CP
is equipped with a highly efficient, 1000-watt power amplifier, matching transducers and
advanced DSP, delivering performance beyond expectations for a loudspeaker of this size.
Because of its compact size, CP is remarkably lightweight, making it easy to load, carry, lift
and deploy in a wide range of portable and installed applications. Entertainers of all kinds
as well as educators, institutions and houses of worship will appreciate the ability to mix
up to three input sources (mic/line, line and music playback device) at once, making CP a
great single-box PA system that sets up in seconds. As part of a larger system, CP can be
deployed on a speaker pole, used as a floor monitor or as a musical instrument amplifier.
System integrators will especially appreciate CP’s lightweight and compact form factor
when attaching it to a wall or truss (via optional yoke mount). And all users will enjoy
one-touch DSP control with preset contours for the most common audio applications.
CP Series Compact Powered Loudspeakers are protected” by a global 6-Year Warranty.*
*With product registration. For more information, please visit qsc.com
1 Peak SPL is measured on-axis at 1 m, with dynamic pink noise
Specifications subject to change without notice.
Compact Powered Loudspeakers
CP8 CP12
Configuration: Two-way active loudspeaker Two-way active loudspeaker
LF Transducer: 203 mm (8 inch), cone 305 mm (12 inch), cone
HF Transducer: 35.6 mm (1.4 inch) compression driver 35.6 mm (1.4 inch) compression driver
Frequency Response (-6 dB): 56 - 20 kHz 49 - 20 kHz
Frequency Range (-10 dB): 53 - 20 kHz 47 - 20 kHz
Nominal Coverage Angle: 90° Axisymetric 75° Axisymetric
Maximum Rated SPL1
: 124 dB 126 dB
Amplifier: Class D
Peak: 800 W (LF), 200 W (HF)
Controls: Power
2 x Gain
Mic Boost Push Switch
6-way Contour Selection Switch
Indicators: Power LED
2 x Input Signal LED
Input B MIC selected LED
Limiter active LED
Connectors: 2 x locking XLR/F ¼” combo (Line Input and Mic/Line input)
1 x 3.5 mm TRS (Stereo Input)
1 x XLR/M (Mix Output)
1 x IEC power connector
AC Power Input: Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption (1/8th Power): 100 VAC, 0.75A -240VAC 0.31A
Enclosure Material: Polypropylene
Attachment Points: 2 x M8 threaded insert (for yoke mount attachment only)
Color: Black
Grille: 18 Gauge powder coated steel
Dimensions (HxWxD): 411 x 273 x 256 mm 516 x 350 x 323 mm
16.2 x 10.7 x 10.1 inch 20.3 x 13.8 x 12.7 inch
Net Weight: 9.5 kg (21.0 lbs) 13.7 kg (30.3 lbs)
Shipping Weight: 11.4 kg (25.5 lbs) 16.5 kg (36.3 lbs)
Regulatory: UL, CE, CCC, FCC Class B
Optional Accessories: CP8 Tote, CP8 Outdoor Cover CP12 Tote, CP12 Outdoor Cover
CP8 Yoke CP12 Yoke
CP8 On-Axis Frequency Response CP12 On-Axis Frequency Response
CP8
(dB) Level
100 1k 10k
10
0
-10
-20
-30
Frequency (Hz)
100 1k 10k 20 50 200 500 2k 5k 20k
10
0
-10
-20
-30
Frequency (Hz)
20 50 200 500 2k 5k 20k
CP12
(dB) Level
CP Series Tote
CP12 shown in floor monitor position
CP8 shown with optional Yoke bracket

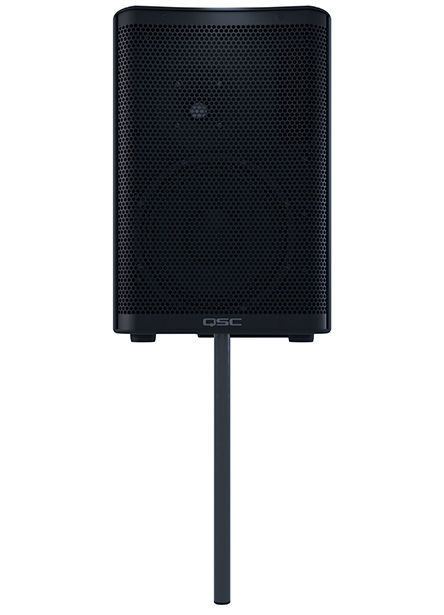

CP12 on SP-36 pole with CP12 outdoor Cover
(Temporary-use weather protection)
CP outdoor Cover
(Temporary-use weather protection)
QSC, LLC. 1675 MacArthur Boulevard Costa Mesa, CA 92626 USA. ©2019 QSC, LLC. All rights reserved. QSC, QSC logo and PLAY OUT LOUD are registered trademark s of QSC, LLC in the U.S. Patent and Trademark Office and other countries. DMT, Intrinsic Correction, and the World of K logo are trademarks of QSC, LLC. Specifications subject to change without notice.
+1·800·854·4079 | +1·714·754·6175 | WWW.QSC.COM
CP8 CP12

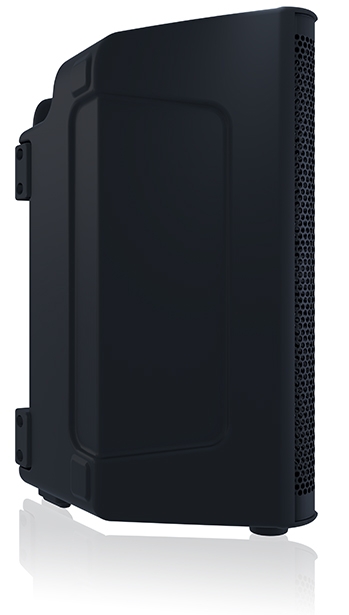

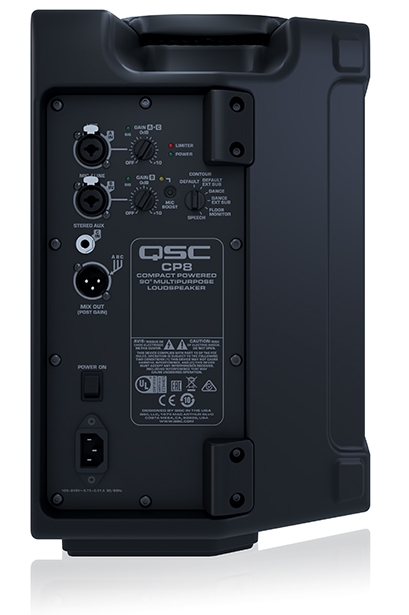

CP8 / CP12 Top and Side CP8 / CP12 Back Panel
10.1 in
256 mm
Top
Side
16.2 in
411 mm
10.7 in
273 mm
Top
Side
12.7 in
323 mm
13.8 in
350 mm
20.3 in
516 mm
10.1 in
256 mm
Top
Side
16.2 in
411 mm
10.7 in
273 mm
Top
Side
12.7 in
323 mm
13.8 in
350 mm
20.3 in
516 mm
0889-2019-EN
