E10
10" Two-Way Passive Loudspeaker
Features
• High output, professional quality sound with
300 w continuous power handling
• E Series Entertainment System – Advanced
digital signal processing tunings and options
using QSC GXD, PLD amplifiers or TouchMix™
digital mixers.
• E Series Entertainment System DSP Tunings
are available for PLD, CXD and GXD
processing amplifiers.
• Rugged tour-grade textured paint
• Foam-lined perforated steel grill
• Suitable for main PA and stage monitor

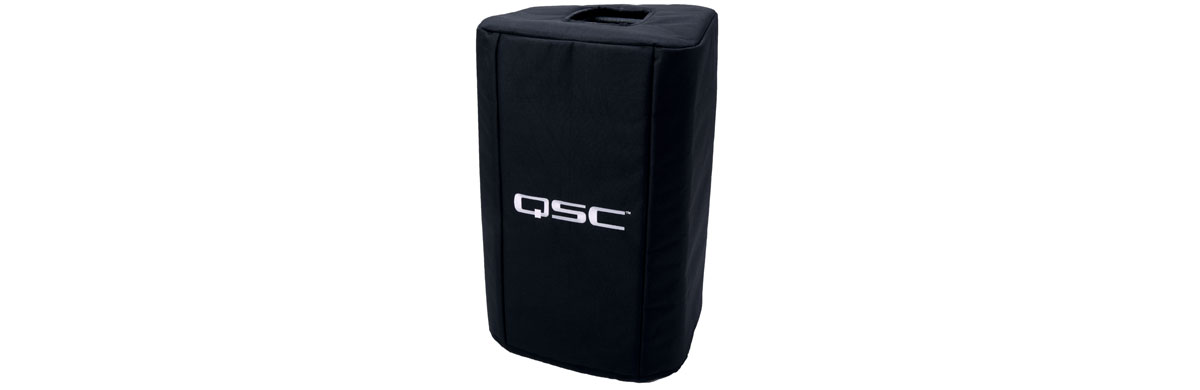

• Optional Padded Cover for protection during
transportation
• Optional U-Style Yoke and M8 rigging kit for
permanent installation
• Dual-angle pole socket
Specifications
Configuration 1 x 10-inch, 2-way,
non-powered
Frequency Response (-6 dB) 68 Hz - 20 kHz
Frequency Range (-10 dB) 50 Hz - 20 kHz
Power Capacity2
: Continuous/Peak 300 w / 1200 w
Sensitivity 95 dB, 1 w @ 1 m
Coverage Angle 85° conical DMT
Output (Peak SPL @ 1m) 126 dB
Drivers
LF 254 mm (10-inch)
driver with 64 mm
(2.5-inch) voice coil;
HF 25 mm (1-inch) exit,
45 mm (1.75-inch)
voice coil,
compression driver
Nominal Impedance 8 Ω
Cross-over Full-range only, 1.8 kHz
Input Connectors 2 x NL4 1 x barrier
strip
Enclosure Multi-angle, plywood,
black texture paint
finish. One top
mounted
handle.Perforated,
powder-coated steel
grille with foam lining.
Mounting and suspension 6 x M8 suspension
points, dual angle,
35 mm pole-socket
Net Weight 20 kg / 44 lb
Shipping Weight 23 kg / 50 lb
E Series Loudspeakers
The E Series is a range of passive loudspeakers offering robust construction, trusted
reliability and overall sonic performance beyond expectations. Intended for sound
reinforcement in entertainment applications including live performance, DJ and dance
music, karaoke and event production, E Series loudspeakers will deliver outstanding results.
Building on QSC’s proven “Systems” methodology, the E Series loudspeakers’
performance is further enhanced when paired with QSC’s GXD or PLD amplifiers or with a
QSC TouchMix digital mixer, and taking advantage of the on-board DSP and factory-tuned
presets. These presets support a variety of applications including live sound reinforcement
(with and without subwoofers), stage monitoring, dance music and karaoke.
E Series consists of six models constructed of rugged plywood and coated in black,
textured paint. Heavy-duty grilles lined with foam provide protection for the woofers and an
elegant appearance. E10, E12 and E15 models are equipped with an all metal, dual-angle,
35mm socket that allows the speaker to be mounted vertically on a pole or angled down by
10° to improve audience coverage and reduce rear wall reflections. Multiple mounting
options using E Series Yoke or M8 eyebolts are supported. Input connections include dual
NL4 as well as screw terminal receptacles. Additionally, E215 and E218SW models feature
ergonomic, aluminum handles to ease portability.
Entertainment Venues
House of Worship
Rental/Production
Mobile Performers
The E10 is a compact, two-way
loudspeaker featuring a 10-inch, die-cast
frame woofer with a 2.5-inch voice-coil
housed in a multi-purpose enclosure that is
equally at home in stage monitor or main
PA deployment. It incorporates QSC’s DMT
(Directivity Matched Transition) design with
a wide 85° coverage and can handle 300
W continuous power. When used as a
stage monitor, the E10 is angled up at a
55° angle allowing it to be placed near the
performer when used on a crowded stage.
1
With QSC Processing
2
Power that the device can withstand for two hours without permanent change
in acoustical, mechanical, or electrical characteristics, greater than 10%, using
IEC60268 noise based on nominal impedance in the cabinet with Xover, full range
30 Hz 12 dB/oct.
Specifications are subject to change with out notice.
HPF 1+
1 -
2 -
2+
HF
LPF LF
NL4
Barrier
Strip
+
-
1+
1 -
2 -
2+ NL4
E10 Details
E10 Dimensions
Input Plate
Block Diagram
Front Side
Top
13"
330 mm
13"
330 mm
22"
560 mm
