E110
Two-Way Passive
Loudspeaker
KEY FEATURES
• High output, professional quality sound with
300 W continuous power handling
• E Series Entertainment System – Advanced
digital signal processing tunings and
options using QSC GXD, PLD amplifiers or
TouchMix™ digital mixers.
• Updated cabinet design with improved yoke
mount points and durable metal handle
• Rugged tour-grade textured paint
• Foam-lined perforated steel grill
• Suitable for main PA and stage monitor
• Optional Padded Cover for protection during
transportation
• Dual-angle pole socket
E110
Entertainment Venues ∙ Houses of Worship ∙ Rental/Production
Mobile Performers
The E110 is a compact, two-way loudspeaker featuring a 10-inch, die-cast frame woofer
with a 2.5-inch voice-coil housed in a multi-purpose enclosure that is equally at home in
stage monitor or main PA deployment. It incorporates Directivity Matched Transition™ (DMT)
design with a wide 85° coverage and can handle 300 W continuous power. When used
as a stage monitor, the E110 is angled up at a 55° angle allowing it to be placed near the
performer when used on a crowded stage.
E Series Loudspeakers
The E Series is a range of passive loudspeakers offering robust construction, trusted
reliability and overall sonic performance beyond expectations. Intended for sound
reinforcement in entertainment applications including live performance, DJ and dance
music, karaoke and event production, E Series loudspeakers will deliver outstanding results.
Building on the proven, QSC “Systems” methodology, the E Series loudspeakers’
performance is further enhanced when paired with QSC GXD or PLD amplifiers or with a
QSC TouchMix™ digital mixer, and taking advantage of the on-board DSP and factory-tuned
presets. These presets support a variety of applications including live sound reinforcement
(with and without subwoofers), stage monitoring, dance music and karaoke.
E Series consists of six models constructed of rugged plywood and coated in black,
textured paint. Heavy-duty grilles lined with foam provide protection for the woofers and an
elegant appearance. E110, E12 and E15 models are equipped with an all metal, dual-angle,
35 mm socket that allows the speaker to be mounted vertically on a pole or angled down
by 10° to improve audience coverage and reduce rear wall reflections. Multiple mounting
options using E Series Yoke or M8 eyebolts are supported. Input connections include dual
NL4 as well as screw terminal receptacles. Additionally, E215 and E218sw models feature
ergonomic, aluminum handles to ease portability.
E110 Configurations

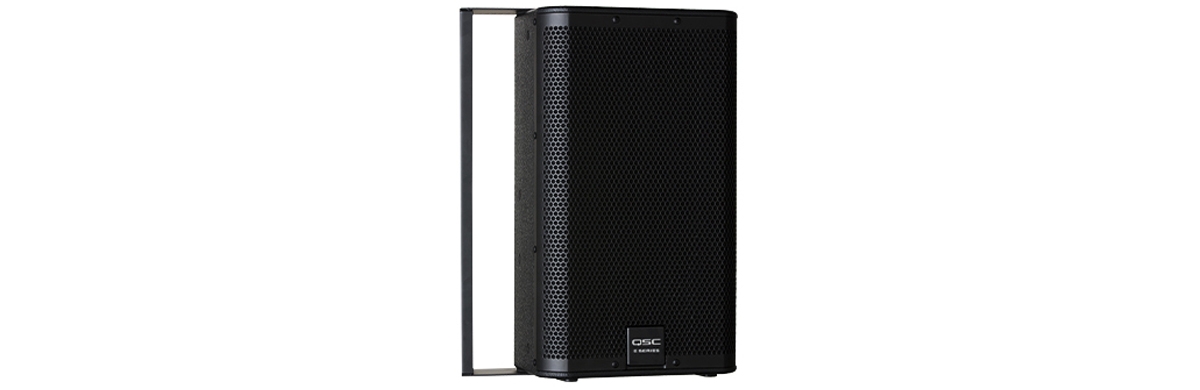

Optional Yoke Mounts shown Optional M8 Eyebolt Kit-A shown
E110
Configuration: 1 x 10-inch, 2-way, non-powered
Frequency Range1 (-10 dB) 50 Hz - 20 kHz
Power Capacity2
: Continuous/Peak 300 W / 1200 W
Sensitivity 95 dB, 1 W @ 1 m
Coverage Angle 85° conical DMT
Output1 (Peak SPL @ 1m) 126 dB
Drivers:
LF 254 mm (10-inch) driver with 64 mm 2.5-inch) voice coil
HF 25 mm (1-inch) exit, 45 mm (1.75-inch) voice coil, compression driver
Nominal Impedance 8 Ω
Cross-over Full-range only, 1.8 kHz
Input Connectors 2 x NL4 1 x barrier strip
Enclosure Multi-angle, plywood, black texture paint finish, o ne top mounted handle, perforated, powder-coated steel grille with foam lining
Mounting and suspension 6 x M8 suspension points, dual angle, 35 mm pole-socket
Net Weight 20 kg / 44 lb
Shipping Weight 23 kg / 50 lb
Dimensions (WxHxD) 13 x 22 x 13 in (330 x 560 x 330 mm)
E110Specifications
©2018 QSC, LLC all rights reserved. QSC, the QSC logo and TouchMix are registered trademarks of QSC, LLC in the U.S. Patent and Trademark. E Series Spec Sheet 192-2017
+1·800·854·4079 | +1·714·754·6175 | WWW.QSC.COM
E110 Block Diagram and Input Plate E110 Dimensions
1 With QSC Processing.
2 Power that the device can withstand for two hours without permanent change in acoustical, mechanical, or electrical characteristics, greater than 10%, using IEC60268 noise based on nominal impedance in the cabinet
with crossover, full range 30 Hz 12 dB/octave.
Additional specifications to be announced.
Specifications subject to change without notice.
HPF 1+
1 -
2 -
2+
HF
LPF LF
NL4
Barrier
Strip
+
-
1+
1 -
2 -
2+ NL4
HPF 1+
1 -
2 -
2+
HF
LPF LF
NL4
Barrier Strip
+
-
1+
1 -
2 -
2+ NL4
