E115
15-inch Two-Way
Passive Loudspeaker
KEY FEATURES
• High output, professional quality sound with
500 W continuous power
• E Series Entertainment System – Advanced
digital signal processing tunings and
options using QSC GXD, PLD amplifi ers or
TouchMix™digital mixers
• E Series Entertainment System DSP Tunings
are now available for PLD and GXD
processing amplifi ers
• Titanium diaphragm for high fi delity and
long life
• Rugged tour-grade textured paint
• Foam-lined perforated steel grille
• Dual-angle pole socket
• Optional accessories; soft, padded cover,
U-style yoke and M10 eyebolt kit.
E115
The E115 is a trapezoidal, two-way loudspeaker offering robust construction, trusted
reliability and overall sonic performance beyond expectations. Featuring a 15-inch die-cast
aluminum frame woofer with a large 3.5-inch voice coil that can handle 500 W of
continuous power, it is intended for use when high-power and authoritative low-end are
needed from a full-range loudspeaker. A large format 2.8-inch compression driver attached
to the 75° DMT waveguide assures that even distant listeners will be well covered.
E Series Loudspeakers
The E Series is a range of passive loudspeakers offering robust construction, trusted reliability
and overall sonic performance beyond expectations. Intended for sound reinforcement in
entertainment applications, including live performance, DJ and dance music, karaoke and
event production, E Series loudspeakers will deliver outstanding results. Building on QSC’s

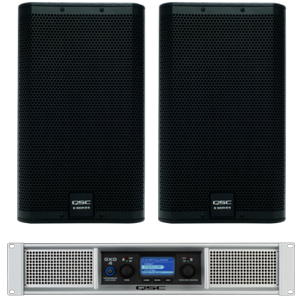

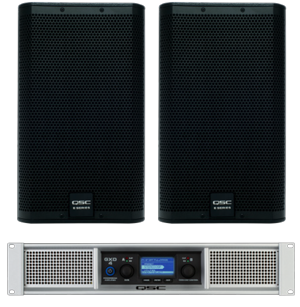

proven “Systems” methodology, the E Series loudspeakers’ performance is further enhanced
when paired with QSC’s GXD or PLD amplifi ers or with a QSC TouchMix digital mixer, and
taking advantage of the on-board DSP and factory-tuned presets. These presets support a
variety of applications including live sound reinforcement (with and without subwoofers), stage
monitoring, dance music and karaoke.
E Series consists of six models constructed of rugged plywood and coated in black,
textured paint. Heavy-duty grilles lined with foam provide protection for the woofers and
an elegant appearance. E110, E112 and E115 models are equipped with an all metal,
dual-angle, 35 mm socket that allows the speaker to be mounted vertically on a pole or
angled down by 10° to improve audience coverage and reduce rear wall refl ections. Multiple
mounting options using E Series Yoke or eyebolts are supported. Input connections include
dual NL4 as well as screw terminal receptacles. Additionally, E215 and E218sw models
feature ergonomic, aluminum handles to ease portability.
Entertainment Venue ∙ House of Worship ∙ Rental/Production
Mobile Performers
E115
Confi guration 1 x 15-inch, 2-way, passive
Frequency Response (-6 dB) 55 Hz - 20 kHz
Frequency Range (-10 dB) 43 Hz – 20 kHz
Power Capacity1
: Continuous/Peak 500 W / 2000 W
Sensitivity 97 dB, 1 w @ 1 m
Coverage Angle 75° conical DMT
Output2
(Peak SPL @ 1m) 130 dB
Drivers
LF 381 mm / 15-inch driver with 89 mm 3.5-inch voice coil
HF 38 mm / 1.5-inch exit, 71 mm / 2.8-inch voice coil, compression driver
Nominal Impedance 8 Ω
Cross-over Full-range only, 1.55 kHz
Input Connectors 2 x NL4 1 x barrier strip
Enclosure Trapezoidal, plywood, black texture paint fi nish. Two side mounted handles. Perforated, powdercoated steel grille with foam lining.
Dimentions 420 x 716 x 445 mm
16.5 x 28.2 x 17.5 in
Net Weight 31 kg / 68 lb
Shipping Weight 34 kg / 75 lb
E115 Specifi cations
©2020 QSC, LLC all rights reserved. QSC, the QSC logo and TouchMix are registered trademarks of QSC, LLC in the U.S. Patent and Trademark. E Series Spec Sheet
+1·800·854·4079 | +1·714·754·6175 | WWW.QSC.COM
1 Power that the device can withstand for two hours without permanent change in acoustical, mechanical, or electrical characteristics, greater than 10%, using IEC60268 noise based on nominal impedance in the cabinet
with crossover, full range 30 Hz 12 dB/octave.
2 With QSC Processing.
Specifi cations subject to change without notice.
E115 Details E115 Dimensions
HPF 1+
1 -
2 -
2+
HF
LPF LF
NL4
Barrier Strip
+
-
1+
1 -
2 -
2+ NL4
Input Plate
Block Diagram
Front Side
Top
17.5"
445 mm 16.5"
420 mm
28.2"
716 mm
HPF 1+
1 -
2 -
2+
HF
LPF LF
NL4
Barrier Strip
+
-
1+
1 -
2 -
2+ NL4
Input Plate
Block Diagram
Front Side
Top
17.5"
445 mm 16.5"
420 mm
28.2"
716 mm
