K.2 Series
Active Loudspeakers
Features
• Best in class audio performance
• 2000 Watt Class-D amplifier module
• Factory Presets and savable/recallable
Scenes for commonly-used applications
• Multi-function digital display for control
and selection of loudspeaker functions
including cross-over, EQ, delay and
frequency contour
• Intrinsic Correction™ tuning and
loudspeaker management
• Directivity Matched Transition™ (DMT)
design provides excellent power response
and consistent performance across the
listening area
• Refined, professional appearance looks
great in any application
• Rugged ABS enclosure for long life and
lasting durability
• Deployment in either main PA or floor
monitor position
• Dual pole cup mounts (standard and 7.5
degree down-tilt)
• M10 fittings for flown applications
• Optional security panel prevents
unauthorized tampering of controls
• Complete EASE and CAD information
available online
• 6-Year Warranty with product registration
The QSC K.2 Series™ represents the best-in-class
loudspeaker for today’s demanding audio
professionals. The perfect combination of
elegant design, superior audio performance, high
functionality, simple and intuitive operation, and
genuine QSC reliability, K.2 delivers extraordinary
results for users in both portable and installed
applications.
Advanced Power and DSP: The 2000 Watt
power module delivers ample burst and
continuous power for the loudspeaker’s premium
drivers. It has been designed with very low-noise
fan cooling, enabling the enclosures to be used
in settings where background noise must be
kept to a minimum. Carefully tailored, subtle and
sophisticated dynamics processing is used to
protect the drivers from damage and the
performance from distortion.
Presets: The user may select from an extensive
list of factory preset EQ contours including Live,
Dance, Monitor, and many more.
Scenes: Savable and recallable Scenes can
store information like user EQ, Delay, and
input configuration settings.
Inputs: A pair of balanced combo XLR/F plus
1/4" TRS connectors with independent gain
control are provided. The first is equipped with
selectable MIC/LINE (Microphone or Line) level
input while the second offers selectable HI-Z/
LINE (High Impedance or Line) level input,
specifically for musical instruments. Both inputs
are connected directly to a pair of XLR/M
throughput connectors so that the signals may
be “daisy-chained” to another audio device.
A 3.5 mm TRS input jack with independent
gain control is also provided for connection of
sources such as smart phones, computers, and
MP3 players.
Outputs: In addition to the two throughput
XLRs, a line-level output with the mixed
signal from all inputs is also provided.
(An optional security cover (K.2 LOC) may be
installed to prevent unauthorized tampering
of settings)
Coverage: Directivity Matched Transition™
(DMT) design matches the coverage angle of
the woofer at the cross-over frequency with
the horn pattern to ensure uniform response
across the coverage area. Intrinsic
Correction™ techniques are also employed
ensuring smooth power response from
the loudspeaker. The result is an extremely
accurate loudspeaker that behaves well in a
wide range of acoustic spaces with little or no
equalization.
Flexible Design: Each model is housed in
a rugged ABS enclosure with a professional
yet unobtrusive appearance that is at home in
any application. Each model can be utilized in
either main PA or floor monitor applications,
while ergonomic handles and a heavy-duty
steel grille with fabric lining further enhance
overall appearance and functionality. The
dual pole cups allow a zero or 7.5 degree
downward tilt when deployed on a pole. This
allows for more even coverage across the
listening area and less problems due to rear
wall reflections. For suspended applications,
integrated M10 fittings with a single pullback
are included to accommodate M10 eyebolts.
An optional yoke mount accessory is also
available for permanent installation to walls
and ceilings or for temporary attachment to
truss (requires 3rd party hardware).
Robust QSC quality and reliability backed
by a global 6-Year Warranty with product
registration.

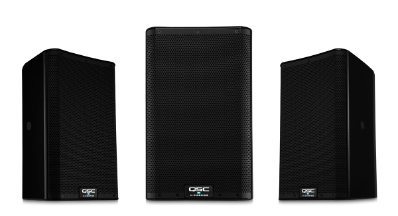

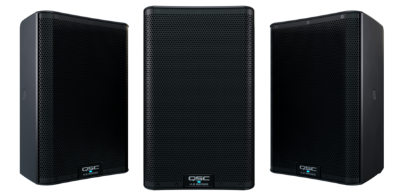

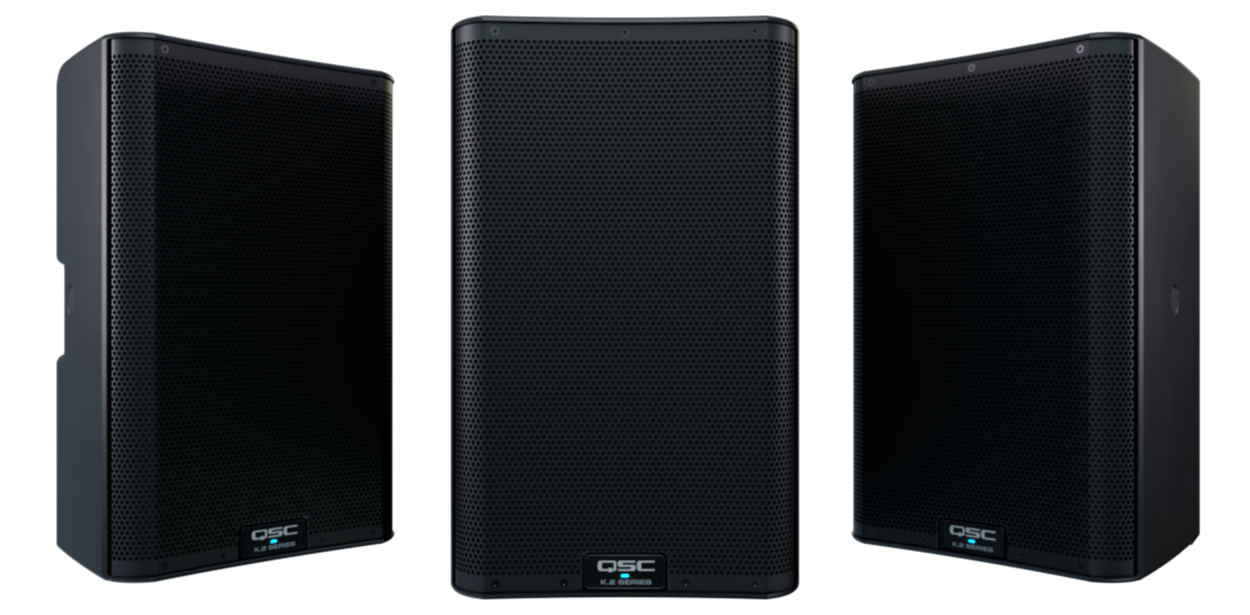

K8.2 | K10.2 | K12.2
1 Peak SPL is measured on-axis at 1 m, with dynamic pink noise.
Specifications subject to change without notice.
K8.2 K10.2 K12.2
Configuration: Multi-purpose, 2-way active loudspeaker
LF Transducer: 203 mm (8 in) cone 254 mm (10 in) cone 305 mm (12 in) cone
HF Transducer: 35.6 mm (1.4 in) titanium diaphragm compression driver
Frequency Response (-6 dB): 59 Hz - 20 kHz 56 Hz - 20 kHz 50 Hz - 20 kHz
Frequency Range (-10 dB): 55 Hz - 20 kHz 50 Hz - 20 kHz 45 Hz - 20 kHz
Nominal Coverage Angle: 105° Axisymetric 90° Axisymetric 75° Axisymetric
Maximum Rated SPL1: 128 dB Peak 1 30 dB Peak 132 dB Peak
Amplifier: Class D
Peak: 1800 W (LF), 225 W (HF)
Cooling: Low-noise, variable speed fan
Controls: Power
3 x Level
Rotary encoder
2 x selection buttons
Indicators: Monochrome LCD Display 45 mm x 25.4 mm (1.75 in x 1 in)
2 x Power LED (front and rear)
3 x Input Signal LED
Input A MIC selected LED
Input B HI-Z selected LED
Limiter active LED
Connectors: 2 x locking XLR/F ¼" combo (Mic/Line Input and Hi-Z/Line Input
1 x 3.5 mm TRS (Stereo Input)
2 x XLR/M (Loop-thru Output)
1 x XLR/M (Mix Output)
1 x locking IEC power connector
AC Power Input: Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption 1/8th Power: 100 VAC, 2.1 A • 120 VAC, 1.9 A • 240 VAC, 1.1 A
Enclosure Details
Enclosure: Impact Resistant ABS
Attachment Points: 2 x M10 threaded inserts plus integrated Pull-Back
Color: Black (RAL 9011)
Grille: 18 Gauge powered coated steel, internal cloth lining
Dimensions (H x W x D): 449 x 280 x 269 mm 519 x 320 x 300 mm 602 x 356 x 350 mm
17.7 x 11 x 10.6 in 20.4 x 12.6 x 11.8 in 23.7 x 14 x 13.8 in
Net Weight: 12.2 kg (27 lb) 14.5 kg (32 lb) 17.7 kg (39 lb)
Shipping Weight: 14.4 kg (31.8 lb) 17.6 kg (38.8 lb) 21.7 kg (47.8 lb)
Regulatory: CE, RAEE, UL, China RoHS, RoHS II, FCC Class B
Optional Accessories: K8 Tote, K8 Outdoor Cover K10 Tote, K10 Outdoor Cover K12 Tote, K12 Outdoor Cover
M10 Kit-C, K.2 LOC (Lock-Out Cover) M10 Kit-C, K.2 LOC (Lock-Out Cover) M10 Kit-C, K.2 LOC (Lock-Out Cover)
K8.2 Yoke K10.2 Yoke K12.2 Yoke
K.2 Series Specifications
K12.2 On-Axis Frequency Response:
K10.2 shown with Yoke bracket
(coupler sold separately)
K8.2 shown in floor monitor position
K8.2 On-Axis Frequency Response: K10.2 On-Axis Frequency Response:
K12.2 on loudspeaker stand with 7.5 degree down-angle
100 1k 10k
10
0
-10
-20
-30
-40
K10.2 Crossovers
(dB) Level
Frequency (Hz)
20 50 200 500 2k 5k 20k
100 1k 10k
10
0
-10
-20
-30
-40
K12.2 Crossovers
(dB) Level
Frequency (Hz)
20 50 200 500 2k 5k 20k
100 1k 10k
10
0
-10
-20
-30
-40
K8.2 Crossovers
(dB) Level
Frequency (Hz)
20 50 200 500 2k 5k 20k
––––– Full Range ––––– 80 Hz
––––– 100 Hz ––––– 125 Hz
* With default EQ preset.
+1·800·854·4079 | +1·714·754·6175 | WWW.QSC.COM
1477-2019-EN
QSC, LLC. 1675 MacArthur Boulevard Costa Mesa, CA 92626 USA. ©2017 QSC, LLC. All rights reserved. QSC, the QSC logo and PLAY OUT LOUD logo are registered trademark s of QSC, LLC in the U.S. Patent
and Trademark Office and other countries. Directivity Matched Transition, Intrinsic Correction, and the World of K logo are trademarks of QSC, LLC. Specifications subject to change without notice.
QSC, LLC. 1675 MacArthur Boulevard Costa Mesa, CA 92626 USA. ©2017 QSC, LLC. All rights reserved. QSC and the QSC logo are registered trademark s of QSC, LLC in the U.S. Patent and Trademark Office and other countries. DMT, Intrinsic
Correction, and the World of K logo are trademarks of QSC, LLC. Specifications subject to change without notice.
+1·800·854·4079 | +1·714·754·6175 | WWW.QSC.COM

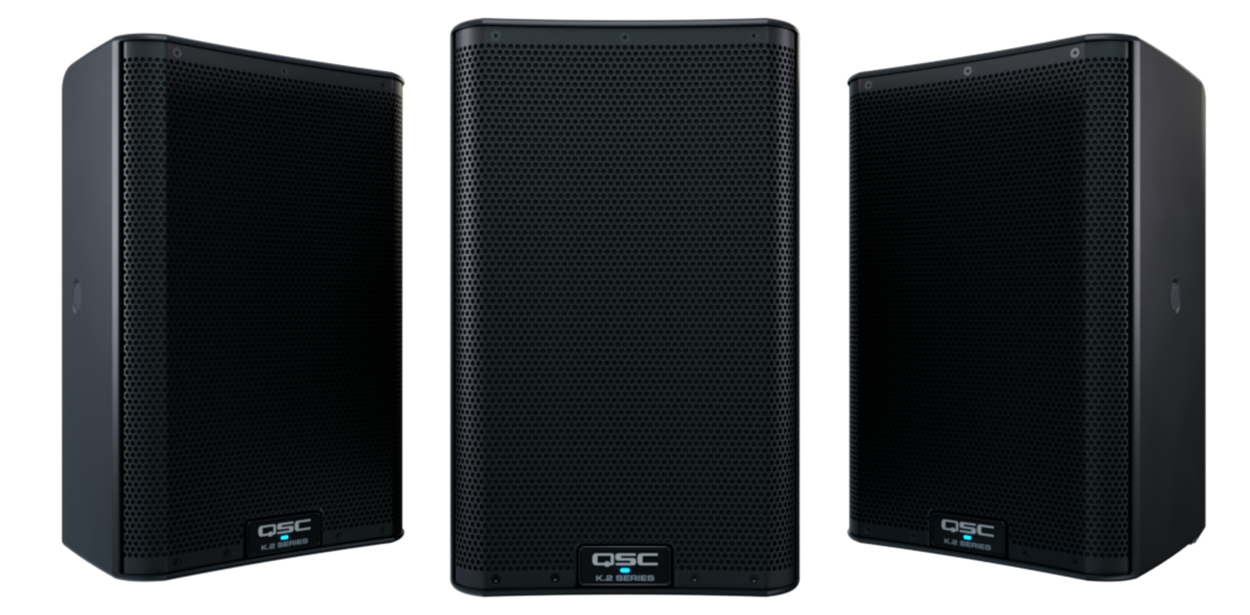

K8.2 K10.2
K12.2 Back Panel
