KLA Series
Fixed Arcuate Active Line Array System
Features of the KLA12 KLA12 | KLA181
• 500 W x 500 W power module
• Rugged, ABS enclosure delivers light-weight durability
• SOLO™ Rigging System supports deployment without tools or external hardware
• Ar-Q™ Frequency Optimization quickly tunes and configures the array with the
click of a dial, adjusting for the appropriate number of boxes
• 10:1 design factor insures safe suspension of up to two KLA181’s
and five KLA12’s
• 90˚ x 18˚ nominal coverage (requires only five boxes to configure a
90˚ x 90˚ array)
• High power, 12" low-frequency driver provides extension down to 44Hz
without subwoofers
• Extensive DSP further enhances and protects performance
• 1.75" diaphragm compression driver delivers clear and powerful
high-frequency reproduction
• powerCON® Input and Thru connections
• Tilt-Direct™ pole mount assists directivity
Features of the KLA181
• 1000 watt power module
• 18" ported subwoofer
• High acoustic output (135 dB SPL peak)
• Frequency range down to 33 Hz (-10 dB)
• Extensive DSP further enhances and protects performance
• powerCON® Input and Thru connections
• Threaded pole-cup receptacle for free-standing applications
(black model only).
• Suspension via M10 fittings or the KLA AF12 Array Frame
• Integrated threaded pole mount supports up to two KLA12
enclosures (black model only)
The KLA Series brings the power and sophistication of a line array
system into an easy-to-use product significantly redefining the
line array product category. With its simple Lift, Click and Play
approach, KLA can be deployed in a fraction of the time required
by comparable line array products. This fixed arcuate, active line
array system is ideal for a wide range of portable and permanently
installed applications ranging from live entertainment to houses of
worship or other venues where a line array system is desired.
KLA Power Module
The KLA Series is comprised of two models: the KLA12 12-inch,
2-way loudspeaker and the KLA181 18-inch subwoofer. The KLA12
features a highly efficient 500 W x 500 W power amp module and
the KLA181 offers the same highly efficient power amp module
in a 1000 W configuration. This efficient design enables up to five
KLA models (any combination of KLA12 and KLA181) to be driven
off of a single 15 amp/120V (8A / 230V) electrical circuit. KLA
loudspeakers incorporate QSC’s DEEP™ DSP algorithm, providing
extended bass response by actively managing potentially damaging
low-frequency transients, and GuardRail™ circuitry protection which
prevents the amplifier module from unnatural and destructive
clipping. As an energy saving feature, the Auto Standby mode
automatically engages after five minutes of inactivity but upon
resumption of audio signal, the power module on the KLA will
awaken instantly for immediate output.
In an installed application, multiple KLA Series loudspeakers can be
“daisy-chained” for total gain control from a single remote pot wired
to the on-board Phoenix-style connector. Additional power module
characteristics on KLA include a balanced, line-level XLR input in
parallel with an XLR “Thru” connector, powerCON® In and Thru
connectors, Attenuation Control and LED indicators for Signal and
Limit, as well as discrete LED indicators for Power/Standby status.
KLA Series System Configurations
KLA12
Housed in a rugged ABS enclosure that results in both light
weight and long-term durability, the KLA12 features a 12-inch
low-frequency transducer coupled with a 1.75-inch compression
driver housed on a multiple difraction aperture waveguide.
This waveguide design is based
upon similar principles found on
our patented WideLine™ Series
waveguides and the waveguides found
on our K Series products. Designed to
be used exclusively as a fixed arcuate
line array, each KLA12 is configured
for a 90˚ x 18˚ coverage angle,
allowing 90˚ vertical arrays to be
configured using only five boxes (most
other solutions require six). KLA’s
unique self-contained SOLO™ (Single-Operator Logistics) Rigging
System enables users to quickly assemble (and disassemble) the
line array in a fraction of the time without the need for special
tools or external hardware.
KLA12’s Ar-Q™ (Arcuate Equalization) processing enables users to
quickly tune and configure the array, making appropriate frequency
adjustments based on the number of boxes. With the click of a dial,
the user can select the total number of boxes deployed in the array
resulting in an evenly balanced
and accurate tonal curve. QSC’s
proprietary Intrinsic Correction™
actively adjusts time, frequency
and amplitude response
to achieve a maximally flat
bandpass target.

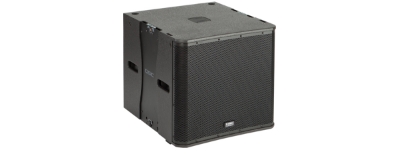

KLA181
In addition to DEEP™ DSP
algorithm, GuardRail™, Auto
Standby, balanced line-level
XLR input with an XLR “Thru”
connector, Attenuation Control
and LED indicators, the KLA181
subwoofer also includes a
polarity switch.
SOLO™ Rigging System
KLA181 shown
with (2) KLA12
Specifications
KLA12 KLA181
Configuration 2-way Line Array Element 18" ported subwoofer
Transducers
Low-Frequency
High-Frequency
12" cone transducer
1.75" diaphragm compression driver
18" cone transducer
—
Frequency Response (-6 dB) 49 Hz – 18 kHz 38 Hz
Frequency Range (-10 dB) 44 Hz – 20 kHz 33 Hz
Nominal Coverage (-6 dB) 90 x 18 degree –
Maximum SPL (1 meter) 131 dB 135 dB
Amplifiers
Power Output 500 W x 500 W power module 1000 W power module
Input Impedance (Ω) XLR: 40k balanced / 20k unbalanced XLR: 40k balanced / 20k unbalanced
Controls
Indicators
Connectors ® power
® power connector AC Out
Cooling On demand, 50 mm variable speed fan
Amplifier Protection
Transducer Protection
AC Power Input Universal power supply 100 - 240 VAC, 50 - 60 Hz
AC Power Consumption 1/8 Power
Enclosure Impact resistant ABS Painted birch plywood
Weight 55 lbs (25.0 kg) 104 lbs (47.2 kg)
Finish Black or White paint Black or White textured paint
Black or White powder coated 18 gauge steel Black or White powder coated 16 gauge steel
15.0" x 23.4" x 16.6" (381mm x 594mm x 422mm) 21.6" x 23.4" x 25.7" (547mm x 594mm x 653mm)
Available Accessories
Maximum Suspended Loudspeakers per Array
Array Configuration Option A B C
Maximum Number of KLA181 Loudspeakers 2 3 4
Maximum Number of KLA12 Loudspeakers 5 3 0
KLA AF12
4.4" x 23.0" x 16.8" (112mmx 584mm x 426mm)
Weight (Net) 23.0 lbs (10.4kg)
Available Accessories KLA AF12 Array Frame Tote
Rigging & Deployment
For maximum deployment flexibility, KLA loudspeakers can be
either ground deployed or flown. As a ground stack, up to two
KLA12 enclosures can be mounted over the KLA181 or the KW181
subwoofer via a threaded pole socket
*
, or without a sub using an
appropriately rated loudspeaker stand. KLA12 enclosures also feature
the Tilt-Direct™ 35mm pole socket allowing the loudspeaker to be
aimed downward 9° for the best audience coverage.
KLA enclosures are engineered for a 10:1 design factor. Use a KLA
AF12 Array Frame or the M10 Integrated Suspension points to
suspend one KLA Array consisting of one of the following three array
configuration options. The maximum number of KLA12 Loudspeakers
in any array, with or without KLA181 Loudspeakers, is five.
Example shown with
optional KLA AF12
array frame
*
Black model only
*
KLA Series Specifications
qsc.com
Specifications subject to change without notice.
KLA Series Spec Sheet 05/17
KLA12

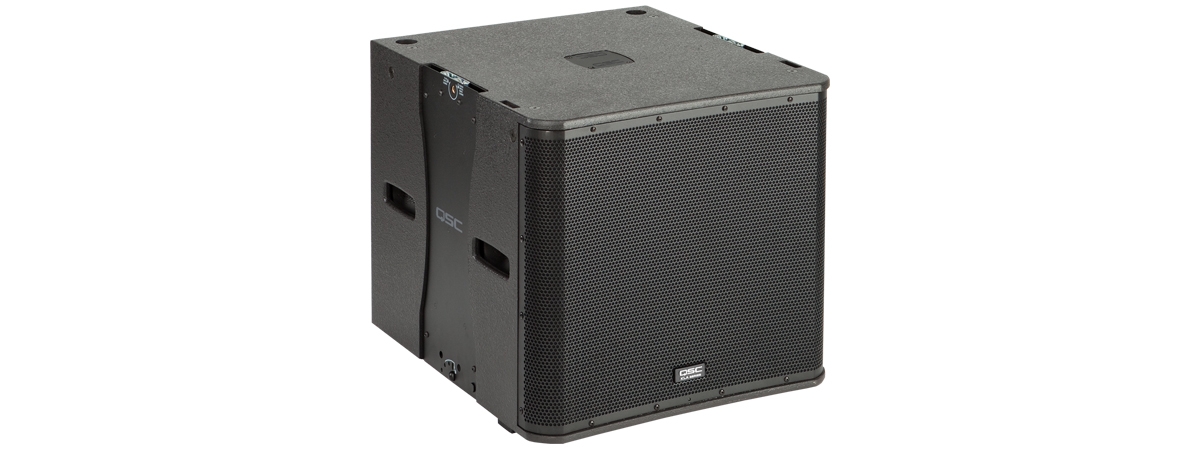

KLA181 (black model shown)
© 2017 QSC Audio Products, LLC. All rights reserved. QSC, the QSC logo, are registered trademarks of QSC Audio Products, LLC in the U.S. Patent and Trademark office and other
countries. Intrinsic Correction, SOLO, Ar-Q, DEEP, Guardrail, Tilt-Direct and WideLine are trademarks of QSC Audio Products, LLC. powerCON is a trademark of Neutrik. All other
trademarks are the property of their respective owners. Patents may apply or be pending.
15.0"
381 mm
23.4"
594 mm
23.4"
594 mm
16.6"
422 mm
25.7"
653 mm
Side
Side
Top
Front
Front
Top
21.6"
547 mm
