KS112 Powered
Subwoofer
KEY FEATURES
• High output in an ultra-compact form factor
• 2000 Watt Class D amplifier module
• 12-inch, long-excursion driver; 6th order
bandpass design
• Variable crossover and savable/recallable
Scenes for commonly-used applications
• Refined, professional appearance looks
great in any application
• Rugged painted wood enclosure for long
life and lasting durability
• Deployment in either vertical or horizontal
positions with dual M20 speaker pole
fittings
• Optional KS-LOC security cover prevents
unauthorized tampering of controls
• Complete EASE & CAD information
available online
• 6-Year Warranty*
The KS112 is a highly portable, single 12-inch
bandpass design subwoofer, powered by a
2000 watt peak power Class D amplifier
module. The cabinet is constructed of premium
birch and includes high-quality, low noise
casters.
KS112
Musicians/Bands ∙ Clubs/Venues ∙ DJs/Dance · AV Rental/Production
The KS112 is an ultra-compact powered subwoofer for installation and
highly portable entertainment applications.
KS112 Powered Subwoofer

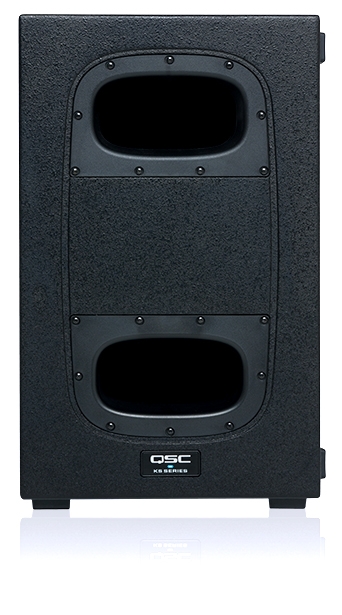

Front

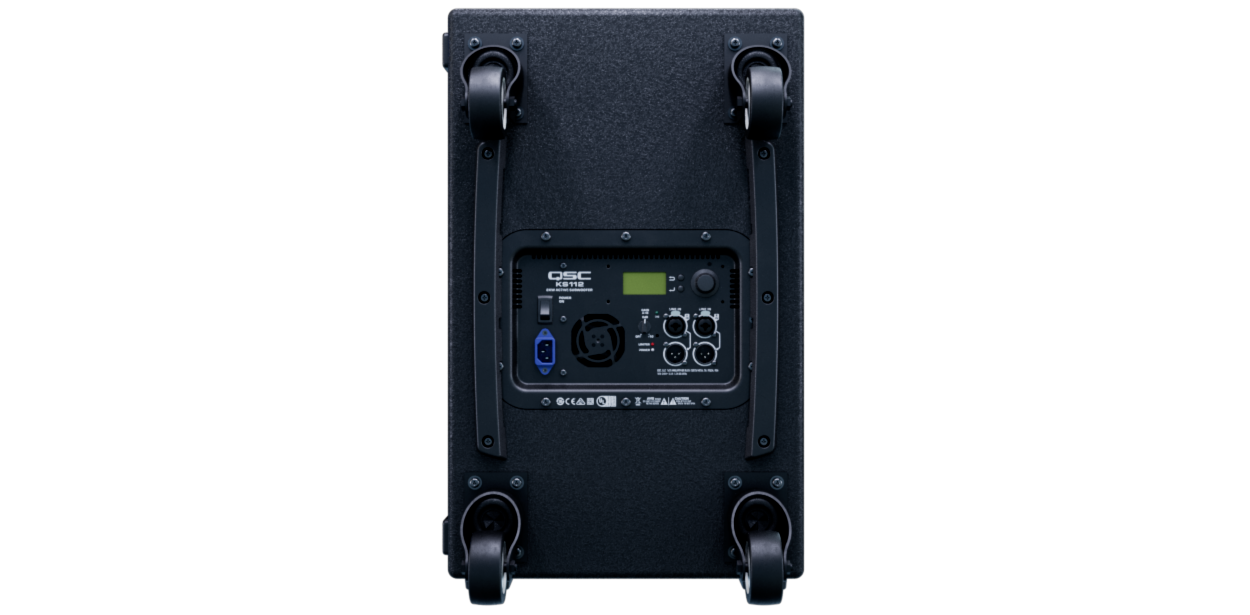

Back
Two M20 threaded pole receptacles are
available for a positive, unswerving connection
to a threaded speaker pole in either vertical or
horizontal deployment (pole not included).

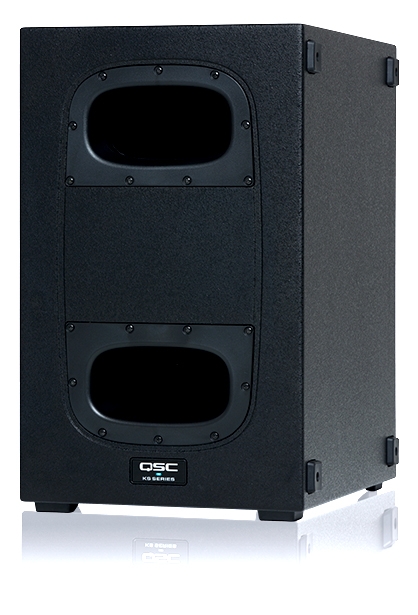

Side
24.25 in
616 mm
24.5 in
622 mm
15.5 in
394 mm
KS112
Configuration: 6th-Order Bandpass Subwoofer
LF Transducer: 12-inch (305 mm), Cone
Frequency Response (-6 dB): 41 Hz - 108 Hz
Frequency Range (-10 dB): 38 - 121 Hz
Maximum Rated SPL1
: 128 dB @ 1 m (peak)
Amplifier: Class D
2000 W (peak)
Cooling: Low-noise, variable speed fan
Controls: Power On/Off
Gain Control
Rotary encoder
2 x selection buttons
Indicators: 2 x Power LED (front and rear)
Input Signal LED
Limiter active LED
Connectors: 2 x locking XLR/F ¼” combo
2 x XLR/M (Loop-thru Output)
1 x locking IEC power connector
AC Power Input: Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption 100 VAC, 2.4 A / 120 VAC, 2.0 A / 240 VAC, 1.3 A
Enclosure Details
Enclosure: 15 mm Birch Plywood
Color: Black (RAL 9011)
Grille: Internal woofer cover
Dimensions (HxWxD): 24.5 x 15.5 x 24.25 inches
622 x 394 x 616 mm
Net Weight: (including casters) 28.4 kg (62.6 lbs)
Shipping Weight: 34.5 kg (76 lbs)
Regulatory: CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
Included Accessories: 4 x Low-Noise, Heavy Duty Casters
Optional Accessories: KS112-CVR Transport Cover, KS-LOC Lock-Out Cover
SP-16X Extension Pole, SP-36 Speaker Pole
KS112 Specifications
QSC, LLC. 1675 MacArthur Boulevard Costa Mesa, CA 92626 USA. ©2018 QSC, LLC. All rights reserved. QSC and the QSC logo are registered trademark s of QSC, LLC in the U.S. Patent and Trademark Office and other countries. DMT, Intrinsic Correction,
and the World of K logo are trademarks of QSC, LLC. Specifications subject to change without notice. 1226-2018
+1·800·854·4079 | +1·714·754·6175 | WWW.QSC.COM
1 Peak SPL is measured on-axis at 1m, pink noise crest factor 10 dB, unweighted Continuous SPL is based on theoretical calculations based upon transducer sensitivity and peak available power (for comparison purpose and in accordance with
common industry practice.
* With product registration. Visit QSC.com for full details.
Specifications subject to change without notice.
