Features
• FlexAmp Technology allows each pair of
amplifier channels to deliver up to 400 W
total power, in any ratio.
• Class-D output circuitry and switchmode
power supply for high efficiency and low
cost of ownership
• 1RU amplifier design for rack space
savings
• Load selector for driving 4 Ω, 8 Ω, 70 V
or 100 V on each channel
• Selectable 80 Hz highpass filter offered
on each channel
• Power saving features - Auto-standby
(after 28 minutes with seamless autoramp when signal returns) and remote
standby input
• Amp status remote output
• Legacy of rock-solid QSC amplifier
dependability
Multi-channel amplifiers
MP-A Series
MP-A20V | MP-A40V | MP-A80V
The MP-A Series music and paging amplifier
family builds on a 50 year legacy of QSC
amplifier dependability and quality while
offering an incredible amount of flexibility for
business music and paging applications.
FlexAmp Technology
FlexAmp Technology simplifies system design
by allowing a single high channel count
amplifier to meet the needs of systems that
would typically utilize multiple amplifiers of
different power levels. It achieves this by
allowing the installer to configure each pair of
channels (e.g. ch 1-2, or 3-4, etc.) to deliver
up to 400 W combined output power, in any
mix. This makes for an amazing amount of
flexibility, especially when paired with the
output mode switch that offers settings for
4 Ω, 8 Ω, 70 V and 100 V.
Additional capabilities of the MP-A series
include an 80 Hz highpass filter available on
each output, as well as a remote input for
putting the amplifier into standby mode for fire
safety systems and an amplifier status signal
on the remote output for system verification.
Flexibility
For an example of versatility of the MP-A
Series, imagine the MP-A40V in a typical
restaurant scenario. Output A of the amplifier
is set up for a 20 W 70 V load for a pair of
ceiling loudspeakers in the bathrooms while
output B is set up in 4 Ω mode for driving one
or two Lo-Z subwoofers with up to 380 W.
Output C is set up with the highpass filter
engaged for driving 250 W into 70 V ceiling
loudspeakers in the main dining room, while
output D is driving 150 W into 8 Ω surfacemount loudspeakers on the patio.
Power and Space Efficiency
MP-A Series amplifiers are extremely efficient
with class-D output circuitry and switchmode
power supplies. In addition, all models offer
seamless Standby mode when not in use
for 28 minutes and auto-ramp circuitry that
ensures quiet and fast power up from Standby
when signal is present. This combination
of output topology and energy saving
circuitry make for extreme efficiency and low
operational costs. The 1RU chassis means
that the MP-A Series amplifiers are perfect for
installations with rack space restrictions.
Introduction
MP-A20V | MP-A40V | MP-A80V
MP-A Series
Model MP-A20V MP-A40V MP-A80V
Channels 2 4 8
Power (all channels driven)
4 Ω 200 W 200 W 200 W
8 Ω 200 W 200 W 200 W
70 V 200 W 200 W 200 W
100 V 200 W 200 W 200 W
Connectors
Input connectors Two 3.5 mm Euro, 3-pin (green) Four 3.5 mm Euro, 3-pin (green) Eight 3.5 mm Euro, 3-pin (green)
Remote connectors One 3.5 mm Euro, 5-pin (black) One 3.5 mm Euro, 5-pin (black) One 3.5 mm Euro, 5-pin (black)
Output connectors One 5.0 mm Euro, 4-pin (green) Two 5.0 mm Euro, 4-pin (green) Four 5.0 mm Euro, 4-pin (green)
Net weight 7.7 lb (3.5 kg) 9.3 lb (4.2 kg) 12.8 lb (5.8 kg)
Shipping weight 12.3 lb (5.6 kg) 13.9 lb (6.3 kg) 17.4 lb (7.9 kg)
Specifications subject to change without notice.
FlexAmp Technology Allows each pair of amplifier channels to deliver up to 400 W total power, in any ratio
Typical distortion (4-8 Ω) < 0.01%
Maximum distortion (4-8 Ω) < 1%
Damping factor 100
Output circuitry Class D
Protection Short circuit, open circuit, over current, thermal, RF protection, DC fault, inrush limiting
Gain at 8 Ω 30 dB
Input impedance > 10k, balanced or unbalanced
Input sensitivity 1.23 V (+4 dBu)
Maximum input level 12.3 V (+24 dBu)
Frequency response at 8 Ω 20 Hz – 20 kHz +/- 0.5 dB
Signal to noise > 103 dB
User-configurable operating modes (per channel) DIP switch selectable, low impedance 4 Ω or 8 Ω, high impedance direct drive 70 V or 100 V
Highpass filter 80 Hz DIP switch engaged per channel
Cooling
Type Forced air cooling, thermally regulated fan speed, side/rear-to-front airflow
Operating temperature range Maximum: -10° - 50° C, recommended: 0° - 35° C, performance may be reduced above 40° C

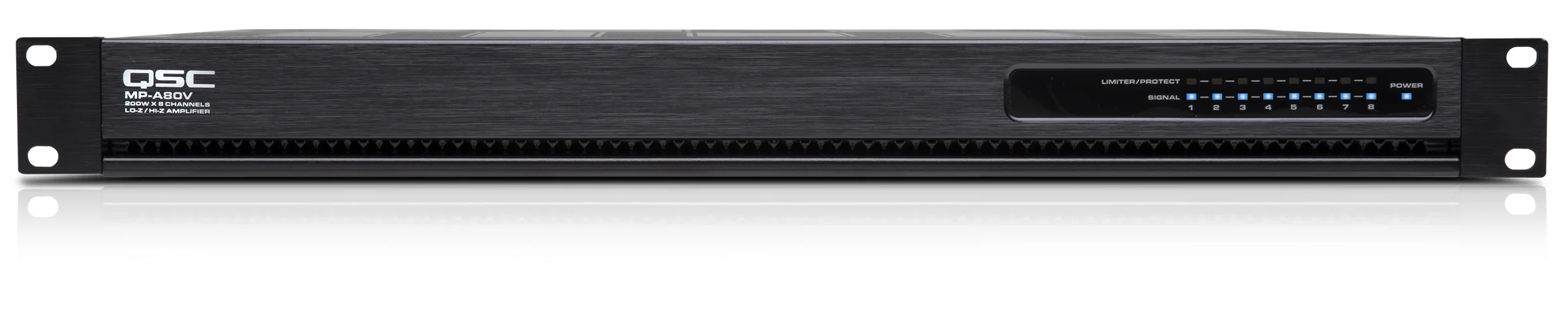

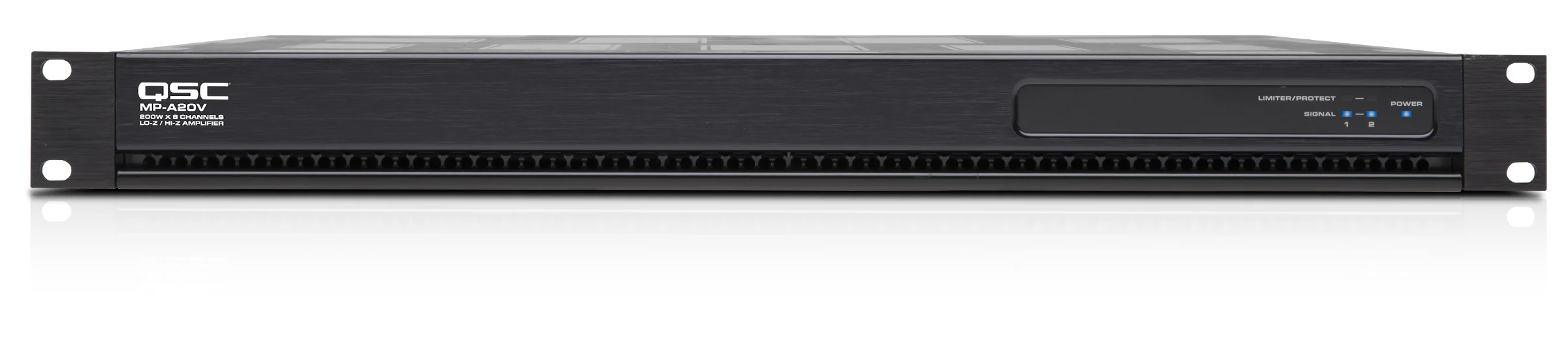

Front panel indicators Power, signal (per channel), limit / mute / protect (per channel)

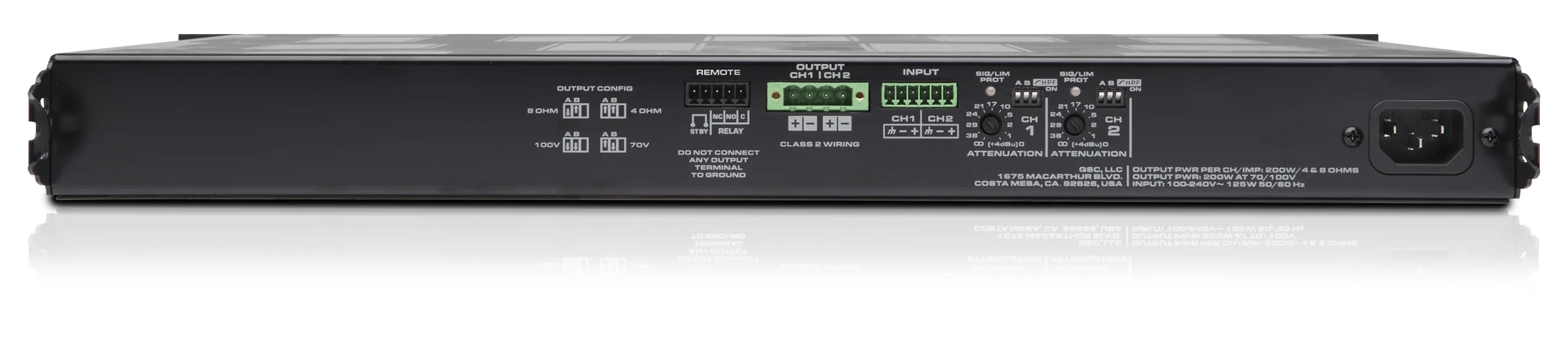

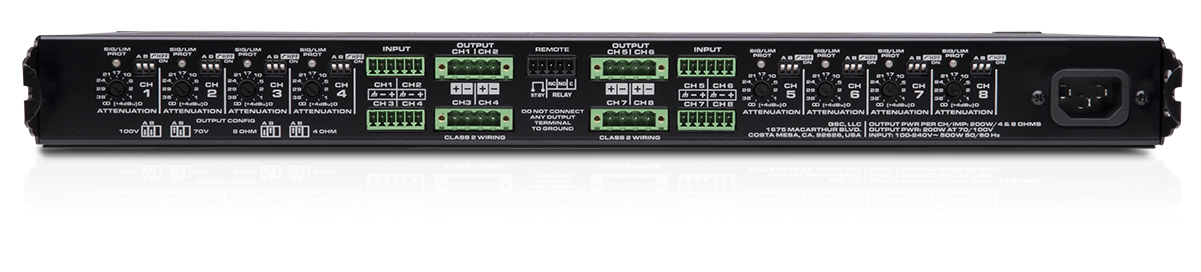

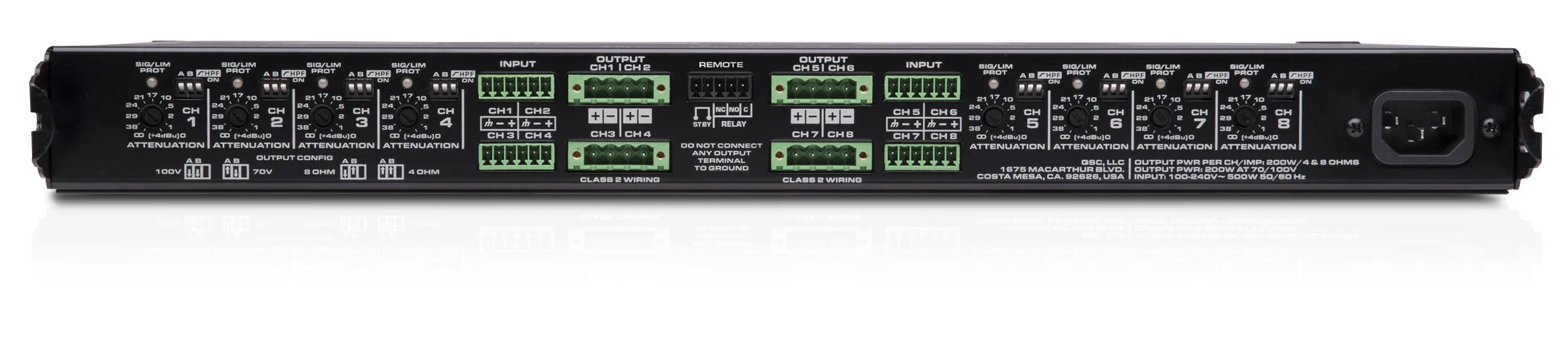

Rear panel indicators Bi-Color LED signal / limit / mute / protect
Remote I/O Remote standby, amplifier status enunciation on 3.5 mm connectors
AC Power Input Universal power supply with PFC, 100-240VAC, 50 - 60 Hz
Agency approvals UL, CE, RoHS/WEEE compliant, FCC Class B (conducted and radiated emissions)
Dimensions (HWD) inches 1.75 in x 19 in x 14.8 in
Dimensions (HWD) mm 44 mm x 483 mm x 377 mm
1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174
© 2018 QSC Audio Products, LLC. All rights reserved. QSC and the QSC logo are registered trademarks of QSC Audio Products, LLC in
the U.S. Patent and Trademark office and other countries. MPA Spec Sheet 07122018
