Features

  • Q-SYS Platform: Audio, video and control processing on a dedicated Linux™ realtime OS, built using standard computer hardware and IT industry networking protocols.
  • Diverse I/O Options: Q-SYS Core processing in a flexible chassis featuring 8 onboard I/O card slots that can be populated with any combination of Q-SYS I/O cards, including bridge networks like Dante™, CobraNet™ or AVB™, for maximum flexibility.
  • Q-SYS Core Mode: Provides an abundance of raw processing power for all audio, video and control processing requirements including integration with the new Q-SYS AV-to-USB Bridging solution and onboard acoustic echo cancellation (AEC) processing, allowing the ability to manage multiple small- to mid-sized conference spaces or a single large space.
  • I/O Frame Mode: Offers the ability to integrate up to 128 x 128 audio channels in to the Q-SYS system for processing on a separate Q-SYS Core processor.
  • External Device Control: Control and interface with external devices using TCP/IP, RS232 and GPIO.
  • Peripheral Integration: The catalog of Q-SYS networked peripheral devices include amplifiers, touchscreen controllers, paging stations, I/O channel expanders, PTZ-IP conference cameras for the conference room and AV-to-USB Bridging devices.
  • Unified Software Platform: The integrator has a single training investment in one software design tool rather than needing to learn several platforms to scale from small to large systems.
Price: CALL
    Quantity:
    Availability: In Stock
    Usually ships In 24 - 48 hours

    Item #: Core 510i

    Description

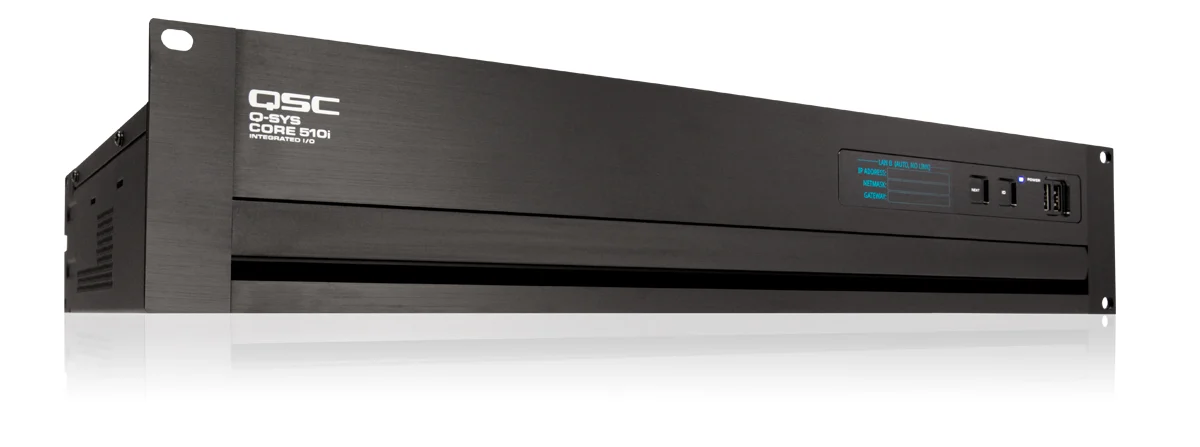

    The Q-SYS™ Core 510i processor is an audio, video and control processing system that leverages Intel™ CPUs and motherboards as well as a dedicated, Linux™ realtime operating system developed by QSC to provide class-leading capabilities for AV systems of any scale. The Q-SYS Core 510i processor offers the most flexible audio I/O of any Core in the Q-SYS Platform, perfect for applications that require a diversity of analog, digital and networked audio connectivity. It features eight onboard I/O card slots that can be populated with any combination of Q-SYS Type-II I/O card allowing diverse connectivity options. All QSYS products come with 8 hours of programming, installation and training support.

    Specifications

    Page 1

    Features

    • Q-SYS Core processing in a

    flexible chassis featuring

    8 onboard I/O card slots

    • Install any combination of Q-SYS

    I/O cards for maximum flexibility

    • Audio, video and control

    processing on a dedicated Linux™

    realtime OS

    • Software configurable as either a

    Core 510i processor, or an I/O-510i

    expander

    • Built using standard computer

    industry hardware and IT industry

    networking protocols

    • Control and integrate external

    devices using TCP/IP, RS232 and

    GPIO

    • Design with powerful and intuitive

    Q-SYS Designer Software

    application

    • Seamlessly integrates with Q-SYS

    AV-to-USB bridging peripherals

    • Provides simple integration with

    QSC amplifiers and loudspeakers

    • Multiple levels of system

    redundancy

    Introduction

    The Q-SYS™ Core 510i processor is an

    audio, video and control processing

    system that leverages Intel™ CPUs and

    motherboards as well as a dedicated,

    Linux™ realtime operating system developed

    by QSC to provide class-leading capabilities

    for AV systems of any scale.

    The Q-SYS Core 510i processor offers the

    most flexible audio I/O of any Core in the

    Q-SYS catalog, perfect for applications

    that require a diversity of analog, digital

    and networked audio connectivity. It

    features eight onboard I/O card slots that

    can be populated with any combination

    of Q-SYS Type-II I/O cards allowing

    diverse connectivity options. The Core

    510i processor also offers two modes of

    operation whereby it can be deployed as a

    Q-SYS Core Processor with full processing

    capabilities, or configured as an I/O

    expander when configured via software as

    an I/O-510i.

    Applications – Q-SYS Core mode

    When deployed as a Q-SYS Core, the Core

    510i processor provides an abundance

    of raw processing power for all audio,

    video and control requirements including

    integration with the new Q-SYS AV-to-USB

    Bridging solution. Onboard acoustic echo

    cancellation (AEC) processing coupled with

    high channel capacity networked audio

    provide the ability to manage multiple small

    to mid-sized conference spaces or a single

    large space.

    Applications – I/O Frame mode

    When configured via software as an

    I/O-510i, the device offers the ability to add

    up to 128 x 128 audio channels in to the

    Q-SYS system for processing on a separate

    Q-SYS Core. It can accommodate any

    combination of Q-SYS Type-II I/O cards.

    This is particularly useful when integrating

    large numbers of networked audio channels

    from Dante™, CobraNet™ or AVB™ devices

    and subsystems in to the Q-SYS Platform.

    Network

    The Q-SYS Platform utilizes IEEE

    networking standards and solutions for

    audio, control and video distribution over

    a standard Ethernet / IP network. Q-LAN

    provides deterministic system latencies with

    analog input to analog output guaranteed at

    3.167ms. The Q-SYS Platform uses Q-LAN

    for audio, video and control connectivity

    with all Q-SYS peripherals. Additionally,

    the Q-SYS Core supports VoIP, SIP, LDAP,

    AES67, TCP/IP and HTTP Web Sockets

    among many other standard IT networking

    solutions.

    Scalable Redundancy

    While QSC is dedicated to building the

    most reliable products, some applications

    call for additional assurance. Any element

    on the Q-SYS Platform – Cores, networks,

    I/O-Frames and even amplifiers may be

    deployed in a redundant configuration. The

    system designer has the choice of making

    one or all system elements redundant.

    Peripherals

    The capabilities of the Q-SYS Platform

    are further enhanced by the ever growing

    suite of Q-SYS peripheral devices, all of

    which are compatible with all Q-SYS Core

    processors, including the Q-SYS Core

    510i. The catalog of Q-SYS networked

    peripheral devices include amplifiers, touch

    screen controllers, paging stations, I/O

    channel expanders, PTZ-IP cameras for the

    conference room and AV-to-USB Bridging

    devices.

    Q-SYS Core 510i

    Integrated Core Processor and I/O Expander

    Q-SYS Core 510i

    Page 2 please recycle

    Q-SYS Core 510i Integrated Processor

    Description System processor and control engine with integrated I/O (or I/O expander when configured via software as I/O-510i)

    Configuration Modes “Q-SYS Core” - centralized processor and control engine for a Q-SYS system“I/O-510i configuration suited to integrating high

    channel-count networked I/O cards (Dante, CobraNet, AVB)” - peripheral to an additional Q-SYS Core processor on the system

    Supported Peripherals

    (when configured as a Q-SYS Core

    Processor.)

    I/O-8 Flex Channel Expander, I/O-USB Bridge, PTZ-IP Camera series, I/O Frame, I/O-Frame 8s, I/O-22, I/O-11 Series, Page Station

    Series, TSC Series touch screens

    Software Requirements Q-SYS Designer 6.x.x

    Channel Capacity

    Network Channel Capacity 256 x 256 (in Q-SYS Core mode) / 128 x 128 (in I/O Frame mode)

    Local Audio I/O Capacity 8 audio I/O card slots - accommodates up to 128x128 total onboard I/O channels

    AEC Channel Capacity 64 at 200ms tail length (available when configured as a Q-SYS Core Processor only)

    Multitrack Player Capacity 16 tracks, expandable to 128 tracks (available when configured as a Q-SYS Core Processor only)

    Media Drive Capacity Approximately 6GB on the default drive (when configured as a Q-SYS Core Processor only, upgrade options are available)

    Configure to Order Inputs/Outputs Options

    Audio I/O Cards COL4: Line output card (4 channels)

    CODP4: DataPort card (4 channels)

    CIML4: Mic/line input card (4 channels)

    CIML4-HP: High Performance mic/Line input card (4 channels)

    CAES4: AES3 digital I/O card (4x4 channels)

    CIAES16: AES3 digital input card (16 channels)

    CCN32: CobraNet network bridge card (up to 32x32 channels)

    CAN32: AVB network bridge card (up to 32 channels)

    CDN64: Dante network bridge card (up to 64x64 channels)

    Media Drives

    (in Q-SYS Core Mode)

    M2-MD-S: 128GB

    M2-MD-M: 256GB

    M2-MD-L: 512GB

    Multitrack Players (MTP):

    (in Q-SYS Core Mode)

    MTP-32: 32 tracks

    MTP-64: 64 tracks

    MTP-128: 128 tracks

    Controls and Indicators

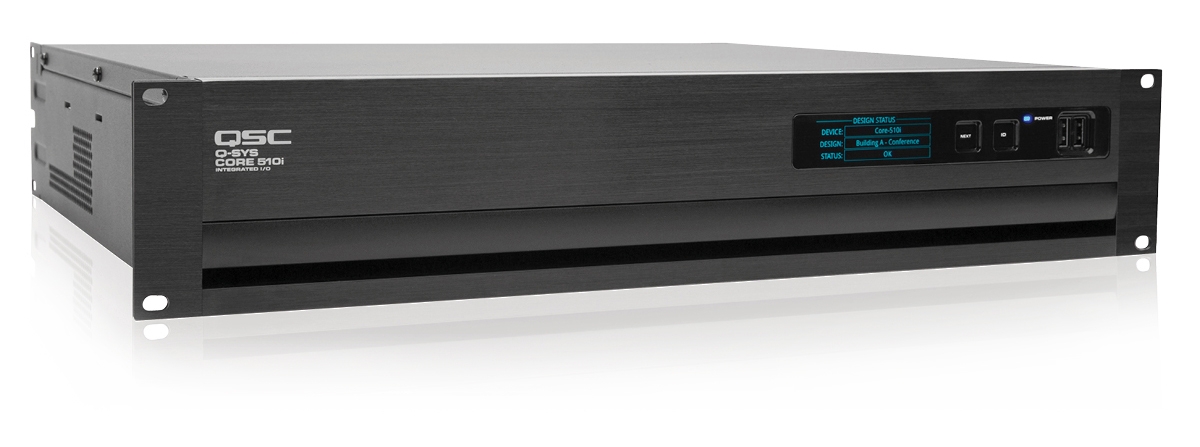

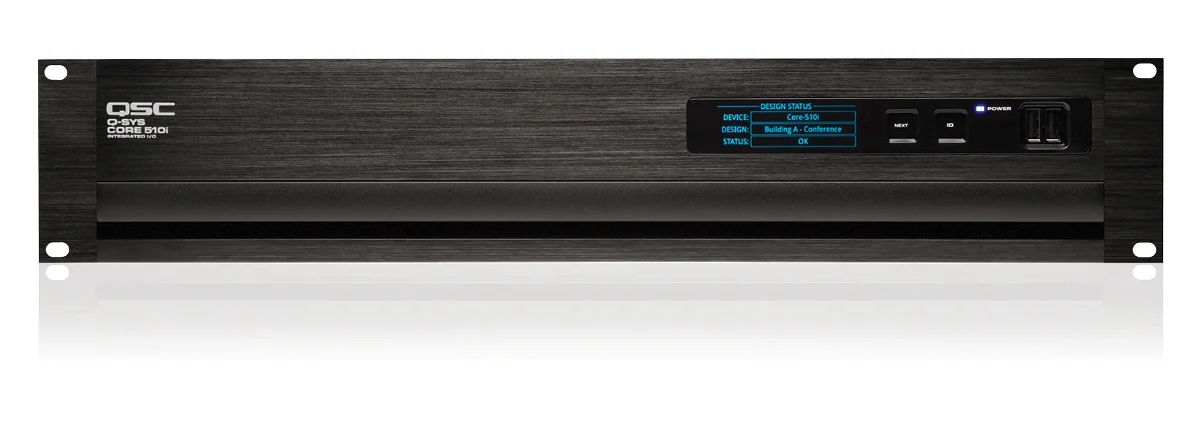

    Front Panel Controls “NEXT” OLED page forward capacitive touch button

    “ID” device identification capacitive touch button

    “Clear Network Settings” - invoked when “NEXT” and “ID” are pressed simultaneously

    Front Panel Connectors AUX USB: USB Host x2 (Type A connectors)

    Front Panel Indicators Blue “POWER” LED

    304x96 monochrome OLED display

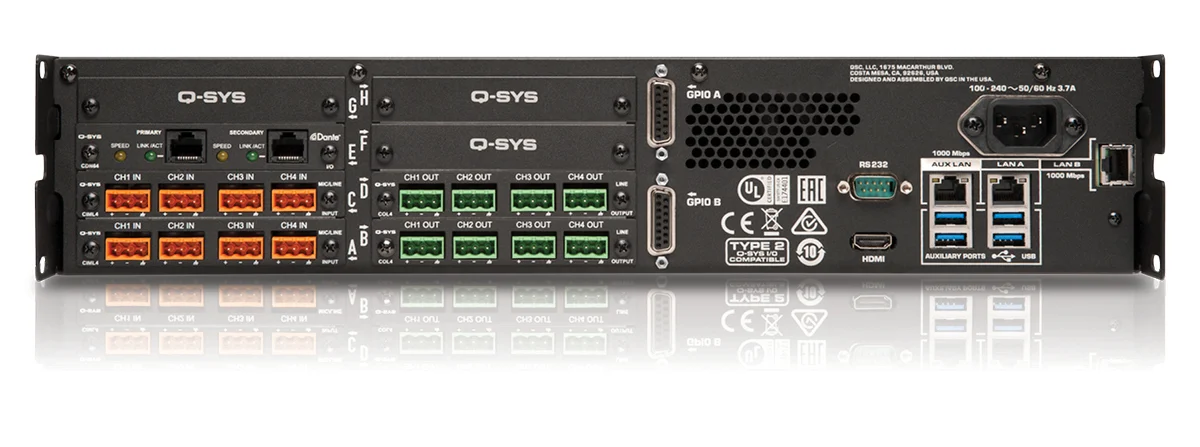

    Rear Panel Connectors RS232: Male 9-pin D shell connector (DE-9)

    Video out: HDMI

    AUX USB: USB Host x4 (Type A connectors)

    AUX Network: RJ45 10/100/1000 Mbps

    GPIO: Female 15-pin D shell connector x2 (DA-15)

    Media Network LAN A: RJ45 1000 Mbps (QLAN, AES67, VoIP, WAN, Media Streaming, etc)

    Media Network LAN B: RJ45 1000 Mbps (QLAN, AES67, VoIP, WAN, Media Streaming, etc)

    AC Mains Power: IEC connector

    Rear Panel Indicators “Link”, “Speed” and “Activity” LEDs on all LAN ports

    Page 3 please recycle

    Q-SYS Core 510i Integrated Processor

    Miscellaneous

    Line Voltage 100 VAC - 240 VAC 50-60 Hz

    Current Draw 3.7A Max @100 VAC (actual current draw depends on configuration options such as I/O cards and/or Media Drive, DSP loading and

    network loading)

    Operating Temperature Range 0°C - 50°C

    Storage Temperature -20°C to +70°C

    BTU/Hour 600 (power conversion estimate under typical load)

    Humidty 5% to 85%

    Regulatory FCC 47 CFR Part 15 Class A, IC ICES-003, CE (EN55032, EN55035), EU RoHS directive 2011/65/EU, WEEE directive 2012/19/EU,

    China RoHS directive GB/T26572, EAC, RCM, UL, C-UL, EFUP 10, Expected Product Life Cycle 20 years

    Product Dimensions 3.5" x 19" x 15" (89mm x 483mm x 381mm)

    Shipping Carton Dimensions 23.5" x 20" x 6.5" (597mm x 508mm x 165mm)

    Shipping Weight 23 lbs. minimum (installation of I/O cards increases shipping weight)

    Included Accessories 6’ UL/CSA/IEC line cord, safety instructions, regulatory statement, I/O connectors (included when purchasing I/O cards with Euro style

    terminal blocks)

    1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: +1.800.854.4079 or +1.714.957.7100 • Fax: +1.714.754.6174

    ©2017 QSC, LLC all rights reserved. QSC, Q-SYS and the QSC logo are registered trademarks in the U.S. Patent and Trademark Office and other countries. Intel is a trademark of Intel Corporation

    in the U.S and other countries. CobraNet is a trademark of Cirrus Logic, Inc. All other trademarks are the property of their respective owners. Linux is the registered trademark of Linus Torvalds in the

    U.S. and other countries. Dante is a trademark of Audinate Pty Ltd. All other trademarks are the property of their respective owners. Patents may apply or be pending.

    Q-SYS Core 510i Spec Sheet 07/21/2017
