The Q-SYS™ Core 110f processor is the latest addition to the Q-SYS Core family, providing a solution for small, single room projects up to the largest Enterprise scale deployments. The continuity of the Q-SYS software based DSP platform the Q-SYS Core 110f to leverage all the features that are available across the entire Q-SYS™ Platform. All QSYS products come with 8 hours of programming, installation and training support.
Page 1
The Q-SYS™ Core 110f provides a solution
for small, single room allowing the Q-SYS
platform to accommodate every-day,
simple projects up to the largest Enterprise
scale deployments. QSC’s software based
DSP Platform Q-SYS, gives the systems
integrator and end-user a unified software
design tool and feature set suitable for
projects of any scale. The continuity of the
Q-SYS software based DSP platform is
unique within the competitor space and
allows the Q-SYS Core 110f to leverage
all the features that are available across
the entire Q-SYS Platform to be used in
the following applications: Acoustic Echo
Canceling (AEC) and sound reinforcement
in small to large meeting or multipurpose
rooms, sound reinforcement in performance
venues such as house of worship and
theater, background music systems, wide
area paging in airports, convention centers
and hospitals.

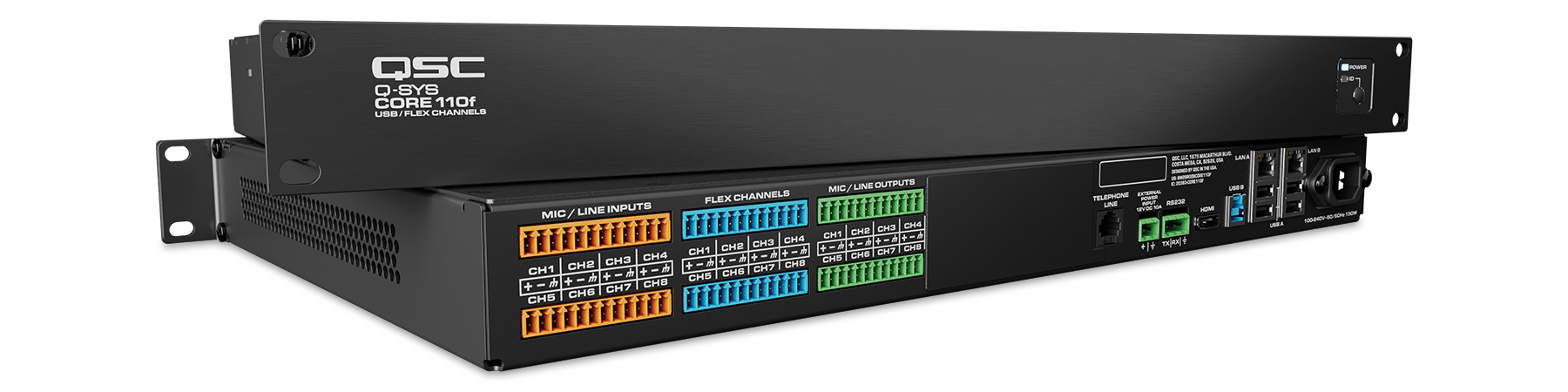

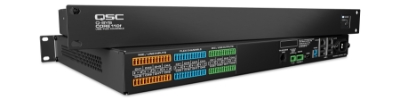

The Q-SYS Core 110f is a multipurpose
software based digital audio signal
processor with a total of 8 balanced analog
line level audio inputs and 8 balanced
analog line level audio outputs. In addition
to the fixed 8x8 analog audio I/O, the Core
110f features a software definable bank
of 8 balanced analog audio Input/Output
Flex Channels, a unique QSC innovation,
where each channel can be independently
configured during design or run time as
either a microphone/line level input or a line
level output. As such, the Core 110f offers
class leading 24 analog I/O density plus
additional specialized I/O such as VoIP,
POTS, Internal Media Playback/Recording
HDD and USB.
The Q-SYS Core 110f supports a class
leading USB audio device port connection
that enables the processor to appear in
a Microsoft Windows or Mac OS host
operating system simultaneously as
both a USB Audio and Communications
device. The USB Device port (B type)
implementation supports up to 16x16
digital audio channels in a flexible, design
time configuration environment that can
advertise as multiple virtual USB device
instances to the host operating system
concurrently over a single physical USB
connection. In addition to the USB Device
port, the Core 110f provides 6 USB Host
ports (A type) which enable the Core to host
external USB devices and future Q-SYS
peripheral products.
Unified Core
Q-SYS Core 110f
Features
• 128x128 Network Audio
Channels
• 16x16 USB Audio Channels
• 24 Channels of Total Analog
Audio
• 8 Configurable Flex Channels
• 16x16 GPIO Logic Ports
• 16 Channels of Routable AEC
• Multiple Instance VoIP Lines
• Single POTS Telephone line
• 3 Year Warranty
Q-SYS Core 110f
Specification Sheet
Page 2
Benefits
• Class leading I/O: Q-SYS Core 110f has 24 analog I/O + USB, POTS and VoIP simultaneously in a single rack space and one SKU,
offering the best cost to I/O ratio in a single chassis product available on the market from any manufacturer.
• Flex Channels: Nearly all the flexibility of a card based DSP solution without the cost and inconvenience of multiple SKU’s and custom
parts ordering.
• Unified software platform: Single training investment in one software design tool rather than needing to learn several platforms to scale
from small to large systems or support different applications.
• Industry leading hardware design: Future proof investment in standards based software and computer technology running on
Intel processors.
• Industry first, software based DSP: Q-SYS suite of conferencing technology applications built and owned by QSC from
the ground up allowing for continued refinement.
o Software based routable AEC; no additional hardware needed
o SIP Softphones offering multiple instances per Q-SYS Core; no additional hardware needed
o Gain sharing and gating automixers
• True IT Software Integration: The Core 110f provides more than just networked audio integration and is not just another hardware
DSP. Q-SYS is primarily a software platform that offers greater software integration functionality such as native support for LDAP contact
server integration, SNMP monitoring, SIP Softphones, and software based routable AEC implementation; it truly is a next generation AV/IT
product that is free of the fixed hardware limitations seen in competing products.
Key Features
• 128x128 networked audio channels
(Q-LAN / AES67), reduced to 64x64 when
using Video Bridging capability on built-in
USB-B port.
• Up to 24 configurable analog audio I/O
• 8 mic/line level analog audio inputs
• 8 line level analog audio outputs
• 8 Flex Channel mic/line level analog
audio inputs or outputs
• Up to 16 assignable and routeable AEC
processor instances
• Dual Gigabit Ethernet ports with
assignable application resources offering
any combination of VoIP, Q-LAN Control,
Q-LAN audio or network redundancy
• Up to 16x16 channels of digital audio
in and out via software definable
USB instances advertised to the host
operating system
• 16 General Purpose Inputs (GPI) x
16 General Purpose Outputs (GPO)
• Internal Universal Power Supply plus
12 Volt DC External Power Supply input
for redundancy or non-mains power
supply sources
• Single software platform for system
configuration, control and monitoring via
Q-SYS Designer software over Ethernet
with support for static or Auto/DHCP
TCP/IP addressing
• POTS telephone interface via a standard
RJ-11 connector
• Supports up to 4 VoIP Softphone
instances in addition to the onboard
POTS telephone interface
• Fully compatible with all existing and
future Q-SYS accessories such as
IO Frames, Paging Stations, and Touch
Screen Control Surfaces running Q-SYS
user control interfaces
• CE marked, UL listed, and RoHS compliant
• Covered by QSC Systems 3-year warranty
Q-SYS Core 110f
Specification Sheet
Page 3
Q-SYS Core 110f
Specifications subject to change without notice.
Inputs Q-SYS Core 110f
Input Frequency Response
20Hz to 20kHz @ +21dBu +0.05% / -0.5%
Input THD+N @ 1KHz
@ +21 dBu Sensitivity & +21 dBu input
@ +21 dBu Sensitivity & +10 dBu input
@ +10 dBu Sensitivity & +8 dBu input
@ -10 dBu Sensitivity & -10.5 dBu input
@ -39 dBu Sensitivity & -39.5 dBu input
< 0.1%
< 0.0015%
< 0.0007%
< 0.0006%
< 0.007%
EIN (no weighting, 20Hz to 20kHz) < -121dB
Input to Input Crosstalk @1kHz > 110dB typical, 90dB Max
Input Dynamic Range
@ +21 dBu Sensitivity
@ +10 dBu Sensitivity
@ -10 dBu Sensitivity
@ -39 dBu Sensitivity
> 109.5dB
> 106.4dB
> 104.6dB
> 104.6dB
Input Common Mode Noise Rejection
@ +21 dBu Sensitivity
@ +10 dBu Sensitivity
@ -10 dBu Sensitivity
@ -39 dBu Sensitivity
50.7dB
56.5dB
73.2dB
63.2dB
Input Impedance (balanced) 5K ohms nominal
Input Sensitivity Range (1dB Steps) -39 dBu min to +21 dBu max
Unbalanced Input Signal Level + 8 dBu max
Phantom Power +48V DC, 10mA per input max
Sampling Rate 48kHz
A/D – D/A Converters 24-bit
Outputs
Output Frequency Response
20Hz to 20kHz @ all settings +0.2 / -0.5 dB
Output THD 0.003%, +10 dBu max output level
Output Crosstalk @1kHz > 100dB typical, 90dB max
Output Dynamic Range > 108dB
Output Impedance (balanced) 220 ohms
Output Level Range: (1dB Steps) -39 dBu min to +21 dBu max
USB Inputs & Outputs
USB B
Bit Depth
Number of Channels
Sample Rate
16-bit
up to 16x16
48kHz
Power Consumption 60 watts, typical. 120 watts max
BTU/Heat load: 205 BTU/Hour
Compliance FCC Part 15B (USA), FCC part 68 / TIA-968-B (USA), JATE (Japan), AS/ACIF S002 (Australia), PTC200 (New Zealand),
ES203 021 (Europe), ANATEL Resolution 473 (Brazil), NOM-151-SCTI (Mexico), PSTN01 (Taiwan), Industry Canada CS-03 (Canada),
CE marked (Europe), UL and C-UL listed (USA & Canada), RCM (Australia), EAC (Eurasian Customs Union) & RoHS Directive (Europe)
Overall Dimensions/Weight Device Height: 1.75 inches (44 mm)
Device Width: 19.0 inches (483 mm)
Device Depth: 11.12 inches (282.5 mm)
Device Weight: 11 lbs. (5.0 kg)
Shipping Height: 6.0 inches (152 mm)
Shipping Width: 23 inches (584 mm)
Shipping Depth: 14 inches (356 mm)
Shipping Weight: 12.4 lbs. (5.6 kg)
1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: +1.800.854.4079 or +1.714.957.7100 • Fax: +1.714.754.6174
© 2017 QSC, LLC all rights reserved. QSC, Q-SYS and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark office and other countries. Speakon is a
trademark of Neutrik. All other trademarks are the property of their respective owners. Patents may apply or be pending.
Page 4 Q-SYS CORE 110f Spec Sheet 06/05/2017 please recycle
A&E SPECIFICATIONS
The system processor shall provide up to 128 x 128 networked audio channels individually configurable as either Q-LAN or AES67
formatted networked audio, channel count will reduce to 64 x 64 when using video bridging capability on the built-in USB-B device
port. The system processor shall support 24 total analog I/O capacity and shall be presented in the following groupings; 8 Mic/Line
inputs, 8 Line outputs and 8 Flex Channel I/O which shall be software definable analog inputs or outputs
in single channel increments in any combination ratio.

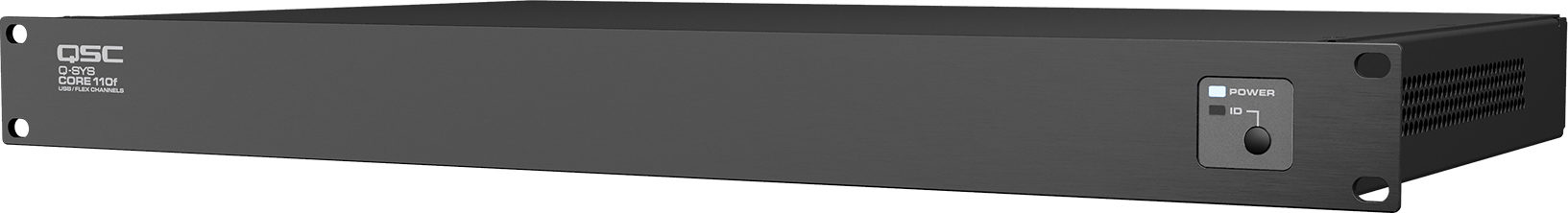

The system processor shall have the following front panel controls and indicators: blue monochrome OLED display with page forward
capacitive touch button, Unit ID capacitive touch button, Power On blue LED, Two USB A Type ports. The system processor shall
provide a monochrome 304x96 blue OLED graphics display displaying the device name, design name and system status, LAN A and
B settings, and the firmware version. Device Status shall be displayed on the OLED display including I/O status, muting, level present
indication, and system status.
On the rear panel, the system processor shall have one 3-pin RS232 Euro Block Connector, HDMI Video Out, 16 GPI general purpose
control inputs on 20-pin Euro Block Connector, 16 GPO general purpose control outputs on 20-pin Euro Block Connector. Q-SYS
Network: LAN A RJ45 1000 MBps only, LAN B: RJ45 1000 MBps only. The dimensions of the System processor shall be
1.75” x 19” x 11.12” (44 mm x 483 mm x 356 mm).
The system processor shall store a single design which can be comprised of components, wiring, links, text, and graphics on a single
or multiple schematic pages. Designs shall include any of the following DSP function blocks, test and measurement components,
control components, and layout components: Acoustic Echo Cancellers, SIP Softphone instances, USB Audio host and device blocks,
Audio Players, Audio Streaming components, Crossfaders, Crossovers, Delay components, Auto Gain control elements, Compressors,
Gates, Duckers, Expanders, Ambient Noise Compensators, Limiters, Gain blocks, Graphic Equalizers, Parametric Equalizers, FIR
Filters, All-Pass Filters, Band-Pass Filters, Band-Stop Filters, High-Pass Filters, Low-Pass Filters, FIR High-Pass filters, FIR Low-Pass
Filters, Dual-Shelf Equalizers, Notch Filters, Meters, Matrix Mixers, Gain-Sharing Automatic Mixers, Gated Automatic Mixers, Signal
Routers, Public Address Routers, Room Combiners, Signal Presence Meters, Tone Generators, Tone and Noise Generators, Dual Trace
FFT Measurement Modules, Real Time Analyzers, Signal Injectors, and Signal Probes.
The system processor shall support custom user control interfaces on either proprietary touch screen controllers, or network
computers utilizing a control application, or iOS devices on Wi-Fi. Custom control interfaces shall be capable of having multiple
user-selectable pages with different controls on each.
The system processor and control engine shall be the QSC Q-SYS Core 110f Flex Channel Processor.
