11.6” Touch Panel with Table Top mounting accessory included.
Q-SYS Platform
touch screen controller
TSC-55w-G2
TSC-80w-G2
TSC-116w-G2

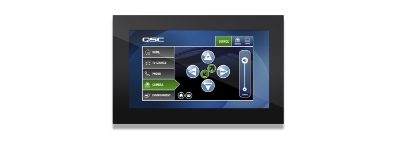

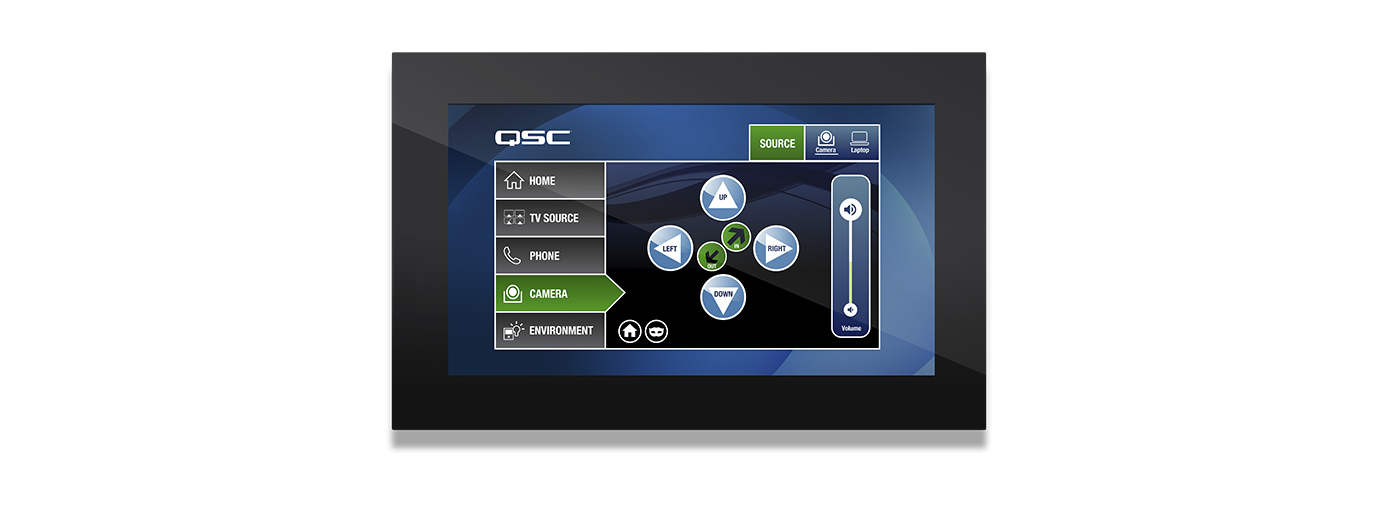

Q-SYS TSC-G2 Series touch screen
controllers combine capacitive touch
technology with a bright, high resolution
full color LCD for state-of-the-art control
of a Q-SYS system. Control elements and
layout for GUIs on this versatile touch screen
controller are completely customizable to
provide end users a full range of controls,
from complete system control and
monitoring, to one-touch deployments of preprogrammed presets.
Designers can create custom user control
interfaces (UCI) within Q-SYS Designer
Software using the UCI Editor. Drag and drop
any control Q-SYS element from a Q-SYS
design schematic into UCI Editor and easily
deploy your design to the touch screen,
without any programming experience.
UCI Editor allows the import of room
diagrams, corporate logos or other graphical
elements in most major graphic file formats
including .png, .jpg, .svf, and .gif. In order
to deploy UCI designs onto Q-SYS touch
screens, a software license is required for
each Q-SYS Core processor.
TSC-G2 Series touch screen controllers
are offered in black and designed for easy
surface mount installation in a wall, lectern
or similar flat surface. Universal mounting
accessories are included for standard US and
European wall and junction boxes for vertical
or horizontal installations.
Table top stand accessories are available for
the TSC-80w-G2 and TSC-116w-G2 models.
TSC-G2 Series
Features
• Capacitive LCD touch surface:
In-plane switching (IPS) technology
• High resolution displays
• Power over Ethernet: IEEE 802.3af
compliance allows for simplified
single cable installation
• Universal mounting options: Included
accessories for mounting to US
standard and European wall and
junction boxes
• Complete design freedom: Create
custom branded graphical interfaces
using Q-SYS UCI Editor within
Q-SYS Designer Software
Specification Sheet

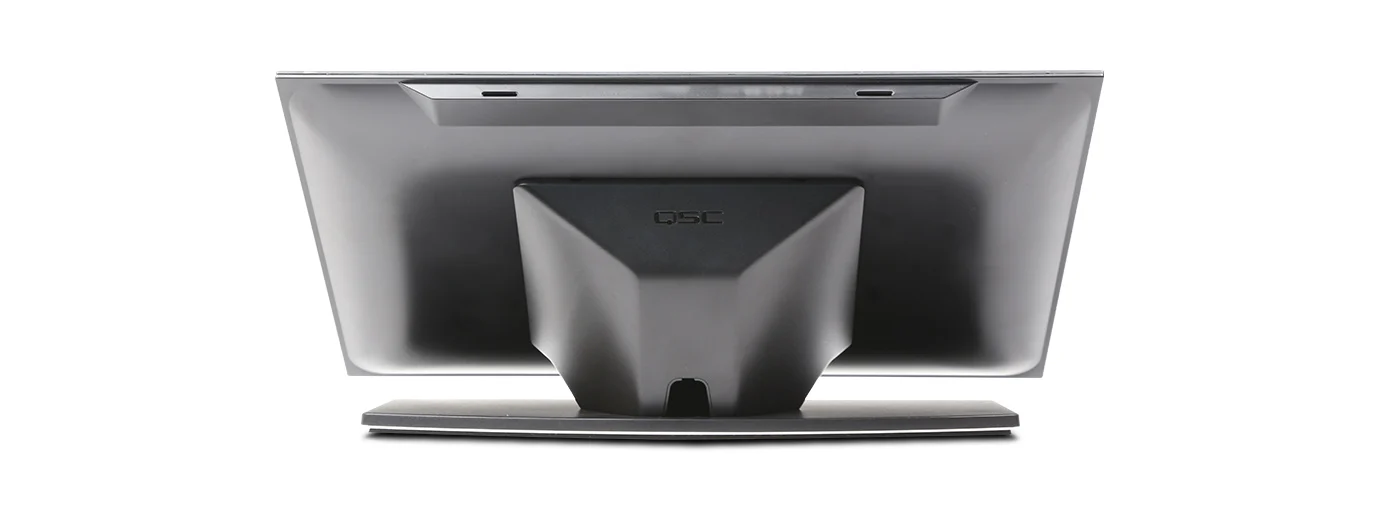

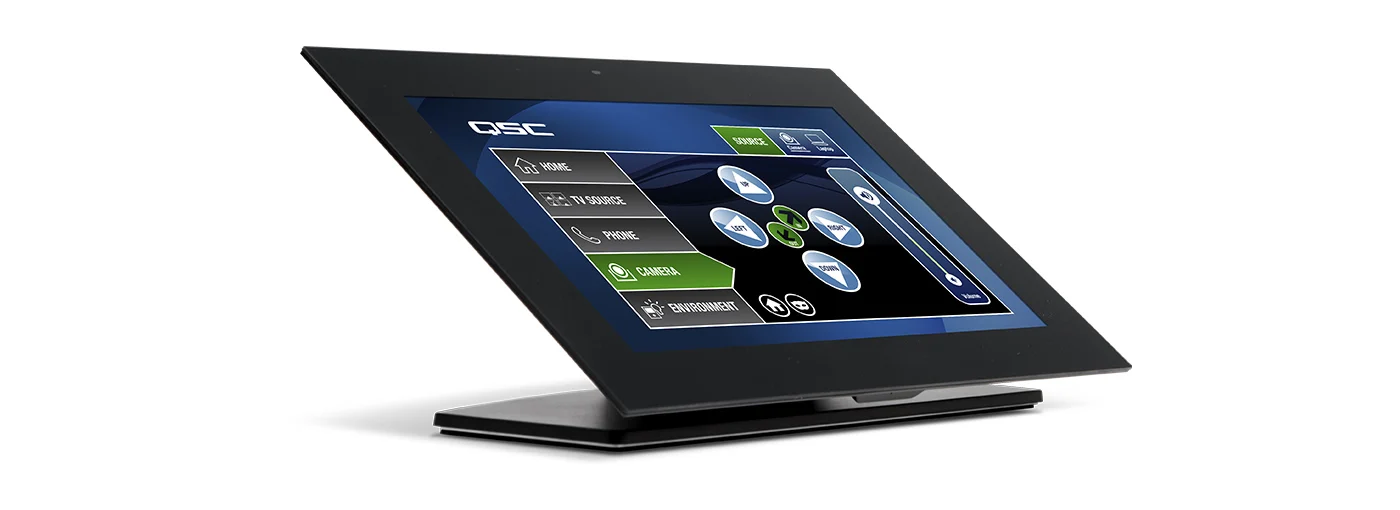

(shown with optional table top stands
available for TSC-80W-G2 and TSC-116W-G2)
TSC-55w-G2 TSC-80w-G2 TSC-116w-G2
Display
Description Capacitive Touch Surface, In-Plane Switching (IPS) technology, 16M colors.
Panel Dimensions
5.85" X 3.44" X 1.33"
(148.5 mm X 87.5 mm X 33.7 mm)
8.8" X 5.8" X 1.4"
(223.5 mm X 148.4 mm X 36.3 mm)
12.3" X 7.9" X 1.6"
(313.6 mm X 201.5 mm X 39.85 mm)
Viewable screen dimensions (diagonal) 5.5" (127 mm) 8.0" (203 mm) 11.6" (295 mm)
Resolution 1280x720 1280x800 1920x1080
Brightness 400 Nits 400 Nits 350 Nits
Panel Orientation Vertical / Horizontal Vertical / Horizontal Vertical / Horizontal
Power
Power over Ethernet IEEE PoE 802.3af class 3 via LAN port
Aux power PSU +24VDC @ 0.5A (power supply not included)
Aux power connection type Locking terminal Barrel connection Barrel connection
Weight
Product weight (net) 6.31 oz (179 g) 17.64 oz (500 g) 32.1 oz (910 g)
Environment
Operating temperature 0°-50° C (32°-122° F) 0°-50° C (32°-122° F) 0°-50° C (32°-122° F)
BTUs 17 typical 23 typical 30 typical
Humidity 5-85rh non-condensing 5-85rh non-condensing 5-85rh non-condensing
Enclosure
Rear Panel LAN, 1000Mbps full-duplex RJ-45 LAN, 1000Mbps full-duplex RJ-45 LAN, 1000Mbps full-duplex RJ-45
Wall Mount Yes Yes Yes
Table Top No Optional table top stand accessory Optional table top stand accessory
Specs subject to change without notice
Q-SYS TSC-G2 Series
1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: +1.800.854.4079 or +1.714.957.7100 • Fax: +1.714.754.6174
© 2018 QSC, LLC all rights reserved. QSC, Q-SYS and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark office and other countries.
All other trademarks are the property of their respective owners. Patents may apply or be pending.
Q-SYS TSC-G2 Series Spec Sheet 11/2018 please recycle
