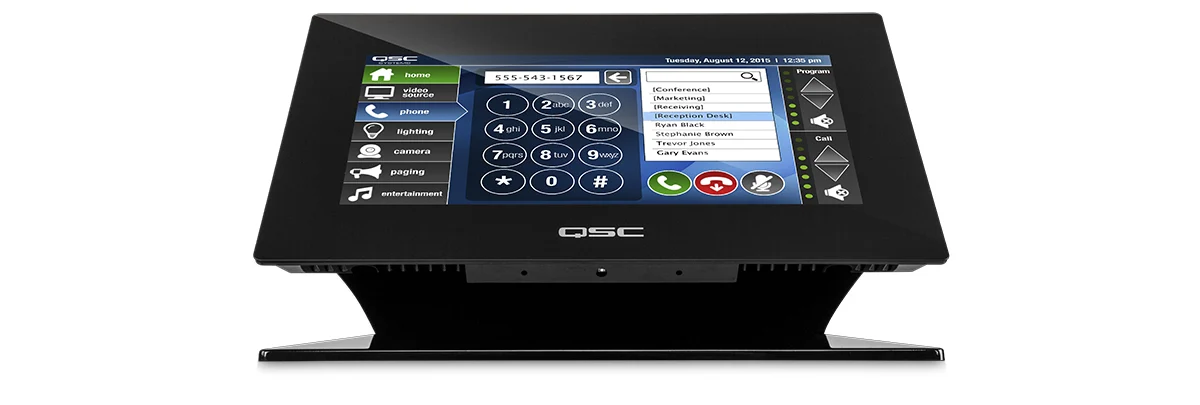

Tabletop Touch screen
Dialer/Controller
TSC-7t
Features
• Capacitive touch technology
eliminates physical knobs and
buttons increasing product reliability
• Tabletop, 7", 800 x 480 LCD Panel
with anti-glare safety glass
• USB AB Type OTG 2.0 for USB
audio connectivity with BYOD (Bring
your own Devices) at the table
• Hosts custom user-designed
control interfaces created in Q-SYS
Designer with ability to control
and monitor virtually every system
parameter in real time
• Capable of displaying custom
bitmapped graphic images,
including .bmp, .png, .gif, .tif and,
.jpg files types
• PoE (Power over Ethernet) for single
cable drop installation
TSC-7t
The TSC-7t combines capacitive touch
technology with a bright 400 nits, 800 x 480
full color LCD for state-of-the-art control of
a Q-SYS™ Platform. Touchscreen control
is the ideal user-interface for sophisticated
systems in which control needs can range
from a few simple parameters, to recall
of global snapshots. The TSC-7t can
be used to control much more than just
audio; a wide variety of equipment can be
managed utilizing the Q-SYS Core’s GPIO,
RS-232 and TCP/IP instruction mechanisms
providing true one-touch control of
third-party devices.
When multiple TSC-7t controllers control a
single system, changes made from one
unit will be reflected in real-time on all
other displays.
Creation of the custom user screens is
accomplished within the Q-SYS environment
using the User Control Interface (UCI)
tool, which allows selection of any Q-SYS
element to be “pulled” into the interface and
adjusted for size and color. For applications
in which room diagrams, corporate logos
or other graphical elements are desired,
the TSC-7t can support full-color
bit-mapped images.
The TSC-7t tabletop controller is offered in
black and designed for elegant table-top
use. The carefully designed weighted base
with rubber pad prevents the touchscreen
from sliding across the table with each
button press, while the included threaded
mounting post offers rigid and permanent
through-table mounting with clean
cable management.
Preliminary Specifications
Front Panel Controls 7", capacitive touch screen
Display
LCD
Luminance
Resolution
Innolux LCD
400 nits (400 lumen/candela per square meter)
800 x 480
Power Requirements +12V DC
Power Source
PoE (Power over Ethernet)
Optional External Source (not included)
IEEE 802.3af class 3 device via LAN A
12VDC @ 1A (12W)
Barrel connector:
Negative contact – 5mm OD
Positive contact – 2.5mm ID
Rear Panel Connectors
RJ45 (x2)
USB Micro AB Type
Barrel connector: Power inlet
Reset button
LAN A (PoE) and LAN B ports (10/100/1000 Mbps)
USB OTG 2.0
Accommodates +12 VDC power supply
Recessed button – Use a paper clip or similar tool to reset the unit.
Included Accessories Mounting Post for permanent through-table mounting and
cable management
Dimensions (HWD) 4.75” (121mm) x 7.75” (197mm) x 5” (127mm)
Weight (Net) 1.9 lbs
Specifications subject to change without notice.
TSC-7t
1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174
TSC-7t Spec Sheet 06/2/2017
