Wall-mount PoE Touch
Screen Controller
TSC-7w
TSC-7w

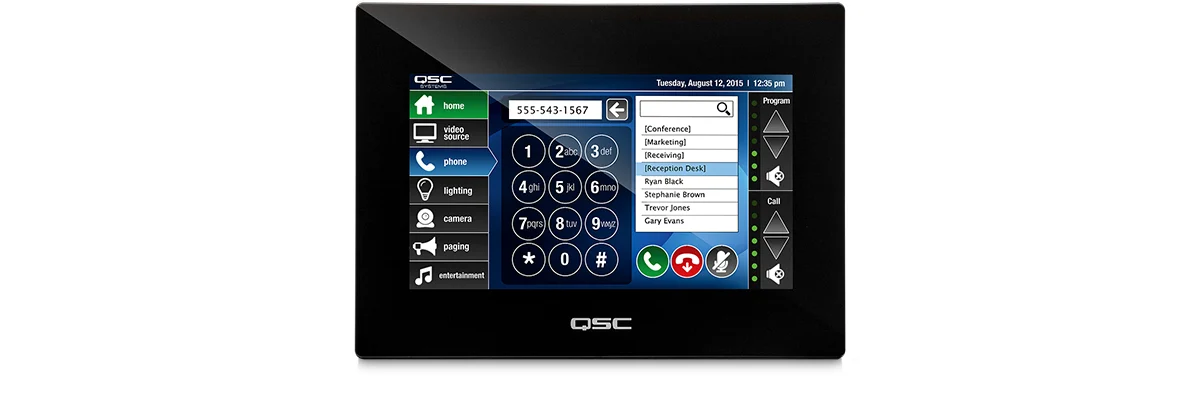

The TSC-7w combines capacitive touch
technology with a bright 400 nits, 800 x 480
full color LCD for state-of-the-art control
of a Q-SYS system. Touchscreen control
is the ideal user-interface for sophisticated
systems in which control needs can range
from a few simple parameters to recall of
global snapshots. The TSC-7w can be used
to control much more than just audio; a
wide variety of equipment can be managed
utilizing the Q-SYS Core’s GPIO and TCP/IP
instruction mechanisms providing true onetouch control of third-party devices.
When multiple TSC-7w Touch Screens
control a single system, changes made
from one unit will be reflected in real-time
on all other displays. Creation of the custom
user screens is accomplished within the
Q-SYS environment using the User Control
Interface (UCI) tool, which allows selection
of any Q-SYS element to be “pulled” into the
interface and adjusted for size and color.
For applications in which room diagrams,
corporate logos or other graphical elements
are desired, the TSC-7t can support fullcolor bit-mapped images.
The TSC-7w Wallmount controller is offered
in black and designed for easy surfacemount installation in a wall, lectern or similar
flat surface. The included mounting ring
provides very simple installation into most
surfaces. TSC-7w provides two network
ports for connection back to the Q-SYS
Core. These dual ports allow the controller
to be connected to two separate networks
enabling redundant operation modes for
mission critical applications.
TSC-7w
Specifications
Front Panel Controls 7”, capacitive touch surface
Display
LCD
Luminance
Resolution
Innolux LCD
400 nits (400 lumen/candela per square meter)
800 x 480
Power Requirements +12V DC
Power Source
PoE (Power over Ethernet)
Optional External Source (not included)
IEEE 802.3af class 3 device via LAN A
12VDC @ 1A (12W)
Barrel connector:
Negative contact – 5mm OD
Positive contact – 2.5mm ID
Rear Panel Connectors
RJ45 (x2)
USB Micro AB Type
Barrel connector: Power inlet
Reset button
LAN A (PoE) and LAN B ports (10/100/1000 Mbps)
USB OTG 2.0 (for future use)
Accommodates +12 VDC power supply
Recessed button – Use a paper clip or similar tool to reset the unit.
Included Accessories Mounting Post for permanent through-table mounting and
cable management
Dimensions (HWD) 5.6” x 7.8” x 1.5” (143 mm x 198 mm x 38 mm)
Weight (Net) TBD
Specifications subject to change without notice.
Specifications
1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174
TSC-7w Spec Sheet 06/13/2016
please recycle
© 2015 QSC Audio Products, LLC. All rights reserved. QSC and the QSC logo are registered trademarks of QSC Audio Products, LLC in the U.S. Patent and Trademark
office and other countries. Speakon is a trademark of Neutrik. All other trademarks are the property of their respective owners. Patents may apply or be pending.
Features
• Capacitive touch technology
eliminates physical knobs and
buttons increasing product reliability
• Wall-mount, 7”, 800 x 480 LCD
Panel with anti-glare safety glass
• Connects with dual RJ45
10/100/1000 Mbps connections for
network redundancy
• Hosts custom user-designed
control interfaces created in Q-SYS
Designer with ability to control
and monitor virtually every system
parameter in real time
• Capable of displaying custom
bitmapped graphic images,
including .bmp, .png, .gif, .tif and,
.jpg files types
• PoE (Power over Ethernet) for single
cable drop installation
