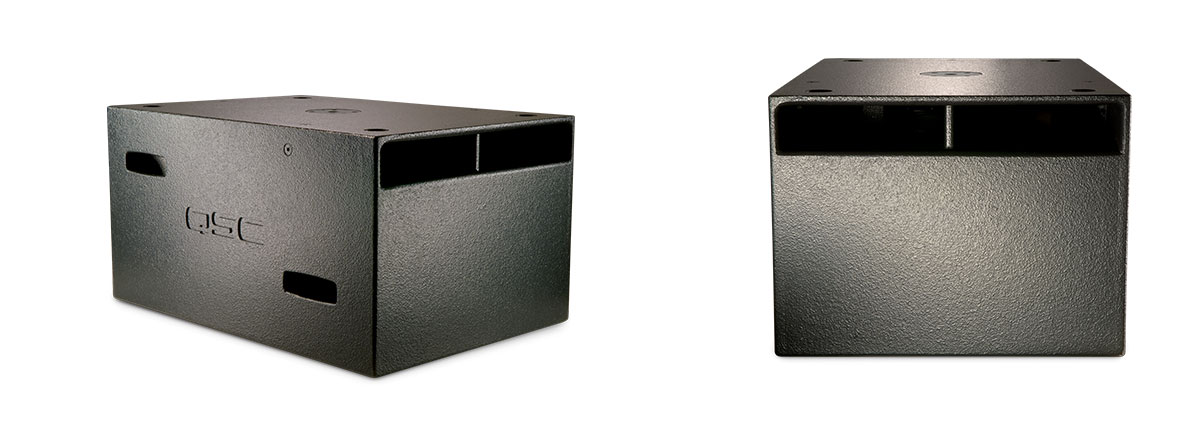

GP212-sw
WideLine™ Ground-Support Subwoofer
The GP212-sw is a premium, highperformance, rectangular dual 12" 4th
order band-pass subwoofer designed for
ground stacked use in touring or installed
concert applications where space constraints
or enclosure size are an issue. With an
impressive combination of punch, lowfrequency extension and musical accuracy,
the GP212-sw is an ideal companion for
QSC’s acclaimed WideLine series as well
as other professional sound reinforcement
systems.
For suspension in permanent installations
each GP212-sw subwoofer comes with a
total of six (6) threaded M10 inserts.
For ground-supported applications, the
subwoofers may be stacked horizontally using
their interlocking feet and recess features
machined into the enclosure’s top panel. A

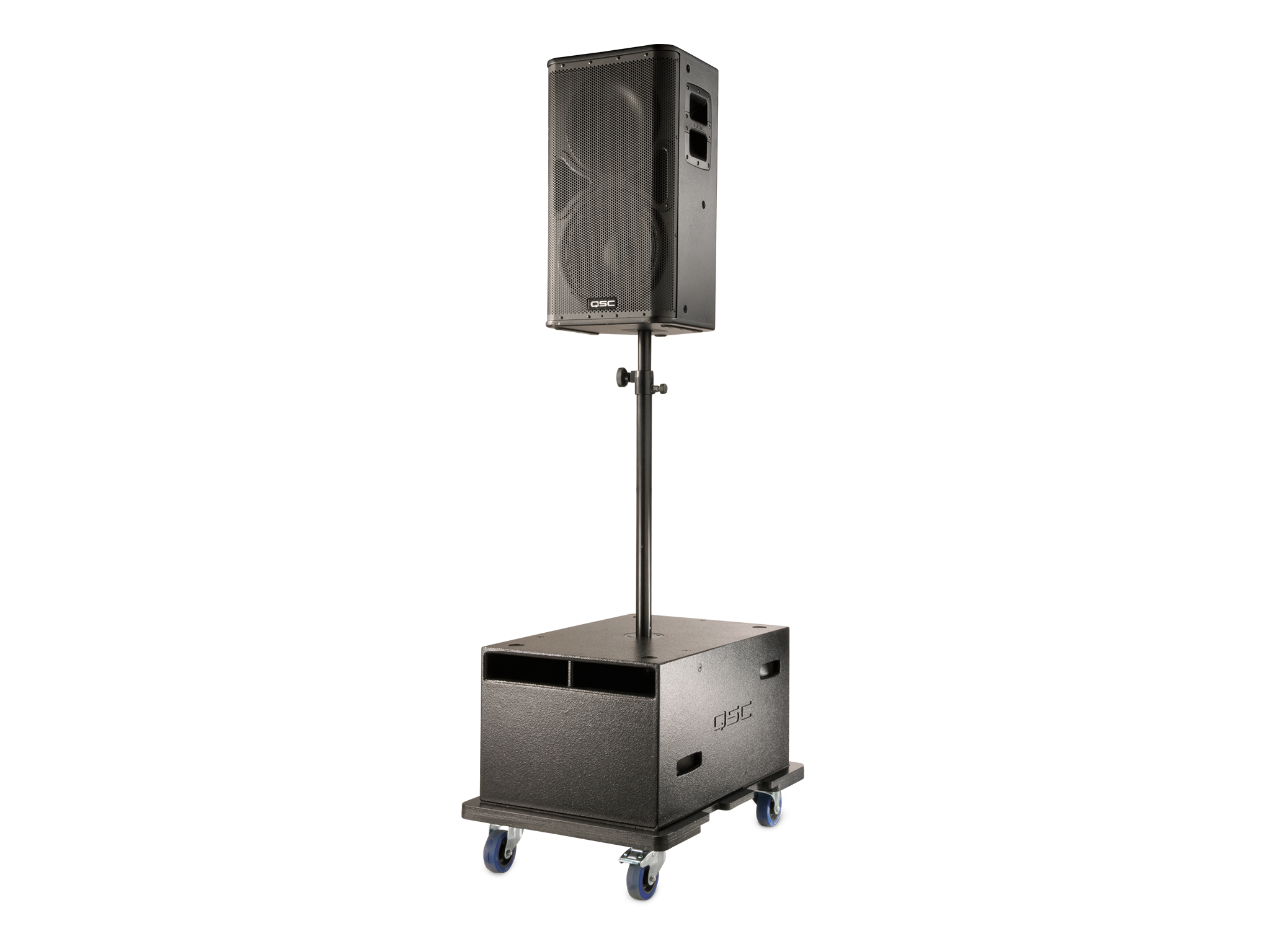

screw-in (M20) pole mount has been added
to provide flexibility in use with small 2-way
pole mount full-range speakers.
The extremely musical yet powerful
performance of the subwoofer is the result of
carefully balancing the transducer selection,
cabinet volume and port tuning. The resulting
system offers plenty of “punch” while
maintaining ample extension so the musically
important and satisfying fundamentals are
solidly and accurately reproduced.
The enclosure of the GP212-sw is constructed
of premium quality birch plywood finished
in an environmentally friendly, waterborne,
polymer finish that stands up to life on
the road while also being field repairable.
Extensive internal bracing is employed to
eliminate acoustic losses due to panel
resonance. Further contributions to cabinet
rigidity come from vent walls constructed of
the same plywood as the enclosure.
Despite the extremely large amount of air
moving in the ports, careful attention to
detail has resulted in a system that is free
of port distortion “chuffing.” Ample port area
allows massive amounts of air to move freely
with minimal turbulence.

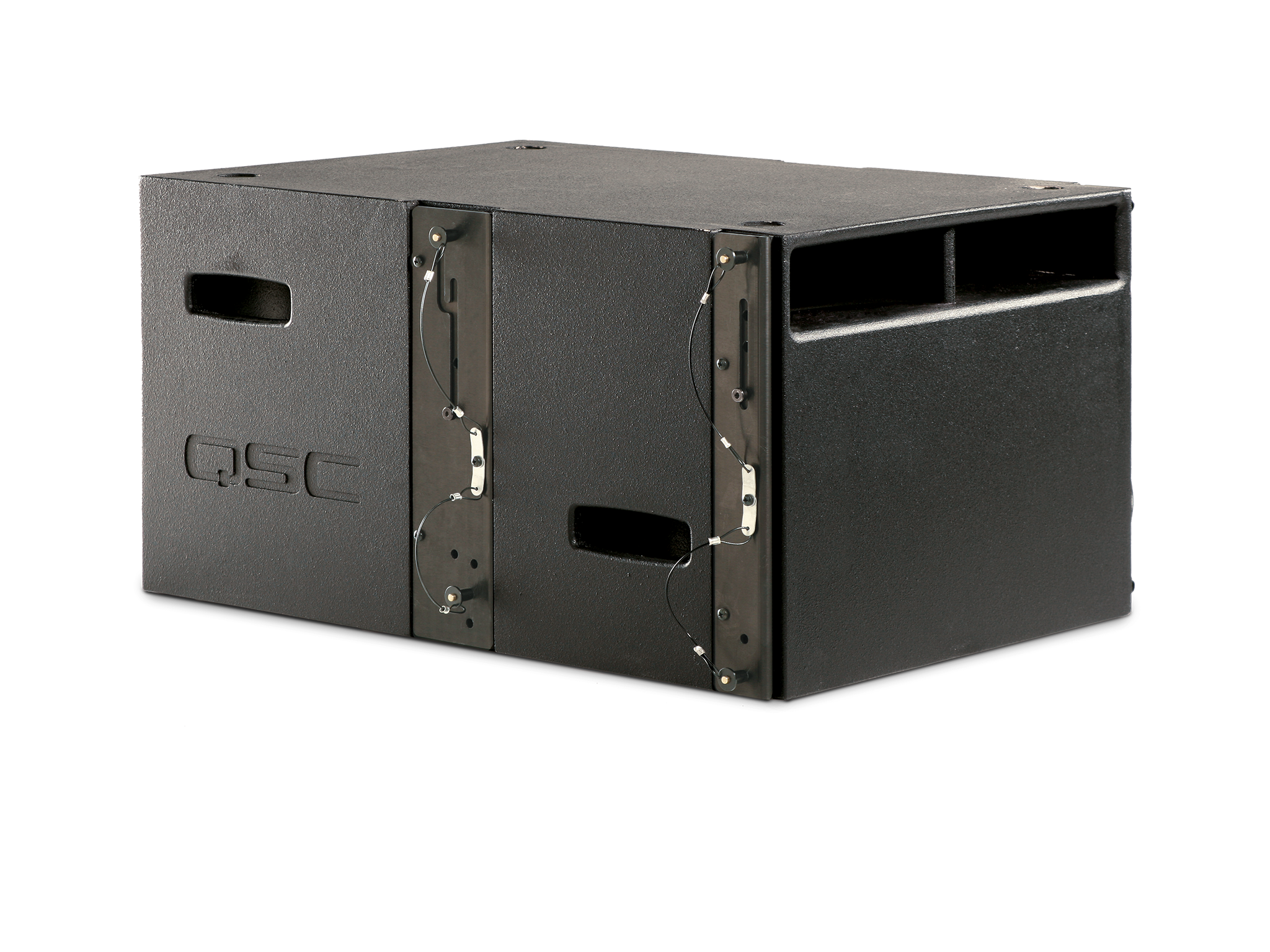

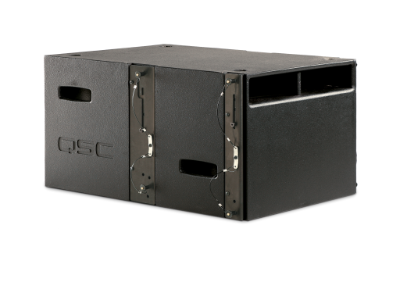

Like its “flyable” brother, the WL212-sw, the
GP212-sw subwoofer’s sonic performance
and output capacity to size ratio are second
to none. For those who only need the
exceptional sonic performance, without
the need for expensive rigging and flying
capability – the GP212-sw gives the exact
same sonic impact as the WL212-sw, but for
a more economical price tag.
QSControl.net™/BASIS™ & SC28 DSP files
are available for download. They have been
fine tuned for use with the GP212-sw
and the WL212-sw to provide optimized
performance right out of the box.
Features
• Very high output to size ratio – 135.4 dB SPL (1m)
peak at only 15" tall
• Tight musical “punch” combined with low-frequency
extension down to 32 Hz
• Extremely low profile (15") and small foot print
• Screw-in (M20) pole mount for use with full-range pole
mountable speakers
• Elegant transport and handling features including
an optional transport dolly plus soft cover and four
thoughtfully placed handles
• Premium-grade, long-excursion, high-power woofers
with 4" voice coils
• 15 mm Birch ply enclosure with extensive internal bracing
for rigidity and solid, accurate reproduction
GP212-sw Dimensions | Specifications
qscaudio.com
Specifications subject to change without notice.
1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174
GP212-sw Spec Sheet - 05/13/08

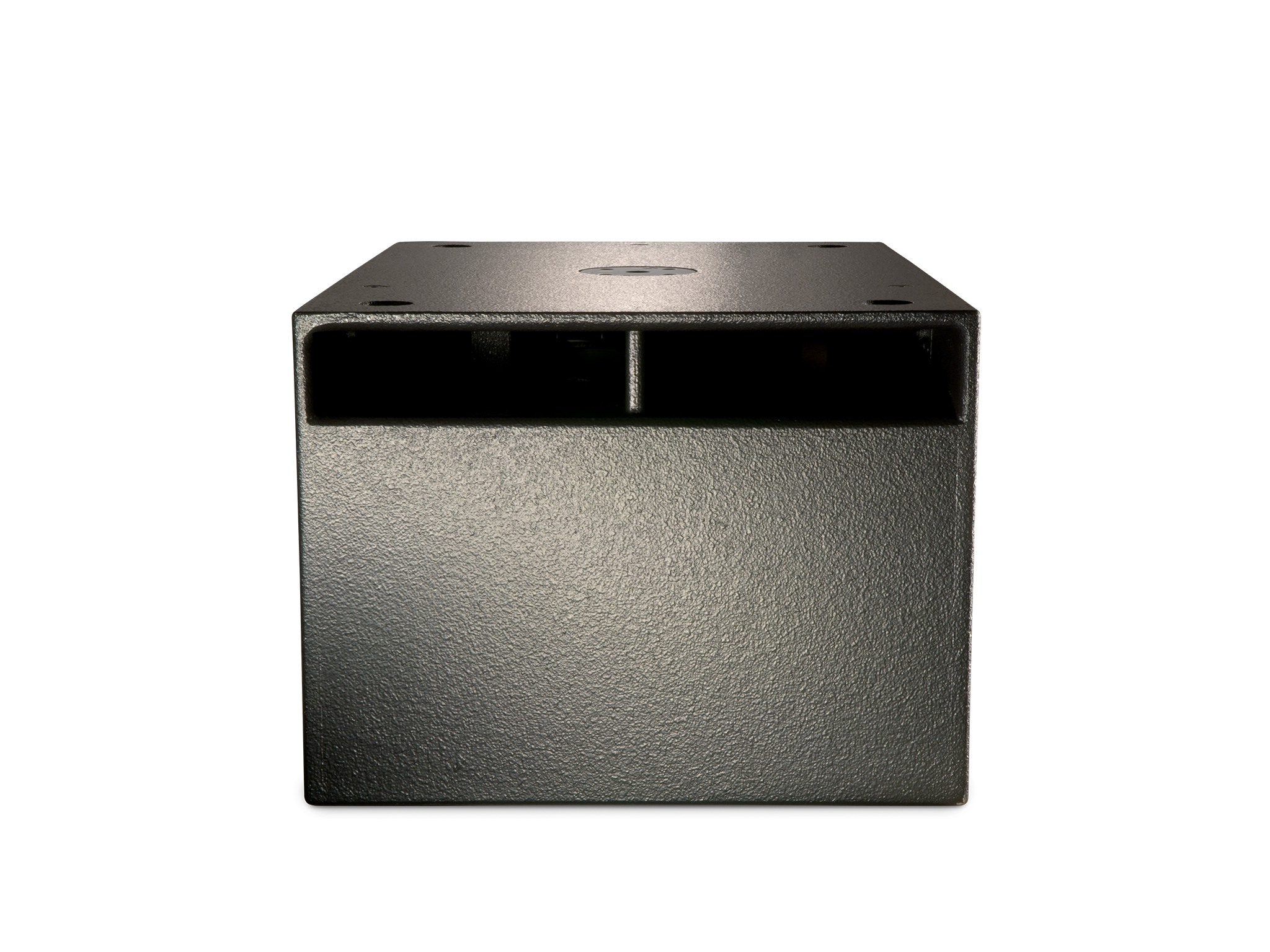

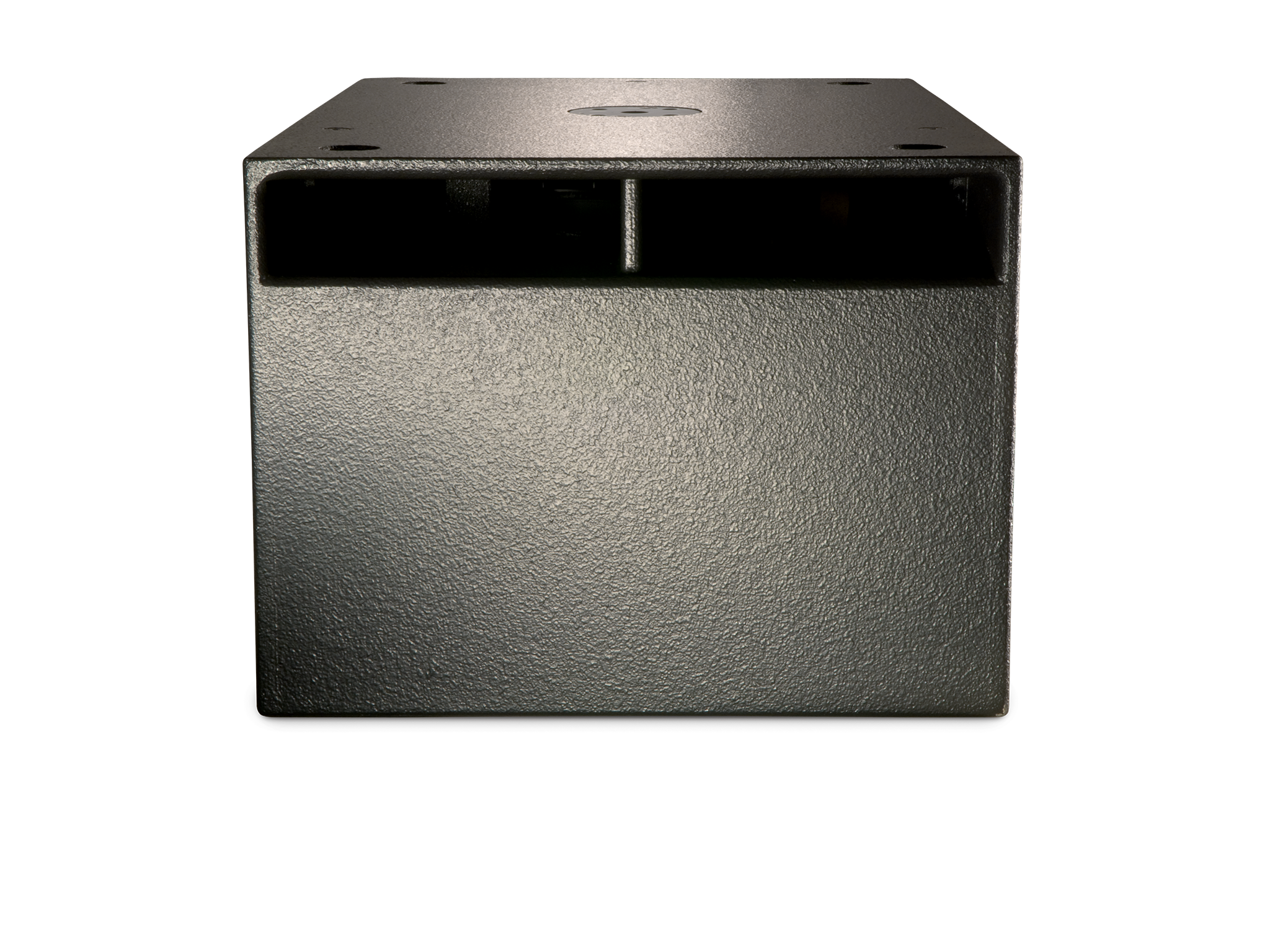

Front Side
Top
QSC, the QSC logo, WideLine, QSControl.net and BASIS are registered trademarks of QSC Audio Products LLC in the U.S. Patent and Trademark office and other countries.
All other trademarks are the property of their respective owners. Patents may apply or be pending.
Configuration 2 x 12" - 4th order band-pass subwoofer
Transducers 2 x 550 W, 8Ω 12" woofer with a 4" voice coil, ceramic magnet assembly
Frequency Response (±3 dB) 40 Hz - 100 Hz (without processing)
Frequency Range (-10 dB) 32 Hz - 107 kHz (without processing)
Nominal Impedance 4Ω
Continuous Power Capacity 1100 W
Recommended Power 1650 - 2200 W
Sensitivity (1 W at 1 m) 99 dB
Maximum Output - Continuous/ Peak (SPL at 1 m) 129.4 dB / 135.4 dB
Cabinet Type 4th order band-pass
Enclosure Material Baltic birch plywood / 15 mm
Connectors 2 x NL4 in parallel
Pin Outs Pins
1+/1- Sub
2+/2- NC
Attachment Points Six (6) threaded M10 inserts
Weight (Net / Shipping) 99.5 lbs (45.1 kg) / 115.5 lbs (52.4 kg)
Dimensions (HWD) 15" x 20" x 29" (381 mm x 508 mm x 737 mm)
Accessories Available (optional) CP212-1 – 4-wheel transportation Dolly plus soft cover (for one sub)
CP212-2 – 4-wheel transportation Dolly plus soft cover (for two subs stacked)
20"
508 mm
29"
737 mm
15"
381 mm
