WideLine-8
WideLine™ Line Array Speaker System
Features of the WL3082 WL3082 | WL212-sw
• Extraordinarily compact (only 20" /508 mm wide) and lightweight
(38 lb/17.2 kg)
• High acoustic output (133 dB SPL peak)
• Wide 140° horizontal coverage
• High power, 8" neodymium LF /MF drivers provide low-frequency extension
to 62 Hz without subwoofers
• 3" diaphragm compression driver on QSC’s patented 140º multiple diffraction
aperture waveguide (Patent No. 7,177,437)
• Simple, easy-to-use rigging system supports arrays of up to 12 units with
10:1 design factor
• Flexible ground stack capability
• Fully supported in EASE and EASE Focus acoustic software
Features of the WL212-sw
• Dual 12" subwoofer in a 4th order bandpass enclosure
• 135 dB SPL peak output capability
• Frequency range to 32 Hz (-10 dB down point)
• May be suspended at the top of a WL3082 array or behind the array
• Integral suspension hardware also supports WL3082 in ground stack applications
Designed for the most demanding concert and installation audio
professionals, the WideLine-8 system sets new standards for astonishing
acoustical performance and compact size.
Line arrays are increasingly employed in a wider range of venues and
applications. Frequently these venues have height or sightline restrictions
that limit the placement and size of the array. Rising fuel costs are putting
pressure on touring system providers to downsize their transportation
requirements. At the same time, client and audience expectations for
audio performance has never been higher. To meet these needs, QSC
embarked on a program to develop the most compact, highest output line
array speaker system available.
QSC’s WideLine-8 packs full size line array performance into an ultra
compact package measuring less than 20" (508 mm) wide and 9"
(229 mm) high. The WideLine-8 applies to audio the classic hot rod, highperformance formula – putting the most horsepower available into the
smallest chassis possible.
Each tri-amplified WideLine-8 element uses a pair of high-power,
neodymium magnet, 8" low-frequency drivers. Both cover low frequencies
while only one extends into the mid range, thus maintaining horizontal
dispersion control at crossover. High frequencies are handled by a
premium, 3" diaphragm, neodymium compression driver mounted to
QSC’s patented, 140º multiple aperture diffraction waveguide. WideLine
signature wide coverage delivers a broader stereo image, reduces the
need for supplemental fill speakers and allows more placement options.
The waveguide exit extends nearly to the top and bottom of the enclosure to
create a continuous acoustical source with minimal discontinuities between
adjacent elements resulting in greatly reduced destructive interaction.
The WideLine-8 sub sets a new benchmark for extraordinary acoustic
output from a miniscule enclosure. At first glance, the enclosure seems
too small to even house its pair of 4" voice-coil, long-excursion 12"
woofers, yet it produces 135 dB (peak) SPL and has LF extension to
32 Hz, with the punch needed for popular music. The extremely low
profile of the WL212-sw sub (less than 15") also makes it a great choice
for installed and portable use under a stage or in other tight quarters. The
4th order bandpass design matches the width of the WideLine-8 elements
allowing it to be flown inline with or behind a WideLine-8 array.
Premium materials are used throughout the system. The enclosure is
constructed of Baltic birch plywood and coated in an environmentally friendly,
waterborne polymer finish that is field repairable. To keep the weight to a
minimum and prevent rust, suspension fittings are made of aluminum.
An elegantly simple 4-point suspension system combined with light weight,
compact size and excellent handling ergonomics mean that a one person
crew can easily deploy an array. A single AF3082-L array frame suspends
up to twelve line array elements or up to twelve line array elements plus
four subwoofers. The WideLine-8 system is equally at home in the air or
ground-stacked.
Special attention is given to ground-stacked applications. The WideLine-8
sub suspension system includes a unique provision that allows the lowest
line array element stacked over a sub to be tilted up or down by as much
as 10º, offering better coverage of listeners near the stage. WideLine-8
subs may be used as a base for stacking up to six WideLine-8 elements.
WideLine-8 System Configurations
-10º 0º +10º
Arrays can be assembled using only WL3082 line
arrays modules, with WL212-sw subwoofers at
the top of the array, or by utilizing the EB3082
extension bar, subwoofers can be flown behind
the main array.
Arrays of up to twelve WL3082 modules,
with four WL212-sw subwoofers flown behind
can be accommodated by the combination of
2 x AF3082-S small array frames and a single
EB3082 extension bar (Figure A). As many as
twelve WL3082 modules can be suspended
using one AF3082-S (Figure B) while the
AF3082-L large array frame can be used to
assemble arrays of up to 12 x WL3082 modules
alone or suspended below up to 4 x WL212-sw
subwoofers (Figure C). The AF8-10 adapter frame
(not shown) allows the user to add WL3082
WideLine-8 arrays beneath WL2012 WideLine-10
arrays. The PB3082 pullback bar (not shown) can
be used to attain extra down-angle in flown arrays
or as a suspension bar for arrays of up to eight
WL3082 modules.
Flexible Arrays
Figure A Figure B Figure C
WideLine-8 rigging doubles as an optimized ground stacking system. Using the WL212-sw subwoofer
as a base, arrays of WL3082 line array elements can be aimed downward by as much as ten degrees to
cover audience areas close to a stage, as well as upward by as much as ten degrees in order to better
cover distant balcony seating areas.
Optimized Ground Stacking
The WL3082 is designed for tri-amplification. Adding WL212-sw subwoofers
creates a 4-way active system. For applications in which audio quality is
paramount but operational simplicity and low-cost are also critical, the QSC
SC28 processor delivers factory programmed voicings while also offering
user-adjustable system equalization, offset delays and output levels.
QSC system engineers have employed the power of the SC28 processor’s
FIR (finite impulse response) filters to implement Intrinsic Correction™ of
the loudspeaker. Intrinsic Correction provides the most accurate acoustical
magnitude, frequency and phase domain performance possible. Intrinsic
Correction can compensate for many causal phenomena such as the
effects of waveguide acoustical impedance and loudspeaker cone
resonance. The result is a loudspeaker system with excellent power
response and extremely natural, uncolored sound across its frequency
band and coverage area. An array of loudspeakers with Intrinsic Correction
tunings will be very responsive to the use of equalization to compensate
for array configuration, acoustical conditions or user preferences. For users
needing sophisticated, programmable DSP, voicings are available for QSC
BASIS™ processors.
Specifications | Signal Processing
WL3082 WL212-sw
Configuration Dual 8", 3-way, tri-amp line-array Dual 12", 4th order bandpass subwoofer
Transducers
High-frequency
Low-frequency
3" diaphragm, neodymium magnet compression driver
Dual, 8" woofer, 2.5" voice coil
—
Dual, 12" woofer with a 4" voice coil, ceramic magnet assembly
Frequency Response (±3 dB) 68 Hz – 18 kHz 40 Hz – 100 Hz
Frequency Range (-10 dB) 62 Hz – 20 kHz 32 Hz – 107 Hz
Nominal Impedance HF: 16Ω
MF: 16Ω
LF: 16Ω SUB: 4Ω
Continuous Power Capacity1 HF: 85 W
MF: 250 W
LF: 250 W LF: 1100 W
Sensitivity (1 W at 1 m) HF: 108 dB SPL
MF: 98 dB SPL
LF: 98 dB SPL LF: 99 dB SPL
Maximum Output, Continuous/ Peak
(dB SPL at 1 m)
HF: 127 dB SPL / 133 dB SPL
MF: 122 dB SPL / 128 dB SPL
LF: 122 dB SPL / 128 dB SPL LF: 129 dB SPL / 135 dB SPL
Nominal Coverage H: 140°
V: dependent on number of elements used
—
—
Enclosure Type Ported, trapezoidal 4th order bandpass
Enclosure Material 15 mm birch plywood 15 mm birch plywood
Finish Available in black (WL3082) or white (WL3082-WH) paintable Available in black (WL212-sw) or white (WL212-sw-WH) paintable
Grille Perforated, 16AWG steel, backed with black/white cloth fabric −
Connectors 2 x NL8 in parallel 2 x NL8 in parallel
Pin Outs 1+/1- NC; 2+/2- LF; 3+/3- MF; 4+/4- HF 1+/1- Sub; 2+/2- NC; 3+/3- NC; 4+/4- NC
Attachment Points Integral, side plate adjustable rigging system, vertical splay adjustable
in 1° increments from 0° – 10°
Integral, non-adjustable
Weight (Net / Shipping) 38 lb (17 kg) / 45.5 lb (20.7 kg) 109 lb (49.4 kg) / 125 lb (56.7 kg)
Dimensions (HWD) 9" x 20" x 16"
229 mm x 508 mm x 406 mm
15" x 20" x 29"
381 mm x 508 mm x 737 mm
Available Accessories
See descriptions on back
AF3082-S • AF3082-L • EB3082 • CP3082 • PB3082 • AF8-10 AF3082-L • CP212 • AF3082-S
1) 2 hours, IEC specified noise
Specifications subject to change without notice.
WideLine-8 Signal Processing
BASIS 914lz
SC28
WideLine-8 Dimensions | Accessories
qscaudio.com
Specifications subject to change without notice.
1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174
WideLine-8 Spec Sheet 05/26/09
Front

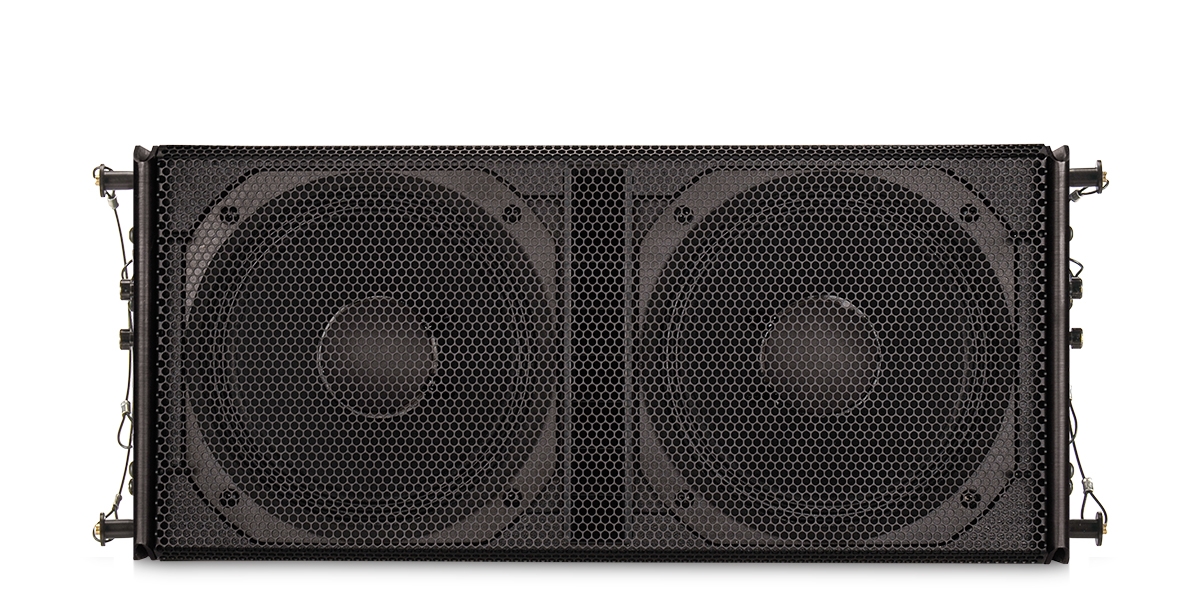

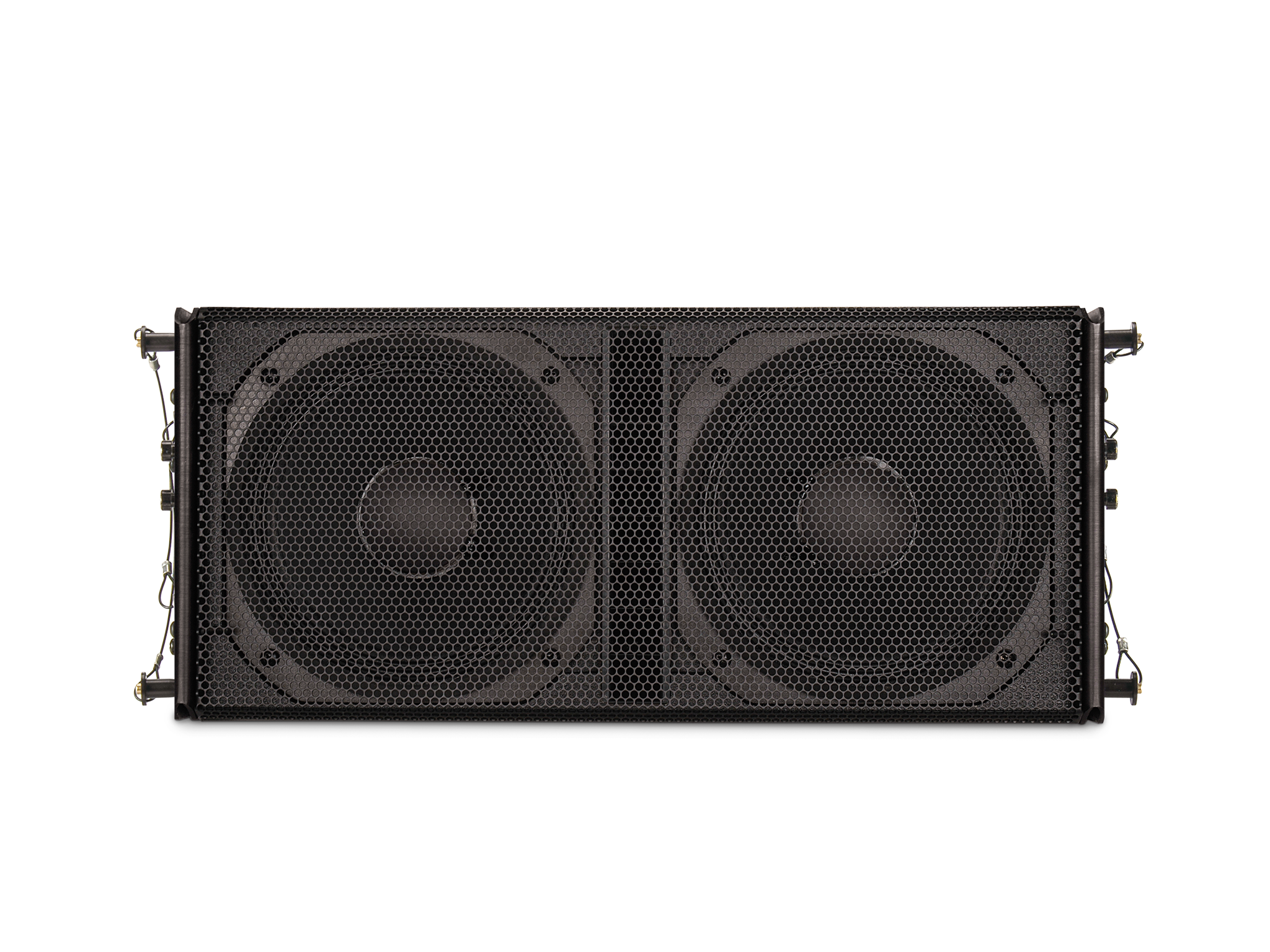

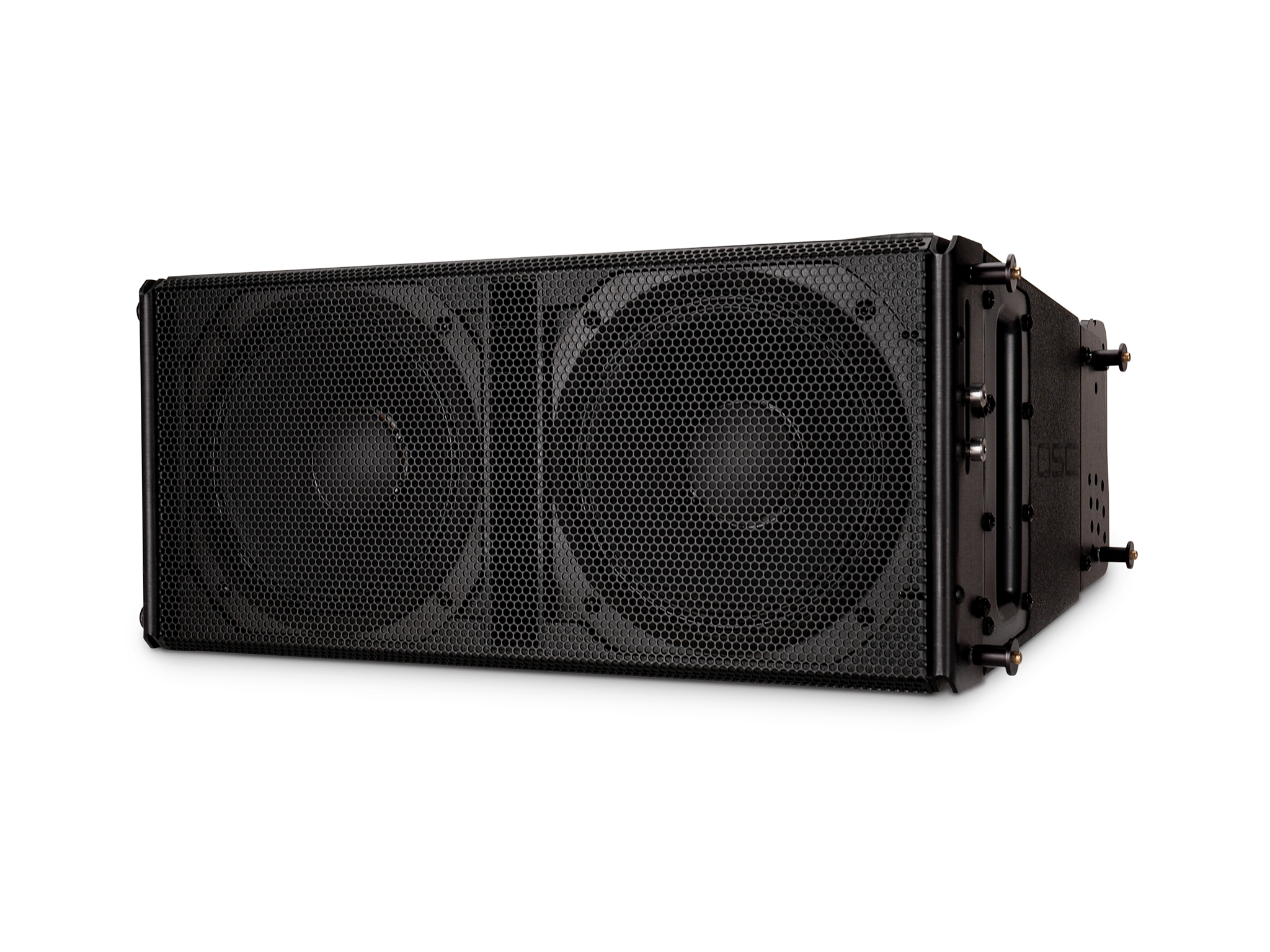

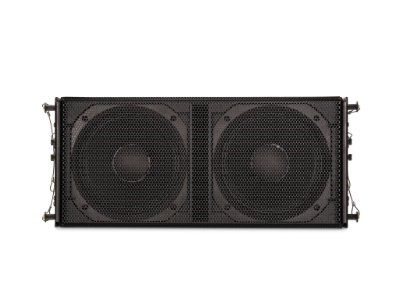

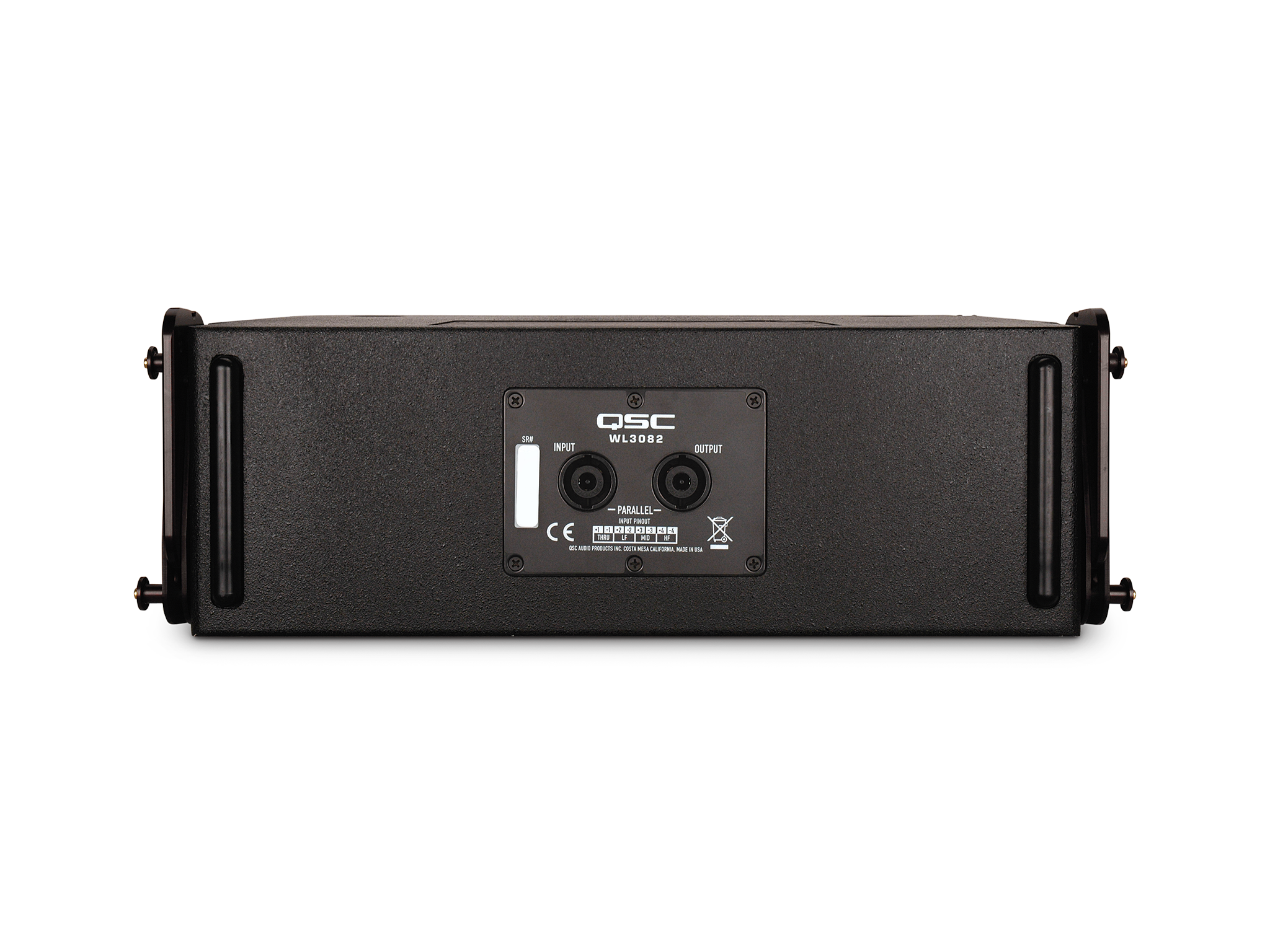

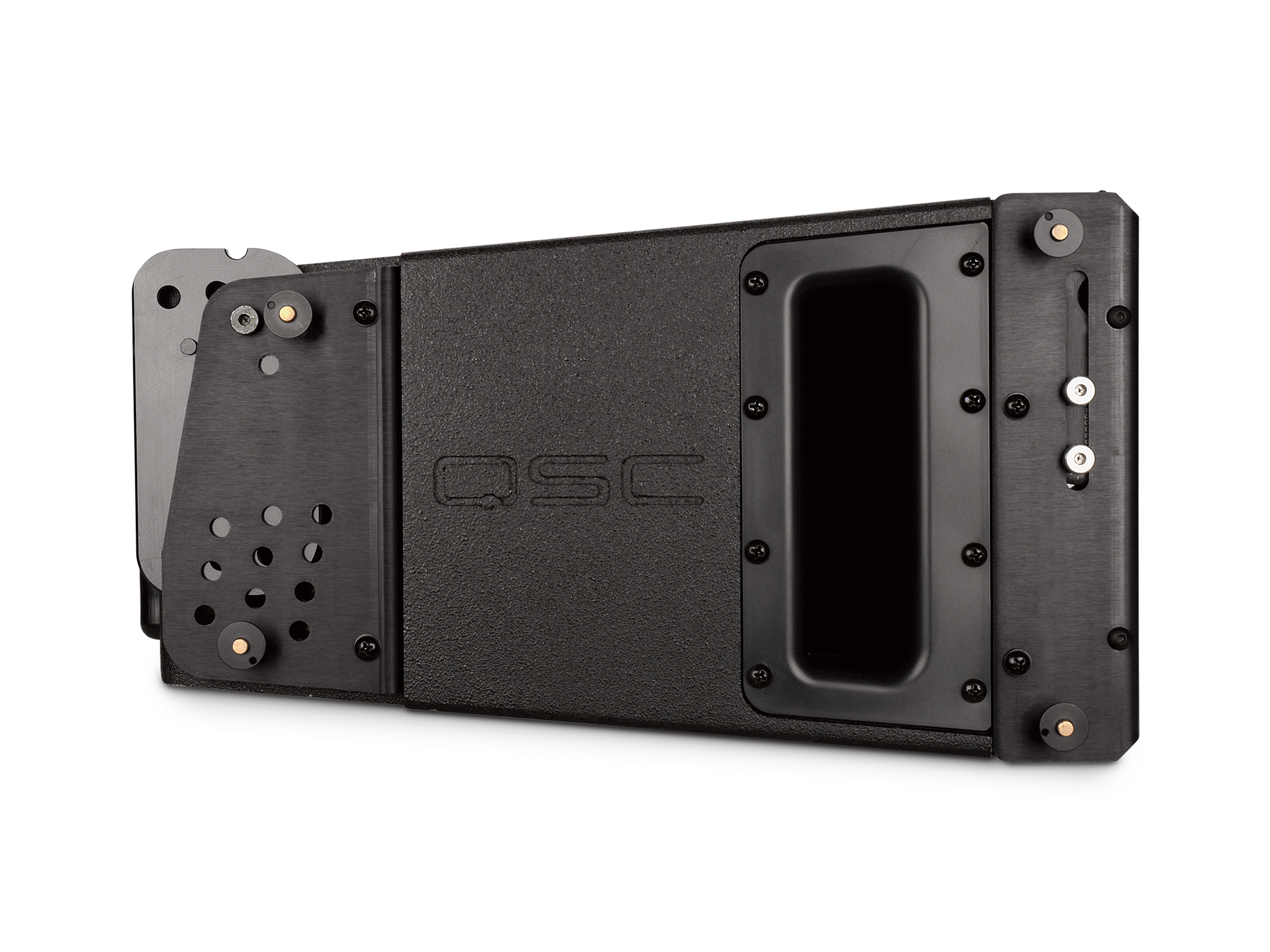

WL3082
WL212-sw
AF8-10
Adapter frame that allows suspension
of WL3082 under WL2012.
AF3082-L
Large array frame, supports up to twelve (12) WideLine-8
elements and four (4) WideLine-8 subs with 10:1 design factor.
AF3082-S
Small array frame, supports up to twelve (12)
WideLine-8 elements with 10:1 design factor.
EB3082
Extension bar, required for system with
the subwoofers flown behind the main array.
CP3082
Caster pallet for four (4)
WL3082 line array elements,
includes padded cover.
CP212
Caster pallet for three (3)
WL212-sw subwoofers,
includes padded cover.
Front
Bottom Top Back
Bottom Top Back
Side
Side
19.9" 505 mm
21.7" 551 mm
20"
505 mm
21.7"
551 mm
9" 228 mm
16"
406 mm
15"
380 mm
15.2"
387 mm
29" 736 mm
© 2009 QSC Audio Products, LLC. All rights reserved. QSC, the QSC logo, WideLine and BASIS are registered trademarks of QSC Audio Products, LLC in the U.S. Patent and
Trademark office and other countries. Intrinsic Correction is a trademark of QSC Audio Products, LLC. All other trademarks are the property of their respective owners.
Patents may apply or be pending.
PB3082
Pullback bar for adjusting aiming angle
of WideLine-8 arrays or suspension of
certain small arrays.
