unBT2A

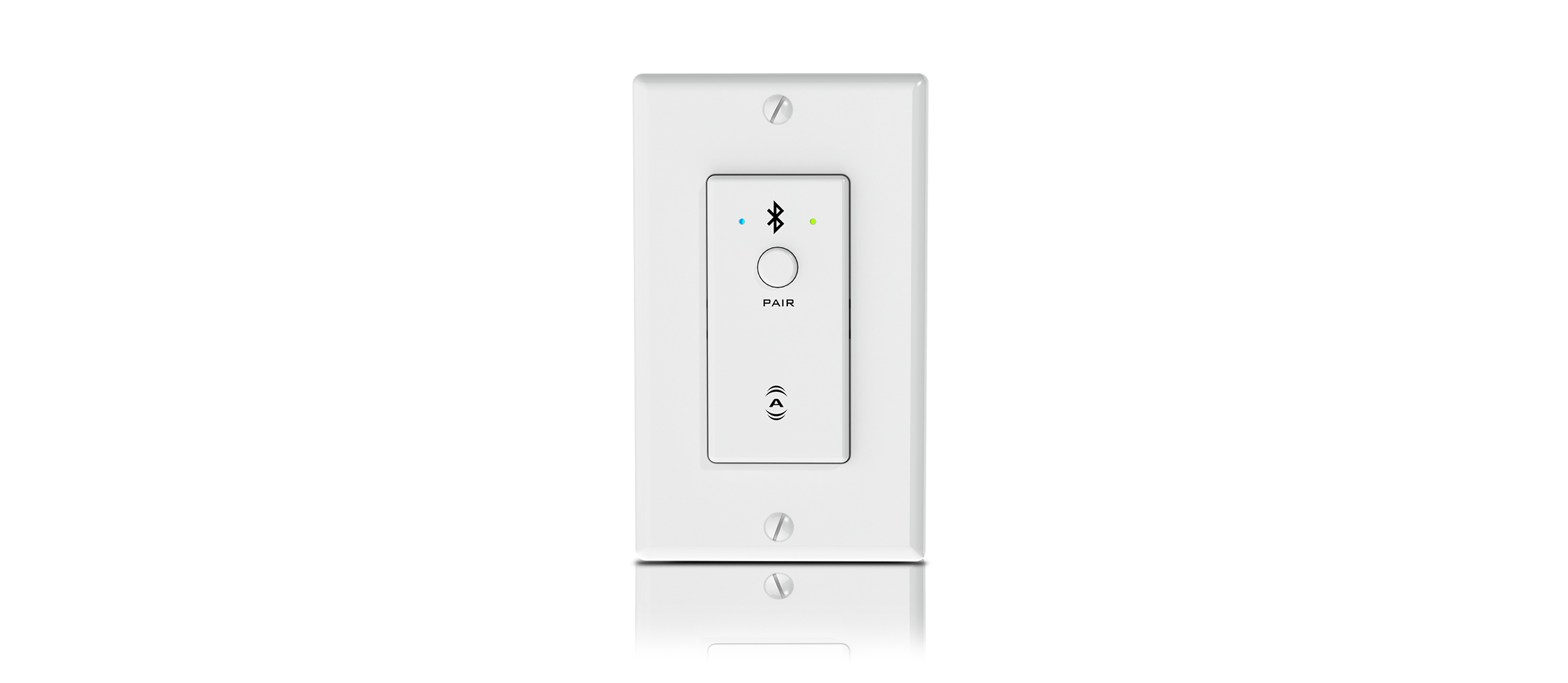

The unBT2A is a single-gang, Decora style, in-wall Bluetooth® audio interface aimed at

adding Bluetooth® audio connectivity to installed audio systems. The unBT2A can be used

in any venue where there’s a need to stream Bluetooth® audio from a smartphone, laptop,

tablet or other Bluetooth® audio equipped smart device to the sound system.

The unBT2A features a simple pairing process that eliminates the frustrating experience

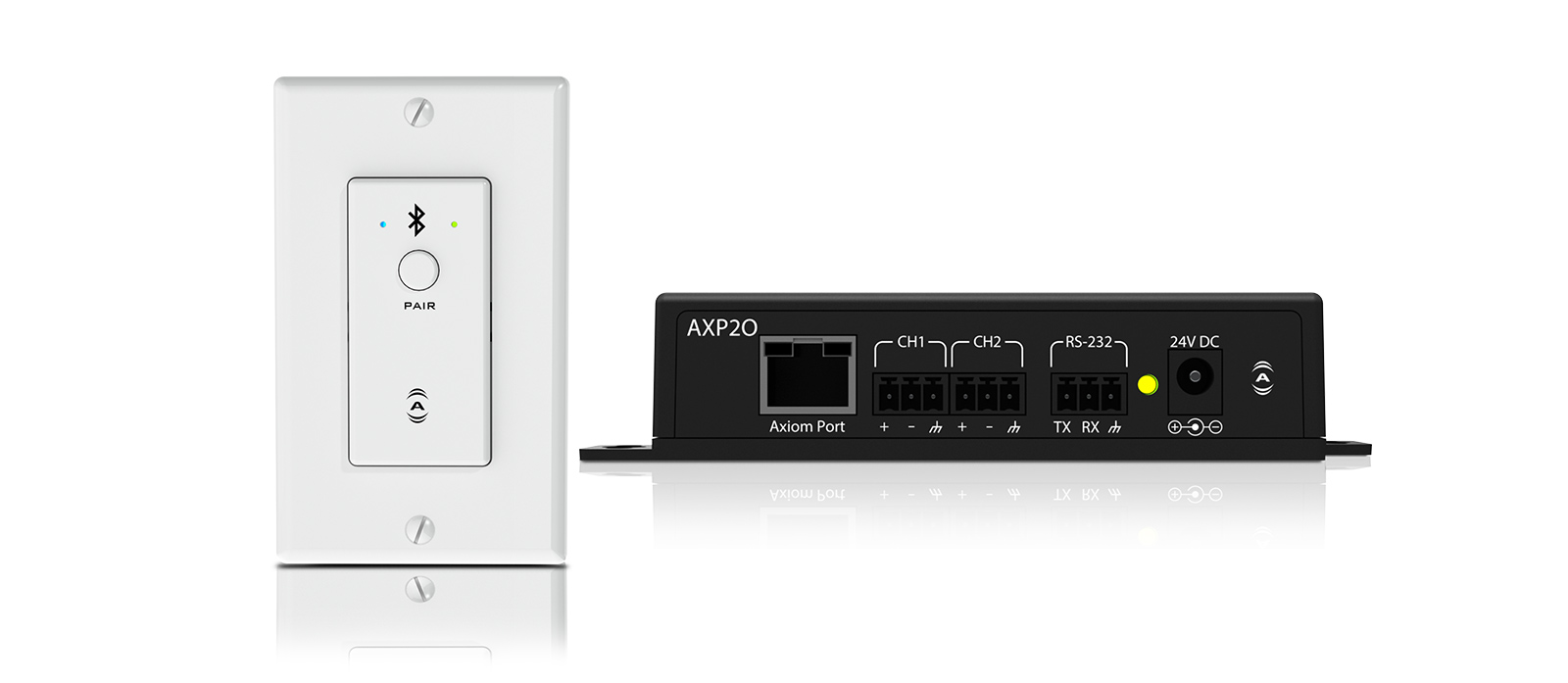

users often have with consumer grade Bluetooth® interfaces. Through the Axiom AXP2O

expander unit, which is included with the unBT2A kit, the product outputs balanced

mono or stereo analog audio on 3-pin depluggable connectors for easy connection to

commercial AV equipment, including the Q-SYS Ecosystem. The unBT2A USB port is

used for initial product setup at installation, and the Axiom AXP2O offers an RS-232 port

for third-party control.

System Details unBT2A

Bluetooth® profile A2DP - stereo audio is streamed from a Bluetooth®

device to the unBT2A and output as analog (via the unBT2A EXP interface)

Bluetooth® range 30 - 70 ft typical

Depluggable output type Balanced 3-pin line level, -10 dBV / +4 dBu nominal output levels (software switchable) on the unBT2A EXP. Mono/Stereo functionality is also

software switchable

Dynamic range >85 dB

Maximum output level (balanced depluggable) +20 dBu in +4 dBu setting, +6 dBu in -10 dBV setting

System THD Less than 0.1%

RS-232 Full RS-232 control (standard RS-232 levels) of pairing and other user interface features. 3-pin depluggable connector on the unBT2A EXP

USB Mini B type connector

Certifications FCC 47CFR Parts 15B and 18 (Class A), EN 55011, ICES-003, CE (EN55022 Class A and EN55024 Class A)

Dimensions unBT2A - 1.69 x 4.2 x 1.25 in (42.93 x 106.68 x 31.75 mm)

unBT2A EXP - 5.56 x 1.13 x 1.75 in (141.22 x 28.7 x 44.45 mm)

Operating temperature 0°C - 40°C
