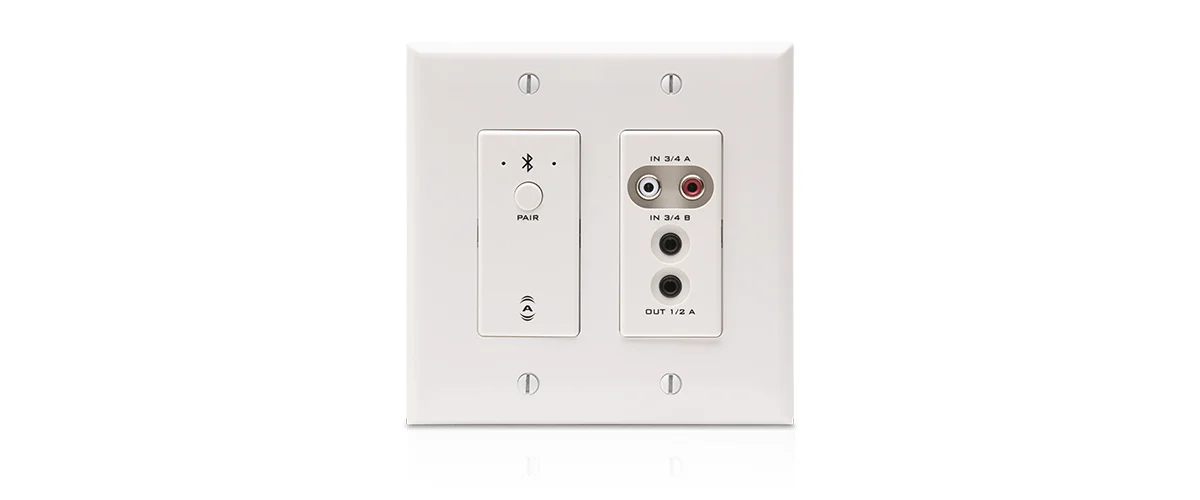

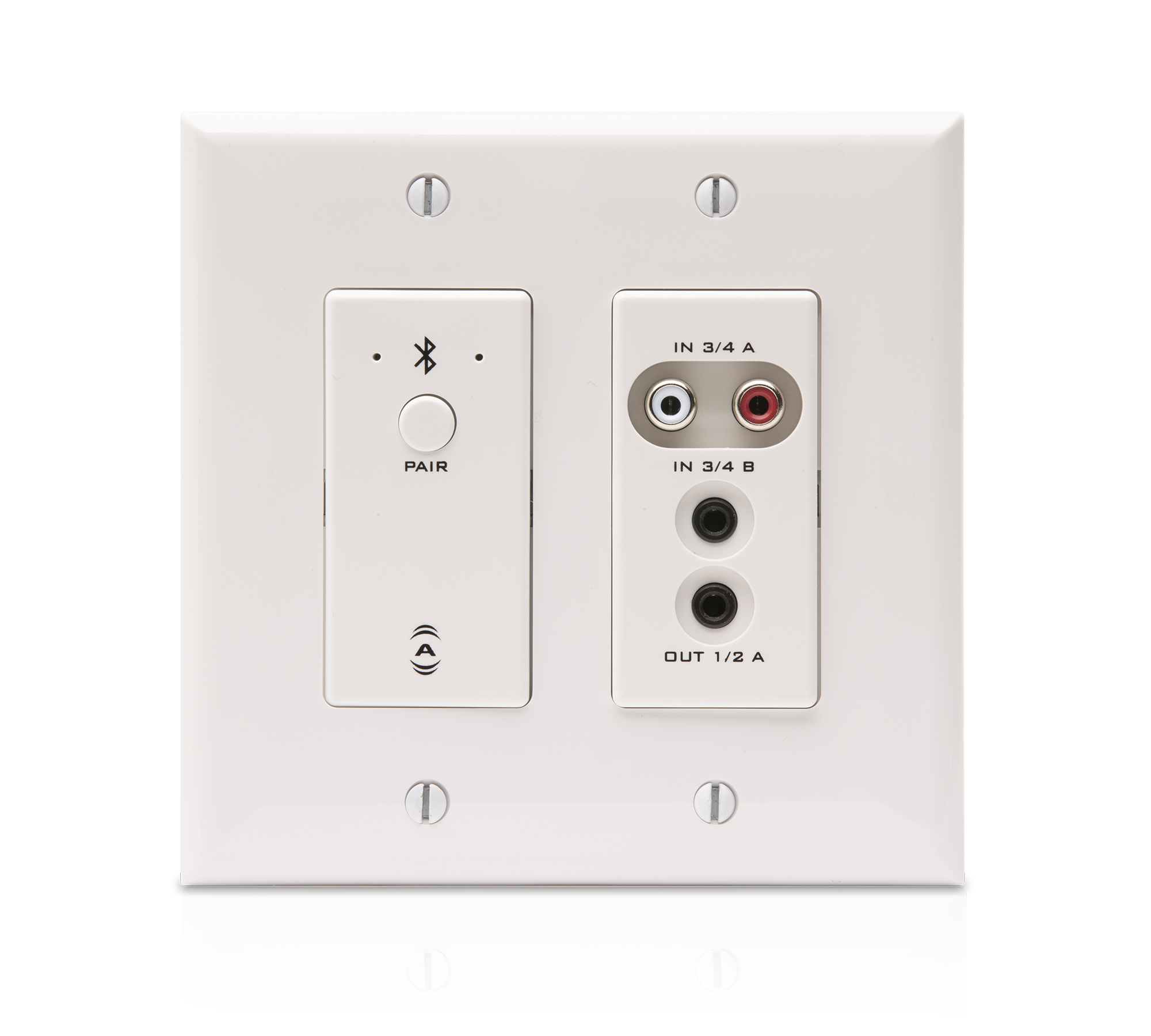

The unD6IO-BT Dante/AES67 audio
interface with Bluetooth® is a costeffective, multi-IO wall plate. The unD6IOBT features stereo Bluetooth wireless
audio input connectivity along with (2)
RCA line level inputs and a 3.5 mm TRS
line level input. A 3.5 mm TRS line level
output on the front is also included. The

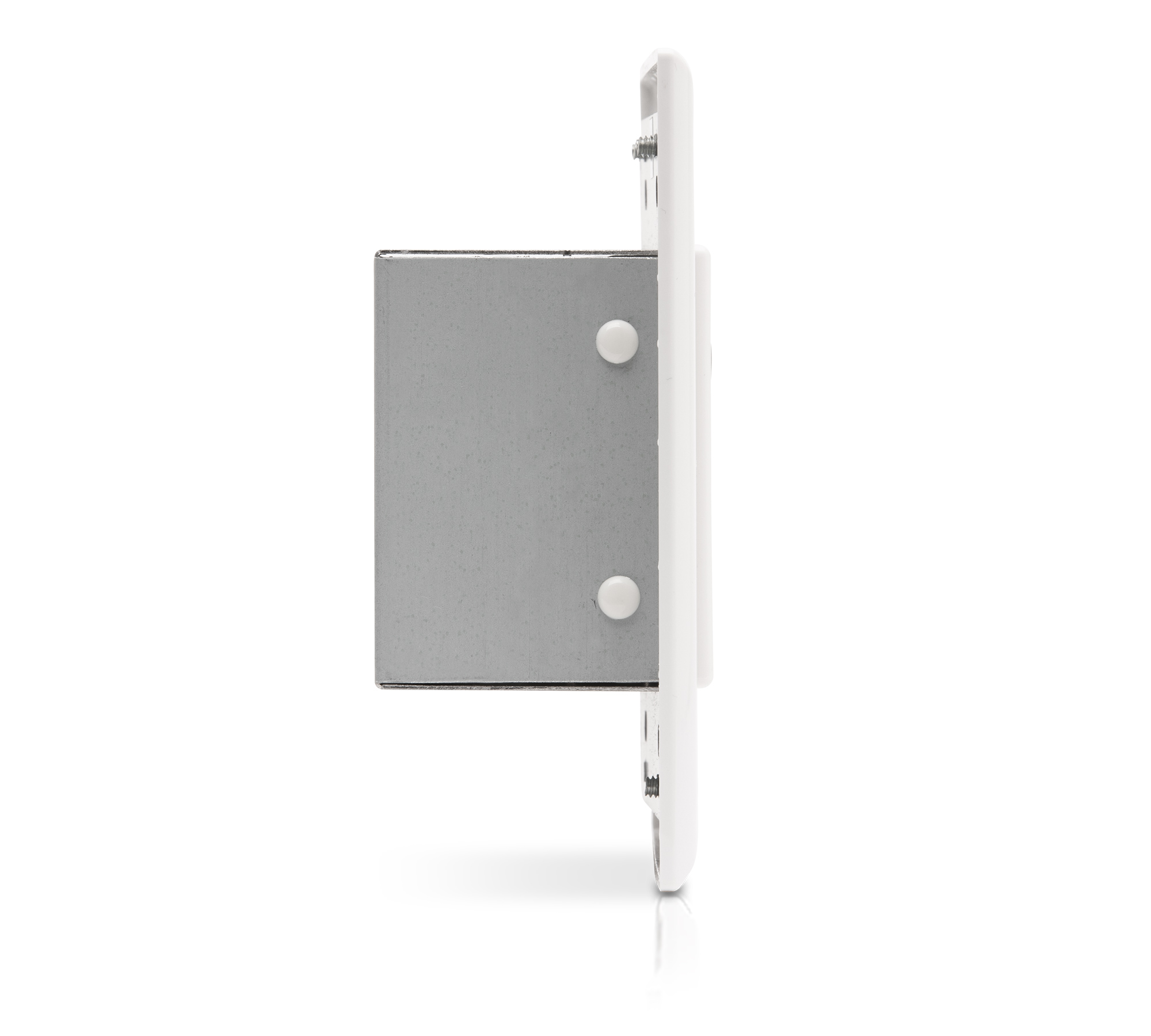

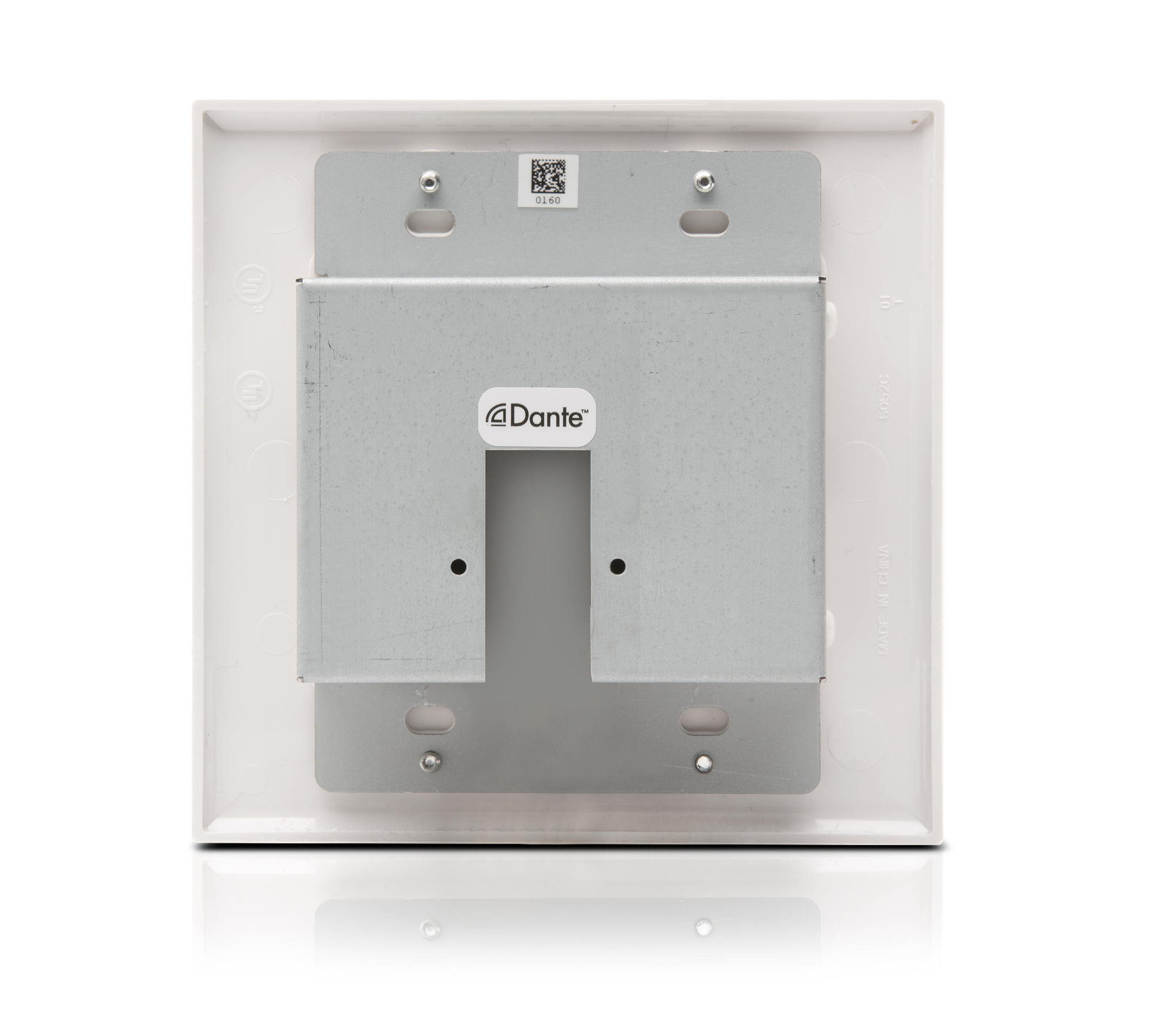

unD6IO-BT is designed to fit into most
dual-gang US junction boxes and is
PoE enabled, so all connectivity (power,
control and audio data) is provided by a
single CAT-5e/6 cable. The wall plate’s
unique mix of consumer-style wired
and wireless connectivity allows easy
connection to a wide variety of user
devices on a Dante or AES67 network
eliminating the possibility of ground loop
issues or other audio problems commonly
found in consumer devices.
The unD6IO-BT integrates seamlessly
into the Q-SYSTM Ecosystem. In addition
to AES67 network audio compatibility, a
Q-SYS Designer control plugin is available
for the unD6IO-BT via the Q-SYS
Designer Asset Manager, allowing you to
control and monitor the unD6IO-BT via
native Q-SYS touch screen controllers.
The "call bridging" mode provides call
connectivity for Bluetooth-equipped
devices within a modern conferencing
system. The addition of Bluetooth
connectivity provides simple bridging of
far-end meeting participants for on-thefly meeting productivity and backup
conferencing connectivity in the case of
VoIP and/or web-based conferencing
service failures.
Audio Routing Note: The input
configuration can be modified using the
unIFY Control Panel software or other
compatible controllers. Audio channels
1 and 2 route the stereo Bluetooth audio
directly to Dante. The Dante transmitter
channels 3 and 4 can be sourced from
the RCA inputs, 3.5 mm inputs or a
sum of each (RCA-L + 3.5 mm-L, and
RCA-R + 3.5 mm-R) via the switchable
input selection. Audio from Dante output
channels 1 and 2 is sent to Output 1 and
2 respectively
Specifications
System Details unD6IO-BT
Bluetooth® profile A2DP - Stereo audio is streamed from a Bluetooth® device and onto the Dante network. HFP (Hands Free Profile) - duplex pairing to a cell
phone for call bridging
Bluetooth® range 10 m (30 ft) minimum. Typical range is 15 - 23 m (50 - 75 ft)
RCA and 3.5 mm input RF filtered line level, input source software selectable
Maximum input levels (3.5 mm / RCA): +12 dBu
Output volume range 0 dB to -60 dB in 1 dB steps, software selectable
Output noise <-90 dBu @ 0 dB gain
3.5 mm output RF filtered line level
Maximum output level (3.5 mm) +12 dBu
System THD <.02% at any gain, input signal 3 dB below maximum (wired I/O only)
Certifications FCC 47CFR Parts 15B and 18 (Class A), EN 55011, ICES-003, CE (EN55022 Class A and EN55024 Class A)
Product dimensions (H x W x D) 3.54 x 4.2 x 1.88 in (89.91 x 106.68 x 47.752 mm)
Shipping dimensions (H x W x D) 6 x 6 x 4 in (152.4 x 152.4 x 101.6 mm)
Shipping weight 1.00001682 lb (0.4536 kg)
Operating temperature 0°C - 40°C
