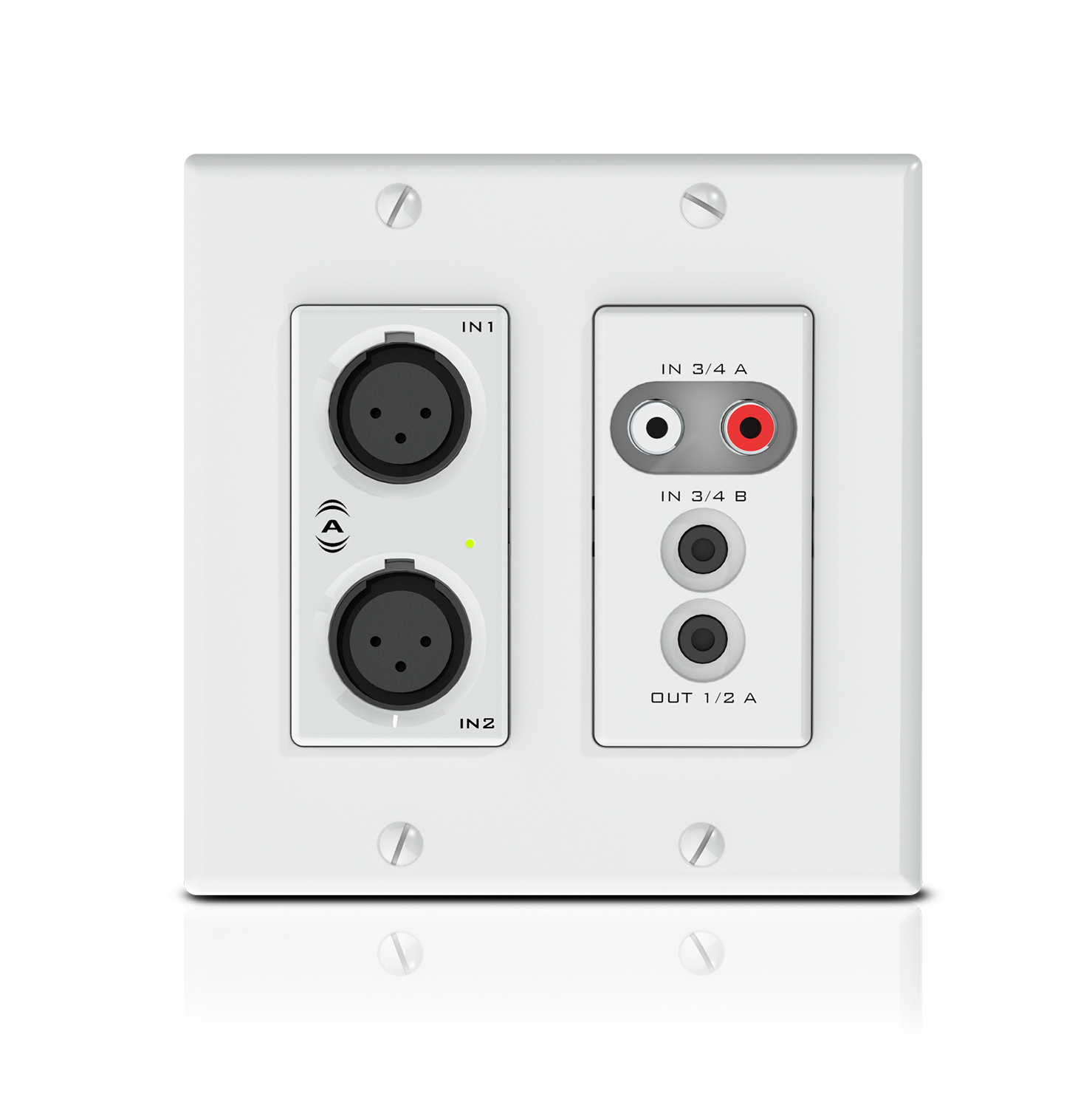

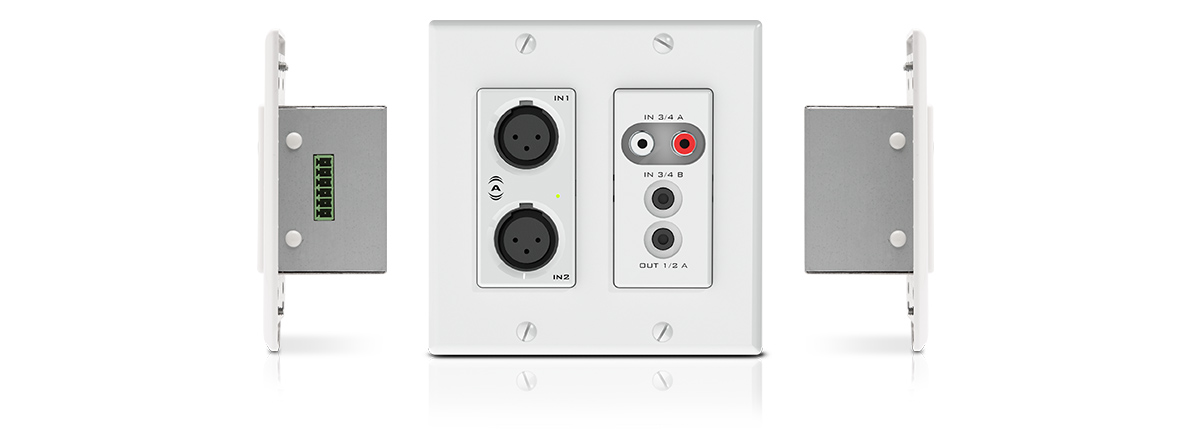

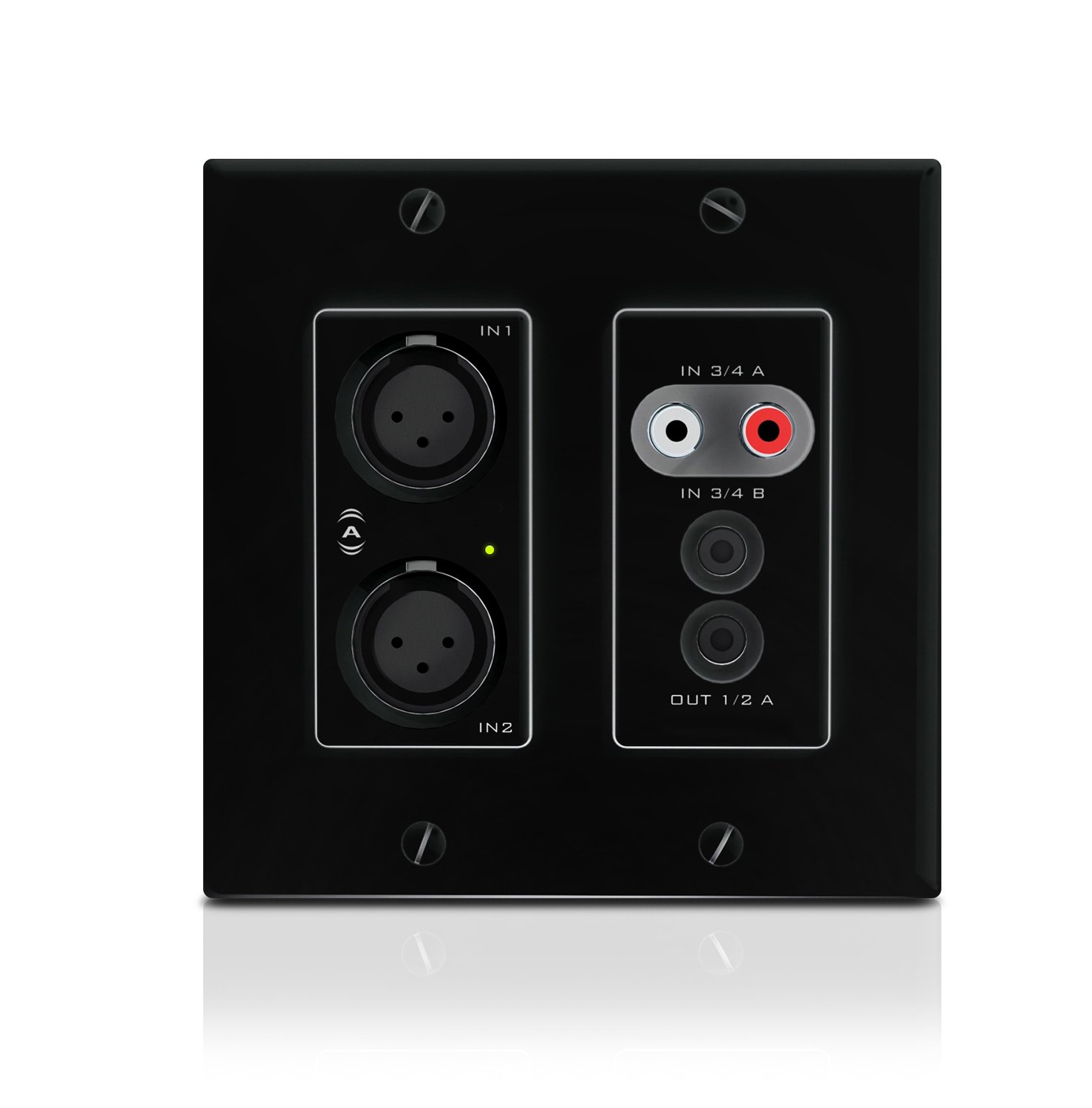

The unD6IO DanteTM Audio Interface is a cost-effective multi-IO wall plate. The unD6IO

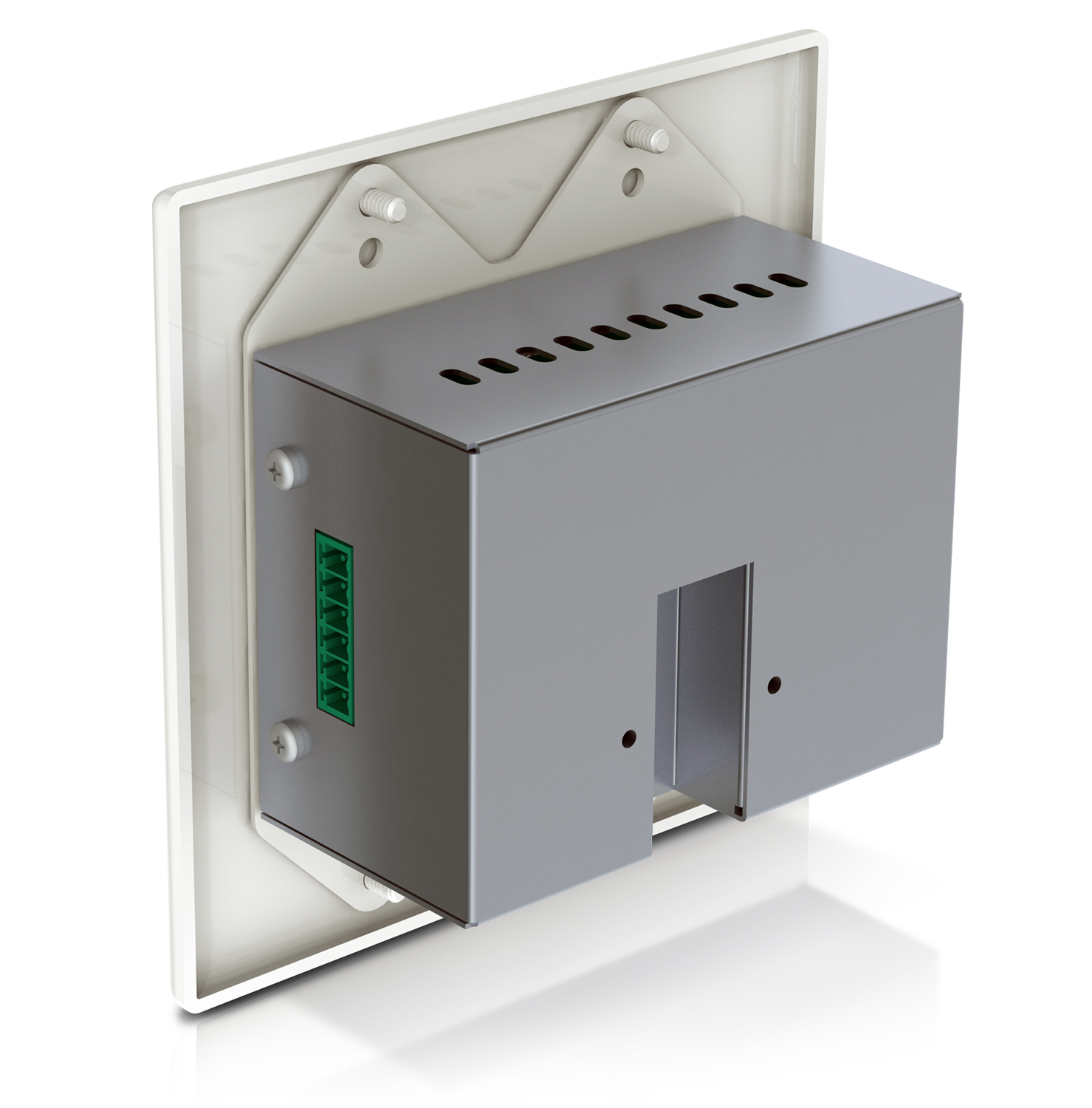

features two balanced mic/line XLR inputs, and two balanced outputs on side panel
de-pluggable connectors. Two RCA line level inputs and a 3.5mm TRS line level input
complete the available inputs. A 3.5mm TRS line level output is also included. The unD6IO
is designed to fit into most dual-gang US junction boxes and is PoE enabled, so all
connectivity (power, control and audio data) is provided by a single CAT-5e/6 cable. The
unD6IO’s size and I/O density make it easy to put Dante connectivity wherever it’s needed
- near the audio source or sink - thereby eliminating costly and interference-prone analog
wiring.
Audio Inputs
Input types
2x XLR (balanced and RF filtered inputs),
inputs 2/4
2x stereo unbalanced RCAInputs, Inputs
3/4 A
Stereo Unbalanced TRS 3.5 mm inputs,
Inputs 3/4 B
Gain -18 dB, -3 dB, +25 dB and +40 dB,
software selectable (Inputs 1/2)
Input impedance >1.8 kΩ at any gain (Inputs 1/2)
>10 kΩ (Inputs 3/4 A & B)
Maximum input levels
+20 dBu @ -18 dB gain,
+6 dBu @ - 3 dB gain,
-23 dBu @ +25 dB gain
-38 dBu @ +40 dB gain (Inputs 1/2)
+12 dBu ( Inputs 3/4 A & B)
Phantom power +48V, software selectable (Inputs 1/2 only)
Audio Input Performance
EIN -115 dBu (mic Inputs 1/2)
THD+N
< 0.02% @ 1 kHz for all gain settings,
input signal 3 dB below maximum (mic
inputs 1/2)
<0.01% (Line Inputs 3/4)
Frequency response
20 Hz – 20 kHz, +/- 1dB
(-18 and – 3 dB gain on Inputs 1/2)
50 Hz – 20 kHz +/- 1dB
(+25 dB and +40 dB gain on Inputs 1/2)
20 Hz – 20 kHz, +/- 1 dB (Inputs 3/4 A
& B)
Maximum input levels 0.250 ms minimum
Audio Outputs
Output type
Two balanced line level with automatic
muting on loss of Dante signal on 6-pin
Depluggable Phoenix (Outputs 1/2 B)
Two unbalanced line level outputs on stereo
3.5 mm TRS (Outputs 1/2 A)
Attenuation range Software controlled volume (0 to -60 dB,
1 dB increments)
Output impedance 200 Ω balanced,
100 Ω unbalanced
Maximum output levels +12 dBu at 0 dB attenuation (output 1/2 A)
+20 dBu at 0 dB attenuation (output 1/2 B)
Audio Output Performance
Output type
Two balanced line level with automatic
muting on loss of Dante signal on 6-pin
Depluggable Phoenix (outputs 1/2 B)
Two unbalanced line level outputs on
stereo 3.5mm TRS (outputs 1/2 A)
Attenuation range Software controlled volume (0 to -60 dB,
1 dB increments)
Output impedance 200 Ω balanced,
100 Ω unbalanced
Maximum output levels +12 dBu at 0 dB attenuation (output 1/2 A)
+20 dBu at 0 dB attenuation (output 1/2 B)
Dante Network
Physical level Standard Ethernet
Connector Single RJ-45
Cable type CAT-5e or better
Transmisssion speed 100 Mbps
Supported sample rates 44.1 kHz, 48 kHz
Minimum DanteTM
network latency 1 ms
General
Dimensions (HWD)
1 RU form factor
4.2 x 3.5 x 2 in
(114.3 x 88.9 x 50.8 mm)
Weight 0.6 lb (.27 kg)
Operating temperature 0 to 40° C
Regulatory compliance
FCC CFR 47 Parts 15B Class A
ICES-003
CE (EN55022)
RoHS
REACH
Environmental
Power 110 V - 220 V AC Input, with optional external
24 VDC redundant supply
Power consumption <20 W
