unDIO2x2+

There are no reviews yet. | Write a review

 Small form factor, can be unobtrusively located near analog

sources or sinks

 Dual power (DC or PoE) means the unAIO2x2+ will work in

systems with either standard or PoE Ethernet switches

 Five input gains to accommodate common line levels,

phantom powered and dynamic mics

 +48V phantom power per channel - powers virtually all types

of phantom powered microphones typically used in installed

AV systems

 Analog output volume: software adjustable between 0dB and

–60dB plus mute to accommodate all types of line input audio

equipment—both consumer and pro levels

 Industry standard +20dBu maximum input levels (at 0dB input

gain w/pad active) and +20dBu maximum output levels

 Full AES67 system status LEDs on the front panel

 AES67 is compatible with all QSC Core DSPs

 Built-in tone generator for audio system diagnostics

unAIO2x2+ PRODUCT BRIEF

APPLICATIONS

 Addition of microphones or other sources where analog cabling would be expensive or is not available back to a central

rack

 Network enable analog input power amplifiers or powered

speakers

 Multi-point network audio distribution
Price: $748.00
    Quantity:
    Availability: In Stock
    Usually ships In 24 - 48 hours

    Item #: unDIO2x2+

    Description

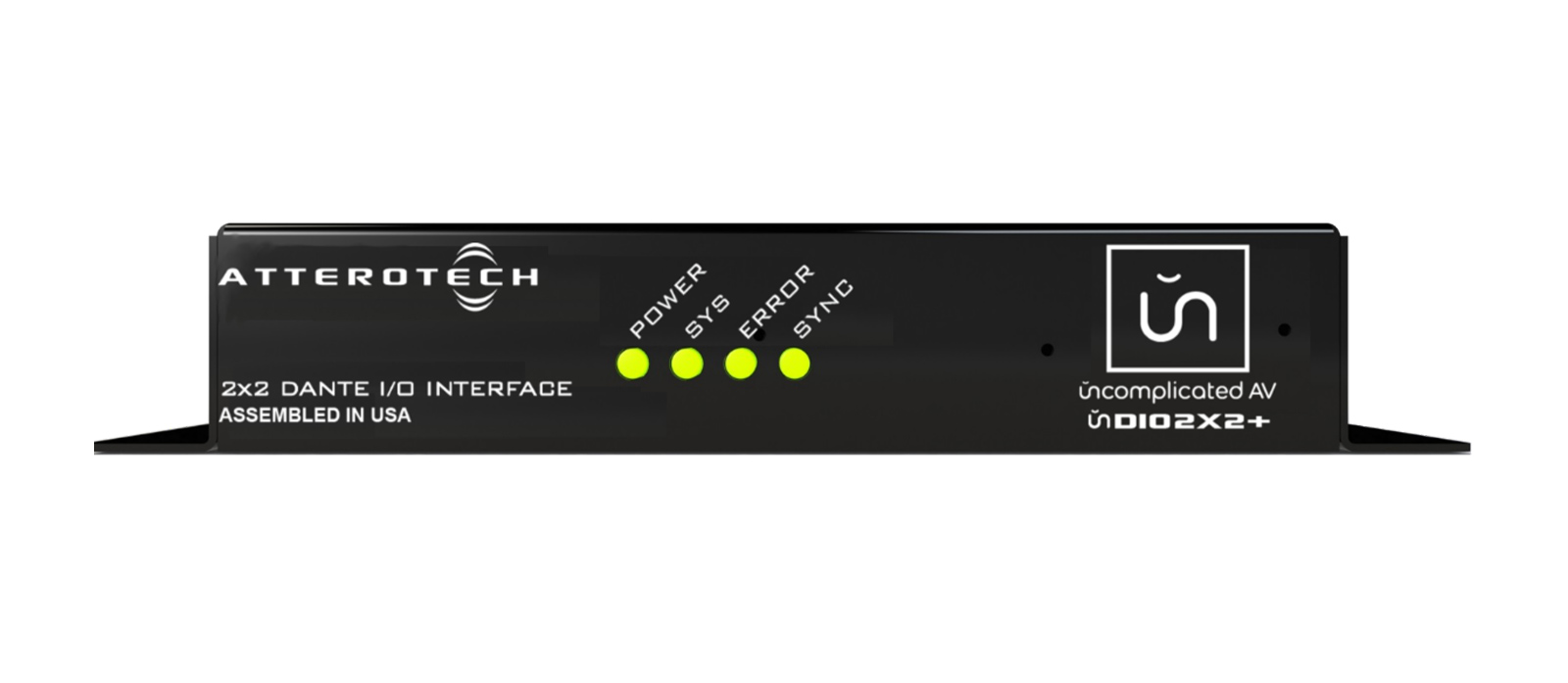

    The unAIO2X2+ is a 2-in/2-out AES67 audio interface. It's ideal for adding 2 channels of AES67 audio I/O in a small,

    unobtrusive form factor for installed sound applications. The two inputs use 3-pin de-pluggable connectors for balanced

    or unbalanced I/O connectivity and support either mic or line level signals. Each input also features a 48V phantom power

    option. The two outputs also use 3-pin de-pluggable connectors and each provides a balanced line level output. Each

    output also features software adjustable volume control.

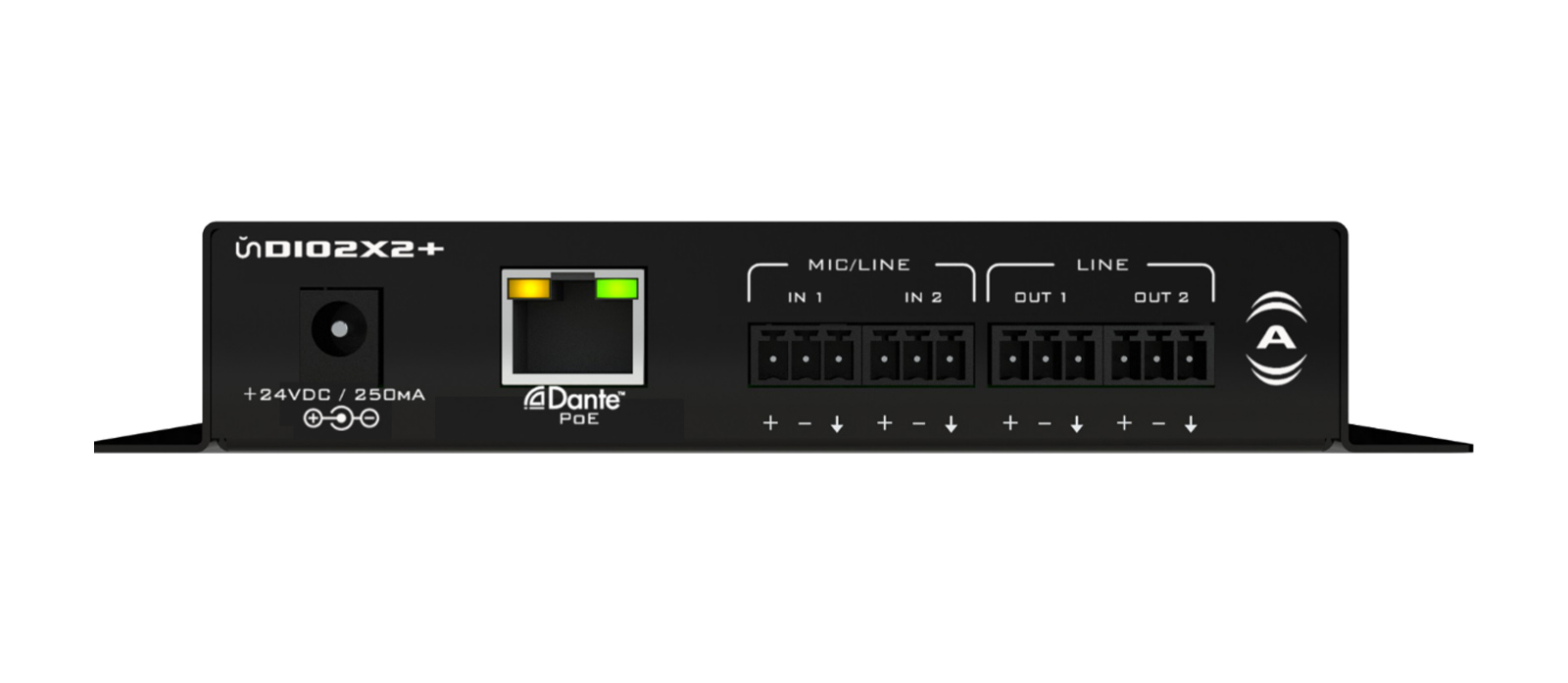

    Connection to the audio network is provided by a single Ethernet RJ45 connector on the back of the unit.

    The unAIO2X2+ can be powered by a 24V DC wall wart (ordered separately) but it also supports the use of PoE instead.

    This allows the unAIO2X2+ to be powered over the network cable from a suitable PoE source (IEEE802.3af). The PoE power

    option is particularly useful if the unAIO2X2+ is mounted in a remote location where access to a mains outlet is limited

    or indeed, nonexistent.

    The unit comes in a small form factor with integrated mounting bracket allowing it to be mounted discretely in small

    spaces (such as under desks) close to the sources or sinks thus reducing the amount of analog cabling that may be

    required.

    Specifications

    SPECIFICATIONS

    Mic/Line Input Type: Balanced and RF filtered 3-pin depluggable

    Phantom Power: +48V, software selectable

    Mic/Line Gain: -12dB (pad active), 0dB, +15dB, +30dB, +45dB,

    software selectable

    Input Impedance: >1.8K ohms at any gain setting

    Equivalent Input Noise: -119dBu (+45dB gain)

    Maximum Input Levels: +20dBu @ 0dB gain (with pad active),

    +8dBu @ 0dB, -7dBu @ +15dB gain, -22dBu @ +30dB gain, -37dBu

    @ +45dB gain

    Output Type: Balanced line level with automatic muting on loss

    of AES67 signal

    Output Volume: 0dB to –60dB plus mute, software selectable

    Output Noise: <-85dBu @ 0dB gain

    Maximum Output Level: +20dBu (@ 0dB output gain)

    System THD: <.05% at any gain, input signal 3dB below maximum

    Power Consumption: < 5W max

    PoE Class: Class 0 802.3af PoE PD compliant

    Certifications: FCC 47CFR Parts 15B and 18 (Class A), EN 55011,

    ICES-003, CE (EN55022 Class A and EN55024 Class A)

    Dimensions: 1.06”H x 6.45”W x 3.45”D

    Operating Temperature: 0°C ‐ 40°C
