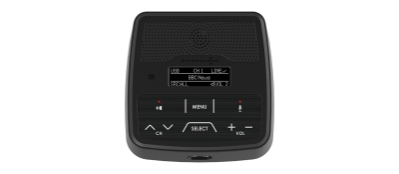

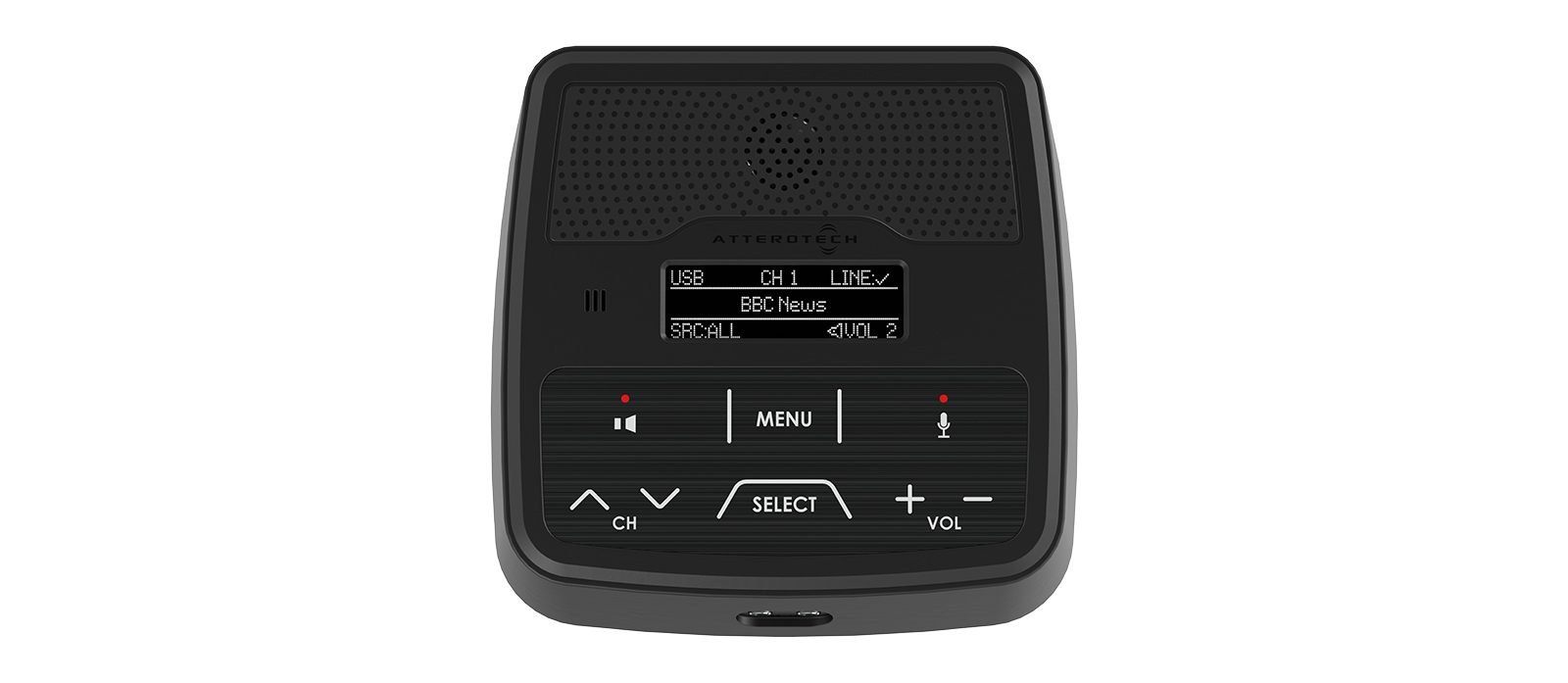

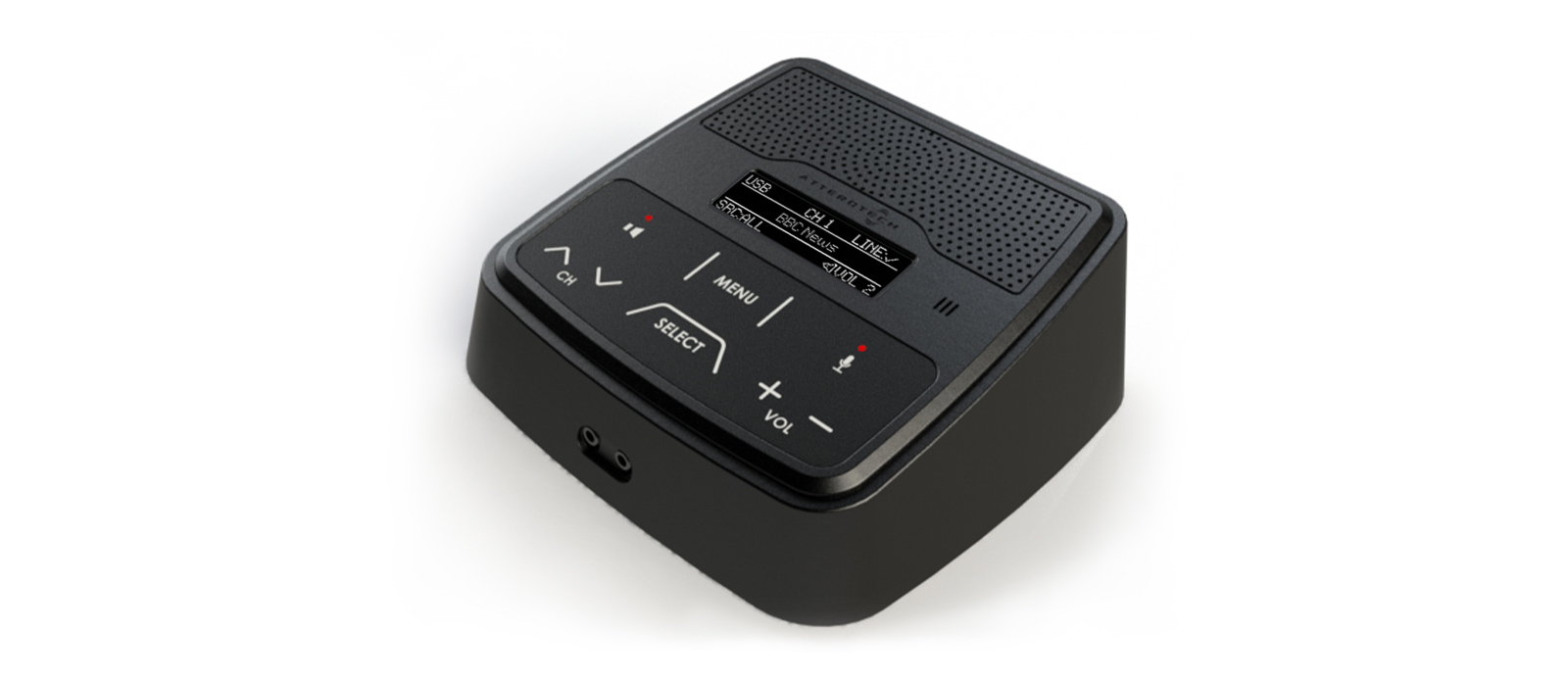

The Attero Tech by QSC unDNEMO Dante networked audio monitor offers a simple
solution for selection and monitoring of up to 64 Dante network audio channels via
headphones or the device’s internal loudspeakers. Additionally, the built-in microphone
and USB connector enable the unDNEMO to be used as a hands-free USB web
conferencing audio device.
unDNEMO Specifications
Audio Inputs
Input types
Internal electret microphone
External electret headset microphone
connectivity with internal bias
(3.5 mm T-S)
Line Input: 3.5 mm TRS
Input impedance Line Input: 10k Ω
Maximum input levels Line Input: +12 dBu
Mic bias voltage 1.65 V
Audio Input Performance
THD+N Line Input: <0.02% @ 1 kHz
Frequency response Line Input: 20 Hz – 20 kHz,
+/- 1 dB
Audio Outputs
Speaker type Internal 1 in driver
Attenuation range Software-controlled volume,
1 to 10 (max), 6 dB per step
Headphone output Stereo 3.5 mm TRS
Maximum output levels
Loudspeaker: 1 W @ max volume
Headphone: 1 Vrms into 32 Ω
(minimum load)
Audio Output Performance
THD+N <0.01% @ 1 kHz, input signal 3 dB
below maximum
Frequency response Headphone: 20 Hz – 20 kHz +/- 1 dB

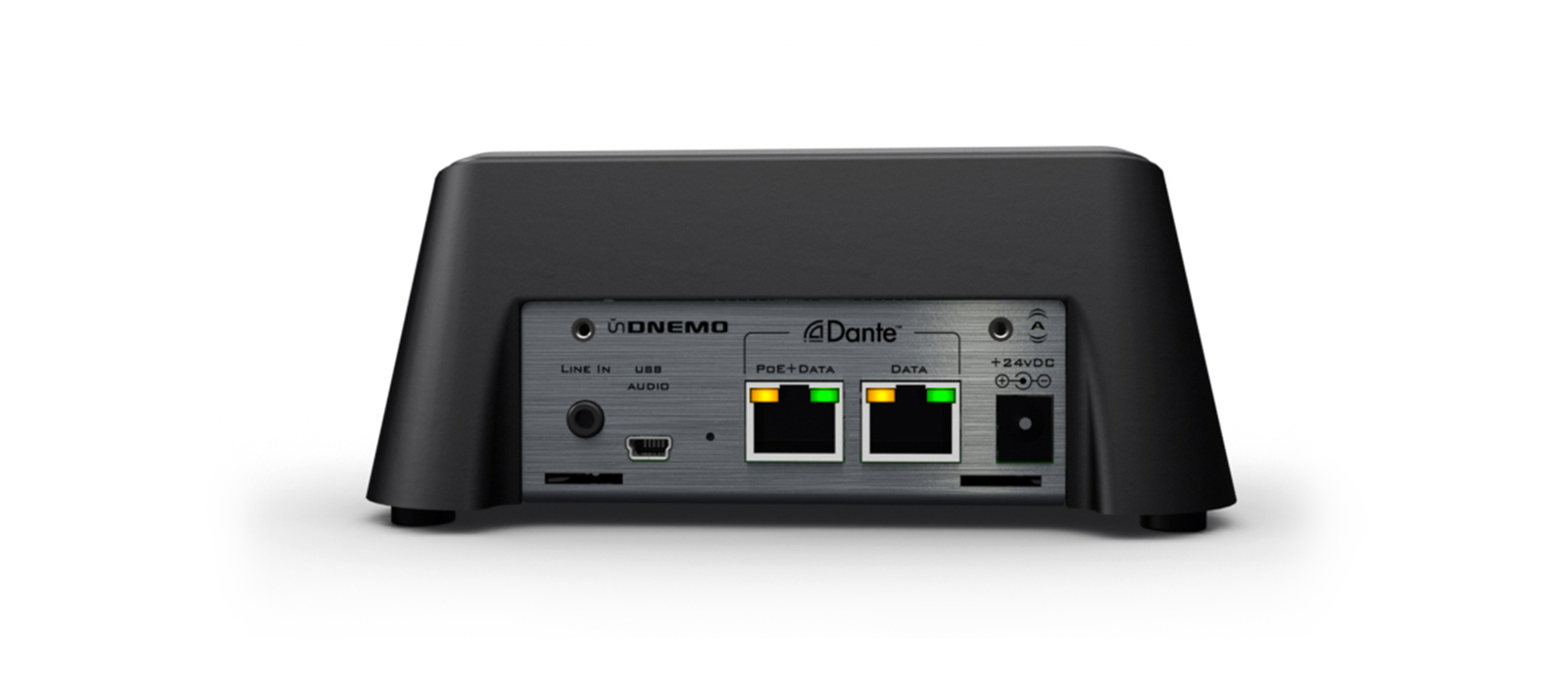

Dante Network
Physical level Ethernet
Connector(s) Dual RJ-45
Cable quality CAT-5e or greater
Transmission speed 1000 Mbps
Supported sample rates 48 kHz
Minimum Dante network latency 1 ms
Power Requirements
PoE 802.3af PoE PD compliant
External power 24 V DC, center positive barrel jack,
6.0 mm OD / 2.0 mm ID
Power consumption < 6 W Max
General
Product compliance
FCC CFR 47 Parts 15B
ICES-003
CE (EN55022)
RoHS
REACH
Dimensions (HWD) 2.6 x 6.5 x 6.2 (0.1 x 0.3 x 0.2 mm)
Weight 1.13 lb (0.51 Kg)
